Graphical Glitches on Reboot?

Autokon

macrumors 6502
Original poster
Jan 21, 2008
336
30
CA
Hi all!

Like everyone else, I upgraded to Sierra. I'm running a 5K 27' iMac. Everything is actually perfectly fine for the most part. The only small issue I have is during reboot or shutdown. It'll display an odd graphical glitch for maybe a second, then shutdown or reboot perfectly fine. It only started after upgrading to Sierra...so I'm sure its a software issue.

Here is what it looks like: http://wilparker.d.pr/BZ6F

Any thoughts?

I simply upgraded from El Cap to Sierra. I then tried a clean install followed by a restore from time machine. Still having same issues. Was wanting to prevent from starting "fresh" completely... blah.

Anybody with a fresh install having this as well?

  • Like
Reactions: kyleguibelondo

daroca

macrumors newbie
Jan 11, 2007
8
0
London
Same issue after I did a clean install.. This didn't happen when I initially did an upgrade from el-cap to sierra I agree it is a software issue.


Autokon

macrumors 6502
Original poster
Jan 21, 2008
336
30
CA
Same issue after I did a clean install.. This didn't happen when I initially did an upgrade from el-cap to sierra I agree it is a software issue.
Well, this makes me happy in knowing at least I'm not the only one! :)


daroca

macrumors newbie
Jan 11, 2007
8
0
London
I retried reboots serveral times this morning and didn't see the graphical glitch again. When I shutdown it now just get a black screen until it powers off.

No changes made so I suspect it may just resolve itself.

Spoke too soon it happened again

Last edited:

Miscellaneous

macrumors regular
Aug 30, 2014
131
8
London, UK
I have a nMP connected via HDMI to HDMI to an Asus 1920x1080 external monitor. I've upgraded the OS to every new version since OS X 10.9 Mavericks with no issues regarding graphical glitches on Startup/Reboot.

I upgraded through the Mac App Store from OS X 10.10.5 to macOS Sierra 10.12 on release day and didn't come across any problems.

I then performed a clean install on my nMP, installing via a USB flash drive. This is when I noticed some strange graphical behaviour during installation where the Apple logo and progress bar would shift to the top left of the screen.

Now I have a graphical glitch in the form of a multicoloured scrambled line going horizontally above the Apple logo on Startup just before being presented with the log in screen. It appears every time, even when restarting.

Since then I have gone back to OS X 10.10.5 Yosemite and no longer have this issue.


idome

macrumors newbie
Sep 24, 2016
9
0
Now I have a graphical glitch in the form of a multicoloured scrambled line going horizontally above the Apple logo on Startup just before being presented with the log in screen. It appears every time, even when restarting.
I have same kind of problem (see 0:28 ->)


Very annoying. Also tried clean install from recovery partition (fully wipe primary partition) not tried USB method, but i guess affect its same.

Last edited:

blackdogaudio

macrumors regular
Aug 17, 2016
176
89
Hi all!

Like everyone else, I upgraded to Sierra. I'm running a 5K 27' iMac. Everything is actually perfectly fine for the most part. The only small issue I have is during reboot or shutdown. It'll display an odd graphical glitch for maybe a second, then shutdown or reboot perfectly fine. It only started after upgrading to Sierra...so I'm sure its a software issue.

Here is what it looks like: http://wilparker.d.pr/BZ6F

Any thoughts?

I simply upgraded from El Cap to Sierra. I then tried a clean install followed by a restore from time machine. Still having same issues. Was wanting to prevent from starting "fresh" completely... blah.

Anybody with a fresh install having this as well?
No worries...I've got the same artifacts on my Late 2014 5K iMac that both you and idome reported. It's software related for sure as reimaging with El Capitan or Yosemite eliminates the problem. I filed a bug report on it during beta testing so I'm sure it will get resolved at some point.

P.S. It occurs with both a Sierra clean install or upgrade here on my 5K iMac and is intermittent during restart or shutdown. It's NOT present at all on my 2014 MBA after upgrading to Sierra. I'm upgrading my mid 2011 iMac to Sierra right now and will report results later.

Last edited:
  • Like
Reactions: idome

kyleguibelondo

macrumors newbie
Sep 24, 2016
2
0
Qatar
I had also an issue like this on my 2015 MBPR. On the boot screen, right after i entered my login password. The screen shows a glitch. It happened after I installed macOS Sierra from El Capitan. I don't know what is the problem. Its just annoying to see problems such like this, to think that apple has just released their new flagship OS.





campyguy

macrumors 68040
Mar 21, 2014
3,413
951
Any thoughts?
One thought. I upgraded a Mini Server yesterday from 10.11 to 10.12, taking a few screen shots before and after of some system information - I posted them in another thread after noticing two changes to the information shown in the Graphics/Displays section of the System Information app.

First, there's a new data field for "Metal" and a new data field for "Automatically Adjust Brightness", and they're present on my rMBP too. I have an office move this week with no more time to investigate this further, however, I am seeing some artifacts spanning a fraction of a second on boot up of my rMBP's external display in addition to having more resolution options available now on that external display, connected over mDP>DP. I'm suspecting that Apple's reworked its graphics engine...


Skydoor Blue

macrumors newbie
Sep 19, 2016
15
1
Well, this makes me happy in knowing at least I'm not the only one! :)
I noticed some artifacts in the restore animation when restoring FF from minimized if it is playing a YouTube video. I think I've seen a few other glitches but nothing serious. But I would say, agreed, El Capitan is so far a bit smoother in the video department than macOS.

I figure these will get ironed out in the next point release - they're not serious for me - so I'm sticking with macOS for now.

Moreover, some of the glitches of El Capitan are resolved in macOS. A couple issues with the Apple Store have improved for me on macOS.

'And I like some of macOS's features: I like the how I can turn on tabs in the Text application and so on.

Overall, so far so good, and the video issue will probably be resolved shortly.


mattysouthall

macrumors member
Jul 23, 2012
80
30

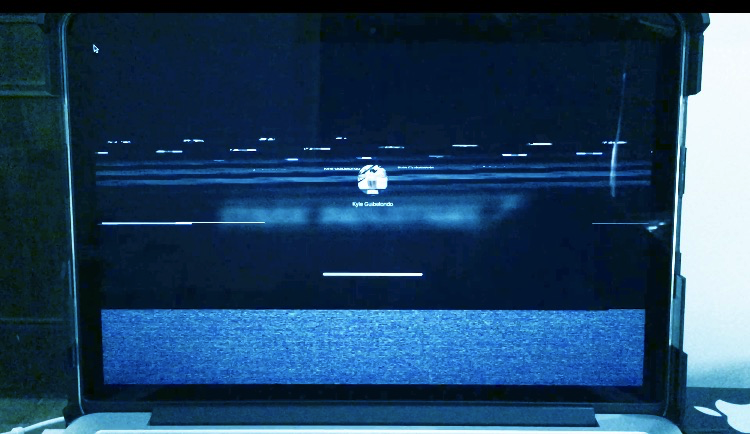

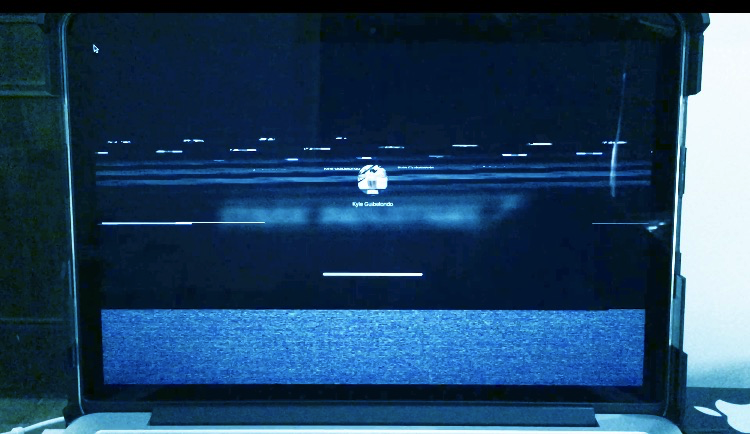

I had also an issue like this on my 2015 MBPR. On the boot screen, right after i entered my login password. The screen shows a glitch. It happened after I installed macOS Sierra from El Capitan. I don't know what is the problem. Its just annoying to see problems such like this, to think that apple has just released their new flagship OS.

View attachment 658464

I had a similar glitch, thought nothing of it really. As long as it doesn't cause any annoying crashes or freezes then I can deal with it until they release a fix.

  • Like
Reactions: kyleguibelondo

kyleguibelondo

macrumors newbie
Sep 24, 2016
2
0
Qatar
I had a similar glitch, thought nothing of it really. As long as it doesn't cause any annoying crashes or freezes then I can deal with it until they release a fix.
on the other hand, there is also a glitch regarding the trackpad. as i enter the settings in the trackpad, i checked "ignore built-in track pad when mouse or wireless track pad is present" since i am using a bluetooth mouse. The built-in trackpad still enabled. It ignores the setting selection i prefer. o_Oo_Oo_O


accentaudio

macrumors 6502
Apr 4, 2012
359
110
Kansas City
I have same kind of problem (see 0:28 ->)


Very annoying. Also tried clean install from recovery partition (fully wipe primary partition) not tried USB method, but i guess affect its same.
Same exact issue here. Horizontal line upon boot. I sure hope everyone is reporting these issues to Apple. My oh my, Apple sure is slipping in the QC department.

  • Like
Reactions: s3nia

Autokon

macrumors 6502
Original poster
Jan 21, 2008
336
30
CA
Man... must be pretty wide spread then. I'm surprised to have come back to this many posts, haha. Glad I'm not alone! Atleast it doesn't harm anything, its just...annoying.


blackdogaudio

macrumors regular
Aug 17, 2016
176
89
Man... must be pretty wide spread then. I'm surprised to have come back to this many posts, haha. Glad I'm not alone! Atleast it doesn't harm anything, its just...annoying.
It was a bit concerning the first time I saw it as it suggested a possible hardware failure on an eighteen month old iMac.

  • Like
Reactions: idome

s3nia

macrumors newbie
Oct 11, 2016
2
0
Rome
I have same kind of problem (see 0:28 ->)


Very annoying. Also tried clean install from recovery partition (fully wipe primary partition) not tried USB method, but i guess affect its same.
Did you fixed the problem? I have the same issue on mine.


Autokon

macrumors 6502
Original poster
Jan 21, 2008
336
30
CA
Did you fixed the problem? I have the same issue on mine.
Nope. I've seen the issue all around the web though, so I'm not really worried like I was initially. I'm waiting to see if the next update fixes the issue.


s3nia

macrumors newbie
Oct 11, 2016
2
0
Rome
Nope. I've seen the issue all around the web though, so I'm not really worried like I was initially. I'm waiting to see if the next update fixes the issue.
I hope too. I'm a bit disappointing because as you see in the comments of these video, these person having the same problem says "If this is a software error why do I get the same glitch when I boot from my backup of El Capitan. PERHAPS this is a hardware error that is caused by software".
Hope all is going to be well :)


Miscellaneous

macrumors regular
Aug 30, 2014
131
8
London, UK
I hope they fix this, but I have no problem with staying on Yosemite on my nMP as it works great and has all the features I need.

I have also updated a mid 2015 rMBP which came with OS X 10.11 El Capitan to macOS Sierra 10.12. I wasn't very happy with the performance of El Capitan and for the most part upgrading to macOS Sierra solved a lot of issues for me.

However I now face a new issue when using my rMBP with an external monitor via HDMI to HDMI. Since the upgrade to macOS Sierra there are graphics glitches when starting or restarting my rMBP and also on the log in screen.

I read elsewhere that external monitor graphics issues are fixed in the 10.12.1 update which is still in beta at present. I hope this is the case and was wondering if anyone could confirm this?


MacBAir

macrumors member
Aug 5, 2016
96
117
Portugal
These are the sort of things that should never happen, at all. They obviously knew it. Who was forcing them to release Sierra, anyway?


idome

macrumors newbie
Sep 24, 2016
9
0
I started thinking if NVRAM reset along of Sierra upgrade has something to do with graphic glitch. How many of us has applied NVRAM reset after Sierra upgrade? I do.


Autokon

macrumors 6502
Original poster
Jan 21, 2008
336
30
CA
I started thinking if NVRAM reset along of Sierra upgrade has something to do with graphic glitch. How many of us has applied NVRAM reset after Sierra upgrade? I do.
I tried that awhile ago. Didn't do any good for me.


idome

macrumors newbie
Sep 24, 2016
9
0
BTW, the graphic glitch disappears when booting in safe mode, but its back after booting in normal mode. So this is definitely software related problem.
