Graphics corruption with Nvidia cards and 10.6.7+

Discussion in 'Mac Pro' started by VirtualRain, Mar 30, 2011.

  1. VirtualRain, Mar 30, 2011
    Last edited: Jul 1, 2011

    VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #1

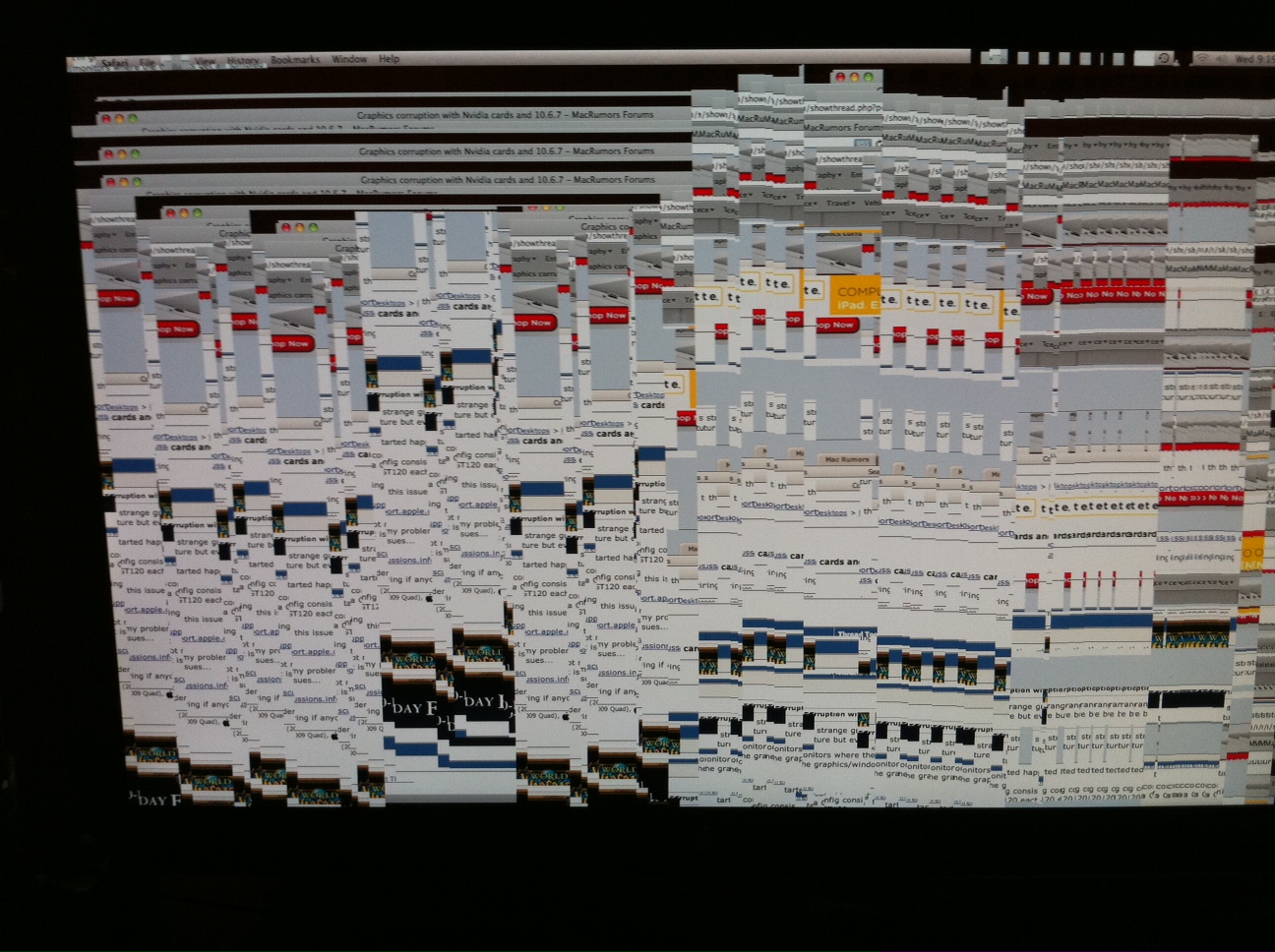

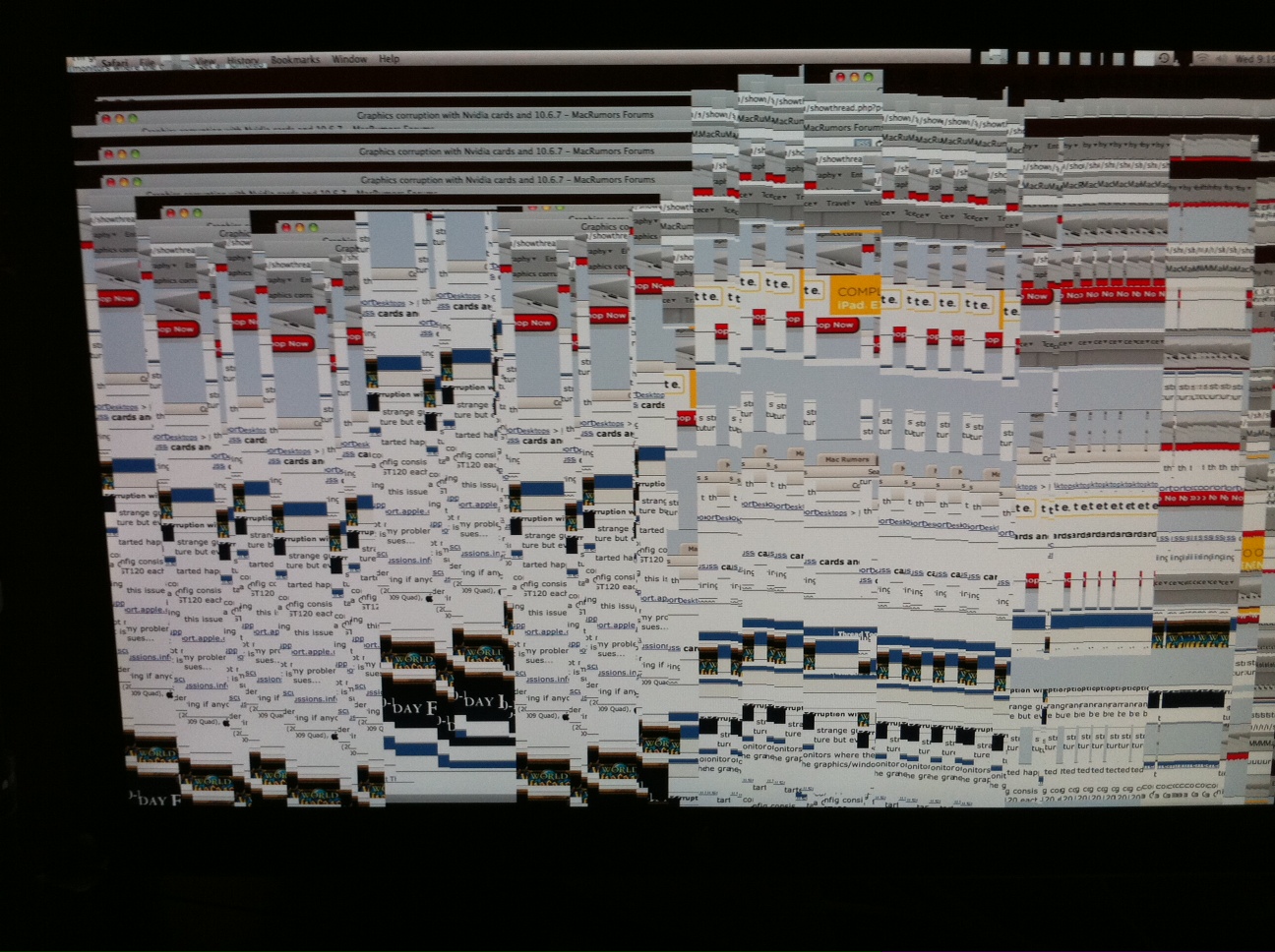

    I'm getting strange graphics corruption occasionally on one or both of my monitors where the graphics get all corrupted. I wish I could take a screen capture but every time I do, the capture comes out perfect despite the graphics/windows/text being jumbled in a blocky mess. (Updated with a photo of the screen)

    This only started happening after I updated to 10.6.7. If I reboot I might be fine for 10 minutes or an hour but it eventually comes back and almost certainly if I play multiple videos (eg. 2 or more) in Quicktime on the same monitor at once.

    My GPU config consists of...
    2x Nvidia GT120 each driving a single 24" LCD ACD via MDP

    In googling this issue, I found out there is a known issue with Nvidia drivers with 10.6.7 not supporting Quadro cards...

    http://support.apple.com/kb/TS3740?viewlocale=en_US

    That's not my problem, but it is Nvidia driver related, indicating they changed the drivers in 10.6.7. Other's with 320M are complaining of slightly different issues...

    http://discussions.info.apple.com/thread.jspa?messageID=13312005

    I'm wondering if anyone here with Nvidia cards and 10.6.7 has noticed anything?

    UPDATE: I took a chance and installed the NVIDIA drivers mentioned in the Apple KB article here. After some very preliminary testing, I can't seem to recreate the problem. :confused: If this ends up fixing this problem and this is not unique to me I'll be pretty disappointed with Apple's QA process.


    Attached Files:

  2. VirtualRain thread starter macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #2
    So I gather no one else has encountered this? Odd.

  3. Whaditis macrumors regular

    Joined:
    May 18, 2010
    #3
    I just encountered the same thing last night. I am using 2x GT120 cards using 3 monitors and had to reboot a couple of times.

    I have a suspicion that it is flash that's doing this as I was playing a youtube video on one screen while browsing on the other two screens.

    Once I rebooted the second time and didn't use youtube it did not come back.

  4. Transporteur macrumors 68030

    Joined:
    Nov 30, 2008
    Location:
    UK
    #4
    Oh boy! I am so done with graphics cards and Apple. Only trouble. Is there any quality control whatsoever with their software updates? :mad:

    Why do we pay the premium for Apple graphics cards?

    I do have a GT120 in my system as well, but considering these news, I'm definitely not trying 6.7. Still running 6.3 here cause that's the last version that runs my system.

    /rant

  5. VirtualRain thread starter macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #5
    The good news is that I haven't had any issues after two evenings now since I installed the new Nvidia drivers.

  6. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #6
    Thanks for this thread VR :)
    I've installed these new drivers on my Mini with 320M and its OGL performance increased by about 20% (in comparison to 10.6.7 ones). Installer doesn't want to run, because it's checking model ID, but I've used Pacifist and kextHelper, et voila :) Still it's worse than in 10.6.3, though, but I can live with that.
    10.6.7 drivers are completely screwed-up.

    I didn't want to downgrade OS, so I've done some kext fiddling. Unfortunately seems to be impossible to use 10.6.3 drivers with 10.6.7. Blue or black screens, no matter what kexts mixes I tried :(

  7. Whaditis macrumors regular

    Joined:
    May 18, 2010
    #7
    Just installed the new drivers as well thanks to your link and I must say quite an improvement.

    Thanks

    Whad

  8. VirtualRain thread starter macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
  9. colinsky macrumors member

    colinsky

    Joined:
    Apr 3, 2009
    #9
    Thanks, VirtualRain, the Nvidia drivers solved my MacPro graphics corruption!

  10. VirtualRain thread starter macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #10
    Note that this reared it's ugly head again for me after updating to 10.6.8... turns out there's another new NVIDIA Quadro driver that solved the problem...
    http://www.nvidia.com/object/quadro-macosx-256.02.25f01-driver.html

    I wonder why Apple is shipping problematic Nvidia drivers in it's last two OS updates? And I'm also wondering why this is so isolated... only a few people seem to be impacted. Odd.
