GTX-285: Can it drive a 3440x1440 monitor?

malcbo

macrumors member
Original poster
Oct 27, 2012
49
5
Switzerland
Hi,

Title says it all. :D
I have a 5 years old GTX-285 in my Mac Pro (4,1->5,1) and I'm looking at the Dell U3415W to replace my Dell U2711.
Will the GPU handle the resolution of the 34" monitor?


Machines

macrumors 6502
Jan 23, 2015
426
88
Fox River Valley , Illinois
Hi,

Title says it all. :D
I have a 5 years old GTX-285 in my Mac Pro (4,1->5,1) and I'm looking at the Dell U3415W to replace my Dell U2711.
Will the GPU handle the resolution of the 34" monitor?
Nope . A GTX 285 Mac Edition has two DL DVI ports . Resolution peaks with DVI at 2560 X 1600 . Grab an AMD 7950 .


malcbo

macrumors member
Original poster
Oct 27, 2012
49
5
Switzerland
Thanks for your answer, Machines. :)

Guess I'll need to upgrade my GPU (GTX-680 or 980) prior to acquiring the new monitor then.


Machines

macrumors 6502
Jan 23, 2015
426
88
Fox River Valley , Illinois
Thanks for your answer, Machines. :)

Guess I'll need to upgrade my GPU (GTX-680 or 980) prior to acquiring the new monitor then.
Good news if you spring for the 680 with your rig , you can get 4K60 support with a SST display (Samsung U28D590 ) . That's pretty impressive and not too expensive . Display uses TN , but it's from Sammy and costs only 500-550 USD .

----------

Good news if you spring for the 680 with your rig , you can get 4K60 support with a SST display (Samsung U28D590 ) . That's pretty impressive and not too expensive . Display uses TN , but it's from Sammy and costs only 500-550 USD .

The Maxwell GPUs (980, etc.) also support 4K (but at 60 Hz ?) in OS X according to another forum member , but the drivers are very immature and the GPU does not support ray tracing .


malcbo

macrumors member
Original poster
Oct 27, 2012
49
5
Switzerland
Good news if you spring for the 680 with your rig , you can get 4K60 support with a SST display (Samsung U28D590 ) . That's pretty impressive and not too expensive . Display uses TN , but it's from Sammy and costs only 500-550 USD .

----------

TBH I don't feel the need for 4K60 displays as the pixel pitch on a 28" monitor is very small. On the other hand, if I use HDPi I'll only get a resolution of 1920*1080 and will lose desktop space.
Finally, as I do a bit of Lightroom and PS, an IPS monitor is preferable to me.

The Maxwell GPUs (980, etc.) also support 4K (but at 60 Hz ?) in OS X according to another forum member , but the drivers are very immature and the GPU does not support ray tracing .
I'm aware of the driver issues with 10.10.2, not very reassuring at the moment IMO
If eVGA decide to launch GTX-980 Mac Edition, that's what I'll go for.
If they take too long, I'll stick to the more modest GTX-680 (which will definitely be a big boost versus my current GTX-285).


Machines

macrumors 6502
Jan 23, 2015
426
88
Fox River Valley , Illinois
TBH I don't feel the need for 4K60 displays as the pixel pitch on a 28" monitor is very small. On the other hand, if I use HDPi I'll only get a resolution of 1920*1080 and will lose desktop space.
Finally, as I do a bit of Lightroom and PS, an IPS monitor is preferable to me.


I'm aware of the driver issues with 10.10.2, not very reassuring at the moment IMO
If eVGA decide to launch GTX-980 Mac Edition, that's what I'll go for.
If they take too long, I'll stick to the more modest GTX-680 (which will definitely be a big boost versus my current GTX-285).
There are no drivers in Mac OS X for the Maxwell GPUs . All the drivers must come from nVidia . And nVidia has immature Web and Cuda drivers for OS X for the Maxwells .

I dream of an eVGA GTX 980 Mac Edition . I bet they'll retail for 980 bucks lol , but the ROM Meisters will at least have a field day .


ToroidalZeus

macrumors 68020
Dec 8, 2009
2,301
821
So far my GTX 980 is working almost perfectly under OS X. Only issue I have is getting HDMI audio to work.

If you have the money to splurge on a 980 then definitely get it OP.
If cost is an issue and you just need a GPU to drive a 3440x1400 monitor than get a eVGA 750 ti.

Last edited:

malcbo

macrumors member
Original poster
Oct 27, 2012
49
5
Switzerland
There are no drivers in Mac OS X for the Maxwell GPUs . All the drivers must come from nVidia . And nVidia has immature Web and Cuda drivers for OS X for the Maxwells .

I dream of an eVGA GTX 980 Mac Edition . I bet they'll retail for 980 bucks lol , but the ROM Meisters will at least have a field day .
I did see the post from MVC about driver issue with the update of Yosemite.
Not so much for me for the time being as I prefer p&p solutions.
Yes, I'm sure the price will be high if eVGA decide to launch a Mac Edition of the GTX-980 :(
So far my GTX 980 is working almost perfectly under OS X. Only issue I have is getting HDMI audio to work.

If you have the money to splurge on a 980 then definitely get it OP.
If cost is an issue and you just need a GPU to drive a 3440x1400 monitor than get a eVGA 750 ti.
As explained above, it's not so much a question of money, but more of "perfect integration" with the system.
And tbh I really do not want a middle/low end GPU as I like sometimes to launch a game (either in Maac OS or in windows).


ToroidalZeus

macrumors 68020
Dec 8, 2009
2,301
821
As explained above, it's not so much a question of money, but more of "perfect integration" with the system.
And tbh I really do not want a middle/low end GPU as I like sometimes to launch a game (either in Maac OS or in windows).
you are making things more complicated than they need be; get a GTX 970 or preferably 980. done.


MacVidCards

Suspended
Nov 17, 2008
7,506
1,029
Hollywood, CA
you are making things more complicated than they need be; get a GTX 970 or preferably 980. done.
It is possible that Apple will drag their feet for a very long time on including Maxwell in OS.

Iirc, they went through Mavericks and never included Titan Black or 780Ti. Haven't tried in 10.10.2 yet but they weren't in 10.10.1.

They are in no hurry to include cards that make nMP look silly in their own OS.

So if you wait for them to include in base OSX it might be another year.

Fwiw, while it was still a nuisance moving to 10.10.2 with our GTX980 Mac Edition, it was easier than the non-EFI cards. 2nd set of 10 of these just shipped so more reports will be coming from the field.

And I will be testing 2nd attempt at EFI 970 today, fingers crossed.


ToroidalZeus

macrumors 68020
Dec 8, 2009
2,301
821
It is possible that Apple will drag their feet for a very long time on including Maxwell in OS.

Iirc, they went through Mavericks and never included Titan Black or 780Ti. Haven't tried in 10.10.2 yet but they weren't in 10.10.1.

They are in no hurry to include cards that make nMP look silly in their own OS.

So if you wait for them to include in base OSX it might be another year.

Fwiw, while it was still a nuisance moving to 10.10.2 with our GTX980 Mac Edition, it was easier than the non-EFI cards. 2nd set of 10 of these just shipped so more reports will be coming from the field.

And I will be testing 2nd attempt at EFI 970 today, fingers crossed.
Apple bundled drivers would only help with installing the OS on a blank drive. With Nvidia constantly updating the drivers it makes little sense to stick with Apple's older drivers vs the modern web drivers on a running system.

Good luck on that EFI support.


MacVidCards

Suspended
Nov 17, 2008
7,506
1,029
Hollywood, CA
Apple bundled drivers would only help with installing the OS on a blank drive. With Nvidia constantly updating the drivers it makes little sense to stick with Apple's older drivers vs the modern web drivers on a running system.

Good luck on that EFI support.
You didn't understand point I was making.

Right now using 960/970/980 has a unique issue that has also plagued 780Ti/Titan Black owners for awhile.

It is the original "Catch 22" all over.

To update to 10.10.2 is easy, but once you do there is no easy way to then update the web drivers. You need the web drivers to run the OS, but you have to install the OS first. So when you reboot after 10.10.2 with an unflashed 960/970/980 all you ever see is black. You need to remove the card and use a different one to install web driver. Or you could enable remote desktop before install.

In any case, it is easier with EFI on the 960/970/980. But until Apple lets Nvidia use newer drivers in base OS, it will be a pain in the butt for every OS update.


ToroidalZeus

macrumors 68020
Dec 8, 2009
2,301
821
You didn't understand point I was making.

Right now using 960/970/980 has a unique issue that has also plagued 780Ti/Titan Black owners for awhile.

It is the original "Catch 22" all over.

To update to 10.10.2 is easy, but once you do there is no easy way to then update the web drivers. You need the web drivers to run the OS, but you have to install the OS first. So when you reboot after 10.10.2 with an unflashed 960/970/980 all you ever see is black. You need to remove the card and use a different one to install web driver. Or you could enable remote desktop before install.

In any case, it is easier with EFI on the 960/970/980. But until Apple lets Nvidia use newer drivers in base OS, it will be a pain in the butt for every OS update.
I just use pacifist to install the newest web drivers before upgrading the OS.

or

I attach the Mac Pro SSD to a USB 3.0 adapter and upgrade the software / use pacifist to install web drivers on a different Mac.

It's a minor hassle IMO for such a good GPU and not a deal breaker to stick with old obsolete cards.


malcbo

macrumors member
Original poster
Oct 27, 2012
49
5
Switzerland
Hi,

Eventually got a second hand GTX-680 (eVGA flashed) and bought the Dell U3415W.

I first connected the monitor using DP cable., and it worked fine on first boot. But then, restarting the MP would leave the monitor black until getting on the desktop, I wasn't able to see the grey boot screen with the Apple.

Started scratching my head to identify the issue until I tried using the HDMI cable.
Problem solved now!

Getting the full 3440x1440 at 60Hz.


ActionableMango

macrumors G3
Sep 21, 2010
9,269
6,260
Started scratching my head to identify the issue until I tried using the HDMI cable. Getting the full 3440x1440 at 60Hz.
You're getting 3440x1440 at 60Hz over HDMI? Are you sure? If I'm not mistaken, you should only be able to get that with HDMI 2.0. The monitor I believe is HDMI 2.0, but the GTX 680 should be HDMI 1.3 or maybe 1.4.

I would appreciate it if you could double check and report back (3440x1440@60Hz over HDMI), because your answer has an impact on a project I'm doing.


malcbo

macrumors member
Original poster
Oct 27, 2012
49
5
Switzerland
You're getting 3440x1440 at 60Hz over HDMI? Are you sure? If I'm not mistaken, you should only be able to get that with HDMI 2.0. The monitor I believe is HDMI 2.0, but the GTX 680 should be HDMI 1.3 or maybe 1.4.

I would appreciate it if you could double check and report back (3440x1440@60Hz over HDMI), because your answer has an impact on a project I'm doing.
Hi,

I'm positive about 60Hz with HDMI.

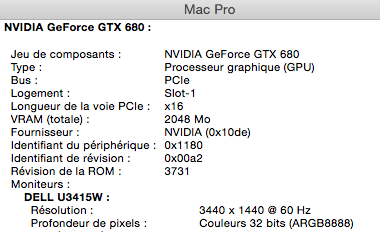

Here is a screen taken right now:


The only cable connected between the GPU and the Monitor is an HDMI cable (supplied with the monitor)

BTW, the monitor menu also reports 60Hz


ActionableMango

macrumors G3
Sep 21, 2010
9,269
6,260
Hi,

I'm positive about 60Hz with HDMI.

Here is a screen taken right now:

The only cable connected between the GPU and the Monitor is an HDMI cable (supplied with the monitor)

BTW, the monitor menu also reports 60Hz
Very nice of you to respond again, thank you. I'm going to change some things around and then give this a try myself.
