GTX580 3GB in cMP 4,1?

[VanneDC]

HI guys, ill be removing the GTX680 I have in my MP 4,1 with upgrade to 5,1 and 6 core CPU to a new dedicated box with 2x 680 Sli for my PC2 , so Ill be left with the GTX580 3GB, now as far as performance wise this card will be just fine for the stuff I do with my MP, a few old-ish games, like SC2, Diablo 3, GTA and a bunch of other 2-3 year old games.

What I am a little worried about is the power draw on the 580?

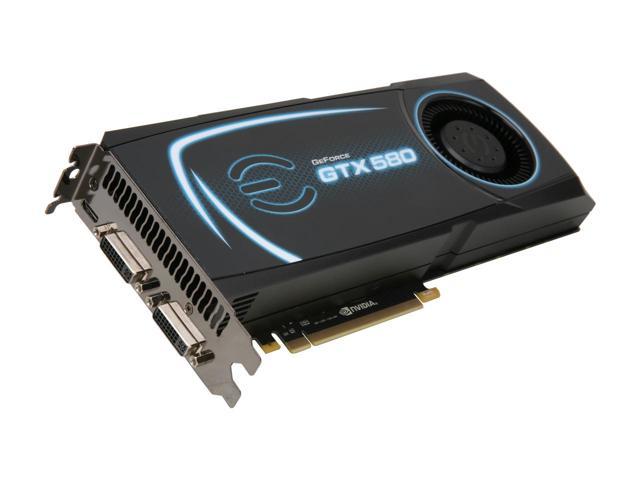

its this card

https://www.pcauthority.com.au/review/evgas-geforce-gtx-580-3gb-a-touch-too-much-271384

Ive got a mini power lead that will go to the 8 pin socket, and ofcourse the other 6 pin wil go to the other one, but will the CPU (stock) and the mobo handle this ok?

Specs says this...

• 600 Watt or greater power supply with a minimum of 42 Amp on the +12 volt rail.****
• PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot.
• An available 6-pin PCI-E power connector and an available 8 pin PCI-E power connector

Ive got no additional cards in my MP, and I can disconnect the DVD drive to save a few amps if required...

I haven't flashed this card to MAC yet, not even sure if there is a rom to do so, so at this stage ill be having to do the winslows/Mac shuffle blind, which sucks.. any ideas on how to remedy that?



[orph]

dont think there is a mac rom for it, only think gtx680 and some ati cards have that.
https://forums.macrumors.com/thread...out-nvidia-pc-non-efi-graphics-cards.1440150/
i think it will work but if it over draws power you will just get a hard shut down for safety.
no point unplugging the DVD drive.
may be worth doing the two 6pin power to one 8 pin then 8 pin to two 6 pin to balance the load. (but may not be needed)



[Fl0r!an]

There are some Fermi ROMs floating around, but flashing would require soldering a bigger EEPROM onto your card.



[benwild_33]

I haven't flashed this card to MAC yet, not even sure if there is a rom to do so, so at this stage ill be having to do the winslows/Mac shuffle blind, which sucks.. any ideas on how to remedy that?

You don't have to do the Windows/Mac shuffle blind, use startup disk from preferences to go to Windows from Mac and then use the bootcamp utility icon in Windows to go back to Mac



[orph]

iv never missed boot displays, as mentioned swap boot disc from syst prefs or boot champ.



[VanneDC]

not gonna change the eprom, failing that, ill just wait for another gtx 680 to roll up at a decent price. I have the GTX580 3gb in there now. No issues so far, no shut downs. must be going ok then I guess.

Thanks for the heads up about syst prefs or boot camp icon, that's working a treat.



[orph]

iv seen posts showing the 6pin ports can handle a lot so think y will be ok, if you start geting hard shutdowns you may have to look in to it.

dont run furmark :O



[Cfreak]

not gonna change the eprom, failing that, ill just wait for another gtx 680 to roll up at a decent price. I have the GTX580 3gb in there now. No issues so far, no shut downs. must be going ok then I guess.

Thanks for the heads up about syst prefs or boot camp icon, that's working a treat.

Let us know if that GTX 580 holds on with your stock power supply. I just pulled one from a PC and am thinking of putting it into my cMP 3,1



[VanneDC]

I had a gtx 470 in my 3,1 octa for heaps before I sold it, no issues. I figure the gtx 470 and the 580 must be pretty close to on par in regards to tdp.
