Hacking Mac pro for multiple GPUs

Discussion in 'Mac Pro' started by enny001, Mar 30, 2015.

  1. enny001 macrumors member

    Joined:
    Apr 30, 2013
    #1
    I was reading post here where a person has hacked mac pro tower and ruining external power for multiple gpus. How many GPUS can i fit in my mac pro 2009 if i hack the tower do people do this and reason is to run resolve which loves cuda and multiple cards

  2. AndreeOnline macrumors 6502

    AndreeOnline

    Joined:
    Aug 15, 2014
    Location:
    Zürich
    #2
    Resolve Lite only uses one GPU.

    For multiple GPU support you need the $1k version. Just a FYI.

  3. enny001 thread starter macrumors member

    Joined:
    Apr 30, 2013
    #3
    i have full version of resolve with dongle key

  4. AndreeOnline macrumors 6502

    AndreeOnline

    Joined:
    Aug 15, 2014
    Location:
    Zürich
    #4
    Nice! I was only saying it since I realized today myself that I would need to get a dongle to use multiple GPUs. I've been happy with Resolve Lite so far. Especially 10 and 11.

  5. MarkC426 macrumors regular

    Joined:
    May 14, 2008
    Location:
    UK
    #5
    Will the Lite version run with a 1GB GPU, it says in the requirements 2GB required, will it refuse to even run with less, or just be slower performance?

  6. AndreeOnline macrumors 6502

    AndreeOnline

    Joined:
    Aug 15, 2014
    Location:
    Zürich
    #6
    No it's "fine" with 1GB. I used it with the 5870 1GB for a while. You might need to set the timeline resolution to something on the low side to get playback to where you want it, but you should be able to run the program.

  7. Tutor macrumors 65816

    Tutor

    Joined:
    Jun 25, 2009
    Location:
    Home of the Birmingham Civil Rights Institute
    #7
    You can then run(1) 4 single wide cards or (2) 3 double wide cards if you remove HD bays 2-4 (but you may also need to fiddle with the card support on the PSU side of the 4th PCIe slot is located to be able to properly align that 3rd double wide card) or (3) a card combo with up to 4 GPU processors (notice that I make that distinction between cards themselves and the number of active processors). 4 slot Mac can support 4 GPU processors. So you can run 2 GTX 590s (dual GPU processor cards).

  8. Sedor macrumors member

    Sedor

    Joined:
    Dec 28, 2013
    Location:
    Germany
    #8
    Maybe you want to think about a external solution? There is a GPU Cluster from Amfeltec available which allows you to run 4 video cards at a external rack.

  9. Tutor, Mar 31, 2015
    Last edited: Mar 31, 2015

    Tutor macrumors 65816

    Tutor

    Joined:
    Jun 25, 2009
    Location:
    Home of the Birmingham Civil Rights Institute
    #9
    HELLO Sedor!

    I like that idea; but so much so that it gave me another idea. The Cluster transport is x1; but Amfeltecs GPU splitters [~$200 (USD) - http://amfeltec.com/products/flexible-x4-pci-express-4-way-splitter-gpu-oriented/ - are x4; so how about this:

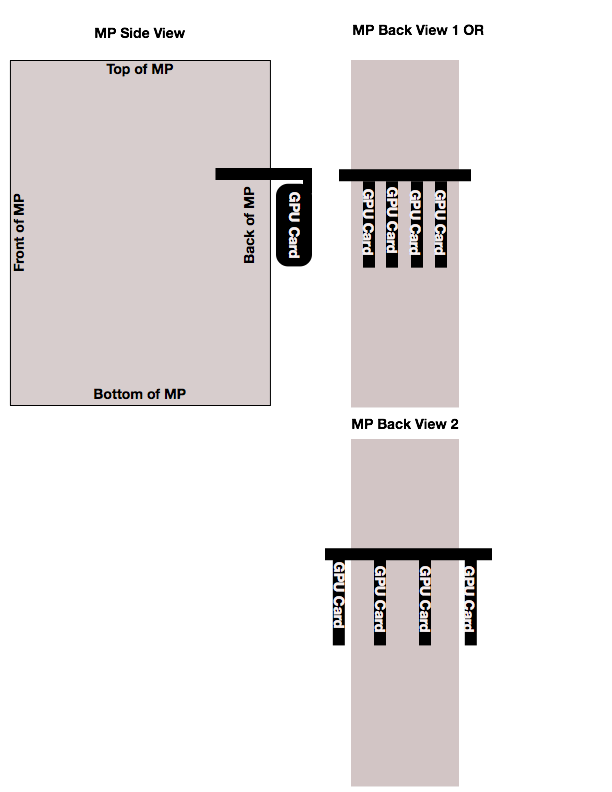

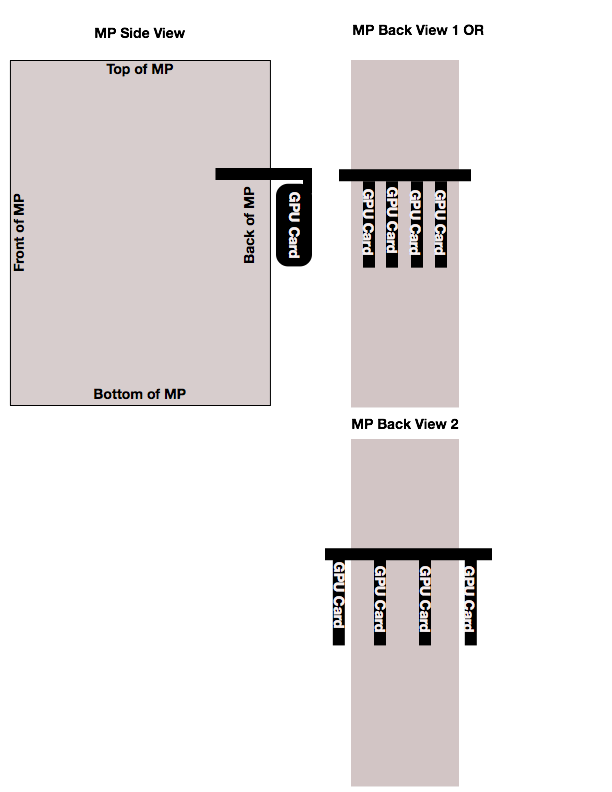

    Just create an L shaped GPU support rail that has a "L" lip with holes for screws to attach up to 4 GPU cards ; attach it to the motherboard side of the system and attach the GPUs to the back on the L-lip; attach the GPUs to the splitter cards [put the splitter card in the x8 or 16 slot] and now you've got 4-x4 GPUs externally spaced wide apart, in the open air, blowing hot air upward and externally feed, being blown air at their base from the fan cooling the PCIe bay; and three internal PCIe slots for non-GPUs (MPs support only 4 GPU processors - they're four slotted). GPUs would be much cooler too. It's now easier to connect them to a powerful external PSU. Metal railing would be dirt cheap; PSU and GPUs would cost what GPUs and PSU costs. What do you think about this? Content creators and Bitcoiners too would love this. All welcomed to pick up and run with this?


    Attached Files:

  10. enny001 thread starter macrumors member

    Joined:
    Apr 30, 2013
    #10
    Would this actually work? I so basically splitters go in to mac mother board 4 of them while pcie adapter boards go in to video cards and external power source in to video cards.

    PCIE expnasion cluster they told me ist 300 us dollars and they are not sure if ti will work with resolve or be recognized




  11. Tutor macrumors 65816

    Tutor

    Joined:
    Jun 25, 2009
    Location:
    Home of the Birmingham Civil Rights Institute
    #11
    Hello Enny001,

    I. Which of these did they tell you that they were't sure that it will work with Resolve or be recognized in a MacPro:

    A) Amfeltec's PCIe Expansion Cluster - http://amfeltec.com/products/gpu-oriented-cluster/ or

    B) Amfeltec's GPU-Oriented x4 PCIe 4-Way Splitter - http://amfeltec.com/products/flexible-x4-pci-express-4-way-splitter-gpu-oriented/ ? .

    II. And what's the name of the Amfeltec representative that you spoke to and/or who told you that it might not work?

  12. enny001, Apr 1, 2015
    Last edited: Apr 1, 2015

    enny001 thread starter macrumors member

    Joined:
    Apr 30, 2013
    #12

    Hi full email from them they they did not tell me that it will not work just no information. I just email them asking if it will do the same thing as cubix expansion which is used with resolve

    PS lets not get anybody fired or in trouble here they wore really nice about answering my questions



    Thank you for your interest in our products.



    I have no information regarding Davinci resolve. Our Cluster is the standard hardware based PCI Express expansion solution.



    Please find below quotation per your request.



    In order to complete your request, please provide us your shipping address and the phone number.



    Quotation (Prices in USD)

    ---------------------------------------------------------------------------------------------------------------

    SKU Item Qty Unit Price

    ---------------------------------------------------------------------------------------------------------------

    SKU-078-11 GPU-Oriented PCIe Cluster (5ft cable) 1 $ 362.48 USD

    [1 Clusters (up to 4 GPUs) + 1 channel Host board]



    (Shipping not included)

  13. Sedor macrumors member

    Sedor

    Joined:
    Dec 28, 2013
    Location:
    Germany
    #13
    Thats an interesting idea, should be doable without running into big problems. Have to keep that in mind if I head over to build up a second system, the current one has now that Cluster. Third Nvidia card arrived today, tomorrow I'll set up the cluster (again), fourth card will be a Titan X.
    So far I wasn't aware of the fact that this story will really end with four cards, I hoped at least 5 will be doable (four at the cluster, one inside of the Mac for driving the monitor).

  14. Tutor, Apr 1, 2015
    Last edited: Apr 1, 2015

    Tutor macrumors 65816

    Tutor

    Joined:
    Jun 25, 2009
    Location:
    Home of the Birmingham Civil Rights Institute
    #14
    You might get lucky and be able to run 5, but I doubt it. It wouldn't be the first time that I was wrong , however.

  15. Tutor macrumors 65816

    Tutor

    Joined:
    Jun 25, 2009
    Location:
    Home of the Birmingham Civil Rights Institute
    #15

    In light of that response, I conclude that if either the chassis or splitter works on the Mac, it'll work the same for all applications, including Resolve. The chassis option (x1) moves information at 1/4 the speed of the splitter solution (x4). Once data is in the GPU's ram/processors, x1 vs x4 doesn't make a difference because the internal speed of the GPU processor/ram are what they are regardless of system. But if I were you and using the system for Resolve significantly, then I'd prefer the splitters rather than the chassis because of the nature of video review, production, etc. where x1 vs. x4 can make a significant difference.
