winna

macrumors regular
Original poster
Nov 28, 2020
123
36
I tested an entire BD disc and these are the results

Mac Mini 2018 6-core i7 8 G RAM
Mac Mini M1 16 GB RAM



H264

Mac Mini 2018: 53 min 59 sec
Mac Mini M1: 32 min 46 sec

H264 Video Toolbox

Mac Mini 2018: 10 min 44 sec
Mac Mini M1: 11 min 28 sec

H265

Mac Mini 2018: 1 h 28 min 47 sec
Mac Mini M1: 1 h 39 min 31 sec

H265 Video Toolbox

Mac Mini 2018: 11 min 04 sec
Mac Mini M1: 9 min 32 sec

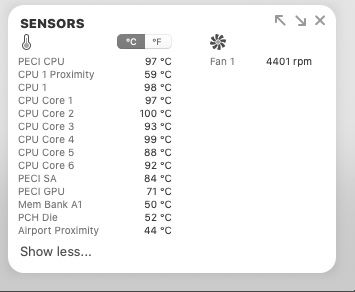

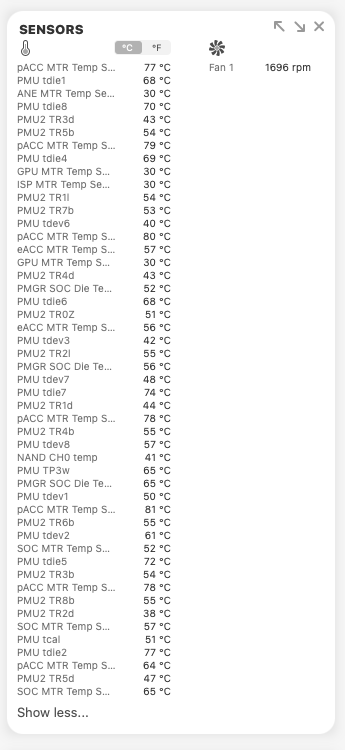

Temperatures during H265 test. Long list M1, short list 2018


Attachments

  • Screenshot 2021-01-18 at 22.12.31.png
    Screenshot 2021-01-18 at 22.12.31.png
    68.3 KB · Views: 884
  • Screenshot 2021-01-18 at 22.12.46.png
    Screenshot 2021-01-18 at 22.12.46.png
    40 KB · Views: 546

starmax

macrumors newbie
Mar 22, 2011
24
16
What quality settings are you using for the M1 hardware encoding?

I found them backwards on my M1. For example, CQ 16 is a pretty high setting for software or even AMD/NVenc hardware encoders (on Windows). But on my M1 it’s trash. I have to go up to CQ 70+ to get similar quality. Normally the lower the setting number the better the quality...


Miat

macrumors 6502a
Jul 13, 2012
851
805
Thanks for this.

That RAM difference must be a significant factor. How much difference would there be if the Intel Mini had 16GB, or more?


winna

macrumors regular
Original poster
Nov 28, 2020
123
36
Thanks for this.

That RAM difference must be a significant factor. How much difference would there be if the Intel Mini had 16GB, or more?
There would be no difference at all

  • Like
Reactions: Miat

winna

macrumors regular
Original poster
Nov 28, 2020
123
36
What quality settings are you using for the M1 hardware encoding?

I found them backwards on my M1. For example, CQ 16 is a pretty high setting for software or even AMD/NVenc hardware encoders (on Windows). But on my M1 it’s trash. I have to go up to CQ 70+ to get similar quality. Normally the lower the setting number the better the quality...
I used 5500 kbps mkv with DTS passthru on all tests
