Handbrake conversion for AppleTV format has audio working but not video.

Discussion in 'Apple TV and Home Theater' started by aelalfy, Oct 18, 2010.

  1. aelalfy macrumors 6502a

    Joined:
    May 2, 2010
    Location:
    Berlin, Germany
    #1
    Hi,

    Recently I have been doing some conversion and it seems that in the beginning everything worked fine but not anymore. I converted a couple of .avi before and everything worked fine but now handbrake seems to convert but they dont work.

    Meaning the audio works but there is no video.

    What I did was go on handbrake, find the .avi source (my tv show) then select the AppleTV preset (like I did previously and it worked) then start.

    The .m4v gets created, i can click to play it but there is no video, only audio and it sounds very normal. What happened. is it something to do with the conversion or is it my computer acting up? other shows work fine and other movies work fine (the old conversion that I mentioned work fine).

    EDIT: WTH, my 183mb TV show converted became 1.83GB? what is happening with my conversion. Someone please help, I must have changed a setting somewhere that caused this disaster.

    Thanks in advance,
    AE

  2. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #2
    Use VideoSpec to analyse the source .avi and the target .m4v file that gives you a problem and attach the reports to your next post.

  3. aelalfy thread starter macrumors 6502a

    Joined:
    May 2, 2010
    Location:
    Berlin, Germany
    #3
    Thanks for the help first of all, and here are the reports:

    Report from .avi

    ***** First Analyzed File Results *****

    *** General Parameters ***
    - Name: Castle.2009.S03E02.HDTV.XviD-LOL.[VTV].avi
    - Container: AVI - Audio Video Interleaved
    - Creation Date: 2010-10-17 9:40:29 PM
    - Size: 349.7 MiB
    - Duration: 0:42:31
    - Bitrate: 1 150 Kbps
    - Encoding Library: Undefined
    - Encoding Application: transcode-1.0.6

    *** Video Track Parameters ***
    - Format: MPEG-4 XviD video
    - Size: 296 MiB (85%)
    - FourCC: XVID
    - Track number(s): 0
    - Bitrate: Max.: Undefined
    Average: 975 Kbps
    Min.: Undefined
    - Frame rate (fps): Max.: Undefined
    Average: 23.976
    Min.: Undefined
    - Bitrate mode: Undefined
    - Encoding profile: AdvancedSimple@L5
    - Resolution: 24 bits
    - Width (Pixel number): 624
    - Height (Pixel number): 352
    - Pixel Aspect Ratio: 1:1
    - Display aspect ratio: 39:22
    - Chroma subsampling format: YUV420p
    - TV standard: Undefined
    - Interlacing: Progressive
    - Encoding library: XviD 1.2.1 (UTC 2008-12-04)
    - Additional Parameters: BVOP: Yes
    Quarter Pixel: No
    Global Motion Compensation: No
    Matrix: Default
    Bits/(Pixel*Frame) ratio: 0.185

    *** Audio Track(s) Parameters ***
    - Format: Mpeg-1 layer 3 (mp3)
    - Size: 49.5 MiB (14%)
    - FourCC: 0x55
    - Number(s) and language(s): 1: Undefined
    - Details: -
    - Profile: Layer 3
    - Bitrate: 163 Kbps
    - Bitrate mode: Variable
    - Resolution: 16 bits
    - Rate: 48.0 KHz
    - Channel(s): 2 (stereo)
    - Position: Undefined
    - Encoding Library: LAME3.90.
    - Additional Parameters: Not available

    *** Miscellaneous ***
    - Subtitle(s): No Subtitle
    - Metadata: Album: Undefined
    Part number: Undefined
    Track name: Undefined
    Track name number: Undefined
    Performer: Undefined
    Screenplayer/Writer: Undefined
    Genre: Undefined
    Encoded date: Undefined
    Comment: Undefined
    Album artist: Undefined
    Grouping: Undefined
    Copyright: Undefined

    Report from .m4v

    ***** First Analyzed File Results *****

    *** General Parameters ***
    - Name: Castle.2009.S03E02.HDTV.XviD-LOL.[VTV].m4v
    - Container: M4V - QuickTime
    - Creation Date: 2010-10-18 6:59:58 PM
    - Size: 3067.5 MiB
    - Duration: 0:42:31
    - Bitrate: 10.1 Mbps
    - Encoding Library: Undefined
    - Encoding Application: HandBrake 0.9.4 2009112300

    *** Video Track Parameters ***
    - Format: H.264/MPEG-4 AVC
    - Size: 2.96 GiB (99%)
    - FourCC: H264
    - Track number(s): 0
    - Bitrate: Max.: Undefined
    Average: 9 950 Kbps
    Min.: Undefined
    - Frame rate (fps): Max.: 23.981
    Average: 23.976
    Min.: 23.974
    - Bitrate mode: Variable
    - Encoding profile: High 4:4:4 Predictive@L3.0
    - Resolution: 24 bits
    - Width (Pixel number): 624
    - Height (Pixel number): 352
    - Pixel Aspect Ratio: Undefined
    - Display aspect ratio: 16:9
    - Chroma subsampling format: YUV420p
    - TV standard: Undefined
    - Interlacing: Progressive
    - Encoding library: x264 core 79 r1347 5ddd61b
    - Additional Parameters: CABAC: No
    Reference Frames: 2
    Bits/(Pixel*Frame) ratio: 1.889

    *** Audio Track(s) Parameters ***
    - Format: AAC - MPEG-4 audio
    - Size: 40.0 MiB (1%)
    - FourCC: MP4A
    - Number(s) and language(s): 2: Undefined
    - Details: -
    - Profile: Low Complexity
    - Bitrate: 132.3 Kbps
    - Bitrate mode: Variable
    - Resolution: 16 bits
    - Rate: 48.0 KHz
    - Channel(s): 2 (stereo)
    - Position: Left Right
    - Encoding Library: Undefined
    - Additional Parameters: Spectral Band Replication: No

    *** Miscellaneous ***
    - Subtitle(s): No Subtitle
    - Metadata: Album: Undefined
    Part number: Undefined
    Track name: Undefined
    Track name number: Undefined
    Performer: Undefined
    Screenplayer/Writer: Undefined
    Genre: Undefined
    Encoded date: UTC 2010-10-18 22:59:58
    Comment: Undefined
    Album artist: Undefined
    Grouping: Undefined
    Copyright: Undefined


    Thanks again,
    AE

  4. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #4
    The target video bitrate is ten time higher than the source bitrate, which might be too much for whatever you want to do, though I don't see why.

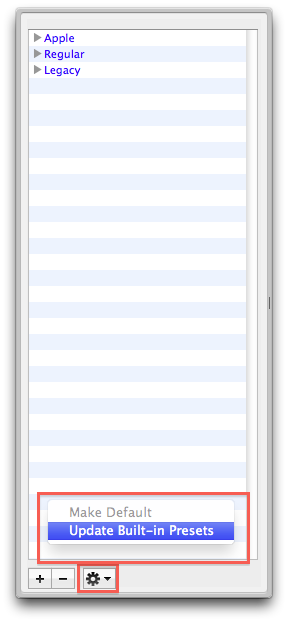

    Did you use the AppleTV preset? Maybe try updating the presets:
    [​IMG]
    and then try again.

  5. aelalfy thread starter macrumors 6502a

    Joined:
    May 2, 2010
    Location:
    Berlin, Germany
    #5
    Hi

    I also noticed that the conversion that worked where .mp4 not m4v. I dont know how handbrake decided to go with m4v from now on, can I go back to mp4?

    It seems that mp4 work and they are smaller than the original .avi. and the quality is great on my 53" TV. can anyone tell me how to go back to mp4?

    Thanks
    AE

  6. aelalfy thread starter macrumors 6502a

    Joined:
    May 2, 2010
    Location:
    Berlin, Germany
    #6
    I just updated my presets as you showed in your screenshots but my files are still m4v, how do I go back to mp4?

    EDIT: I have managed to change it back to mp4, it was a setting that I chose by mistake.

    Everything should work fine now.

    Thanks again for your help.

    Thanks
    AE

  7. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #7
    Try changing the CHAPTERS settings to not create chapter markers, that changes my .m4v to .mp4.

    Btw, to quote someone, just press the [​IMG] button. To quote several posts, use the [​IMG] button (multi-quote). To edit your posts, use the [​IMG] button.

    All these buttons are on the bottom left of the posts.
