waloshin

macrumors 68040
Original poster
Oct 9, 2008
3,315
165
Have 7 hours of SD content to burn to Blu-Ray it says it takes up 20 gigabytes of space in FCPX, but when I burn it only 2 hours of video ends up on the Blu-Ray. What is going on?


MarkMoran

macrumors newbie
Jul 15, 2016
5
1
Green Bay, WI
Can you screen shot your export settings? It sounds like something's happening during the transcode, and you're ending up with a much higher bitrate than you're starting with.


kohlson

macrumors 68020
Apr 23, 2010
2,425
734
Take a look at your rendering settings. For example, the bit-rate may be set for HD, on the order of 10-15 Mbps . SD would be much less than that - maybe 1-1.5 Mbps or less. Look at the audio settings, too.

  • Like
Reactions: MarkMoran

waloshin

macrumors 68040
Original poster
Oct 9, 2008
3,315
165

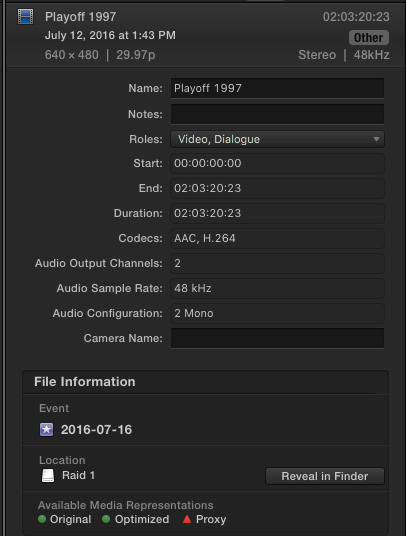

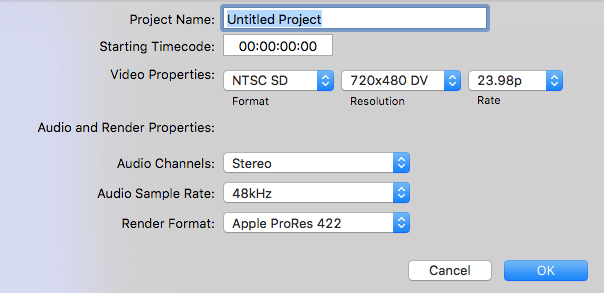

Settings


Attachments

  • Screen Shot 2016-07-17 at 11.05.26 PM.png
    Screen Shot 2016-07-17 at 11.05.26 PM.png
    47.3 KB · Views: 172
  • Screen Shot 2016-07-17 at 11.07.16 PM.png
    Screen Shot 2016-07-17 at 11.07.16 PM.png
    53 KB · Views: 159

DemonMF777

macrumors member
Feb 27, 2014
90
39
S. Florida
Could there be a hard 2 hour limit for discs? I know there was for DVDs.
There is NO limit on the length of content that can be put onto a DVD/Blu-Ray disc, you are only limited by the size of the disc & thus the data rate of your video. Now some software i.e. FCP or iMovie may impose limits onto how much content can be burned onto a single disc. I have personally put 3-4 hours onto a DVD (now this was just talking heads & not the best quality) but I am using more professional tools i.e. DVD Studio Pro & Adobe Encore. I'm pretty sure you could easily put 7-8 hours of SD content onto Blu-Ray using Encore.


ColdCase

macrumors 68040
Feb 10, 2008
3,161
200
NH
Could there be a hard 2 hour limit for discs? I know there was for DVDs.

Also (but not related) you have a mismatch between frame rates of your source and your project.

I don't think I ran into a two hour limit. I regularly put 3-4 hours of SD material compressed to 4.5GB onto DVDs. They looked pretty good.

Now there were some free demo software around that had limits.


martinX

macrumors 6502a
Aug 11, 2009
895
127
Australia
Now some software i.e. FCP or iMovie may impose limits onto how much content can be burned onto a single disc.
That's the limits I was referring to. I know iMovie had a hard limit of 2 hours, I'm not sure if FCP X does. Since Apple put DVD Studio Pro out to pasture and generally deprecated DVD burning, I thought it worth mentioning that.
[doublepost=1468971444][/doublepost]
Have 7 hours of SD content to burn to Blu-Ray it says it takes up 20 gigabytes of space in FCPX, but when I burn it only 2 hours of video ends up on the Blu-Ray. What is going on?
Does the BluRay disc look full with the two hours of footage on it?
(Disclaimer: I have never burned a BluRay disc, just DVDs, so I don't know if the burned region of a BD-R looks different to the unburned region)


ColdCase

macrumors 68040
Feb 10, 2008
3,161
200
NH
I don't think FCP directly had a hard two hour limit, but it could have. You couldn't tinker enough with the settings to squeeze more video in like one could with compressor. So the work around was export master files from FCP and then use compressor to make the DVD image or suitable DVD clips that an authoring program could assemble into a DVD that would play as long as you like... maybe not at the best quality.
