Asandul

macrumors newbie
Original poster
Jul 21, 2021
3
0
Friends, I need a help!

The video card (chip and memory) died - AMD Radeon HD 6750M 512 MB. iMac 21.5 2011

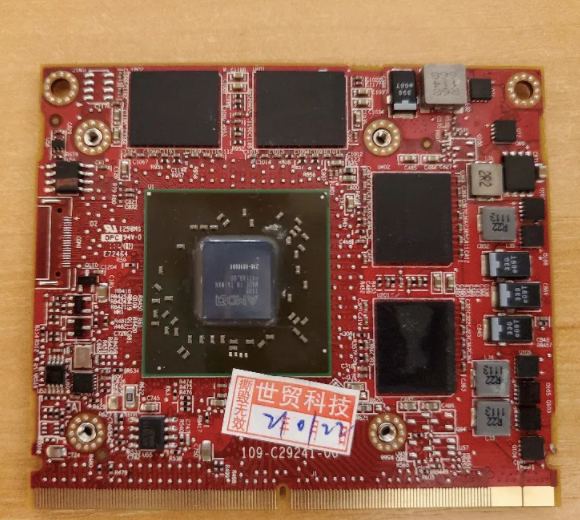

In my city (Ukraine, Dnipro) I found only a card - AMD Radeon HD 6770M 1 Gb, was on the Asus computer.

Question! Will it fit on my poppy and can I reflash the BIOS on the video card?

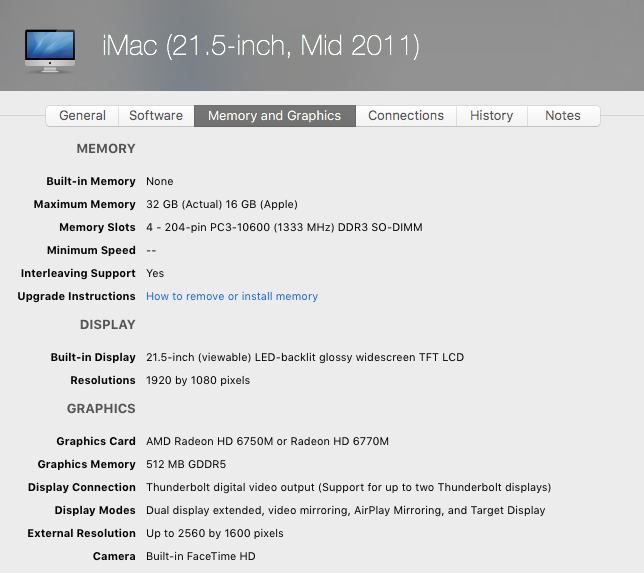

The documentation for my computer says that you can install AMD Radeon HD 6750M or Radeon HD 6770M 512 MB GDDR5.

I ask for your help. Attached screenshots.


Attachments

  • photo_2021-07-21 19.28.22.jpeg
    photo_2021-07-21 19.28.22.jpeg
    37.5 KB · Views: 97
  • photo_2021-07-21 19.28.18.jpeg
    photo_2021-07-21 19.28.18.jpeg
    62.1 KB · Views: 43
  • photo_2021-07-21 19.28.21.jpeg
    photo_2021-07-21 19.28.21.jpeg
    41.4 KB · Views: 44

Nguyen Duc Hieu

macrumors 68000
Jul 5, 2020
1,954
569
Ho Chi Minh City, Vietnam
Different amount of RAM will cause the vBIOS file unusable.
Try the following Quadro cards (also taken out of old laptops) if you can find one cheaply.
K1000m
K610m
K1100m
K2100m

After getting your card, read the below post for at least 10 times, then draw out your repair plan and obtain necessary files also from that post.


  • Like
Reactions: Asandul

Asandul

macrumors newbie
Original poster
Jul 21, 2021
3
0

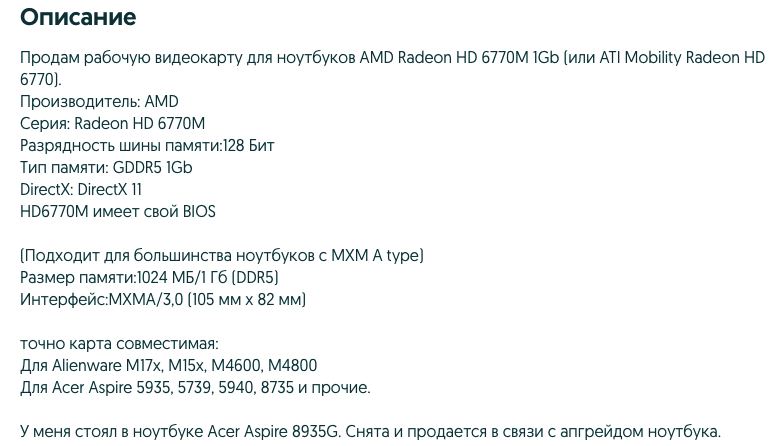

But will the computer work with this card? AMD Radeon HD 6770M 1Gb GDDR5 128 bit


The_Croupier

macrumors 6502
Oct 11, 2018
381
260
Friends, I need a help!

The video card (chip and memory) died - AMD Radeon HD 6750M 512 MB. iMac 21.5 2011

In my city (Ukraine, Dnipro) I found only a card - AMD Radeon HD 6770M 1 Gb, was on the Asus computer.

Question! Will it fit on my poppy and can I reflash the BIOS on the video card?

The documentation for my computer says that you can install AMD Radeon HD 6750M or Radeon HD 6770M 512 MB GDDR5.

I ask for your help. Attached screenshots.

Yes it is possible but not without a eeprom chip on the card and a modified vbios.

The card in your photo has the chip but its probably not 128kb so will not take the modified bios. You could inject the EFI part into the iMac’s bootrom using UEFITool as explained by Nick [D]vb

It's mentioned in the GPU upgrade thread that @Nguyen Duc Hieu linked.
Post in thread '2011 iMac Graphics Card Upgrade' https://forums.macrumors.com/threads/2011-imac-graphics-card-upgrade.1596614/post-27849973
Post in thread '2011 iMac Graphics Card Upgrade'
https://forums.macrumors.com/threads/2011-imac-graphics-card-upgrade.1596614/post-27851435

All going well I will be in Kyiv come September 9th ?

Last edited:
  • Like
Reactions: Nguyen Duc Hieu

jay508

macrumors regular
Jul 11, 2020
194
118

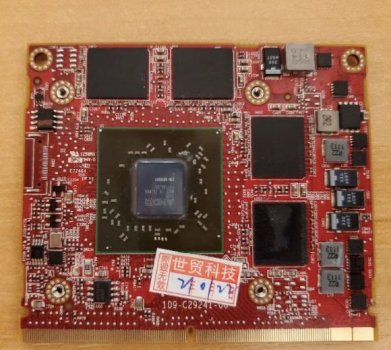

This red pcb is Dell M5950 HD6770M just vbios difference, storage chip capacity 64kb, direct refresh can be used iMac vbios need to replace the 128kb or 256Kb larger storage chip capacity can be.
