HELP manfrotto assembly

Discussion in 'Digital Photography' started by Adonisadonis1, Jul 31, 2014.

  1. Adonisadonis1 macrumors newbie

    Joined:
    Jul 31, 2014
    #1
    Hi to all,


    Today I disassembled my manfrotto cxpro3 tripod as there are loads of sands in between the legs that is causing damage to the telescopic legs. I did manage to assemble everything back together except this spacer which I have no idea where to put it back ( I drop the center coulumn when i remove it hence i don't know how to put it back). the spacer is called r190 692,
    http://www.manfrottospares.com/download/pdfs/190CXPRO3_20080123.pdf

    Any idea how to out it back or any website that I could check.
    Many thanks.

  2. Cheese&Apple macrumors 68000

    Cheese&Apple

    Joined:
    Jun 5, 2012
    Location:
    Toronto
    #2
    The instructions appear to follow a sequence. I would say:

    R190,692 fits together with R190,629 and R410,27. This assembly then fits between R190M,607 and R190M,608.

    ~ Peter

  3. Adonisadonis1 thread starter macrumors newbie

    Joined:
    Jul 31, 2014
    #3
    Hi Peter,

    thanks for your help, its my first time to disassemble it. ill have a go again. many thanks.

  4. Parkin Pig macrumors 6502a

    Parkin Pig

    Joined:
    Oct 23, 2009
    Location:
    Yorkshire-by-Gum
    #4
    I've got that same tripod.

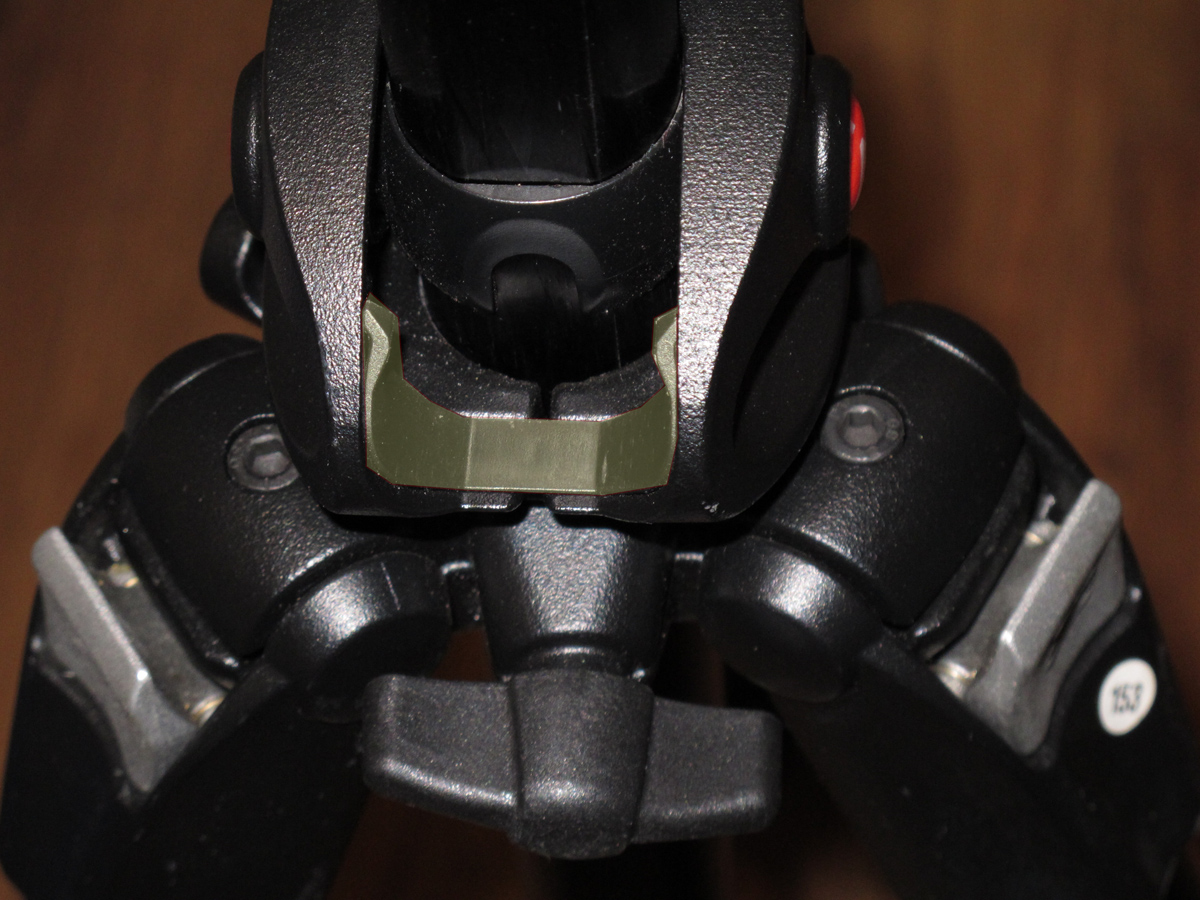

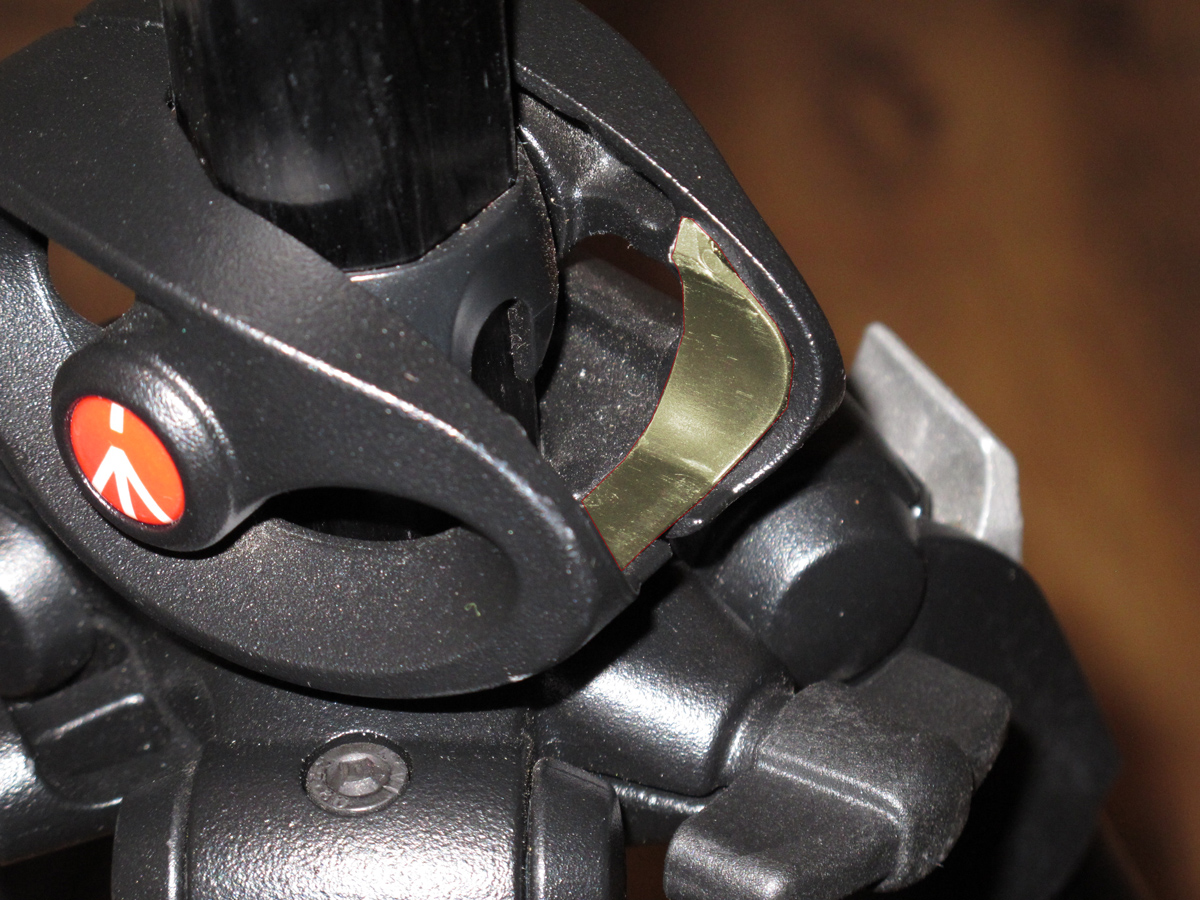

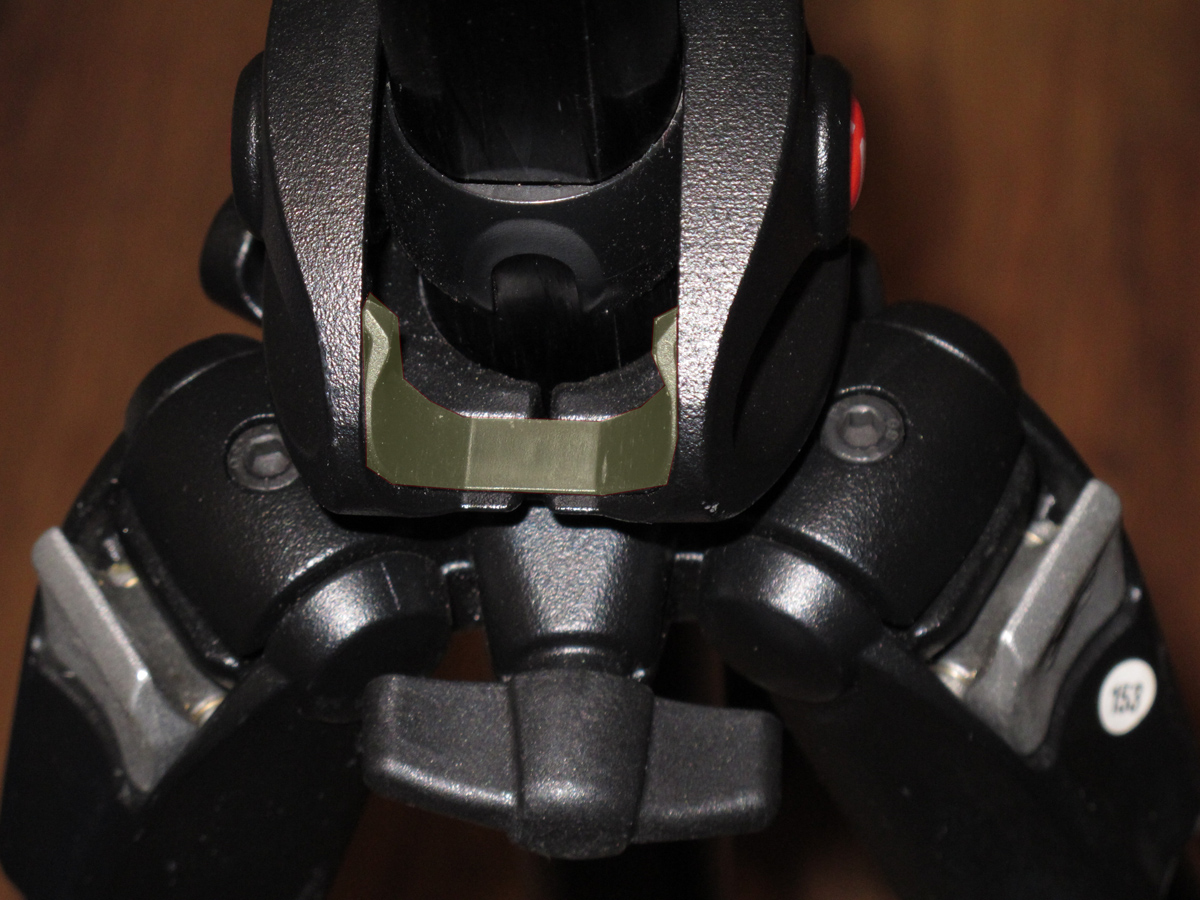

    I think this is the bit you mean (highlighted) - it took some finding, even when it's in the right place!

    If these pictures are not clear enough (or it isn't the right bit) let me know and I'll try again.


    Attached Files:

  5. Adonisadonis1 thread starter macrumors newbie

    Joined:
    Jul 31, 2014
    #5
    Hi Parkin Pig, thank you for the images, that one little piece is so tricky I still couldn't figure it out yesterday. I should be ok now since you've highlighted it. Many thanks!!

  6. Parkin Pig macrumors 6502a

    Parkin Pig

    Joined:
    Oct 23, 2009
    Location:
    Yorkshire-by-Gum
    #6
    No problem - happy to help.
