adam9c1

macrumors 68000
Original poster
May 2, 2012
1,881
311
Chicagoland
My new to me MacPro6,1 kernel panics

I thought, perhaps my Temperature Gauge Pro is a concern and
I have reinstalled the macOS and the problem continues. This happens multiple times daily.


This is what I'm seeing:

Sleep Wake failure in EFI

Failure code:: 0x03000010 0x0000001f

Please IGNORE the below stackshot

================================================================
Date/Time: 2023-02-13 03:39:57.661 -0600
OS Version: ??? ??? (Build ???)
Architecture: x86_64
Report Version: 35.1
Incident Identifier: E79C04DA-B0CE-45E5-A201-49F7F3872FFB

Data Source: Stackshots
Shared Cache: 53B6853F-0BC3-33F5-BE72-1ACA3A188FF8 slid base address 0x7ff81baa1000, slide 0x1baa1000

Event: Sleep Wake Failure
Duration: 0.00s
Steps: 1

Time Awake Since Boot: 13s






Process: swd [305]
Architecture: x86_64
Footprint: 460 KB
Time Since Fork: 2s
Num samples: 1 (1)

Thread 0x8a7 1 sample (1) priority 4 (base 4)
<thread QoS background (requested background), thread darwinbg, process darwinbg, IO tier 2>
1 ??? [0x10cece51e] 1
1 ??? [0x10b331454] 1
1 ??? [0x10b3311e8] 1
1 __stack_snapshot_with_config + 10 (libsystem_kernel.dylib + 153202) [0x7ff81bda9672] 1
*1 ??? [0xffffff8000222236] 1
*1 ??? [0xffffff8000988f5b] 1
*1 ??? [0xffffff8000882374] 1
*1 ??? [0xffffff80002450ec] 1
*1 ??? [0xffffff800028205d] (running) 1

Binary Images:
0x7ff81bd84000 - 0x7ff81bdbbfff libsystem_kernel.dylib (8020.121.3) <61711D11-E776-3BC3-B9A2-6F9F37CB8499> /usr/lib/system/libsystem_kernel.dylib



What are your thoughts?


tsialex

Contributor
Jun 13, 2016
13,236
13,408

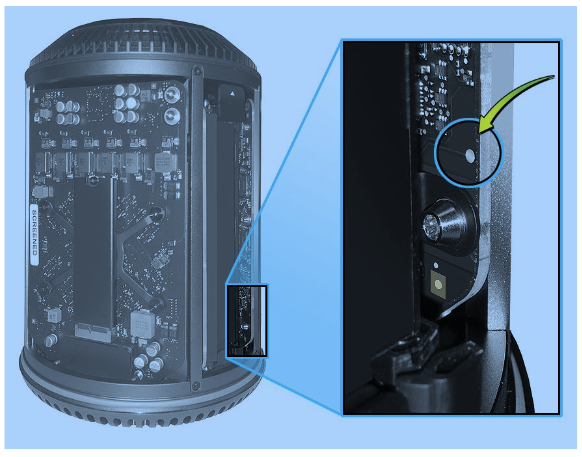

First thing is always check the RTC battery voltage, via the I/O board RTC test points. See page 10 of the late-2013 Mac Pro Technician Manual:


Replace the BR2032 battery for one of the same model whenever is below 3.00V or you will have sleep crashes.

My personal take while doing late-2013 Mac Pro maintenance and is if the battery is around 3.10V, I always replace the RTC battery, since a brand new BR2032 is usually over 3.3V from factory and will take 5 years or more to get down to 3.10V, after that threshold is a very fast downhill and to replace the battery with a MacPro6,1 is a time intensive and very cumbersome process.


Attachments

  • Screen Shot 2023-02-13 at 15.30.03.png
    Screen Shot 2023-02-13 at 15.30.03.png
    261.2 KB · Views: 64

adam9c1

macrumors 68000
Original poster
May 2, 2012
1,881
311
Chicagoland
Thank you for the link.

One probe goes to the circle dot highlighted in the picture you have provided. Where does the other probe go to?


tsialex

Contributor
Jun 13, 2016
13,236
13,408
Test point goes to the positive lead, any ground point, like the screw just below, goes to the negative lead.

  • Like
Reactions: adam9c1

Natalia22

macrumors newbie
Nov 12, 2022
29
12
First thing is always check the RTC battery voltage, via the I/O board RTC test points. See page 10 of the late-2013 Mac Pro Technician Manual:


Replace the BR2032 battery for one of the same model whenever is below 3.00V or you will have sleep crashes.

My personal take while doing late-2013 Mac Pro maintenance and is if the battery is around 3.10V, I always replace the RTC battery, since a brand new BR2032 is usually over 3.3V from factory and will take 5 years or more to get down to 3.10V, after that threshold is a very fast downhill and to replace the battery with a MacPro6,1 is a time intensive and very cumbersome process.

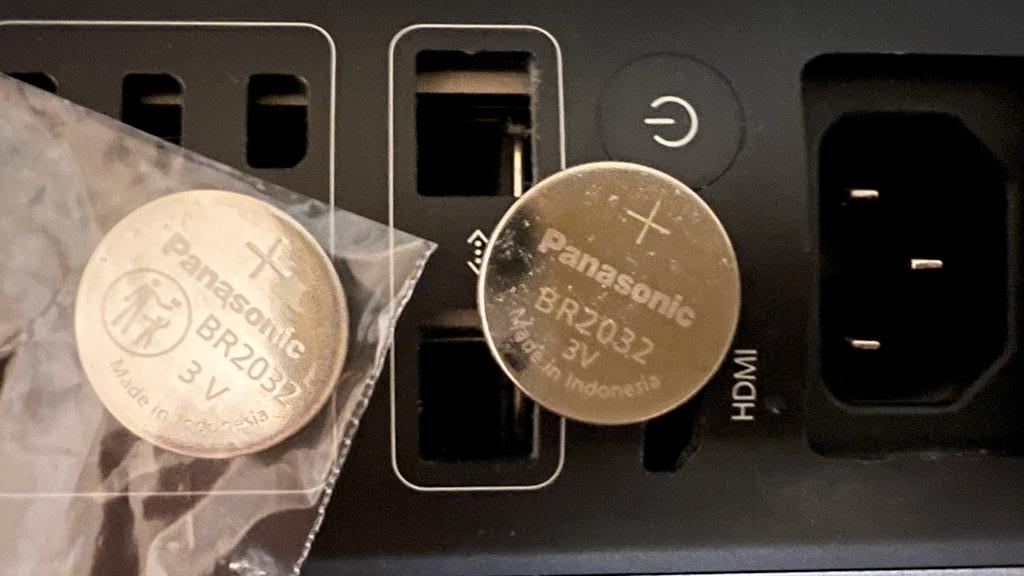

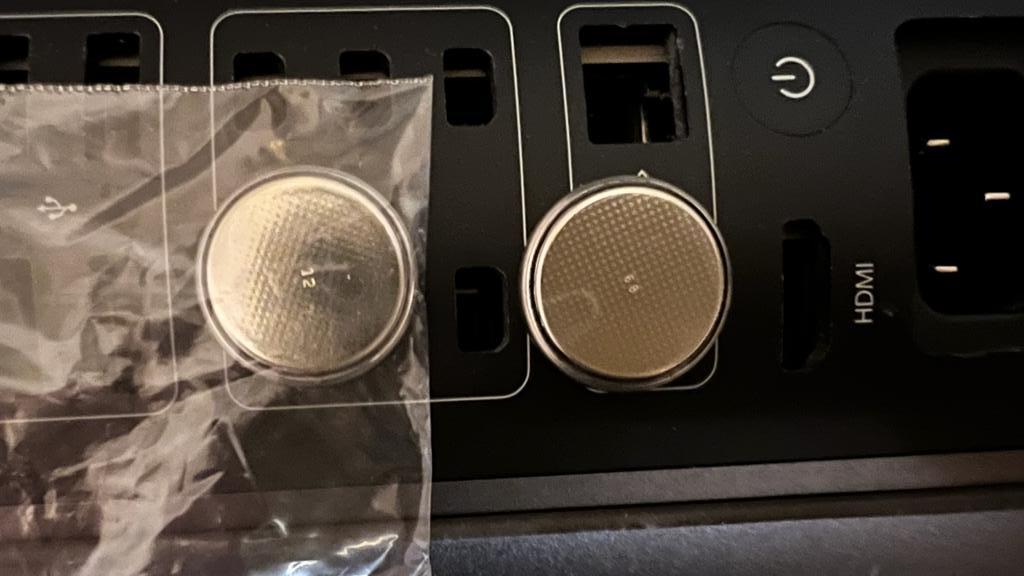

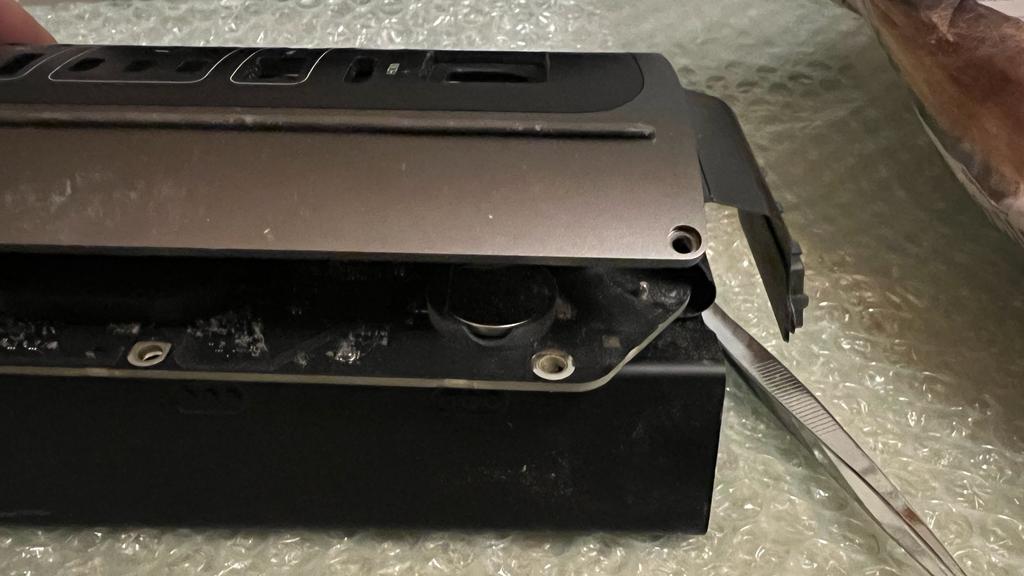

Thanks, I took your advice too! I'm not sure if the new battery is original. But the BR2032 replacement was successful, the computer is working. I hope that the system will now be stable.


Attachments

  • PHOTO-2023-02-14-04-09-35.jpg
    60.2 KB · Views: 75
  • PHOTO-2023-02-14-04-09-35 2.jpg
    PHOTO-2023-02-14-04-09-35 2.jpg
    63.4 KB · Views: 60
  • PHOTO-2023-02-14-04-09-35 3.jpg
    PHOTO-2023-02-14-04-09-35 3.jpg
    61.4 KB · Views: 60
  • Like
Reactions: tsialex

tsialex

Contributor
Jun 13, 2016
13,236
13,408
It registered 2.7 volts.
Extremely low, the RTC timesinceboot is definitively stuck when the Mac Pro is sleeping, it's probably the reason, or at least one of the reasons, of your KPs when sleeping.

Replace it as soon as you can with a brand new BR2032.


Natalia22

macrumors newbie
Nov 12, 2022
29
12
Upd. Two days later, my mac pro crashed in sleep mode due to a kernel panic. Still, changing the battery was an interesting experience, as well as a necessary dusting.
