HELP! Temperature problem 4.1 to 5.1 firmware upgrade

accessvirus

macrumors newbie
Original poster
Mar 1, 2015
20
0
I successfuly upgrade 2009 4.1 to 5.1 firmware.

I want to make stress test, after 10 minutes cpu diode 85 degree celcius under full load but fans is not speed up.

Under full load CPU A and B core temperature going to down. Someting go wrong.


I used terminal for cpu stress test like this link:

http://osxdaily.com/2012/10/02/stress-test-mac-cpu/


I used tgpro 2.7.4 for measure temperature
http://www.tunabellysoftware.com/tgpro/

Interesting thing is Total CPU A (or b) core and CPU A (or B) diode temperature is like a fixed, 89-90-91 degree celcius.

For example CPU A core 20degree, CPU A diode 70degree. TOTal 90 degree. Total is never change, 89, 90 or 91 degree.
Cpu A diode temp is 85degree celcius but fans turn very slow.

How can I fixed this issue?

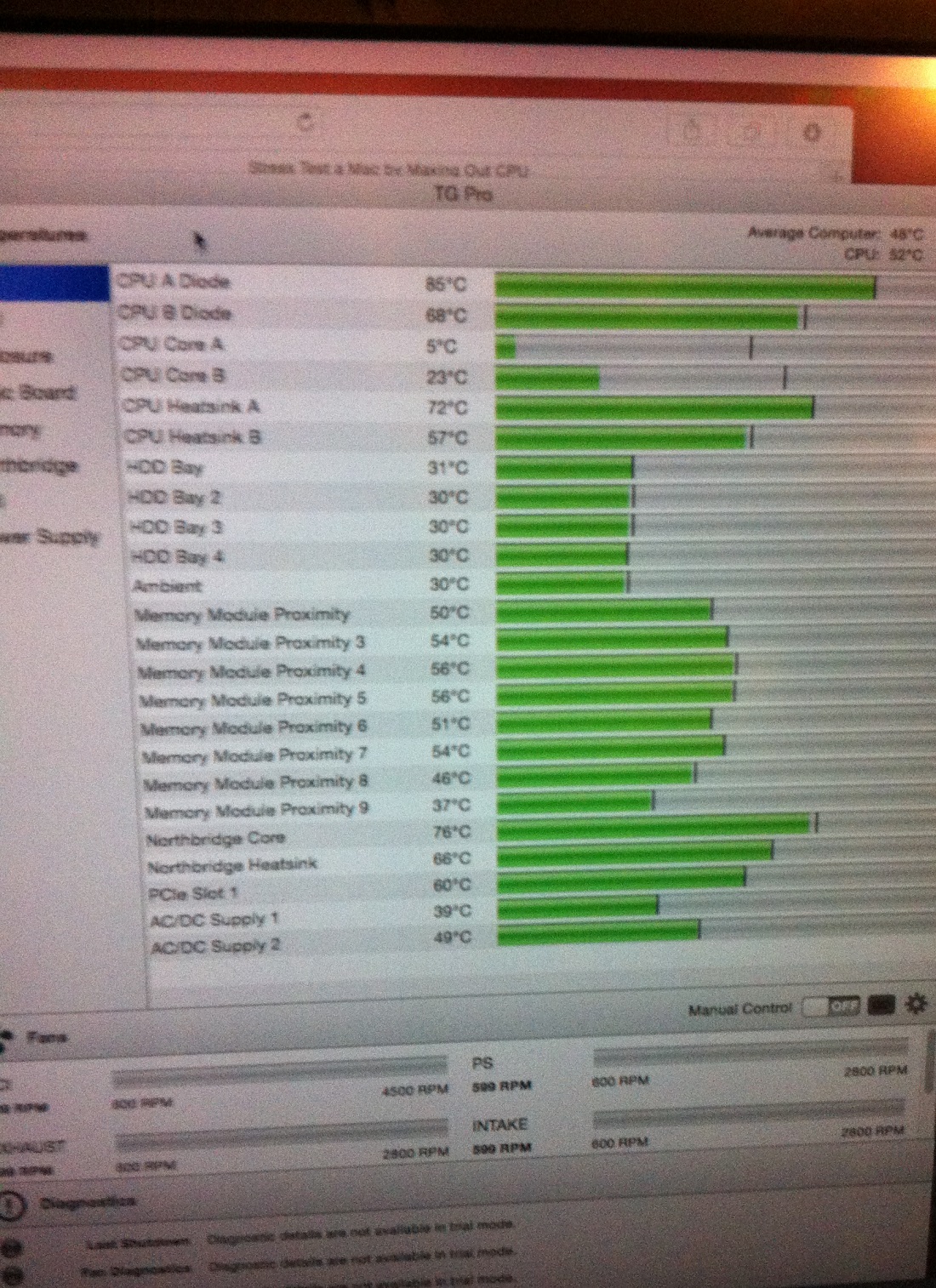

mac temp.jpg


TzunamiOSX

macrumors 6502
Oct 4, 2009
441
137
Germany
Ahhh, after the third reading I understand what you mean.

This App hast a incorrect Caption

CPU A/B must be the Relative to ProcHot Info. If this is 0 the CPU will begin to thottle. It shows how far away the max. CPU temperature is (90-92°C is the max. "Core Pack" temperature).

All is OK under full load, here is my cMP 5,1

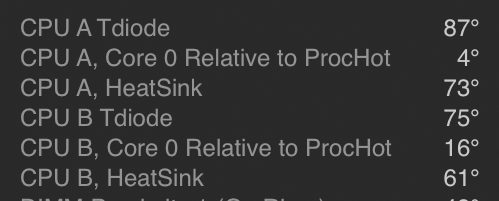

Bildschirmfoto 2015-06-12 um 21.45.50.png

Last edited:
  • Like
Reactions: accessvirus

h9826790

macrumors G5
Apr 3, 2014
14,096
6,723
Hong Kong
85 is normal. It will only speed up a bit to keep the temperature at around 85, that's the native setting.

The CPU Core X obviously is a wrong lable. That's the temperature to processor hot state, which means the higher the better. And until it hit zero, the processor is still staying within the normal thermal envelope.

Apple decide to keep the machine as quiet as possible as long as within the thermal limit. That's why you see this result. Everything is normal.

If you want to cool it down. You can manually set a higher fan speed, or use some software to do that automatically.

  • Like
Reactions: accessvirus

accessvirus

macrumors newbie
Original poster
Mar 1, 2015
20
0
Shortly
Fan speed doesn't up after firmware upgrade although cpu diode 85 degree celcius and heatsink 75degree celcius.

I have dual processor, x5670.


h9826790

macrumors G5
Apr 3, 2014
14,096
6,723
Hong Kong
Last edited:
  • Like
Reactions: accessvirus

accessvirus

macrumors newbie
Original poster
Mar 1, 2015
20
0
Ahhh, after the third reading I understand what you mean.

This App hast a incorrect Caption

CPU A/B must be the Relative to ProcHot Info. If this is 0 the CPU will begin to thottle. It shows how far away the max. CPU temperature is (90-92°C is the max. "Core Pack" temperature).

All is OK under full load, here is my cMP 5,1

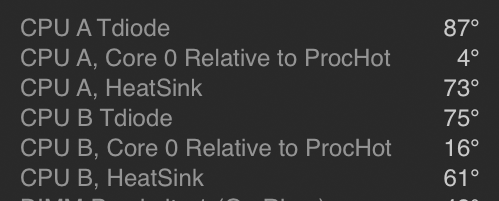

View attachment 560872
My processors are x5670, In intel website maximum permitted operation temperature is 81,3 degree celcius.

In this case mac pro open fans at 90degree celcius. Is diode temperature same thing as say intel?


tbsoftware

macrumors newbie
Jan 15, 2015
14
7
Ottawa, Canada
I successfuly upgrade 2009 4.1 to 5.1 firmware.

For example CPU A core 20degree, CPU A diode 70degree. TOTal 90 degree. Total is never change, 89, 90 or 91 degree.
Cpu A diode temp is 85degree celcius but fans turn very slow.

How can I fixed this issue?

View attachment 560865

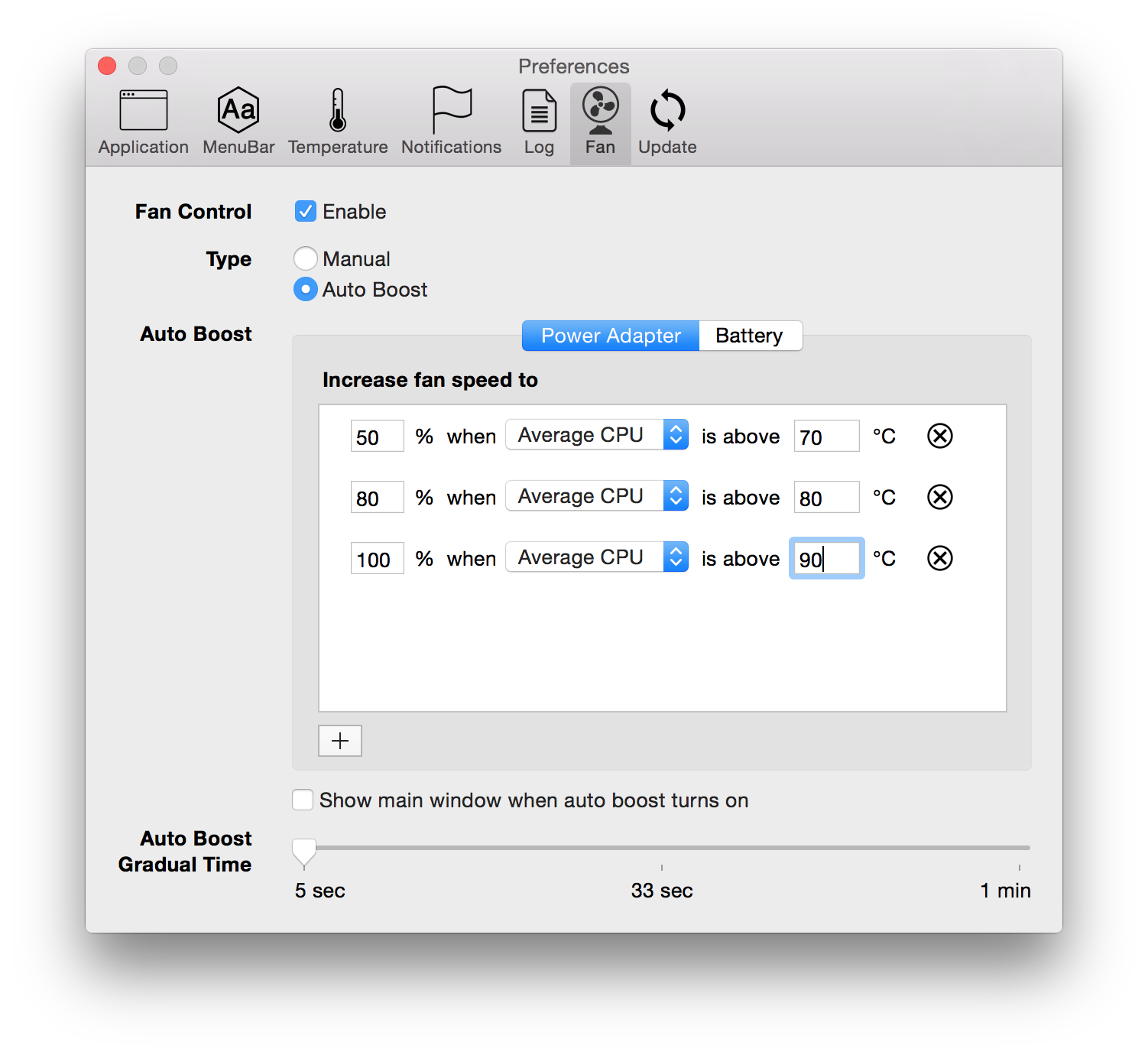

The great news is you already have full fan control with TG Pro. You can have the fans increase in speed based on the CPU temperatures. For example, here's a setup for the fan Auto Boost feature that would probably help.


Attachments

h9826790

macrumors G5
Apr 3, 2014
14,096
6,723
Hong Kong
My processors are x5670, In intel website maximum permitted operation temperature is 81,3 degree celcius.

In this case mac pro open fans at 90degree celcius. Is diode temperature same thing as say intel?
T-case max is not T-diode max, and there is no practical way to measure the T-case temperature in our Mac Pro. The common believe is that the T-diode is around 10C hotter than T-case when at the max temperature.

So, theoretically, your CPU is still 5C away from the processor hot state, which is exactly what the software told you.


accessvirus

macrumors newbie
Original poster
Mar 1, 2015
20
0
The great news is you already have full fan control with TG Pro. You can have the fans increase in speed based on the CPU temperatures. For example, here's a setup for the fan Auto Boost feature that would probably help.
I want to setup auto boost feature for if DIODE temperature over than X degree. Is it possible?


tbsoftware

macrumors newbie
Jan 15, 2015
14
7
Ottawa, Canada
I want to setup auto boost feature for if DIODE temperature over than X degree. Is it possible?
You'll be able to do this in TG Pro 2.8 which I'm working on now and will be a free update. I expect to have it ready in the next 5-10 days. Right now, the choices are Average CPU, Any Sensor and Always.

Once the new version is available, you'll be able to choose from any of the sensors, including the CPU Diode Temperature you mention.

  • Like
Reactions: accessvirus
