Help! Took apart MacBook, have "extra pieces"

Discussion in 'MacBook' started by BulkHedd, Sep 25, 2010.

  1. BulkHedd macrumors 6502

    BulkHedd

    Joined:
    Nov 13, 2006
    #1
    Today I took apart my white MacBook (late 2006 model) to blow the dust out.

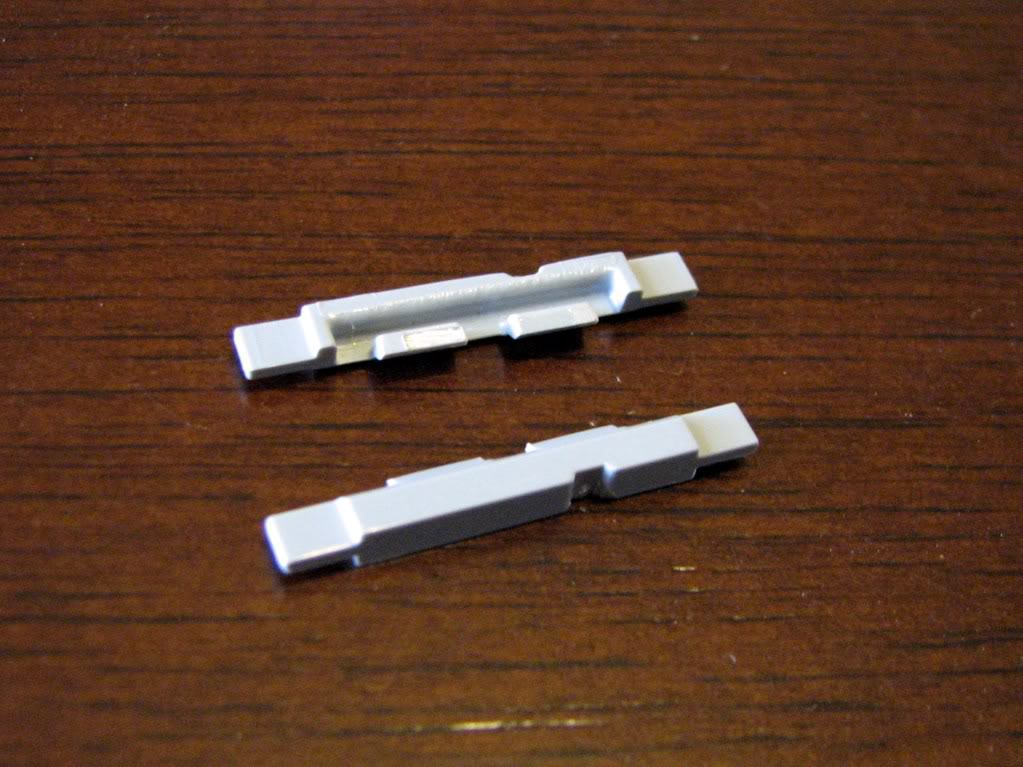

    After I reassembled it I found 2 small plastic pieces. They look like spacers or something. The dis-assembly/re-assembly wasn't difficult but I don't really want to do it again unless these parts are pretty important.
    Can someone identify these and tell me where they go?

    [​IMG]

  2. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #2
    Go here, select your model and look for yourself what it might be.

  3. pvmacguy macrumors 65816

    pvmacguy

    Joined:
    Sep 2, 2009
    Location:
    Jax
    #3
    Those look like the clips that secure the top case and the bottom case together. They are usually located on the bottom part of the case. Do you have an areas on the top case where it isn't together well like raised up on the edges?

  4. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #4
    pvmacguy is correct. These slide the the edge of the bottom case and the top case snaps on to these.

  5. tkermit macrumors 68040

    tkermit

    Joined:
    Feb 20, 2004
    #5

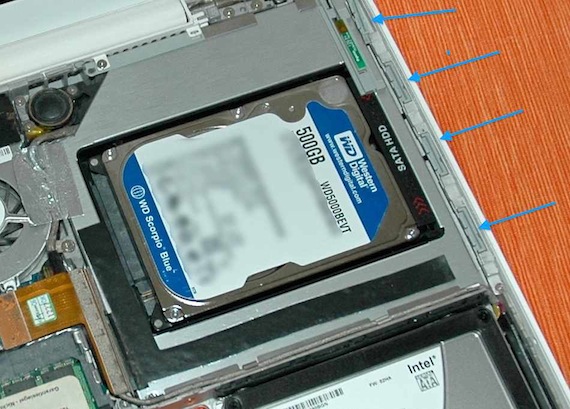

    Here's a picture of them in place (I replaced my superdrive with an optibay)


    Attached Files:

    • mb.jpg
      File size:
      96.9 KB
      Views:
      54
  6. BulkHedd thread starter macrumors 6502

    BulkHedd

    Joined:
    Nov 13, 2006
    #6
  7. pvmacguy macrumors 65816

    pvmacguy

    Joined:
    Sep 2, 2009
    Location:
    Jax
    #7
    I would take it apart and find where those went and put them back, if you ever get cracks in your top case and have apple replace it you wouldn't want them to deny your claim saying it cracked because those clips weren't there.

    As for that middle screw, that position to try and screw something back together is absolutely awful. I took apart a blackbook to blow out dust and clean the top case and the far left screw gave me resistance because it wasn't perfectly aligned due to the tight space.

  8. BulkHedd thread starter macrumors 6502

    BulkHedd

    Joined:
    Nov 13, 2006
    #8
    I did take it apart but I only found (3) of the clips so I'm missing one. My MacBook is 4 years old so I don't think Apple would replace it anyway.
