Help tried to repair iphone

Discussion in 'iPhone Tips, Help and Troubleshooting' started by deejeeo, Mar 7, 2014.

  1. deejeeo macrumors newbie

    Joined:
    Mar 7, 2014
    #1
    I was trying to repair my iphone housing and screen but when I pulled I ended up with this. What happened and how the hell do I remove this metal plate.
    [​IMG]

  2. Charadis macrumors 6502a

    Joined:
    Jul 3, 2010
    #2
    Could you provide pics of the LCD/screen front, please? It looks like you pulled the glass/lcd straight off the frame. Is the ribbon cable still intact? Nothing else broken? You may need to pry the frame from off the casing.

  3. Charadis macrumors 6502a

    Joined:
    Jul 3, 2010
    #3

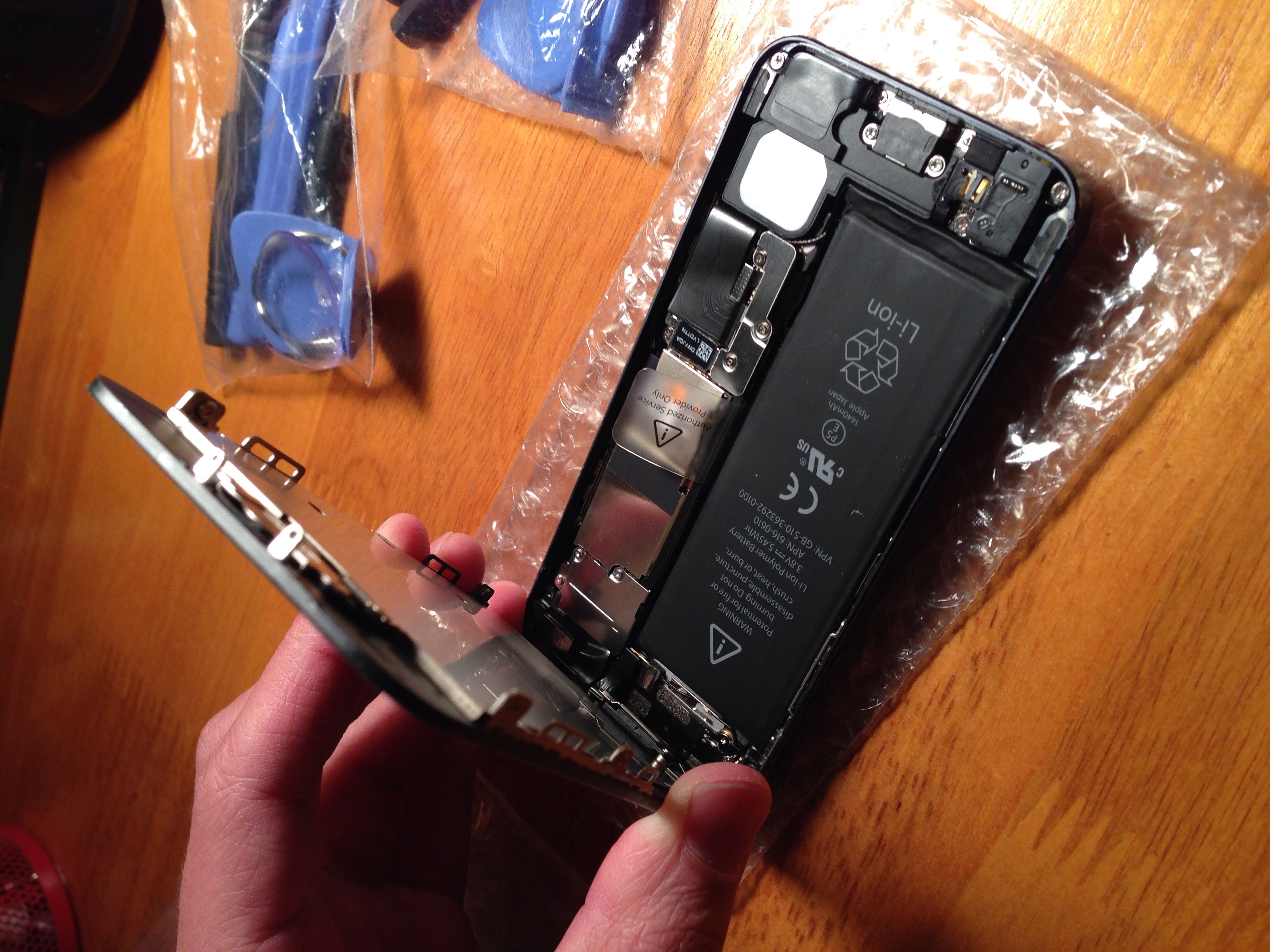

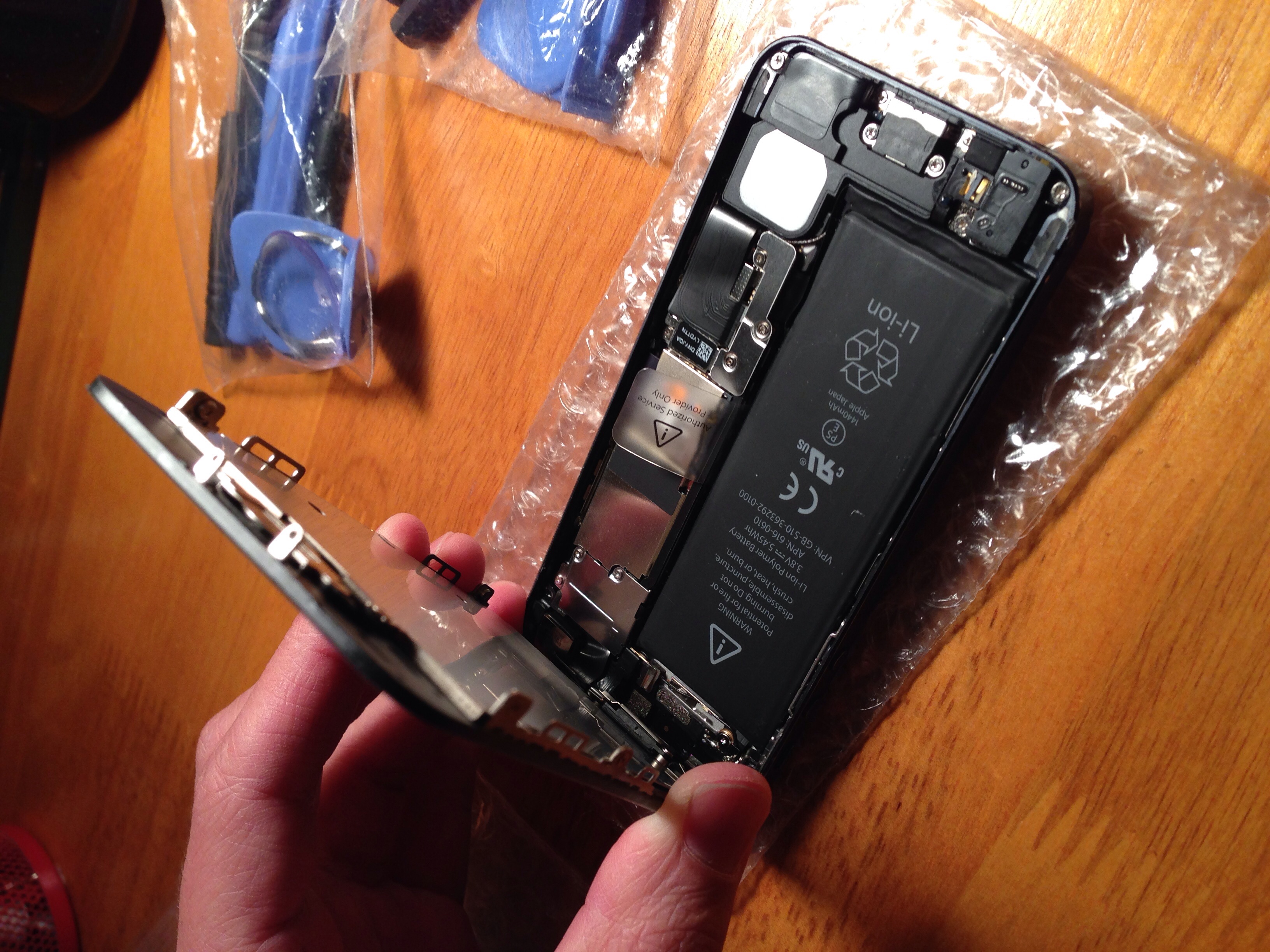

    This is what you should see (attachment) when you successfully remove the display assembly from the casing. Sent from my iPhone 5.


    Attached Files:

  4. deejeeo thread starter macrumors newbie

    Joined:
    Mar 7, 2014
  5. blueroom macrumors 603

    blueroom

    Joined:
    Feb 15, 2009
    Location:
    Toronto, Canada
    #5
    Take it to someone that can fix it or ask Apple about an OoW replacement.

  6. deejeeo thread starter macrumors newbie

    Joined:
    Mar 7, 2014
    #6

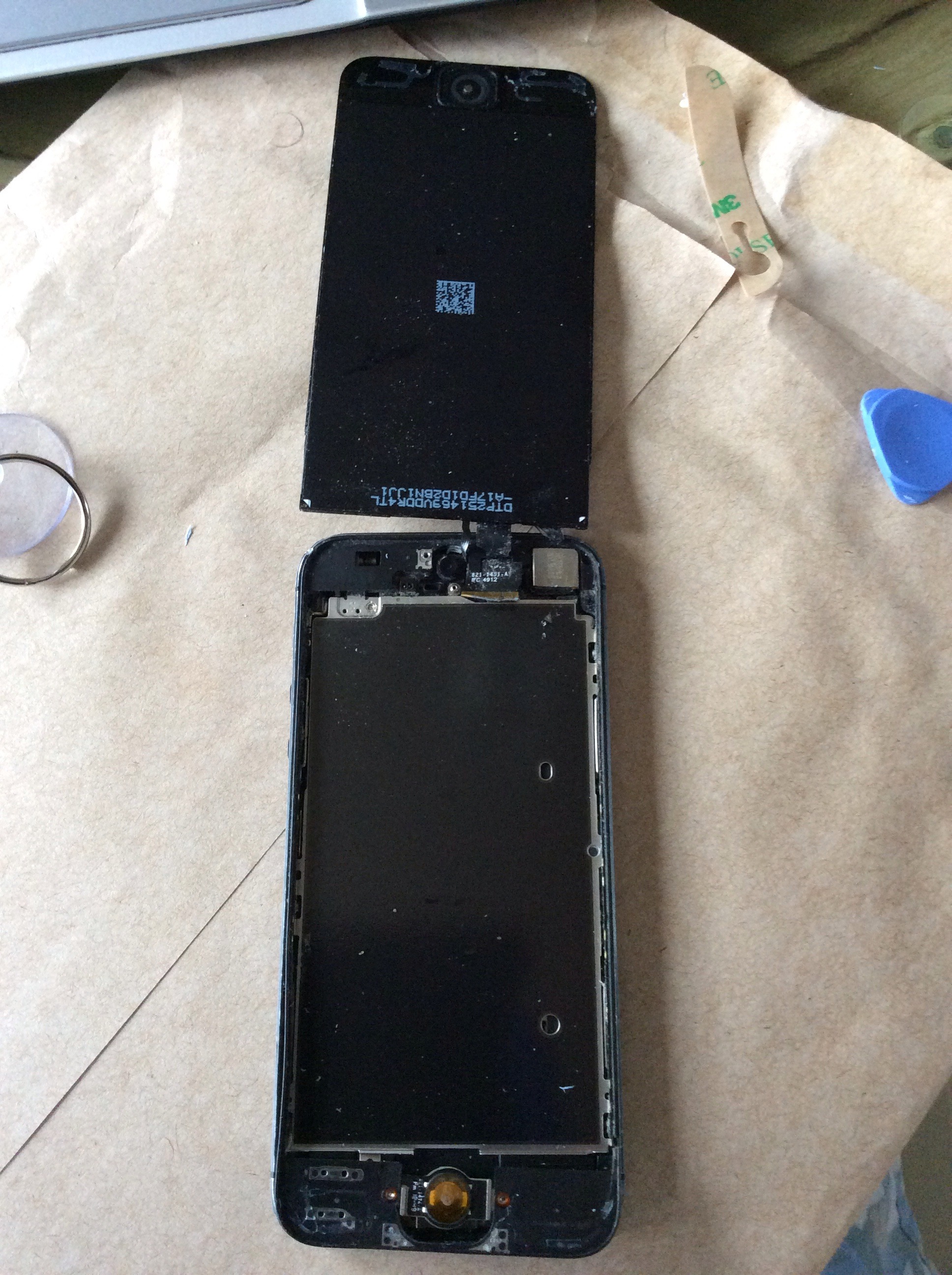

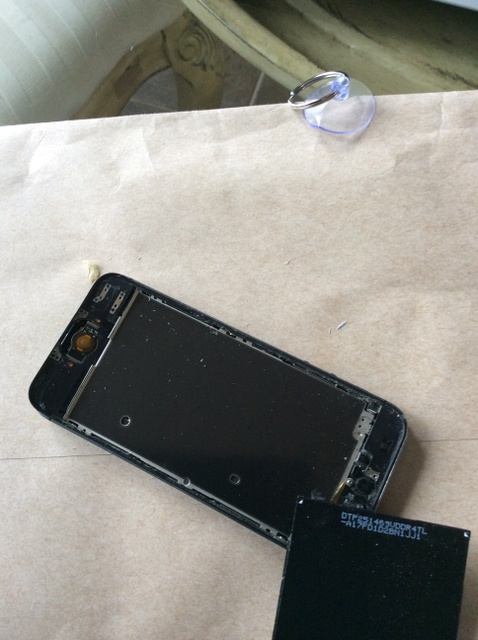

    hey did you see the two pictures

  7. Charadis, Mar 7, 2014
    Last edited: Mar 7, 2014

    Charadis macrumors 6502a

    Joined:
    Jul 3, 2010
    #7
    Sry, afk. Thanks for the pics. How extensive of a repair are you planning to do? If you plan to replace the entire assembly, you should be fine once you remove the frame. I would approach this by prying from the edge (plastic bezel) upward from the bottom end. You could probably try going from the home button cavity if you pry carefully. I had difficulty prying the frame and LCD assembly from my repair because there are clips securing the frame in place.

    If you plan on salvaging the LCD/Digitizer combo, I would check to see that the LCD still displays and the digitizer still responds to touch across entire screen. The ribbon flex looks a little mangled.



    Edit: try to use a plastic pry tool if available. I would recommend to pry from the frame and avoid using anything below the frame for leverage; you could potentially damage components by doing this. The screen ribbon is secured to the MoBo by a metal plate that is anchored down by 3 screws (see my pic). You'll need to have the frame pried like in my photo, then remove the screens and the plate, then use a plastic pry tool to unclip the ribbon connector.

  8. iamMacPerson macrumors 68030

    iamMacPerson

    Joined:
    Jun 12, 2011
    Location:
    AZ/10.0.1.1
    #8
    I would suggest taking it to Apple and getting a OOW replacement.

    Or take it to someone who can correct the problem and replace the display. Looks like you dropped it and that could have caused the problem.

  9. John T macrumors 68020

    John T

    Joined:
    Mar 18, 2006
    Location:
    UK.
    #9
    Take your phone to an Apple Authorised Service Provider - (not a backstreet repairer!) and get it repaired properly.

    Afraid this is an example of what can happen if you don't really know the correct procedures.
