HELP! Trying to find what this panel is!

Discussion in 'Mac OS X Lion (10.7)' started by chrf097, Dec 27, 2011.

  1. chrf097, Dec 27, 2011
    Last edited: Dec 27, 2011

    chrf097 macrumors 68040

    chrf097

    Joined:
    Dec 16, 2011
    #1
    I was browsing Wikipedia when I came upon this image on the page about Aqua. The image peaks my interest, so I was curious about where to find this on both Lion and older versions of Mac OS X (Tiger and earlier) so I can compare the evolution of the design?

    [​IMG]

  2. techfreak85 macrumors 68040

    techfreak85

    Joined:
    Jan 13, 2008
    Location:
    Places
    #2
    The screen-capper most likely used Interface Builder to drag all the objects from the IB library into a custom window as an example for Wikipedia.

  3. chrf097 thread starter macrumors 68040

    chrf097

    Joined:
    Dec 16, 2011
    #3
    Is the utility accessible in the Xcode currently on the Mac App Store?

  4. techfreak85 macrumors 68040

    techfreak85

    Joined:
    Jan 13, 2008
    Location:
    Places
    #4

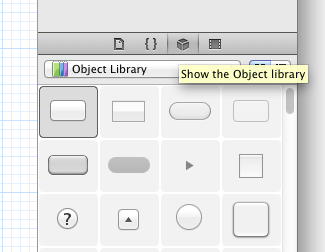

    Interface Builder is integrated into XCode now since being on the MAS. Create a new Mac project, and open the .xib file, pull up the window design and click the little box in the bottom of the right side tool bar as pictured to show the object library.


    Attached Files:
