Help Understanding RAID

Discussion in 'Mac Accessories' started by Graemezee, Feb 2, 2012.

  1. Graemezee macrumors newbie

    Joined:
    Oct 14, 2009
    #1
    I Need a Dummy's guide to Raid I Get the basics just having a problem translating it it into a real world situation

    just looking for a secure solution to store ongoing and key projects in a location that is not computer specific so if a machine goes down I can hop on another computer with my work all available

    Currently have Mac pro 4 bays
    2TB Time Machine
    1TB Company A Work
    1.5 TB Company B Work
    500GB OS and Scratch Disc



    Looking to migrate my files to external raid not really sure how this would work. How Do i intergrate time machine into the process

    I am probably getting confused between the redundancy needed for the raid and the effective back up.

    Say I bought an 8TB raid Effective space 4TB The other 4 TB is for the redundancy of the raid not space available for backup ie time machine?

    So would i need two Raids one for work and one for time machine?

    Can any one help as am suffering from an overload of information and no understanding.

  2. Macman45 macrumors demi-god

    Macman45

    Joined:
    Jul 29, 2011
    Location:
    Somewhere Back In The Long Ago
    #2
  3. firestarter macrumors 603

    firestarter

    Joined:
    Dec 31, 2002
    Location:
    Green and pleasant land
    #3
    The article linked by Macman provides a good overview of RAID.

    A couple of points I'd add:

    • You seem to be confusing NAS and RAID. NAS is Network Addressed Storage (ie, storage that exists on the network, not inside of just one computer), RAID is the method by which data is stored redundantly on a number of disks. Most multi disk NAS boxes support RAID, but you don't have to use it - you can just use regular disks. Similarly you can get RAID boxes that connect to the computer directly, not over the network.
    • RAID isn't a backup. If you use RAID 5 to spread your data across a number of disks, then it'll preserve that data if one of the disks dies. That's great; but disk crashes aren't the only bad thing that can happen to data. Fire, theft, virus, accidental deletion, corruption, water damage, physical damage are all (likely) events that RAID doesn't protect against. All that RAID does is to reduce the amount of time you're down after a crash. You still absolutely need a backup (in fact, more so - because when RAID goes really wrong the proprietary formats can sometimes make recovery much more difficult).
    • Given that you can't get away from taking backups, often the cost of RAID (cost of hardware, cost of additional parity drives, cost to performance) starts to dull it's appeal. If you don't currently have proper backups (2 sets of backup disks, one set kept offsite) then this should be the first thing you spend your money on.

    Look laterally at your problem and don't be too over-impressed by 'magic bullet' solutions that seems to protect your data through disk crashes and other problems. If you need the assurance of batter backups, then get some disks and make better backups.

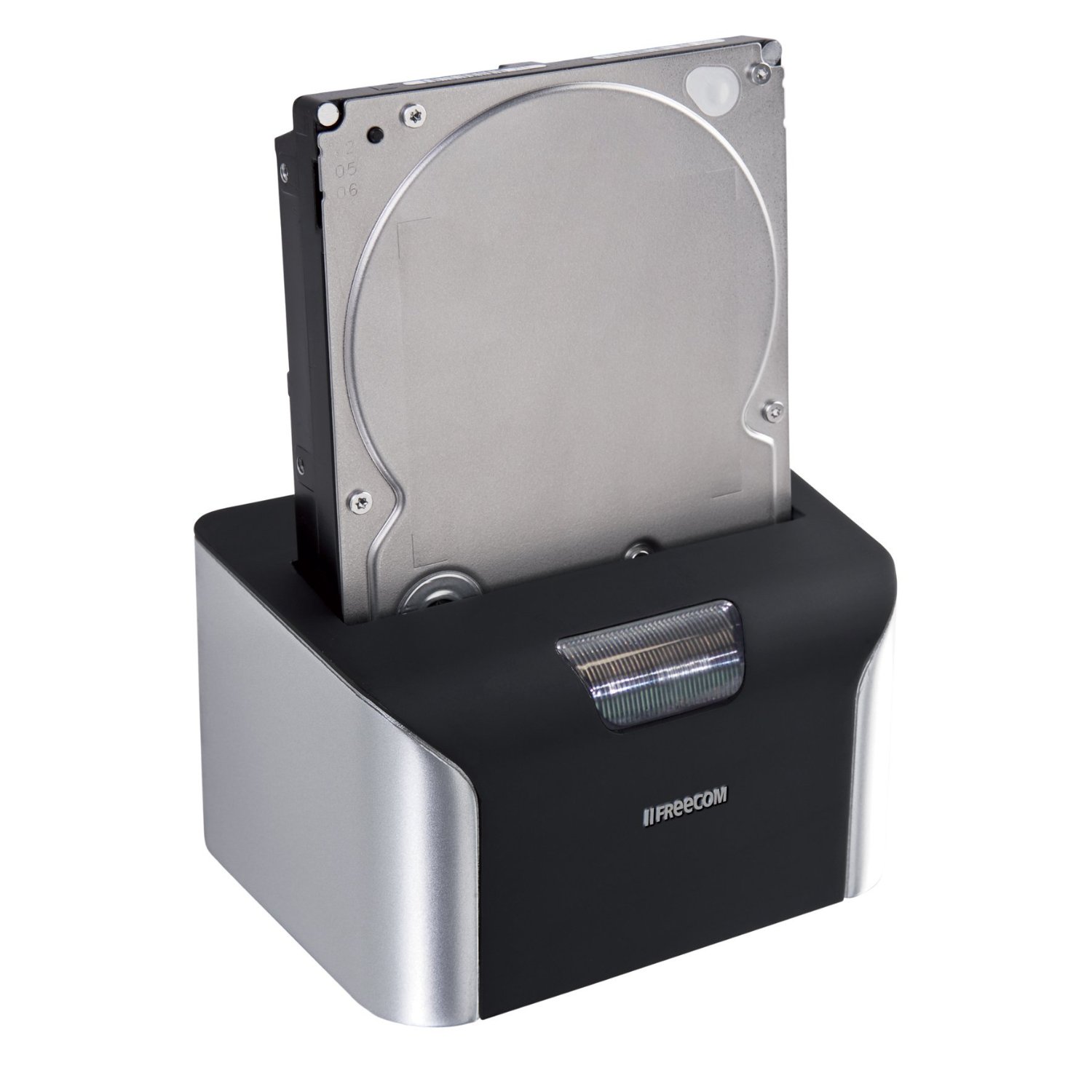

    If you need to access your data kept inside your MacPro in the event that the MacPro fails - within 2 minutes you can open the side, remove your data disk, drop it in a dock (pictured) and get back to work:

    [​IMG]

  4. Graemezee thread starter macrumors newbie

    Joined:
    Oct 14, 2009
    #4
    Hi Firestarter I Totally get your point. it is effectively what i do now I have a caddy system and when my mac pro goes down i shuffle the discs around.
    I was looking for a simpler solution as The three Main discs are getting to be full especially the time machine backup which is nearly at its limit.

    Really All I want is a large external drive to work on and a large external drive for backup it gets complicated knowing what to buy as to get the size of drive they all seem to need to kind of multiple drive system be it NAS or External HD which points to RAID.

    Part of the problem is my mac pro is having issues and the apple centre say that my machine can only accommodate 500 GB discs I have to take this seriously as my mac is functioning correctly again once i reverted the OS back to a 500 GB disc

    So My next step its some kind of external drive. the other issue is as a graphic designer I have always bought the highest spec mac available, but in the current climate the Top of the rage mac pros are out of my league and looks like replacing a top of the line iMac on a regular basis seems a better option which would require a large external storage system.

    Should this a be a single entity or two separate drives i thought if i was working of with large photoshop files it would have to be and external drive and the back up could be a NAS but I am unsure if two drives are the best solution or just one large set up. And as both options would need multi drives to get the size of space i need I am back to the same point.

    So Should my external drive have no redundancy and the back up with Time machine have mirrored redundancy

    Or should I forget time machine and just have one drive with mirrored redundancy

    Or can achieve both in one drive. Really i am just grasping at straws and have no idea as to what good practice in this situation should be.

  5. takeshi74 macrumors 601

    Joined:
    Feb 9, 2011
    #5
    There's no "should". It's all a matter of what measures you're willing to take to ensure the safety of the data. The more you're willing to do the better your odds.

    You could certainly use just a large, single external drive but you're out of luck if anything happens to the drive.

    With RAID you at least have some redundancy if a drive fails. I'd recommend keeping a spare on hand to minimize your down time if you go this way.

    You can use Time Machine or another software backup solution but you don't have to. You can use the RAID as an external drive.

    You can add internet or other offsite backup as well.

    Again, it all depends on what lengths you're willing to go to to protect your data.

  6. flynz4, Feb 2, 2012
    Last edited: Feb 2, 2012

    flynz4 macrumors 68040

    Joined:
    Aug 9, 2009
    Location:
    Portland, OR
    #6
    I have owned several NAS RAID 0/1/5/10 boxes... and I have decommissioned all of them. I also own a Windows Home Server w/ 8TB of data... which is currently sitting with the power turned off.

    The problem for me... these NAS solutions do not fit into my backup strategy. I use both Time Machine for local backup... combined with Crashplan+ for cloud backup. Neither of those works well (or at all) backing up NAS data. This leads me to find a replacement technology for both the NAS boxes & the WHS.

    My recommendation:

    1. First, backup your data twice... locally and cloud. Once you have your data backed up twice... then you are covered. This should be your #1 priority.
    2. Do not rely on any backup strategy that is not automated, with zero human involvement. Don't get me wrong... if you want to make a backup occasionally and keep a copy away from the house... go ahead and do it. Just don't fool yourself into thinking that it is a reliable backup strategy. For example... I religiously make an ANNUAL "extra safe" backup copy of my >100K photos... an keep it locked up at work. I do it EVERY YEAR WITHOUT FAILURE... except there is just one small problem. I think if I was to pull that drive out of my office... I would find that it has been 3 years since I really did it. It is just human nature.
    3. Next... do not add any storage that does not fit into that fully automated dual backup methodology. This means that you either need to add local storage... or add "intelligent networked storage" that can have its own automated dual backup.

    I *THINK* that eventually I will buy a Mac Mini and use it with Lion Server. That way I can set the Mac Mini to create local TM backups... and also backup to the cloud. It can serve files throughout the house... including to ATVs and other devices. I will just add direct attached drives to it via FW800, or TB as I need more storage. I'll also be able to use it for other "server functions" I may desire using Lion Server.

    /Jim

  7. FireWire2 macrumors 6502

    FireWire2

    Joined:
    Oct 12, 2008
    #7
    Without going in the tech jargon!
    Here are the high light of RAID
    RAID 0 (Stripe) result FAST data divide among drives, lost 1 drives, all data is GONE - usable 100% RAW space
    RAID 1 (mirror) real-time back up 1:1, able to rebuilt data when lost a drive. Data is critical during rebuilt and drive failed, control with hot-spare feature will minimize the critical time - usable 50% of RAW space
    3Way RAID1 (Mirror 3 drive) - Three drives mirror, data in critical ONLY when lost TWO drives, otherwise it is the SAFEST - usable 33% of RAW space
    RAID10 (Mirror and stripe) - FAST and SAFE, lost TWO drives (4 drives raid set) or more (> than 4 drive raid set) are OK
    RAID5 - (Parity) speed depend on controller, hardware is fast, where software raid is generally slow, when lost a drives, then data is critical, including during rebuilt - usable N-1 RAW space
    RAID6 - (2x Parity drive) speed depend on controller, hardware is fast, where software raid is slow, when lost TWO drives, then data is critical, including during rebuilt - usable N-2 RAW space

    As far as backup concern, the ideal is use 1-2-3 rules (this is not what I came up, but I read it some where)
    3 - Copies - have a multiple copies - recommend 3 copies
    2 - different format - internal vs external; DAS vs NAS.
    1 - Off side - Must have a copy remotely (out side the facility)

    Here is what I have:

    My company data is back up to a NAS (eBOX-N) at boss's house use RSYN to remotely sync via VPN to the Server at WORK schedule at 8:30pm (Mon-Fri)

  8. joaoferro37 macrumors 6502

    joaoferro37

    Joined:
    Jul 31, 2008
    Location:
    Vogon Planet Destructor
    #8
    Just want to point out that hard drive docking is not suggested for long term use.
    No anti-vibration, no heat dissipation.

  9. joaoferro37 macrumors 6502

    joaoferro37

    Joined:
    Jul 31, 2008
    Location:
    Vogon Planet Destructor
    #9
    Keep it simple and straight forward.
    RAID 0 for high performance. More drives= faster speed until reach interface transfer rate bottleneck. Lose one drive you lose everything.

    RAID 1 = mirror= you lose half of the capacity. Speed is also depending on the RAID engine and how many drives in the RAID set.
    **Side note** Currently mot of the RAID card (at least what I've been doing, Areca, ATTO, QSAN, LSI) supports up to 16 physical drives per RAId group.
    You can lose half of the drive but it is costly to use RAID 1.

    RAID 5, using one drive capacity to create parity. Lost more than one drive, you are done. Avoid using this unless have good RAID card using a dedicated CPU. Something like High Point 2314, Silicon Image 3132, 3124 chipset solution, please avoid at all cost.

    RAID 6 same idea as RAID 5 but two parity data across all drives; thus, took 2 drive space as parity and you can lose no more than 2 drives.

    The best back up solution is using LTO or a separate RAID set and swap out the drives. Something like
    2 Bay Removable RAID

    But again, for high performance I will use RAID 0 or RAID 6.
    For long term backup using LTO or RAID 1.

  10. monsieurpaul macrumors regular

    Joined:
    Oct 8, 2009
    #10
    There is a lot of marketing smoke around RAID and equivalent like Drobo for example: put your disk in our box, we'll do our magic on them and you'll never have to worry about losing your data anymore. As firestarter said, the reality is a bit more complex.

    IMHO, if you don't run a server or provides services where you really need a minimal downtime, you should avoid RAID.

    You could get a NAS though (you are not forced to configure your disks in RAID in a NAS) that will act as your external drive (gigabit ethernet is faster than USB 2.0 and comparable to FW800) plus USB drives attached to the NAS for the local backup.

    For offsite backup, you could use a cloud solution or a second NAS located in another place.
