Help with Kernel Panics Since Updating to 10.13.4

Discussion in 'Mac Pro' started by MacGarage, Apr 5, 2018.

  1. MacGarage macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #1
    It just may be a coincident but ever since updating to 10.13.4, I have been receiving a Kernel Panic.

    It mostly happens when I place it to sleep.

    I ran Tech Tool and Disk Warrior on items I could and all tested okay. I do have one back-up hard drive with bad sectors.

    I did the normal resets without a change.

    It is a 2010 MacPro with 2-3.46 GHz/64GB RAM, flashed AMD Radeon 7950, Sandisk Ultra II 960GB, 4 hard drives

    The latest full report:
    Anonymous UUID: AF64C102-BCDE-47D2-D6C0-4375DAAB7CA9

    Thu Apr 5 17:00:01 2018

    *** Panic Report ***
    panic(cpu 10 caller 0xffffff7f98a944f6): "ino 8595065709 no extent covering dstream alloced_size 8417558528 (fsize 8417558528) pos/len 8417591296:0\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-748.57.19/nx/jobj.c:10680
    Backtrace (CPU 10), Frame : Return Address
    0xffffff874df4b330 : 0xffffff801766e166
    0xffffff874df4b380 : 0xffffff8017796714
    0xffffff874df4b3c0 : 0xffffff8017788a00
    0xffffff874df4b440 : 0xffffff8017620180
    0xffffff874df4b460 : 0xffffff801766dbdc
    0xffffff874df4b590 : 0xffffff801766d99c
    0xffffff874df4b5f0 : 0xffffff7f98a944f6
    0xffffff874df4b7a0 : 0xffffff7f98a576ea
    0xffffff874df4b8f0 : 0xffffff80178cc1c6
    0xffffff874df4bd10 : 0xffffff80178cc08e
    0xffffff874df4bd50 : 0xffffff80178b392e
    0xffffff874df4bf40 : 0xffffff8017c04418
    0xffffff874df4bfa0 : 0xffffff8017620966
    Kernel Extensions in backtrace:
    com.apple.filesystems.apfs(748.51)[4E26C92D-330B-33A8-8DA7-C1498DD86AB7]@0xffffff7f98a28000->0xffffff7f98b0dfff
    dependency: com.apple.kec.corecrypto(1.0)[CA65BD09-4559-3507-A72B-733ED9110DF1]@0xffffff7f985b8000
    dependency: com.apple.driver.AppleEffaceableStorage(1.0)[6B49B846-2852-3D7C-BD45-E70DC2684A8E]@0xffffff7f9898c000
    dependency: com.apple.iokit.IOStorageFamily(2.1)[F27A8A2A-6662-3608-83BD-415037509E01]@0xffffff7f98097000

    BSD process name corresponding to current thread: coresymbolicatio

    Mac OS version:
    17E199

    Kernel version:
    Darwin Kernel Version 17.5.0: Mon Mar 5 22:24:32 PST 2018; root:xnu-4570.51.1~1/RELEASE_X86_64
    Kernel UUID: 1B55340B-0B14-3026-8A47-1E139DB63DA3
    Kernel slide: 0x0000000017400000
    Kernel text base: 0xffffff8017600000
    __HIB text base: 0xffffff8017500000
    System model name: MacPro5,1 (Mac-F221BEC8)
    Root disk errors: "Failed to issue COM RESET after 3 attempts. Terminating."

    System uptime in nanoseconds: 81823682822638
    last loaded kext at 76337078139792: com.apple.driver.usb.cdc.acm 5.0.0 (addr 0xffffff7f9b246000, size 57344)
    last unloaded kext at 76398477037812: com.apple.driver.AppleUSBMergeNub 900.4.1 (addr 0xffffff7f9b219000, size 12288)
    loaded kexts:
    com.parallels.virtualhid 1.0.3 3
    com.parallels.virtualsound 1.0.36 36
    at.obdev.nke.LittleSnitch 4740
    com.apple.driver.AppleBluetoothMultitouch 92
    com.apple.driver.AppleTyMCEDriver 1.0.3d2
    com.apple.driver.AGPM 110.23.33
    com.apple.filesystems.autofs 3.0
    com.apple.driver.AppleUpstreamUserClient 3.6.5
    com.apple.driver.AppleMCCSControl 1.5.4
    com.apple.kext.AMDFramebuffer 1.6.6
    com.apple.driver.AppleMikeyHIDDriver 131
    com.apple.kext.AMDRadeonX4000 1.6.6
    com.apple.AGDCPluginDisplayMetrics 3.18.48
    com.apple.driver.AppleHDA 281.51
    com.apple.driver.AppleHV 1
    com.apple.driver.AppleMikeyDriver 281.51
    com.apple.iokit.IOUserEthernet 1.0.1
    com.apple.iokit.IOBluetoothSerialManager 6.0.5f3
    com.apple.driver.pmtelemetry 1
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.driver.AppleLPC 3.1
    com.apple.kext.AMD7000Controller 1.6.6
    com.apple.driver.AudioAUUC 1.70
    com.apple.driver.AppleOSXWatchdog 1
    com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
    com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
    com.apple.filesystems.apfs 748.51.0
    com.apple.driver.AppleUSBDisplays 380
    com.apple.filesystems.hfs.kext 407.50.6
    com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
    com.apple.BootCache 40
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
    com.apple.iokit.SCSITaskUserClient 404.30.2
    com.apple.driver.AppleFWOHCI 5.5.9
    com.apple.driver.AirPort.Brcm4331 800.21.30
    com.apple.driver.Intel82574LEthernet 2.7.2
    com.apple.driver.AppleAHCIPort 329.50.2
    com.apple.driver.AppleHPET 1.8
    com.apple.driver.AppleRTC 2.0
    com.apple.driver.AppleACPIButtons 6.1
    com.apple.driver.AppleSMBIOS 2.1
    com.apple.driver.AppleACPIEC 6.1
    com.apple.driver.AppleAPIC 1.7
    com.apple.driver.AppleIntelCPUPowerManagementClient 220.50.1
    com.apple.nke.applicationfirewall 183
    com.apple.security.TMSafetyNet 8
    com.apple.security.quarantine 3
    com.apple.driver.AppleIntelCPUPowerManagement 220.50.1
    com.apple.driver.usb.cdc.ncm 5.0.0
    com.apple.driver.usb.cdc 5.0.0
    com.apple.driver.AppleHIDMouse 191
    com.apple.driver.IOBluetoothHIDDriver 6.0.5f3
    com.apple.driver.AppleMultitouchDriver 1404.4
    com.apple.driver.AppleInputDeviceSupport 1404.3
    com.apple.kext.triggers 1.0
    com.apple.kext.AMDRadeonX4030HWLibs 1.0
    com.apple.iokit.IOAcceleratorFamily2 378.18.1
    com.apple.kext.AMDRadeonX4000HWServices 1.6.6
    com.apple.iokit.IOAVBFamily 675.6
    com.apple.plugin.IOgPTPPlugin 675.12
    com.apple.iokit.IOEthernetAVBController 1.1.0
    com.apple.driver.DspFuncLib 281.51
    com.apple.kext.OSvKernDSPLib 526
    com.apple.iokit.IONDRVSupport 519.15
    com.apple.driver.AppleSSE 1.0
    com.apple.iokit.IOSurface 211.12
    com.apple.iokit.IOSerialFamily 11
    com.apple.driver.AppleSMBusController 1.0.18d1
    com.apple.AppleGPUWrangler 3.18.48
    com.apple.driver.AppleHDAController 281.51
    com.apple.iokit.IOHDAFamily 281.51
    com.apple.driver.AppleSMBusPCI 1.0.14d1
    com.apple.kext.AMDSupport 1.6.6
    com.apple.AppleGraphicsDeviceControl 3.18.48
    com.apple.iokit.IOGraphicsFamily 519.15
    com.apple.iokit.IOFireWireIP 2.2.9
    com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
    com.apple.driver.IOPlatformPluginLegacy 1.0.0
    com.apple.driver.IOPlatformPluginFamily 6.0.0d8
    com.apple.driver.AppleHIDKeyboard 205
    com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.5f3
    com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.5f3
    com.apple.iokit.IOBluetoothHostControllerTransport 6.0.5f3
    com.apple.iokit.IOBluetoothFamily 6.0.5f3
    com.apple.iokit.IOAHCIBlockStorage 301.40.2
    com.apple.driver.usb.IOUSBHostHIDDevice 1.2
    com.apple.driver.AppleUSBAudio 312.6
    com.apple.iokit.IOAudioFamily 206.5
    com.apple.vecLib.kext 1.2.0
    com.apple.driver.usb.networking 5.0.0
    com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
    com.apple.driver.usb.AppleUSBHub 1.2
    com.apple.filesystems.hfs.encodings.kext 1
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 404.30.2
    com.apple.iokit.IOBDStorageFamily 1.8
    com.apple.iokit.IODVDStorageFamily 1.8
    com.apple.iokit.IOCDStorageFamily 1.8
    com.apple.iokit.IOAHCISerialATAPI 267.50.1
    com.apple.iokit.IOFireWireFamily 4.7.0
    com.apple.iokit.IO80211Family 1200.12.2
    com.apple.driver.corecapture 1.0.4
    com.apple.driver.usb.AppleUSBEHCIPCI 1.2
    com.apple.iokit.IOAHCIFamily 288
    com.apple.driver.usb.AppleUSBUHCIPCI 1.2
    com.apple.driver.usb.AppleUSBUHCI 1.2
    com.apple.driver.usb.AppleUSBEHCI 1.2
    com.apple.driver.usb.AppleUSBXHCIPCI 1.2
    com.apple.driver.usb.AppleUSBXHCI 1.2
    com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
    com.apple.iokit.IOUSBFamily 900.4.1
    com.apple.driver.AppleUSBHostMergeProperties 1.2
    com.apple.driver.AppleEFINVRAM 2.1
    com.apple.driver.AppleEFIRuntime 2.1
    com.apple.iokit.IOHIDFamily 2.0.0
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.security.sandbox 300.0
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.driver.DiskImages 480.50.10
    com.apple.driver.AppleFDEKeyStore 28.30
    com.apple.driver.AppleEffaceableStorage 1.0
    com.apple.driver.AppleKeyStore 2
    com.apple.driver.AppleUSBTDM 439.50.6
    com.apple.driver.AppleMobileFileIntegrity 1.0.5
    com.apple.iokit.IOUSBMassStorageDriver 140.50.3
    com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2
    com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2
    com.apple.iokit.IOStorageFamily 2.1
    com.apple.driver.AppleCredentialManager 1.0
    com.apple.driver.KernelRelayHost 1
    com.apple.iokit.IOUSBHostFamily 1.2
    com.apple.driver.usb.AppleUSBCommon 1.0
    com.apple.driver.AppleBusPowerController 1.0
    com.apple.driver.AppleSEPManager 1.0.1
    com.apple.driver.IOSlaveProcessor 1
    com.apple.iokit.IOReportFamily 31
    com.apple.iokit.IOTimeSyncFamily 675.12
    com.apple.iokit.IONetworkingFamily 3.4
    com.apple.driver.AppleACPIPlatform 6.1
    com.apple.driver.AppleSMC 3.1.9
    com.apple.iokit.IOPCIFamily 2.9
    com.apple.iokit.IOACPIFamily 1.4
    com.apple.kec.pthread 1
    com.apple.kec.Libm 1
    com.apple.kec.corecrypto 1.0

    EOF
    Model: MacPro5,1, BootROM MP51.0084.B00, 12 processors, 6-Core Intel Xeon, 3.46 GHz, 64 GB, SMC 1.39f11
    Graphics: AMD Radeon HD 7950, AMD Radeon HD 7950, PCIe
    Memory Module: DIMM 1, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 2, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 3, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 4, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 5, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 6, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 7, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 8, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.98.102.30)
    Bluetooth: Version 6.0.5f3, 3 services, 27 devices, 1 incoming serial ports
    Network Service: Ethernet 1, Ethernet, en0
    Network Service: iPhone 5, Ethernet, en10
    Network Service: iPad, Ethernet, en11
    PCI Card: PXS2, USB eXtensible Host Controller, Slot-2
    PCI Card: AMD Radeon HD 7950, Display Controller, Slot-1
    PCI Card: AMD Radeon HD 7950, ATY,HamachiParent, Slot-1
    PCI Card: PXS4, USB eXtensible Host Controller, Slot-4
    PCI Card: pci1b21,625, AHCI Controller, Slot-3
    Serial ATA Device: HL-DT-ST DVD-RW GH61N
    Serial ATA Device: WDC WD1001FALS-41Y6A1, 1 TB
    Serial ATA Device: ST2000DM001-1ER164, 2 TB
    Serial ATA Device: ST2000DM006-2DM164, 2 TB
    Serial ATA Device: Hitachi HUS724030ALE641, 3 TB
    Serial ATA Device: SanDisk Ultra II 960GB, 960.2 GB
    USB Device: USB 3.0 Bus
    USB Device: Back-UPS ES 550 FW:840.B2.D USB FW:B2
    USB Device: USB 3.0 Bus
    USB Device: USB3.0 Hub
    USB Device: Back-UPS RS 1500 LCD FW:839.H7 .D USB FW:H7
    USB Device: USB3.0 Hub
    USB Device: iPhone
    USB Device: EyeTV Hybrid
    USB Device: USB Bus
    USB Device: USB Bus
    USB Device: USB Bus
    USB Device: BRCM2046 Hub
    USB Device: Bluetooth USB Host Controller
    USB Device: USB Bus
    USB Device: USB Bus
    USB Device: Bose USB Audio
    USB Device: USB Bus
    USB Device: USB 2.0 Bus
    USB Device: iPad
    USB Device: USB 2.0 Bus
    USB Device: Hub
    USB Device: Keyboard Hub
    USB Device: Apple Keyboard
    USB Device: USB2.0 Hub
    USB Device: Apple Watch Magnetic Charging Cable
    USB Device: USB2.0 Hub
    USB Device: Broadcom Bluetooth 3.0 Device
    USB Device: Apple Cinema HD Display
    FireWire Device: built-in_hub, Up to 800 Mb/sec
    Thunderbolt Bus:

  2. Macschrauber macrumors regular

    Joined:
    Dec 27, 2015
    #2
    Maybe a USB device. Pull all USB stuff for test sake.

  3. h9826790 macrumors G3

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #3
    Also, may be you should download the 10.13.4 full installer to update your cMP's firmware, just in case that fix some strange APFS issue.

  4. DeltaMac macrumors G3

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #4
    I suspect a failing hard drive...

  5. MacGarage, Apr 5, 2018
    Last edited: Apr 5, 2018

    MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #5

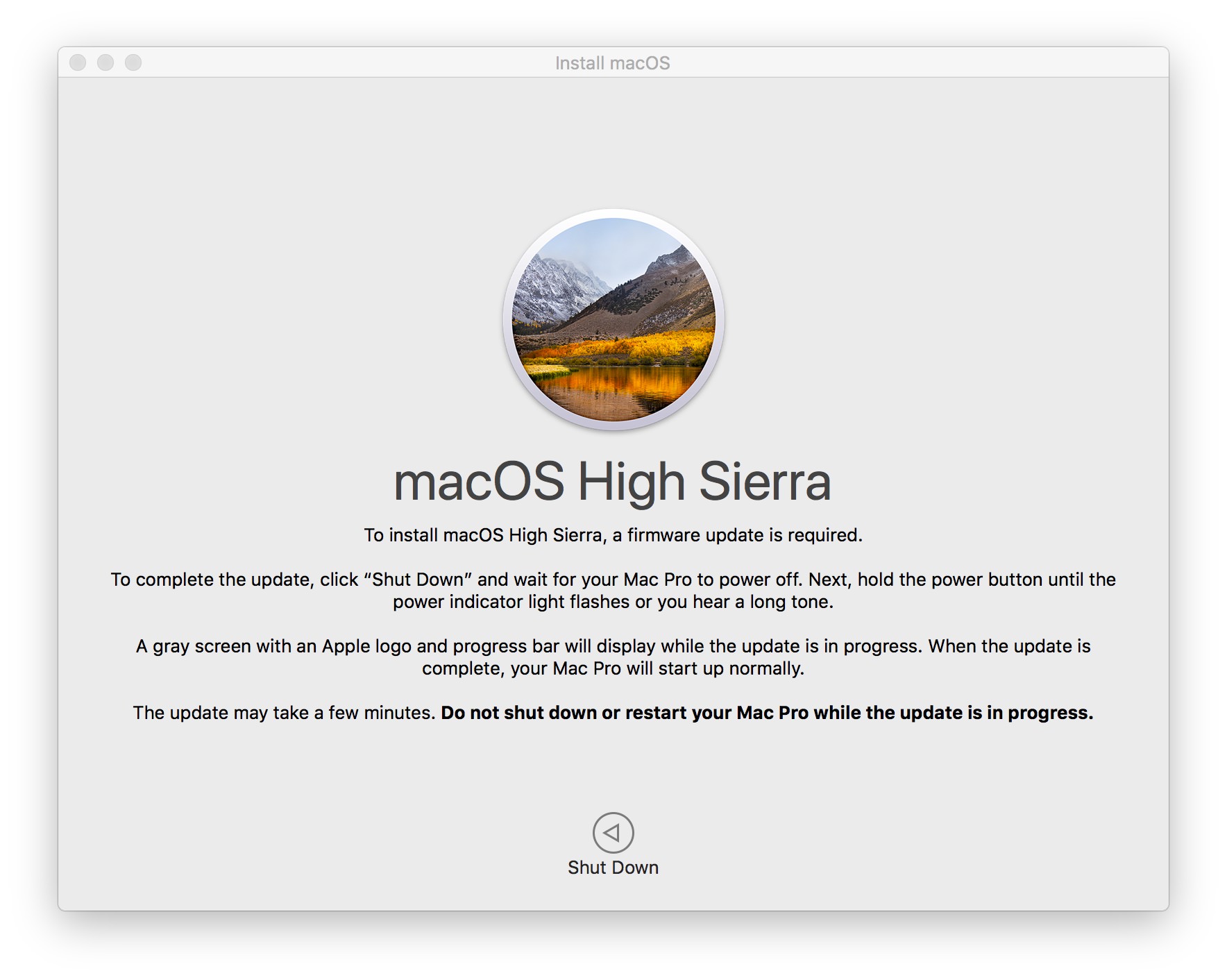

    Okay...did download and tried the combo updater. It did not ask me to update my firmware...I did do that when first installed 10.13.

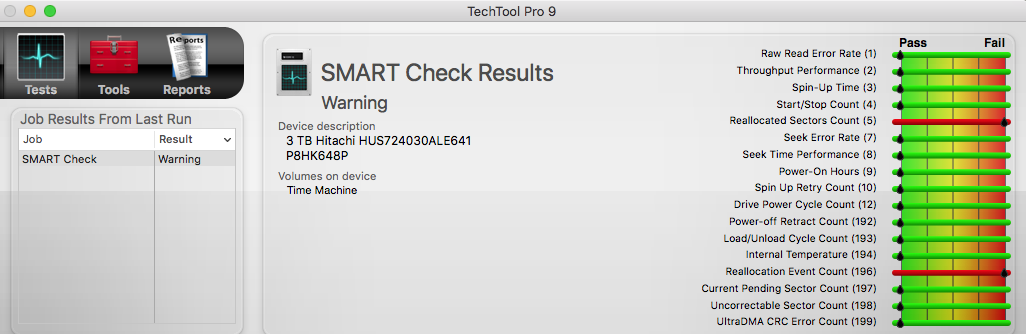

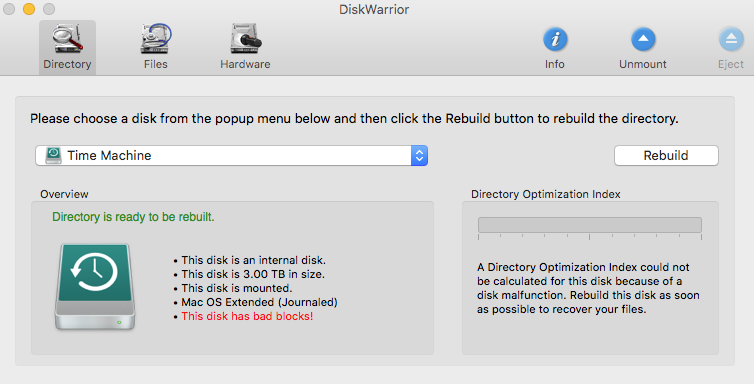

    Here are my reports on the one hard drive...it is for my Time Machine. I do have another drive ordered.

    I went ahead and pulled the drive out while waiting for the replacement so will see what happens in the meantime.

    I have some USB items unplugged as well. I do have a USB Bluetooth dongle to avoid the 2010 cMP issue...never had any issues before though with it.

    [​IMG]

    [​IMG]

  6. DeltaMac macrumors G3

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #6
    The Combo updater is NOT a reinstall of your macOS system. It can rebuild what it is capable of providing, and can fix a variety of errors, tuning up your system in some ways, but it is not the same as a system reinstall.
    The OTHER test you can do is to remove the time machine backup drive, and try using your system for a day or two.
    Do you get other kernel crashes, even with that time machine drive out of the system?

  7. MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #7
    With the bad hard drive out...still received the error. I am noticing the apfs error.

    Anonymous UUID: AF64C102-BCDE-47D2-D6C0-4375DAAB7CA9

    Sat Apr 7 07:28:53 2018

    *** Panic Report ***
    panic(cpu 20 caller 0xffffff7f92a944f6): "ino 8595065709 no extent covering dstream alloced_size 9071788032 (fsize 9071788032) pos/len 9071951872:0\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-748.57.19/nx/jobj.c:10680
    Backtrace (CPU 20), Frame : Return Address
    0xffffffa74da53330 : 0xffffff801166e166
    0xffffffa74da53380 : 0xffffff8011796714
    0xffffffa74da533c0 : 0xffffff8011788a00
    0xffffffa74da53440 : 0xffffff8011620180
    0xffffffa74da53460 : 0xffffff801166dbdc
    0xffffffa74da53590 : 0xffffff801166d99c
    0xffffffa74da535f0 : 0xffffff7f92a944f6
    0xffffffa74da537a0 : 0xffffff7f92a576ea
    0xffffffa74da538f0 : 0xffffff80118cc1c6
    0xffffffa74da53d10 : 0xffffff80118cc08e
    0xffffffa74da53d50 : 0xffffff80118b392e
    0xffffffa74da53f40 : 0xffffff8011c04418
    0xffffffa74da53fa0 : 0xffffff8011620966
    Kernel Extensions in backtrace:
    com.apple.filesystems.apfs(748.51)[4E26C92D-330B-33A8-8DA7-C1498DD86AB7]@0xffffff7f92a28000->0xffffff7f92b0dfff
    dependency: com.apple.kec.corecrypto(1.0)[CA65BD09-4559-3507-A72B-733ED9110DF1]@0xffffff7f925b8000
    dependency: com.apple.driver.AppleEffaceableStorage(1.0)[6B49B846-2852-3D7C-BD45-E70DC2684A8E]@0xffffff7f9298c000
    dependency: com.apple.iokit.IOStorageFamily(2.1)[F27A8A2A-6662-3608-83BD-415037509E01]@0xffffff7f92097000

    BSD process name corresponding to current thread: coresymbolicatio

    Mac OS version:
    17E199

    Kernel version:
    Darwin Kernel Version 17.5.0: Mon Mar 5 22:24:32 PST 2018; root:xnu-4570.51.1~1/RELEASE_X86_64
    Kernel UUID: 1B55340B-0B14-3026-8A47-1E139DB63DA3
    Kernel slide: 0x0000000011400000
    Kernel text base: 0xffffff8011600000
    __HIB text base: 0xffffff8011500000
    System model name: MacPro5,1 (Mac-F221BEC8)
    Root disk errors: "Failed to issue COM RESET after 3 attempts. Terminating."

    System uptime in nanoseconds: 49208651149106
    last loaded kext at 12448868070287: com.apple.driver.usb.cdc.acm 5.0.0 (addr 0xffffff7f95230000, size 57344)
    last unloaded kext at 365192402200: com.apple.driver.AppleUSBMergeNub 900.4.1 (addr 0xffffff7f935c5000, size 12288)
    loaded kexts:

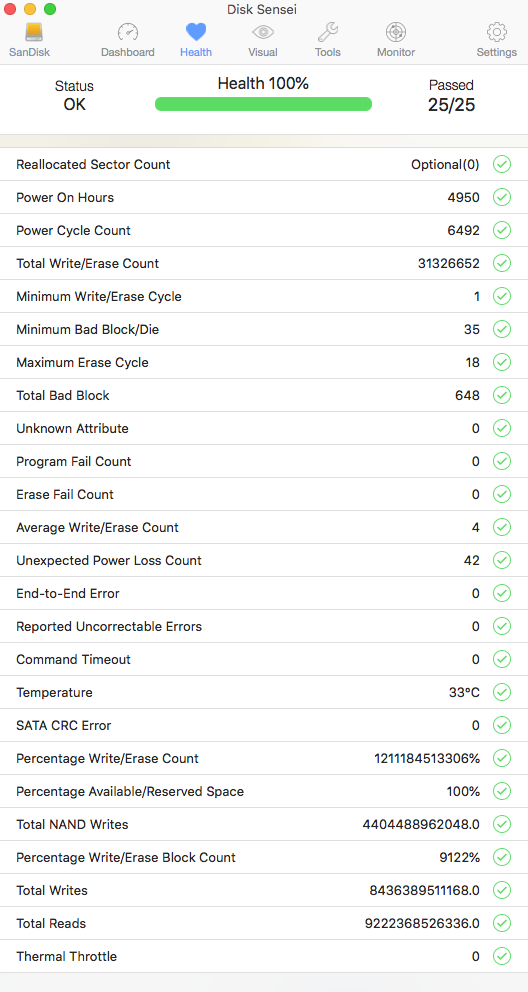

    My SanDisk checks okay with all tools:

    [​IMG]

  8. MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #8
    My new hard drive to replace my failed Time Machine drive came today.

    While installing it, I did unseat and resinstall the cards, the Sandisk too, to make sure all is okay...also cleaned the thing out (pet hair, etc.!).

    Time Machine is running its first back up.

    Prior to updating to 10.13.4, I did have issues with it crashing from wake. This issue just started after updating to 10.13.4.

  9. DeltaMac macrumors G3

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #9
    The Sandisk SSD is your system boot drive?
    How is that installed in your MacPro? Which slot?

  10. MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #10
    Yes, the Sandisk is my boot drive.

    It is in slot 3.

    It has been there for well over a year though.

  11. MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #11
    Had another today while it was sleeping...it does seem to happen after prolong sleep (during the day while away):

    Anonymous UUID: AF64C102-BCDE-47D2-D6C0-4375DAAB7CA9

    Tue Apr 10 12:08:45 2018

    *** Panic Report ***
    panic(cpu 4 caller 0xffffff7f836944f6): "ino 8595065709 no extent covering dstream alloced_size 9123528704 (fsize 9123528704) pos/len 9123692544:0\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-748.57.19/nx/jobj.c:10680
    Backtrace (CPU 4), Frame : Return Address
    0xffffffa73ea33330 : 0xffffff800226e166
    0xffffffa73ea33380 : 0xffffff8002396714
    0xffffffa73ea333c0 : 0xffffff8002388a00
    0xffffffa73ea33440 : 0xffffff8002220180
    0xffffffa73ea33460 : 0xffffff800226dbdc
    0xffffffa73ea33590 : 0xffffff800226d99c
    0xffffffa73ea335f0 : 0xffffff7f836944f6
    0xffffffa73ea337a0 : 0xffffff7f836576ea
    0xffffffa73ea338f0 : 0xffffff80024cc1c6
    0xffffffa73ea33d10 : 0xffffff80024cc08e
    0xffffffa73ea33d50 : 0xffffff80024b392e
    0xffffffa73ea33f40 : 0xffffff8002804418
    0xffffffa73ea33fa0 : 0xffffff8002220966
    Kernel Extensions in backtrace:
    com.apple.filesystems.apfs(748.51)[4E26C92D-330B-33A8-8DA7-C1498DD86AB7]@0xffffff7f83628000->0xffffff7f8370dfff
    dependency: com.apple.kec.corecrypto(1.0)[CA65BD09-4559-3507-A72B-733ED9110DF1]@0xffffff7f831b8000
    dependency: com.apple.driver.AppleEffaceableStorage(1.0)[6B49B846-2852-3D7C-BD45-E70DC2684A8E]@0xffffff7f8358c000
    dependency: com.apple.iokit.IOStorageFamily(2.1)[F27A8A2A-6662-3608-83BD-415037509E01]@0xffffff7f82c97000

    BSD process name corresponding to current thread: coresymbolicatio

    Mac OS version:
    17E199

    Kernel version:
    Darwin Kernel Version 17.5.0: Mon Mar 5 22:24:32 PST 2018; root:xnu-4570.51.1~1/RELEASE_X86_64
    Kernel UUID: 1B55340B-0B14-3026-8A47-1E139DB63DA3
    Kernel slide: 0x0000000002000000
    Kernel text base: 0xffffff8002200000
    __HIB text base: 0xffffff8002100000
    System model name: MacPro5,1 (Mac-F221BEC8)
    Root disk errors: "Fai



    EOF
    Model: MacPro5,1, BootROM MP51.0084.B00, 12 processors, 6-Core Intel Xeon, 3.46 GHz, 64 GB, SMC 1.39f11
    Graphics: AMD Radeon HD 7950, AMD Radeon HD 7950, PCIe
    Memory Module: DIMM 1, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 2, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 3, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 4, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 5, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 6, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 7, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 8, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.98.102.30)
    Bluetooth: Version 6.0.5f3, 3 services, 27 devices, 1 incoming serial ports
    Network Service: Ethernet 1, Ethernet, en0
    PCI Card: PXS2, USB eXtensible Host Controller, Slot-2
    PCI Card: AMD Radeon HD 7950, Display Controller, Slot-1
    PCI Card: AMD Radeon HD 7950, ATY,HamachiParent, Slot-1
    PCI Card: pci1b21,625, AHCI Controller, Slot-3
    PCI Card: PXS4, USB eXtensible Host Controller, Slot-4
    Serial ATA Device: HL-DT-ST DVD-RW GH61N
    Serial ATA Device: WDC WD1001FALS-41Y6A1, 1 TB
    Serial ATA Device: ST2000DM001-1ER164, 2 TB
    Serial ATA Device: ST2000DM006-2DM164, 2 TB
    Serial ATA Device: ST3000DM008-2DM166, 3 TB
    Serial ATA Device: SanDisk Ultra II 960GB, 960.2 GB
    USB Device: USB 3.0 Bus
    USB Device: Back-UPS ES 550 FW:840.B2.D USB FW:B2
    USB Device: USB 3.0 Bus
    USB Device: USB3.0 Hub
    USB Device: Back-UPS RS 1500 LCD FW:839.H7 .D USB FW:H7
    USB Device: USB3.0 Hub
    USB Device: EyeTV Hybrid
    USB Device: USB 2.0 Bus
    USB Device: iPad
    USB Device: USB 2.0 Bus
    USB Device: Hub
    USB Device: Keyboard Hub
    USB Device: Apple Keyboard
    USB Device: USB2.0 Hub
    USB Device: Apple Watch Magnetic Charging Cable
    USB Device: USB2.0 Hub
    USB Device: Broadcom Bluetooth 3.0 Device
    USB Device: Apple Cinema HD Display
    USB Device: USB Bus
    USB Device: BRCM2046 Hub
    USB Device: Bluetooth USB Host Controller
    USB Device: USB Bus
    USB Device: USB Bus
    USB Device: USB Bus
    USB Device: USB Bus
    USB Device: USB Bus
    USB Device: Bose USB Audio
    FireWire Device: built-in_hub, Up to 800 Mb/sec
    Thunderbolt Bus:

  12. Squuiid macrumors 65816

    Squuiid

    Joined:
    Oct 31, 2006
    #12
    Do this and report back.
    Download the FULL INSTALLER from the App Store, NOT the Combo updater, and update your cMP firmware.
    Don’t worry, it won’t force you to reinstall the OS. Just update the firmware and quit the installer when done.

  13. MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #13
    Okay...tried and it only wants to install the OS...any way to find or force a firmware update?

  14. bsbeamer macrumors 6502a

    Joined:
    Sep 19, 2012
    #14
  15. MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #15
    Yes, I downloaded from the store...just finished running it.

    My current firmware:
    Boot ROM Version: MP51.0084.B00

    I have a flashed AMD Radeon 7950

    I do have a drive with 10.12 on it and will try that and see what happens..

  16. h9826790 macrumors G3

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #16
    You didn't see this screen?
    85.B00 firmware update.jpg

  17. MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #17
    Okay...I finally got the Firmware updated. I had to use a disk with 10.12 on it in order to download the needed version with the firmware.

    I am now at:
    Boot ROM Version: MP51.0085.B00

    I noticed my panics seem to be apfs related...does this firmware address that?

  18. bsbeamer macrumors 6502a

    Joined:
    Sep 19, 2012
    #18
    is your drive APFS or HFS+?

    likely simple fix: clone to HFS+ drive and replace in system (carbon copy cloner)

  19. MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #19
    My start-up SSD with the panics is APFS. If this continues, can the SSD be reformated to HFS+?

    I do have a clone of the drive but it is on a standard drive (slower and HFS+).

  20. h9826790 macrumors G3

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #20
    Yes, you can of course re-format the SSD back to HFS+, just make sure you format the "drive" not the "partition" in Disk Utility.

    If you have a clone already. Then boot to the clone, format the SSD, and clone it back. The whole process should be very straight forward.

  21. Éric 69 macrumors newbie

    Éric 69

    Joined:
    Mar 24, 2018
    Location:
    France
  22. MacGarage, Apr 16, 2018
    Last edited: Apr 16, 2018

    MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #22
    I was starting to think my problem was fixed after updating the firmware...unfortunately, woke up with the kernel panic.

    It seems like it only happens when I have it sleeping.

    Is it worth trying to reformat the SSD?

    Sun Apr 15 23:04:10 2018

    *** Panic Report ***
    panic(cpu 7 caller 0xffffff7f87e944f6): "ino 8601623146 no extent covering dstream alloced_size 730038272 (fsize 730038272) pos/len 730202112:0\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-748.57.19/nx/jobj.c:10680
    Backtrace (CPU 7), Frame : Return Address
    0xffffff873e35b330 : 0xffffff8006a6e166
    0xffffff873e35b380 : 0xffffff8006b96714
    0xffffff873e35b3c0 : 0xffffff8006b88a00
    0xffffff873e35b440 : 0xffffff8006a20180
    0xffffff873e35b460 : 0xffffff8006a6dbdc
    0xffffff873e35b590 : 0xffffff8006a6d99c
    0xffffff873e35b5f0 : 0xffffff7f87e944f6
    0xffffff873e35b7a0 : 0xffffff7f87e576ea
    0xffffff873e35b8f0 : 0xffffff8006ccc1c6
    0xffffff873e35bd10 : 0xffffff8006ccc08e
    0xffffff873e35bd50 : 0xffffff8006cb392e
    0xffffff873e35bf40 : 0xffffff8007004418
    0xffffff873e35bfa0 : 0xffffff8006a20966
    Kernel Extensions in backtrace:
    com.apple.filesystems.apfs(748.51)[4E26C92D-330B-33A8-8DA7-C1498DD86AB7]@0xffffff7f87e28000->0xffffff7f87f0dfff
    dependency: com.apple.kec.corecrypto(1.0)[CA65BD09-4559-3507-A72B-733ED9110DF1]@0xffffff7f879b8000
    dependency: com.apple.driver.AppleEffaceableStorage(1.0)[6B49B846-2852-3D7C-BD45-E70DC2684A8E]@0xffffff7f87d8c000
    dependency: com.apple.iokit.IOStorageFamily(2.1)[F27A8A2A-6662-3608-83BD-415037509E01]@0xffffff7f87497000

    BSD process name corresponding to current thread: coresymbolicatio

    Mac OS version:
    17E199

    Kernel version:
    Darwin Kernel Version 17.5.0: Mon Mar 5 22:24:32 PST 2018; root:xnu-4570.51.1~1/RELEASE_X86_64
    Kernel UUID: 1B55340B-0B14-3026-8A47-1E139DB63DA3
    Kernel slide: 0x0000000006800000
    Kernel text base: 0xffffff8006a00000
    __HIB text base: 0xffffff8006900000
    System model name: MacPro5,1 (Mac-F221BEC8)
    Root disk errors: "Failed to issue COM RESET after 3 attempts. Terminating."

    System uptime in nanoseconds: 200543123501050
    last loaded kext at 199200542673914: com.apple.driver.usb.cdc 5.0.0 (addr 0xffffff7f8a60a000, size 28672)
    last unloaded kext at 194680352594965: com.apple.driver.usb.cdc 5.0.0 (addr 0xffffff7f8a60d000, size 28672)
    loaded kexts:
    com.parallels.virtualhid 1.0.3 3
    com.parallels.virtualsound 1.0.36 36
    at.obdev.nke.LittleSnitch 4740
    com.apple.driver.AppleBluetoothMultitouch 92
    com.apple.driver.AppleTyMCEDriver 1.0.3d2
    com.apple.driver.AGPM 110.23.33
    com.apple.filesystems.autofs 3.0
    com.apple.driver.AppleMikeyHIDDriver 131
    com.apple.driver.AppleUpstreamUserClient 3.6.5
    com.apple.driver.AppleMCCSControl 1.5.4
    com.apple.kext.AMDFramebuffer 1.6.6
    com.apple.kext.AMDRadeonX4000 1.6.6
    com.apple.AGDCPluginDisplayMetrics 3.18.48
    com.apple.driver.AppleHDA 281.51
    com.apple.driver.AppleHV 1
    com.apple.driver.AppleMikeyDriver 281.51
    com.apple.iokit.IOUserEthernet 1.0.1
    com.apple.iokit.IOBluetoothSerialManager 6.0.5f3
    com.apple.driver.pmtelemetry 1
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.driver.AppleLPC 3.1
    com.apple.kext.AMD7000Controller 1.6.6
    com.apple.driver.AppleOSXWatchdog 1
    com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
    com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
    com.apple.driver.AudioAUUC 1.70
    com.apple.filesystems.apfs 748.51.0
    com.apple.driver.AppleUSBDisplays 380
    com.apple.filesystems.hfs.kext 407.50.6
    com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
    com.apple.BootCache 40
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
    com.apple.iokit.SCSITaskUserClient 404.30.2
    com.apple.driver.AppleFWOHCI 5.5.9
    com.apple.driver.AirPort.Brcm4331 800.21.30
    com.apple.driver.Intel82574LEthernet 2.7.2
    com.apple.driver.AppleAHCIPort 329.50.2
    com.apple.driver.AppleRTC 2.0
    com.apple.driver.AppleHPET 1.8
    com.apple.driver.AppleACPIButtons 6.1
    com.apple.driver.AppleSMBIOS 2.1
    com.apple.driver.AppleACPIEC 6.1
    com.apple.driver.AppleAPIC 1.7
    com.apple.driver.AppleIntelCPUPowerManagementClient 220.50.1
    com.apple.nke.applicationfirewall 183
    com.apple.security.TMSafetyNet 8
    com.apple.security.quarantine 3
    com.apple.driver.AppleIntelCPUPowerManagement 220.50.1
    com.apple.driver.usb.cdc 5.0.0
    com.apple.driver.IOBluetoothHIDDriver 6.0.5f3
    com.apple.driver.AppleMultitouchDriver 1404.4
    com.apple.driver.AppleInputDeviceSupport 1404.3
    com.apple.kext.triggers 1.0
    com.apple.kext.AMDRadeonX4030HWLibs 1.0
    com.apple.iokit.IOAcceleratorFamily2 378.18.1
    com.apple.kext.AMDRadeonX4000HWServices 1.6.6
    com.apple.iokit.IOAVBFamily 675.6
    com.apple.plugin.IOgPTPPlugin 675.12
    com.apple.iokit.IOEthernetAVBController 1.1.0
    com.apple.driver.DspFuncLib 281.51
    com.apple.kext.OSvKernDSPLib 526
    com.apple.driver.AppleSSE 1.0
    com.apple.iokit.IOSurface 211.12
    com.apple.iokit.IOSerialFamily 11
    com.apple.iokit.IONDRVSupport 519.15
    com.apple.driver.AppleSMBusController 1.0.18d1
    com.apple.AppleGPUWrangler 3.18.48
    com.apple.driver.AppleHDAController 281.51
    com.apple.iokit.IOHDAFamily 281.51
    com.apple.driver.AppleSMBusPCI 1.0.14d1
    com.apple.kext.AMDSupport 1.6.6
    com.apple.AppleGraphicsDeviceControl 3.18.48
    com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
    com.apple.driver.IOPlatformPluginLegacy 1.0.0
    com.apple.driver.IOPlatformPluginFamily 6.0.0d8
    com.apple.iokit.IOGraphicsFamily 519.15
    com.apple.iokit.IOFireWireIP 2.2.9
    com.apple.driver.AppleHIDKeyboard 205
    com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.5f3
    com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.5f3
    com.apple.iokit.IOBluetoothHostControllerTransport 6.0.5f3
    com.apple.iokit.IOBluetoothFamily 6.0.5f3
    com.apple.iokit.IOAHCIBlockStorage 301.40.2
    com.apple.driver.usb.IOUSBHostHIDDevice 1.2
    com.apple.driver.AppleUSBAudio 312.6
    com.apple.iokit.IOAudioFamily 206.5
    com.apple.vecLib.kext 1.2.0
    com.apple.driver.usb.networking 5.0.0
    com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
    com.apple.driver.usb.AppleUSBHub 1.2
    com.apple.filesystems.hfs.encodings.kext 1
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 404.30.2
    com.apple.iokit.IOBDStorageFamily 1.8
    com.apple.iokit.IODVDStorageFamily 1.8
    com.apple.iokit.IOCDStorageFamily 1.8
    com.apple.iokit.IOAHCISerialATAPI 267.50.1
    com.apple.iokit.IOFireWireFamily 4.7.0
    com.apple.iokit.IO80211Family 1200.12.2
    com.apple.driver.corecapture 1.0.4
    com.apple.iokit.IOAHCIFamily 288
    com.apple.driver.usb.AppleUSBEHCIPCI 1.2
    com.apple.driver.usb.AppleUSBUHCIPCI 1.2
    com.apple.driver.usb.AppleUSBUHCI 1.2
    com.apple.driver.usb.AppleUSBEHCI 1.2
    com.apple.driver.usb.AppleUSBXHCIPCI 1.2
    com.apple.driver.usb.AppleUSBXHCI 1.2
    com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
    com.apple.iokit.IOUSBFamily 900.4.1
    com.apple.driver.AppleUSBHostMergeProperties 1.2
    com.apple.driver.AppleEFINVRAM 2.1
    com.apple.driver.AppleEFIRuntime 2.1
    com.apple.iokit.IOHIDFamily 2.0.0
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.security.sandbox 300.0
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.driver.DiskImages 480.50.10
    com.apple.driver.AppleFDEKeyStore 28.30
    com.apple.driver.AppleEffaceableStorage 1.0
    com.apple.driver.AppleKeyStore 2
    com.apple.driver.AppleUSBTDM 439.50.6
    com.apple.driver.AppleMobileFileIntegrity 1.0.5
    com.apple.iokit.IOUSBMassStorageDriver 140.50.3
    com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2
    com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2
    com.apple.iokit.IOStorageFamily 2.1
    com.apple.driver.AppleCredentialManager 1.0
    com.apple.driver.KernelRelayHost 1
    com.apple.iokit.IOUSBHostFamily 1.2
    com.apple.driver.usb.AppleUSBCommon 1.0
    com.apple.driver.AppleBusPowerController 1.0
    com.apple.driver.AppleSEPManager 1.0.1
    com.apple.driver.IOSlaveProcessor 1
    com.apple.iokit.IOReportFamily 31
    com.apple.iokit.IOTimeSyncFamily 675.12
    com.apple.iokit.IONetworkingFamily 3.4
    com.apple.driver.AppleACPIPlatform 6.1
    com.apple.driver.AppleSMC 3.1.9
    com.apple.iokit.IOPCIFamily 2.9
    com.apple.iokit.IOACPIFamily 1.4
    com.apple.kec.pthread 1
    com.apple.kec.Libm 1
    com.apple.kec.corecrypto 1.0

    EOF
    Model: MacPro5,1, BootROM MP51.0085.B00, 12 processors, 6-Core Intel Xeon, 3.46 GHz, 64 GB, SMC 1.39f11
    Graphics: AMD Radeon HD 7950, AMD Radeon HD 7950, PCIe
    Memory Module: DIMM 1, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 2, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 3, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 4, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 5, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 6, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 7, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    Memory Module: DIMM 8, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.98.102.30)
    Bluetooth: Version 6.0.5f3, 3 services, 27 devices, 1 incoming serial ports
    Network Service: Ethernet 1, Ethernet, en0
    PCI Card: PXS2, USB eXtensible Host Controller, Slot-2
    PCI Card: AMD Radeon HD 7950, Display Controller, Slot-1
    PCI Card: AMD Radeon HD 7950, ATY,HamachiParent, Slot-1
    PCI Card: pci1b21,625, AHCI Controller, Slot-3
    PCI Card: PXS4, USB eXtensible Host Controller, Slot-4
    Serial ATA Device: HL-DT-ST DVD-RW GH61N
    Serial ATA Device: WDC WD1001FALS-41Y6A1, 1 TB
    Serial ATA Device: ST2000DM001-1ER164, 2 TB
    Serial ATA Device: ST2000DM006-2DM164, 2 TB
    Serial ATA Device: ST3000DM008-2DM166, 3 TB
    Serial ATA Device: SanDisk Ultra II 960GB, 960.2 GB
    USB Device: USB 3.0 Bus
    USB Device: Back-UPS ES 550 FW:840.B2.D USB FW:B2
    USB Device: USB 3.0 Bus
    USB Device: USB3.0 Hub
    USB Device: Back-UPS RS 1500 LCD FW:839.H7 .D USB FW:H7
    USB Device: USB3.0 Hub
    USB Device: EyeTV Hybrid
    USB Device: USB 2.0 Bus
    USB Device: USB 2.0 Bus
    USB Device: Hub
    USB Device: Keyboard Hub
    USB Device: Apple Keyboard
    USB Device: USB2.0 Hub
    USB Device: Apple Watch Magnetic Charging Cable
    USB Device: USB2.0 Hub
    USB Device: Broadcom Bluetooth 3.0 Device
    USB Device: Apple Cinema HD Display
    USB Device: USB Bus
    USB Device: USB Bus
    USB Device: USB Bus
    USB Device: BRCM2046 Hub
    USB Device: Bluetooth USB Host Controller
    USB Device: USB Bus
    USB Device: Bose USB Audio
    USB Device: USB Bus
    USB Device: USB Bus
    FireWire Device: built-in_hub, Up to 800 Mb/sec
    Thunderbolt Bus:

  23. bsbeamer macrumors 6502a

    Joined:
    Sep 19, 2012
    #23
    If you can, clone drive APFS system drive to HFS+ formatted drive and replace. Carbon Copy Cloner can do this really easily. Should be pretty quick and easy to figure out if that is the cause or if it's something else.

    Notice "Bose USB Audio" in your list. What port is this connected to? A built-in port, or a PCIe port? I've noticed some issues with legacy USB/FW audio devices recently. If there are firmware updates for your Bose device, you may want to take a look at updating. May be completely unrelated, but disconnecting for a few days could help troubleshoot or eliminate.

  24. DeltaMac macrumors G3

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #24
    You seem to have two separate UPS attached. (ES 550, and RS 1500) Is that correct?
    Maybe I am interpreting that wrong.

  25. MacGarage thread starter macrumors member

    Joined:
    Jun 18, 2017
    Location:
    Ohio
    #25
    Thanks...do use CCC and will try the reformat.

    I have an older Bose Companion 5 connected to the factory USB port in the back...will look for updates as I did purchase it new back in 2008.

    Yes, two UPS's connected...I use Slim Battery Monitor to check on them...I have one UPS for my Airport and router and the other for my computer.


Share This Page
