MP 1,1-5,1 Help with Titan Ridge 2.0
- Thread starter Inzajeano
- Start date
- Sort by reaction score
Did you flash or have the card flashed by someone else?
Is the dummy cable plugged in?
Did you add the SSDT to OpenCore to enable the card on boot and for hot-plugging?
Is the dummy cable plugged in?
Did you add the SSDT to OpenCore to enable the card on boot and for hot-plugging?
I flashed it myself. The jumper cables are attached.

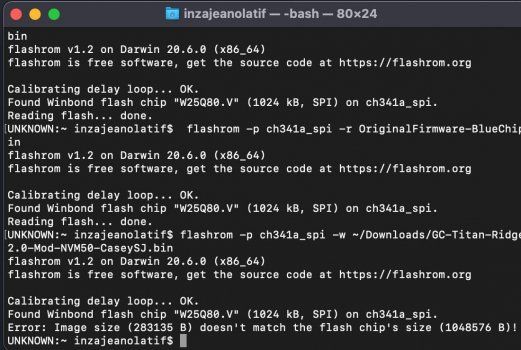

Here are some screen grabs from Terminal...
Hi,
I flashed it myself.
Jumper cable is attached.
By SSDT if you mean editing the config list then yes.
move attached some screen grabs from Terminal.
Attachments

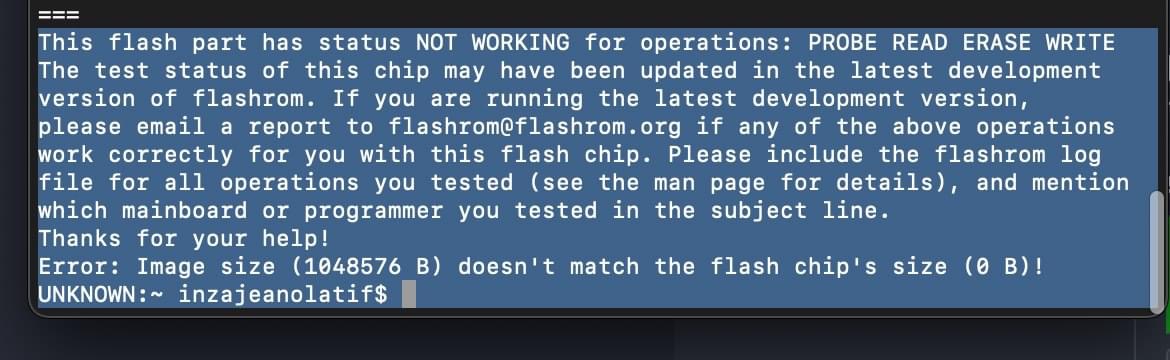

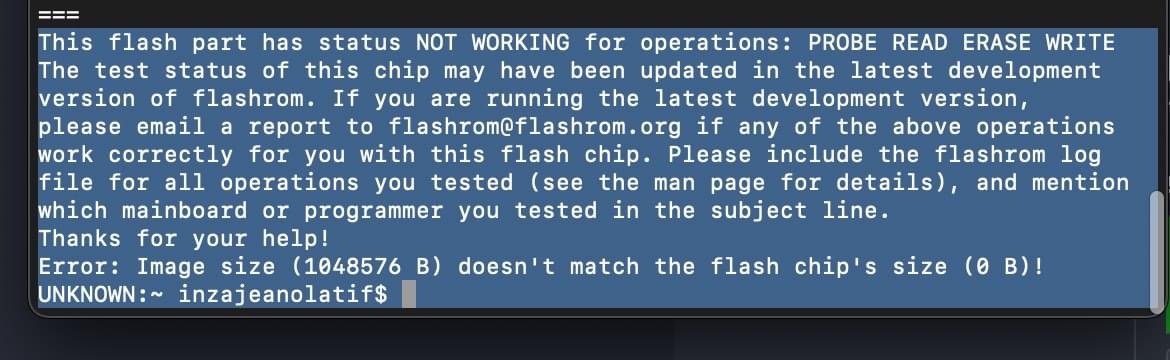

First picture: Seems like you are not detecting the flash chip correctly (states it has no probe/read/erase/write support and the flash size is zero bytes), check the cables/programmer again.

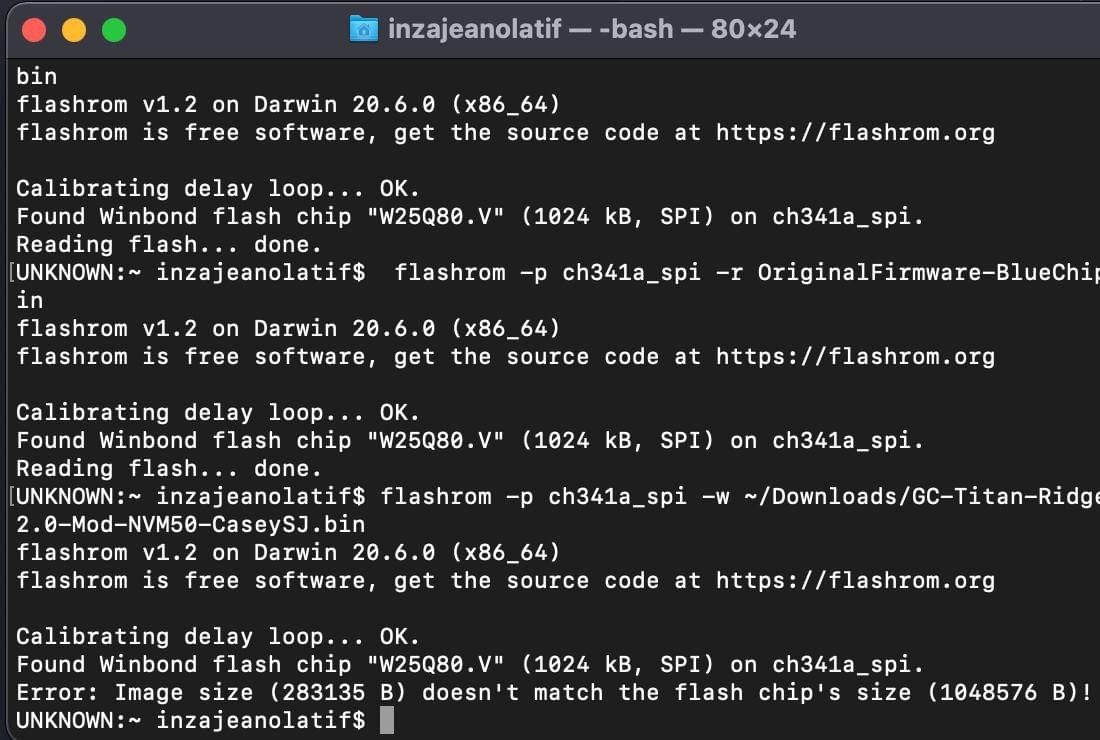

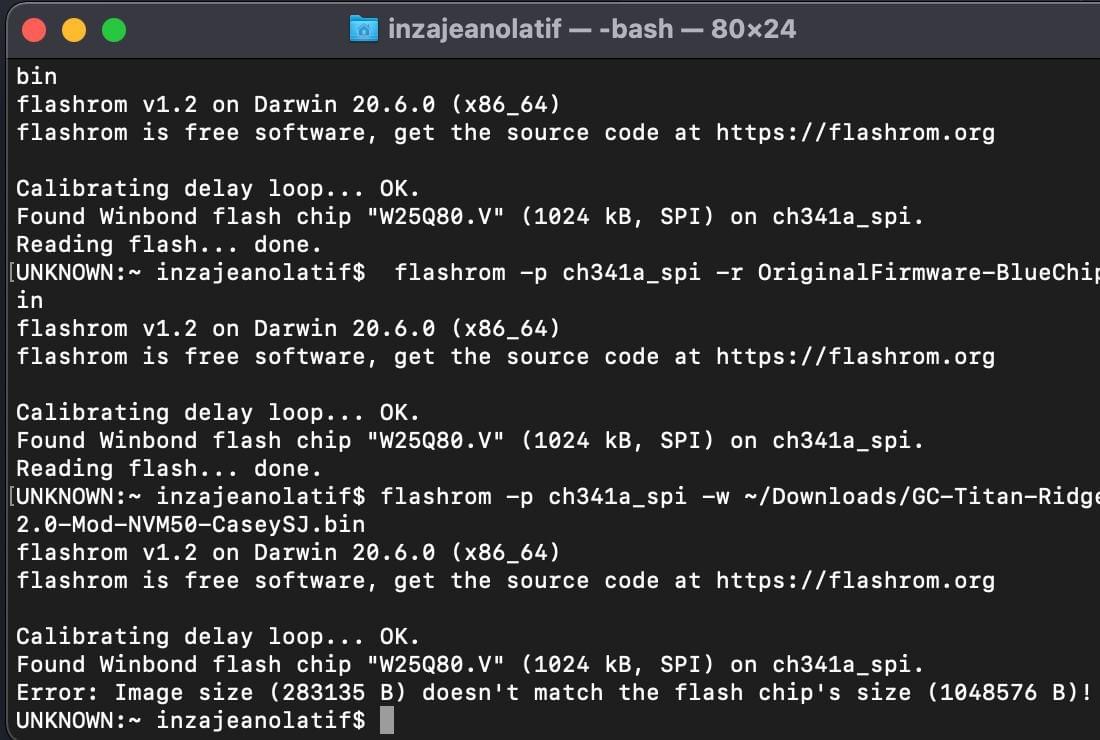

Second picture: The modded FW is smaller than the flash chip size, make sure you have everything hooked up and configured correctly and/or have a valid modded FW file.
I can't help much more, as I bought my card pre-flashed and my extent of flashrom was flashing coreboot/libreboot on my old ThinkPads using Linux.
Second picture: The modded FW is smaller than the flash chip size, make sure you have everything hooked up and configured correctly and/or have a valid modded FW file.
I can't help much more, as I bought my card pre-flashed and my extent of flashrom was flashing coreboot/libreboot on my old ThinkPads using Linux.
How well is the Titan Ridge thing working with OpenCore? Thinking about getting one to use my Universal Audio Apollo with Thunderbolt instead of Firewire..
I've had a few hickups, as hotplugging sometimes doesn't want to play nice and I have to warm-reboot to get my external NVMe data drive to show up. Have not had the chance to test much else with. I am thinking of buying a TB3 dock so hopefully that works.
Hi All! This week I replace USB3 pcie card to thunderbolt Alpine Ridge (flashed). I tried to install it with Martin Lo original config, turned on the SSDT, of course the chipset was shown as Intel DSL7540, but Alpine Ridge should have 6540. Nevertheless, i plugged in Belkin thunderbolt dock with connected thunderbolt RAID HDD, did a warm restart - HDD doesn't show - in system info thunderbolt pci shown, but in thunderbolt section disappeared. Then i changed settings in config and replaced SSDT-TBOLT3.aml with SSDT-TBOLT3-AR.aml (Alpine Ridge SSDT provided by the card seller)- it works now. I still need to test the work for a long time, but I am not yet satisfied with replacing USB3 card with a thunerbolt card, since after sleeping and waking up all devices disappear, I need to turn off the CMP, boot the system, and then do another warm reboot. Since I have a backup disk connected via thunderbolt to the Belkin dock, and now it’s obvious that I won’t be able to make a recovery from time machines. if I need to restore the system, I will have to put the backup disk inside the cMP. Or did I something wrong with set up the thunderbolt card? and your cMP works differently?
ADDED after a whole day of testing: I found that if I don’t use Belkin thunderbolt dock, but connect HDD devices directly, then the work becomes more convenient - I have one thunderbolt connected to WD MY Book Thunderbolt Duo - in SysInfo it is shown as a thunderbolt device, and the second to WD My Book Duo - it is shown as USB 3.1 device. When turning on or rebooting the cMP, external hdd are now shown. And I can even make a recovery from an external time machine. BUT IMPORTANT!
the disk that shows up as connected to usb 3.1 I can eject (using mac os eject command) and reconnect again, then if I try to disconnect the disk that shows up as a thunderbolt, the system immediately crashes, the cMP tries to reboot, the GPU crashes - the display shows a damaged picture. Neither reseting sms nor reseting nvram helps, and the system boot freezes. I found, that for some reason, EFI opencore is damaged. Only a complete overwrite of the entire EFI returns the cMP to work (even without resetting SMC and nvram). STILL IMPORTANT! after sleep and wakeup, HDD is not visible again, if I try to replug HDD, the system immediately crashes and the result is the same as described earlier. In order not to crash after the sleep and wakeup, I have to turn off and boot the cMP with the devices DISCONNECTED from the thunderbolt, and reconnecting again after the system boots. And after a warm restart, then the hdd is visible again. cMP works as usual, it can be turned off and after turning on the HDD are visible and working. For me it is impossible to make any manipulations with connecting and disconnecting devices while cMP is ON, except for the procedure described above. My question is, how does it happen that the EFI is damaged? how to avoid it?
MacPro 4.1/5.1, dual 5680, Radeon Pro W5700, 96Gb samsung RAM, 1Tb nvme 970EvoPlus, 2TB Crusial P2, Alpine Ridge thunderbolt, OC 0.7.7, MacOS Monterey (Mojave, BigSur)
ADDED after a whole day of testing: I found that if I don’t use Belkin thunderbolt dock, but connect HDD devices directly, then the work becomes more convenient - I have one thunderbolt connected to WD MY Book Thunderbolt Duo - in SysInfo it is shown as a thunderbolt device, and the second to WD My Book Duo - it is shown as USB 3.1 device. When turning on or rebooting the cMP, external hdd are now shown. And I can even make a recovery from an external time machine. BUT IMPORTANT!
the disk that shows up as connected to usb 3.1 I can eject (using mac os eject command) and reconnect again, then if I try to disconnect the disk that shows up as a thunderbolt, the system immediately crashes, the cMP tries to reboot, the GPU crashes - the display shows a damaged picture. Neither reseting sms nor reseting nvram helps, and the system boot freezes. I found, that for some reason, EFI opencore is damaged. Only a complete overwrite of the entire EFI returns the cMP to work (even without resetting SMC and nvram). STILL IMPORTANT! after sleep and wakeup, HDD is not visible again, if I try to replug HDD, the system immediately crashes and the result is the same as described earlier. In order not to crash after the sleep and wakeup, I have to turn off and boot the cMP with the devices DISCONNECTED from the thunderbolt, and reconnecting again after the system boots. And after a warm restart, then the hdd is visible again. cMP works as usual, it can be turned off and after turning on the HDD are visible and working. For me it is impossible to make any manipulations with connecting and disconnecting devices while cMP is ON, except for the procedure described above. My question is, how does it happen that the EFI is damaged? how to avoid it?
MacPro 4.1/5.1, dual 5680, Radeon Pro W5700, 96Gb samsung RAM, 1Tb nvme 970EvoPlus, 2TB Crusial P2, Alpine Ridge thunderbolt, OC 0.7.7, MacOS Monterey (Mojave, BigSur)
Hi!No worries and thank you
I'm becoming crazy.. I have the same problem "Image size (273511 B) doesn't match the flash chip's size (1048576 B)!" I think I did everything correctly.. How did you solve the problem?
