Hide OSX System Preferences in Applescript for toggling ignore trackpad in Mavericks?

Discussion in 'Mac Programming' started by mactp, Mar 13, 2014.

  1. mactp, Mar 13, 2014
    Last edited: Mar 13, 2014

    mactp macrumors newbie

    Joined:
    Mar 13, 2014
    #1
    I have the AppleScript to toggle the "Ignore built-in trackpad when mouse is present" preference on OSX Mavericks working in the code box below, but I can't keep the "System Preferences" hidden and get the annoying flash as it activates the application window briefly to turn the trackpad on or off. Any thoughts on how I might hide this process? More details below...

    Code:
    -- open trackpad preferences
    tell application "System Preferences"
    	activate
    	reveal (pane id "com.apple.preference.universalaccess")
    end tell

    tell application "System Events"
    	tell process "System Preferences"
    		tell window "Accessibility"
    			tell scroll area 1
    				click UI element "Mouse & Trackpad" of row 10 of table 1
    			end tell

    			-- click trackpad enable/disable when connected
    			tell checkbox 2
    				click
    			end tell

    			click button "Show All" of group 1 of group 2 of toolbar 1
    		end tell
    	end tell
    end tell

    tell application "System Preferences"
    	quit
    end tell
    Some background: I use my Macbook Pro with Mavericks both with and without an external mouse (a Logitech trackball actually). Both because I hate stray trackpad input as I type and because using only the trackpad can cause me wrist pain after a while, I like to set the "System Preferences / Accessibility / Mouse & Trackpad / Ignore built-in trackpad when mouse or wireless trackpad is present" checkbox to true when using the USB trackball.

    But because I also like to leave the tiny USB dongle in there, when I don't bother to bring the trackball along I can't easily use the built-in trackpad. So I have been writing an AppleScript to tell System Preferences toggle the Ignore Trackpad setting. That way I can just use command-space to start spotlight and run the ToggleTrackpad script from the keyboard.

    I am open to other solutions to this problem. I looked into finding a defaults write command for this by seeing if any plist files changed in the ~/Library/Preferences directory, but nothing seemed to change when I ran a diff on their old versions, so I never could figure out where in Mavericks this setting was being stored.

  2. kryten2 macrumors 6502a

    Joined:
    Mar 17, 2012
    Location:
    Belgium
    #2

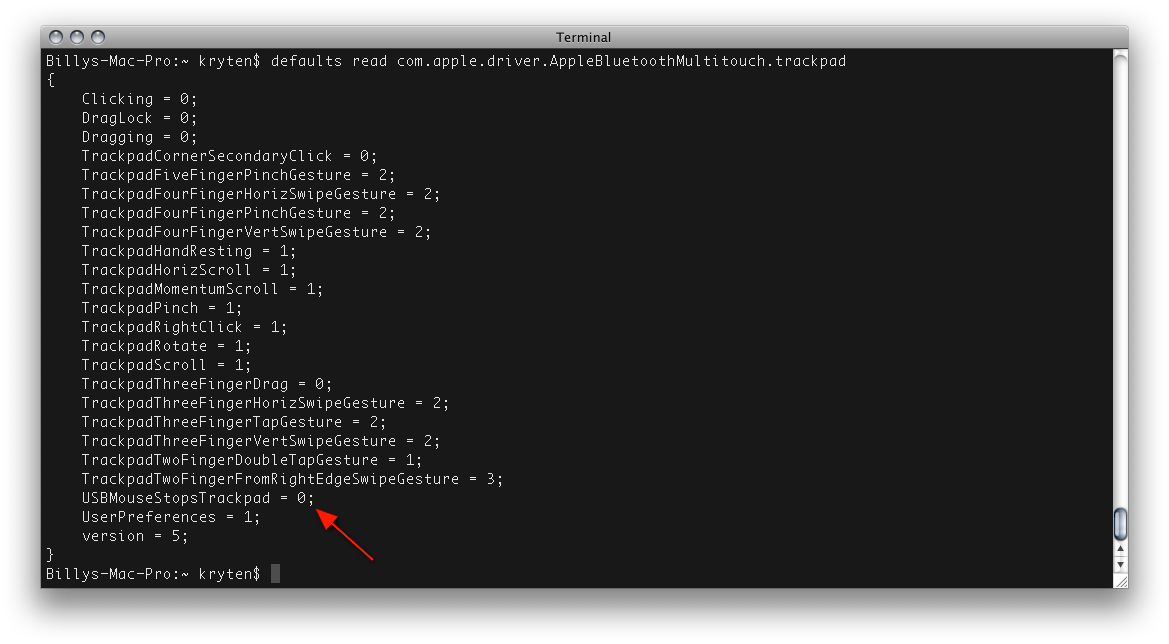

    Perhaps this is what you're looking for?


    Attached Files:

  3. mactp thread starter macrumors newbie

    Joined:
    Mar 13, 2014
    #3
    No luck

    I tried to use

    Code:
    defaults write com.apple.driver.AppleBluetoothMultitouch.trackpad USBMouseStopsTrackpad 1
    and while it changes the value successfully, no effect.

    And when the value is changed using the GUI's System preferences Accessiblity Mouse Ignore... the value in that plist does not change.

    So that's not it, though it was a good suggestion.

  4. mactp thread starter macrumors newbie

    Joined:
    Mar 13, 2014
    #4
    Nor does changing it here seem to matter.

    Code:
    defaults read com.apple.AppleMultitouchTrackpad

  5. chown33 macrumors 604

    Joined:
    Aug 9, 2009
    #5
    Try changing this:
    Code:
    tell application "System Events"
    	tell process "System Preferences"

    to this:
    Code:
    tell application "System Events"
    	set visible of process "System Preferences" to false
    	tell process "System Preferences"

    I don't know if making the process invisible will cause the subsequent UI Scripting to fail. It's a simple one-line addition. Try it, see what happens.

    There will still be an initial flash as System Preferences activates. Try changing the initial activate command to launch. Refer to the AppleScript Language Guide, and look at the launch command.
    https://developer.apple.com/library...applescriptlangguide/reference/aslr_cmds.html


    Google search terms:
    applescript launch hidden

    One of the top results:
    https://discussions.apple.com/thread/2193128

  6. kryten2 macrumors 6502a

    Joined:
    Mar 17, 2012
    Location:
    Belgium
    #6
    I'm grasping at straws here but maybe it has something to do with preference caching in Mavericks. There's some interesting stuff to read here

  7. mactp, Mar 13, 2014
    Last edited: Mar 13, 2014

    mactp thread starter macrumors newbie

    Joined:
    Mar 13, 2014
    #7
    Thanks. It did cause an error, presumably because of how I am scripting to the UI. Nor did launch make any difference. Interestingly removing the activate command works and appears to run hidden. I have updated the code with a try on error structure to activate only if it fails. The following seems to have removed the flash for now.

    Code:
    -- open trackpad preferences
    tell application "System Preferences"
    	try
    		reveal (pane id "com.apple.preference.universalaccess")
    		tell application "System Events"
    			tell process "System Preferences"
    				tell window "Accessibility"
    					tell scroll area 1
    						click UI element "Mouse & Trackpad" of row 10 of table 1
    					end tell

    					-- click trackpad enable/disable when connected
    					tell checkbox 2
    						click
    					end tell

    					click button "Show All" of group 1 of group 2 of toolbar 1
    				end tell
    			end tell
    		end tell
    	on error
    		activate
    		reveal (pane id "com.apple.preference.universalaccess")
    		tell application "System Events"
    			tell process "System Preferences"
    				tell window "Accessibility"
    					tell scroll area 1
    						click UI element "Mouse & Trackpad" of row 10 of table 1
    					end tell

    					-- click trackpad enable/disable when connected
    					tell checkbox 2
    						click
    					end tell

    					click button "Show All" of group 1 of group 2 of toolbar 1
    				end tell
    			end tell
    		end tell
    	end try
    	quit
    end tell


  8. mactp, Mar 13, 2014
    Last edited: Mar 13, 2014

    mactp thread starter macrumors newbie

    Joined:
    Mar 13, 2014
    #8
    Possibly. But I am using default write, and from those articles that is supposed to be cache proof. I also tried logging out and back in with the trackpad disabled to check the cache hypothesis, and it made no difference to the values in thsoe plist files.

    Thanks for the suggestion. It would be nice to have found the defaults command to run from terminal, but I have now made the applescript work without flashing the System Preferences app into the foreground.

    ----------

    I have also found another kludgey solution: Using CONTROL-F2 will allow one to use the keyboard to navigate the menus, and using the arrow keys to select system preferences, the spacebar to select, and the tab once I am finally into Universal Access, I can with about 30 keypresses manage to use GUI from the keyboard to re-enable the trackpad.

    (Yeah, that's way too many keypresses, but the CTRL-F2 trick also seems to be handy for keyboard-oriented folks in general.) Note also that this could be FN-CTRL-F2 depending on your keyboard function key preference settings.

  9. Partron22 macrumors 68000

    Partron22

    Joined:
    Apr 13, 2011
    Location:
    Yes
    #9
  10. tkermit macrumors 68030

    tkermit

    Joined:
    Feb 20, 2004
    #10
    Code:
    tell application "System Preferences" to [B]run[/B]
    launches System Preferences and makes it available for UI scripting without making the app visible.
