oscarodas

macrumors regular
Original poster
May 7, 2013
145
65
Sydney Australia
Hi, yesterday I bought a new 8tb WD external hard drive, it came formatted as exFat, I tried to format it to HFS but after a few seconds it failed and I got the message drive failed to unmount, then the driver dissapeared, Disk Utility would display it as disk5s1 but every attempt at formatting the disk would fail, took it to a pc and formatted again but my iMac wound;t see it, even the experts at apple place couldn't format it and I was told to try and get a new one, in desperation I took it to a friend who owns a 2007 mac mini , as soon as I plugged the drive it offered to initialise it, and I was able to use it, I thought this a bit odd and tried two old drives formatted as ms-dos and the same thing thing again, and I'm sure it is High Sierra because I did installed Parallels and Windows 10, which sees and formats the drives but back to High Sierra the drives disappear even after a few re-boots, is there something am I missing?

"is there something am I missing?"

Does the WD drive have a "hidden, proprietary partition", perhaps with some specialized WD software on it? Software intended for security, disk management, etc.?

Sometimes "pre-packaged" drives come this way out-of-the-box.
The presence of such a partition could prevent Disk Utility from properly re-initializing the drive.

I personally have bought one USB flashdrive like this (Sandisk drive some years ago). It came with a proprietary partition that could not be removed on the Mac (at that time). I actually had to take it back to where I bought it (Circuit City, remember them?), and have a tech there remove the software using a Windows computer. After that was done, I then could re-initialize the drive to HFS+ ...

Well, that makes sense, because the driver had some software installed , also installed an icon on the top bar called WD Discovery and I can't get rid of it.But it doesn't make sense because the only way I was able to format the drive was with a mac mini running Snow Leopard.

Have you tried booting to High Sierra recovery mode and using DU there to erase and format the drive?

Yes, I did, I also tried formatting using Terminal, to no avail, but as I explained the only way to do it was a 2007 mac mini . Could it be Hardware related? I'm running High Sierra 10.13.1 Beta (17B35a).
Today to have peace of mind I tried an Intel 160GB ssd which I bought very cheap a few weeks ago and I had the same trouble as with the 8tb drive, went to the same friend and yes his old mini formatted the ssd first go, about one minute. I'm going to install an old os x version on the ssd, boot my iMac and see if it can format the drives normally....

Last edited:
Yes, I did, I also tried formatting using Terminal, to no avail, but as I explained the only way to do it was a 2007 mac mini . Could it be Hardware related? I'm running High Sierra 10.13.1 Beta (17B35a).
Today to have peace of mind I tried an Intel 160GB ssd which I bought very cheap a few weeks ago and I had the same trouble as with the 8tb drive, went to the same friend and yes his old mini formatted the ssd first go, about one minute. I'm going to install an old os x version on the ssd, boot my iMac and see if it can format the drives normally....

i am having the same issue with a 4GB seagate eternal hard drive - can't format in high sierra - wanted to use it for a time machine back up but had to format the drive in Windows 10 as a exFAT - when ever I try to erase the drive using either time machine or disk utility it fails. I tried partitioning the drive using OS Extended (Journaled) and it fails every time. This is the second hard drive that this is happening with.

Any help would be appreciated

i am having the same issue with a 4GB seagate eternal hard drive - can't format in high sierra - wanted to use it for a time machine back up but had to format the drive in Windows 10 as a exFAT - when ever I try to erase the drive using either time machine or disk utility it fails. I tried partitioning the drive using OS Extended (Journaled) and it fails every time. This is the second hard drive that this is happening with.

Any help would be appreciated
[doublepost=1512180859][/doublepost]Hi, today after seeing your post I tried formatting an external Microsoft ssd drive and it was successful, I'm running High Sierra 1013.2 Beta (17C83a). Also TotalFinder and PathFinder are working ok.

I had many problems with Disk utility on High Sierra, formatting is one of them.
I found out, that most drives I needed to format I can - eventually.

Step 1 is generally eject the drive. Disk utility in HS seems to fail more than succeed in unmounting the drive on their own.
Step 2 - once the drive is ejected, select the greyed out drive in Disk tools and partition or "erase" as you want. Usually, on third or fourth attempt the formatting succeeds and drive is generally OK. Apple file systems are easier to create than others - few days ago I spent 15 minutes creating exFAT from HFS drive.

Kind of nightmare, Sierra Disk utility were quite reliable, why did they have to screw up old functionality is not clear to me.

I am also having an absolute nightmare with this all day. I bought a new WD 4TB external and tried several hours trying to get it to reformat. It fails every time. Now when I try to mount it, I get "The disk you inserted was not readable by this computer." Everything is grayed out in disk utility and I can't do anything. This is the 2nd hard drive I've tried to do this with after returning the first thinking something was wrong with the drive, but now clearly it is High Sierra. There's just no way to format external drives anymore. I don't own a windows computer either. How could Apple overlook this important issue?

You are spot on, I did follow the steps and was able to format my drive, also I noticed that with the new build (Beta 6) I get more format options, i.e. Ms_Dos.

I had many problems with Disk utility on High Sierra, formatting is one of them.
I found out, that most drives I needed to format I can - eventually.

Step 1 is generally eject the drive. Disk utility in HS seems to fail more than succeed in unmounting the drive on their own.
Step 2 - once the drive is ejected, select the greyed out drive in Disk tools and partition or "erase" as you want. Usually, on third or fourth attempt the formatting succeeds and drive is generally OK. Apple file systems are easier to create than others - few days ago I spent 15 minutes creating exFAT from HFS drive.

Kind of nightmare, Sierra Disk utility were quite reliable, why did they have to screw up old functionality is not clear to me.

I too bought the WD Passport 4TB. I too was not able to erase or format it. The first time I tried, it unmounted the drive, and then gave the error
“Disk too large for partition scheme, failed”

I found this thread, used the 2 step process above. IT WORKED after a few tries.

Once I had a first success, I tried again. I erased it with a new name, it worked quickly and has worked every time after that.

I too bought the WD Passport 4TB. I too was not able to erase or format it. The first time I tried, it unmounted the drive, and then gave the error
“Disk too large for partition scheme, failed”

I found this thread, used the 2 step process above. IT WORKED after a few tries.

Once I had a first success, I tried again. I erased it with a new name, it worked quickly and has worked every time after that.

I had the same problem with a WD Passport. Another option is to use the Western Digital utility to reformat the drive to HFS+. That worked for me as detailed in this thread:

https://forums.macrumors.com/thread...port-usb-drive-time-machine-problems.2093304/

  • Like
Reactions: cupero and neliason
I had this problem today, and lost half a day trying to work it out. Got onto a helpful dude at apple who sorted out the problem, well not the problem, but a fairly easy workaround in terminal. I made notes and am pasting them in below in case they can help anyone else:

The disk has a higher level partition that the High Sierra (disk utility) doesn’t’t know how to delete. So he showed me how to totally erase the disk in Terminal, and then format it.

It’s only three terminal commands

First you need to unmount the NTFS disk, so look in disk utilities to see what device it is

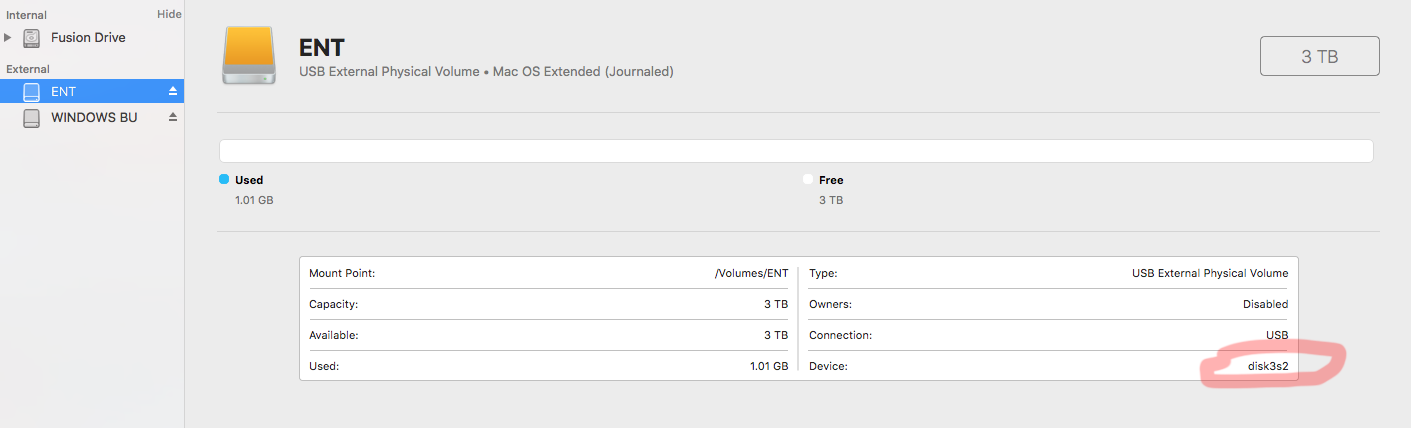

Disk Utility.png


the device is called disk3s2, but you just want to call it disk3 (leave out the s2), or disk2, or whatever it is coming up as.

open terminal and enter the code below, changing disk3 to whatever your device is:


diskutil unmountDisk force disk3


You should get something saying “Forced unmount of all volumes on disk3 was successful” if all goes well.
Then you need to totally erase the disk, removing the microsoft higher level partition, so in terminal run the following command (again, replace the disk number with the appropriate number). It will prompt you for your password, so type it in and hit return:


sudo dd if=/dev/zero of=/dev/rdisk3 bs=1024 count=1024


You should get a result that looks like this


“1024+0 records in
1024+0 records out
1048576 bytes transferred in 0.673985 secs (1555785 bytes/sec)”

Now you need to partition the disk as Mac os journaled, so run the following command, and again change the disk number where appropriate, and change the name in the quote marks to whatever you want to call your disk:


diskutil partitionDisk disk3 GPT JHFS+ "ENT" 0g



Then you will see the progress as it formats it, then the disk will mount on the desktop and you’re ready to go.

I had this problem today, and lost half a day trying to work it out. Got onto a helpful dude at apple who sorted out the problem, well not the problem, but a fairly easy workaround in terminal. I made notes and am pasting them in below in case they can help anyone else:

The disk has a higher level partition that the High Sierra (disk utility) doesn’t’t know how to delete. So he showed me how to totally erase the disk in Terminal, and then format it.

Glad that worked. Unfortunately Disk Utility in High Sierra is a disaster. It is shameful. I had an external drive that had two partitions. I wanted to resize (expand) one partition and Disk Utility would say it completed the task but did nothing.

I had this problem today, and lost half a day trying to work it out. Got onto a helpful dude at apple who sorted out the problem, well not the problem, but a fairly easy workaround in terminal. I made notes and am pasting them in below in case they can help anyone else:

The disk has a higher level partition that the High Sierra (disk utility) doesn’t’t know how to delete. So he showed me how to totally erase the disk in Terminal, and then format it.

It’s only three terminal commands

First you need to unmount the NTFS disk, so look in disk utilities to see what device it is

View attachment 748212

the device is called disk3s2, but you just want to call it disk3 (leave out the s2), or disk2, or whatever it is coming up as.

open terminal and enter the code below, changing disk3 to whatever your device is:


diskutil unmountDisk force disk3


You should get something saying “Forced unmount of all volumes on disk3 was successful” if all goes well.
Then you need to totally erase the disk, removing the microsoft higher level partition, so in terminal run the following command (again, replace the disk number with the appropriate number). It will prompt you for your password, so type it in and hit return:


sudo dd if=/dev/zero of=/dev/rdisk3 bs=1024 count=1024


You should get a result that looks like this


“1024+0 records in
1024+0 records out
1048576 bytes transferred in 0.673985 secs (1555785 bytes/sec)”

Now you need to partition the disk as Mac os journaled, so run the following command, and again change the disk number where appropriate, and change the name in the quote marks to whatever you want to call your disk:


diskutil partitionDisk disk3 GPT JHFS+ "ENT" 0g



Then you will see the progress as it formats it, then the disk will mount on the desktop and you’re ready to go.
[doublepost=1517012040][/doublepost]This worked! Thank you, thank you, thank you!

I was afraid to mess with Terminal, but I copied and pasted your commands, changing the disk name and IT WORKED! Thanks!

Use the Terminal to reformat.
Check for the exact name of the disk:

sudo diskutil list

Force format the disk:

sudo diskutil erasedisk JHFS+ Untitled /dev/disk<number>

From another thread, this worked for me.

Although I did this from Sierra, to an external drive BEFORE upgrading to High Sierra

I had this problem today, and lost half a day trying to work it out. Got onto a helpful dude at apple who sorted out the problem, well not the problem, but a fairly easy workaround in terminal. I made notes and am pasting them in below in case they can help anyone else:

[SNIP]


sudo dd if=/dev/zero of=/dev/rdisk3 bs=1024 count=1024


You should get a result that looks like this


“1024+0 records in
1024+0 records out
1048576 bytes transferred in 0.673985 secs (1555785 bytes/sec)”

[/SNIP]

I've used dd regularly to nuke the partition table of disks that won't format. Well done to your Genius for demonstrating this handy utility! It's particularly useful to rebuild a fusion array where one member has failed and the disk has been replaced, but the other member is still looking for the original disk

I had this problem today, and lost half a day trying to work it out. Got onto a helpful dude at apple who sorted out the problem, well not the problem, but a fairly easy workaround in terminal. I made notes and am pasting them in below in case they can help anyone else:

The disk has a higher level partition that the High Sierra (disk utility) doesn’t’t know how to delete. So he showed me how to totally erase the disk in Terminal, and then format it.

It’s only three terminal commands

First you need to unmount the NTFS disk, so look in disk utilities to see what device it is

View attachment 748212

the device is called disk3s2, but you just want to call it disk3 (leave out the s2), or disk2, or whatever it is coming up as.

open terminal and enter the code below, changing disk3 to whatever your device is:


diskutil unmountDisk force disk3


You should get something saying “Forced unmount of all volumes on disk3 was successful” if all goes well.
Then you need to totally erase the disk, removing the microsoft higher level partition, so in terminal run the following command (again, replace the disk number with the appropriate number). It will prompt you for your password, so type it in and hit return:


sudo dd if=/dev/zero of=/dev/rdisk3 bs=1024 count=1024


You should get a result that looks like this


“1024+0 records in
1024+0 records out
1048576 bytes transferred in 0.673985 secs (1555785 bytes/sec)”

Now you need to partition the disk as Mac os journaled, so run the following command, and again change the disk number where appropriate, and change the name in the quote marks to whatever you want to call your disk:


diskutil partitionDisk disk3 GPT JHFS+ "ENT" 0g



Then you will see the progress as it formats it, then the disk will mount on the desktop and you’re ready to go.
[doublepost=1518006701][/doublepost]
I received an error code. “Error: -69760: Unable to write to the last block of the device”. What should I do next?

I had this problem today, and lost half a day trying to work it out. Got onto a helpful dude at apple who sorted out the problem, well not the problem, but a fairly easy workaround in terminal. I made notes and am pasting them in below in case they can help anyone else:

The disk has a higher level partition that the High Sierra (disk utility) doesn’t’t know how to delete. So he showed me how to totally erase the disk in Terminal, and then format it.

It’s only three terminal commands

First you need to unmount the NTFS disk, so look in disk utilities to see what device it is

View attachment 748212

the device is called disk3s2, but you just want to call it disk3 (leave out the s2), or disk2, or whatever it is coming up as.

open terminal and enter the code below, changing disk3 to whatever your device is:


diskutil unmountDisk force disk3


You should get something saying “Forced unmount of all volumes on disk3 was successful” if all goes well.
Then you need to totally erase the disk, removing the microsoft higher level partition, so in terminal run the following command (again, replace the disk number with the appropriate number). It will prompt you for your password, so type it in and hit return:


sudo dd if=/dev/zero of=/dev/rdisk3 bs=1024 count=1024


You should get a result that looks like this


“1024+0 records in
1024+0 records out
1048576 bytes transferred in 0.673985 secs (1555785 bytes/sec)”

Now you need to partition the disk as Mac os journaled, so run the following command, and again change the disk number where appropriate, and change the name in the quote marks to whatever you want to call your disk:


diskutil partitionDisk disk3 GPT JHFS+ "ENT" 0g



Then you will see the progress as it formats it, then the disk will mount on the desktop and you’re ready to go.
It worked. Surprised. Fast. Simple. Thank you barnyreed.

I found this support thread on Apple's site. Apparently, High Sierra's Disk Utility now hides the actual disk, which is what has to be formatted. When you change the view setting, you can format the physical drive.

https://discussions.apple.com/message/32687232#32687232

THANK YOU! This helped me out so much! I was racking my brain trying to figure it out and stumbled across your post. It works like a champ now!

THANK YOU! This helped me out so much! I was racking my brain trying to figure it out and stumbled across your post. It works like a champ now!
You're welcome. It drove me nuts as well. It was an uncharacteristic change from Apple, seeing as how formatting external drives isn't that rare an occurrence. The least Apple could have done was make the solution more obvious somehow. I shouldn't have to spend hours searching forums to figure out how to format a drive.
