HITACHI 7K200 on MBP 2.4 Ghz

Discussion in 'MacBook Pro' started by mastersoft, Sep 26, 2007.

  1. mastersoft macrumors member

    Joined:
    Sep 26, 2007
    #1
    I wanna buy a new hard for my MBP 2.4ghz(HITACHI 200GB 7200RPM) because this fujitsu 160 gb 5400rpm is very lazy . HOW HOT is the new 7K200 ?? HOW much power it take from battery the 7200rpm ...?

  2. mastersoft thread starter macrumors member

    Joined:
    Sep 26, 2007
  3. CanadaRAM macrumors G5

    CanadaRAM

    Joined:
    Oct 11, 2004
    Location:
    On the Left Coast - Victoria BC Canada
    #3
    Yup. Nobody.

    Welcome to MR ...
    When you post a subjective question about a drive that has just started shipping ... you'll have to be patient before you find someone else who has done the same swap as you and recorded the comparative results.

    Also, one of the rules around MR is that we don't bump posts. Have a cruise by the MacRumor Forum Guides if you have any questions.

  4. Quartz Extreme macrumors regular

    Quartz Extreme

    Joined:
    Jun 9, 2005
    Location:
    Outside of the box
    #4
    I put a Hitachi 7200PRM 200GB HD in my 2.16GHz Core 2 Duo MacBook Pro about a month ago, replacing the stock 120GB 5400RPM drive.

    In terms of temperature, I don't have any hard numbers, but based on how it feels, the part of the case around the hard drive is definitely cooler after the upgrade.

    In terms of battery life, I didn't notice a substantial change either way. Seems about the same.

    The only thing you have to worry about the upgrade is the installation. It's technically not a user-replaceable component, but after contacting Apple, they assured me that it would not violate the warrantee to perform the operation myself, so long as I didn't break anything in the process.

    iFixit has guides that are pretty helpful for taking it apart:
    http://www.ifixit.com/Guide/Mac/

    As long as you take your time and keep everything organized, it's not too bad.

  5. Jiddick ExRex macrumors 65816

    Jiddick ExRex

    Joined:
    May 14, 2006
    Location:
    Roskilde, DK
    #5
    Really? That's news to me!

  6. TheStu macrumors 65816

    Joined:
    Aug 20, 2006
    Location:
    Carlisle, PA
    #6
    I think i read somewhere that for certain parts of the computer (RAM, hard drive, optical drive, wireless... basically anything that isn't soldered on) even if they are not user accessible, they can not void the warranty if user replaced, unless of course, the user breaks something else in the process.

    Good luck with the hard drive transfer, replacing it in the MacBook Pro is not exactly the friendliest replacement you'll ever do. However, it is not the hardest either, that distinction very well may lie with the old G4 iBooks.

  7. Squonk macrumors 65816

    Squonk

    Joined:
    Mar 15, 2005
    #7
    This is potentially good news, but I'd sure like to see it in writing before I open up my soon to be MBP. Hey Quartz Extreme, did your contact at :apple: point you to any hard documentation on that?

  8. whateverandever macrumors 6502a

    Joined:
    Nov 8, 2006
    Location:
    Baltimore
    #8
    Different people at Apple will say different things. Just be careful and keep the other hard drive around so that if you need to get the machine serviced they won't ask questions.

    I'm running the Hitachi 7K200 now in my 2.2GHz MBP. Runs fine. I don't notice any difference in temps between it and other drives (of which I've tried many -- I moved from the Seagate 7200rpm 160GB drive to this one).

    As another forum member pointed out, some Hitachi EXTERNAL 200GB "5400rpm" drives with the serial number starting in "DTG" actually have the 7200rpm 7K200 drive in them. It's about $50 cheaper to buy the external drive from Best Buy and crack it open rather than buy the OEM drive from Newegg.

  9. Veritas&Equitas macrumors 68000

    Veritas&Equitas

    Joined:
    Oct 31, 2005
    Location:
    Twin Cities, MN
    #9
    I also swapped out the stock 120gb 5400 rpm out of my 2.2 ghz MBP for the 200gb 7200 rpm Hitachi, and I love it. It's noticeably faster (around 25% according to Barefeats), doesn't seem any louder, and is only about 2 degrees Celsius hotter (according to smcFanControl). The battery life is darn near equal as well.

    Swapping the drives isn't hard (I've switched about 10-12 hard drives in Powerbooks & Macbook Pro's), and usually takes about 15 minutes. For me, the upgrade was well worth it. I love the speed increase.

  10. andiwm2003 macrumors 601

    andiwm2003

    Joined:
    Mar 29, 2004
    Location:
    Boston, MA
  11. Tweak3D macrumors regular

    Joined:
    Jul 17, 2007
    #11
    I upgraded mine from the stock 160 to the 200 7200. It is quieter and cooler believe it or not. I am actually showing a reduction in temps over the stock drive. nothing significant of course but 1-2 deg C lower is a difference. currently I am running at 31 deg C and the highest I have seen is 42 and thats in windows playing games. In terms of battery life it is the same or better aswell. The drive uses slightly more power at full speed but is identical to the stock drive at idle. that slightly more power is like .1 or .05 watts if I recall which is negligable and on top of that you are moving data faster which means the drive has to spin up less so in all actualality you are using less battery power.

  12. compuguy1088 macrumors 6502a

    compuguy1088

    Joined:
    Sep 3, 2007
    Location:
    In the Sub-Basement of Solitude
    #12
  13. Veritas&Equitas macrumors 68000

    Veritas&Equitas

    Joined:
    Oct 31, 2005
    Location:
    Twin Cities, MN
    #13
    Are you playing them while sitting in a freezer?

    What rpm are your fans running at? I've never seen MBP temps that low, especially during gaming. I thought I had low temps at around 45 degrees C idle w/fans at 2000 rpm.

  14. majordude macrumors 68020

    majordude

    Joined:
    Apr 28, 2007
    Location:
    Hootersville
    #14

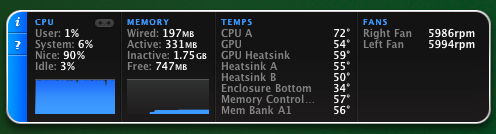

    I have a 17" MBP with a new Hitachi 200GB 7200RPM drive. Right now I am converting some movies to iPod compatible movies with VisualHub. It's been going at it for 18 hours (I had a lot of video!). Here are the specs (no heat issues, CPU maxed)...


    Attached Files:

  15. webgoat macrumors 6502a

    webgoat

    Joined:
    Sep 20, 2007
    Location:
    Austin, TX
    #15
    wow that cpu graph is really blue!

  16. rishi13 macrumors member

    Joined:
    Oct 15, 2007
    #16
    Vibration

    Does anyone that has a 7k200 200 GB in a 15" MBP feel a vibration on their left palm? Before the installation with my stock 120 GB 5400 RPM drive I did not feel any vibration at all. After the swap it is quite noticeable. I am positive I installed the drive correctly with the rubber stoppers, etc. as well. Thanks for your input.

  17. milk242 macrumors 6502a

    Joined:
    Jun 28, 2007
    #17
    i have no vibration in my SR MBP 2.2, but I do notice a more audible sound when accessing the disk with the hitachi compared to the original fujitsu 120gb. The HDD seems like it gets hotter when you are running vista via bootcamp, but in osx it feels like the same temperature as before.

  18. govtcheez macrumors newbie

    Joined:
    May 9, 2003
    Location:
    Washington, DC
    #18
    I have this drive installed in my blackbook...and haven't noticed any increase in heat or noise.

    Hint for you fellow Mac Owners on how to get this drive for cheaper than most other places.

    Go to your local Best Buy and look for this external drive:
    http://www.bestbuy.com/site/olspage...2200u&lp=1&type=product&cp=1&id=1177112455216
    Then look at the serial number sticker to find one that starts with either DTG or DEG. These will have the 7K200 drive in it rather than the 5400rpm drive that's supposed to be there! ;)
    $172, but there is a 10 or 12% coupon floating around. I actually bought it when it was on sale for $140, and used the 10% coupon...not to mention that it was a tax free day here, so I bought it for $126! An awesome hdd for my blackbook, and a cool external case for my existing drive to boot!

  19. rishi13 macrumors member

    Joined:
    Oct 15, 2007
    #19
  20. Inconsequential macrumors 68000

    Joined:
    Sep 12, 2007
    #20
    I want to put one of these Hard Disks into a new MBP 15inch 2.4ghz.

    How easy was it to install? Any tricky bits that require alot of patients?

    Im emailing around the AASPs to see how much they charge to do it, but its looking like I either pay the £100 :rolleyes: for a 7200 160Gb or £100 for a 200gb 7200 and install it myself.

    I've built/re-built about 30 PCs now and have taken apart a old Compaq Lappy and put it back together.

    So should be easy enough?

    (Oh and keep the old HD incase of applecare required?)

    Cheers CR
