HomePod Teardown Reveals Hidden 14-Pin Connector, 16GB Storage, and Very Low Repairability

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Feb 12, 2018.

  1. MacRumors macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]

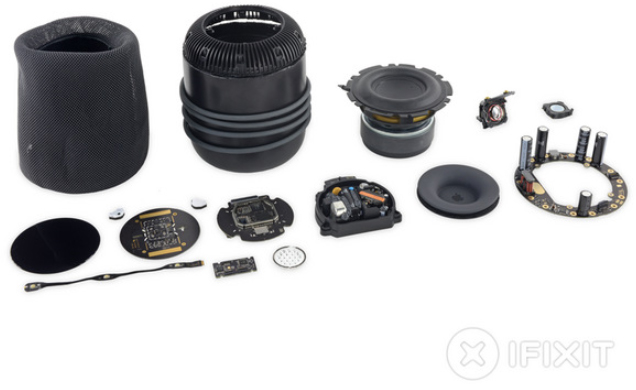

    iFixit has completed an exhaustive teardown of the HomePod and found that, while the speaker appears to have a simple design on the outside, it will likely be extremely difficult for customers to complete do-it-yourself repairs.

    [​IMG]

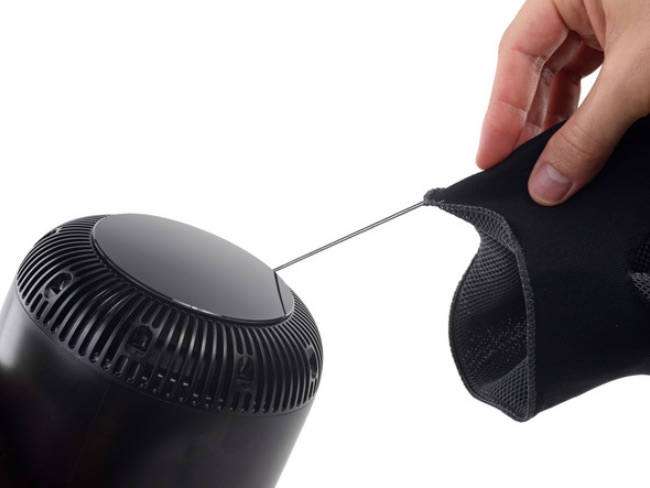

    HomePod's mesh has a drawstring

    The teardown experts, who admit there might be a better way to open the HomePod that they've yet to learn, were forced to use a variety of tools to gain access to the internal components, including a heat gun, a guitar pick, a knife, and after all else failed, even a hacksaw and an ultrasonic cutter.

    Underneath the rubber foot, iFixit found a hidden 14-pin connector that they speculate is probably used to test or program HomePods on pogo pins during assembly in Taiwan. Given the port sits below a layer of strong adhesive, it's unclear if it will be used for any other purpose, such as diagnostic testing.

    [​IMG]

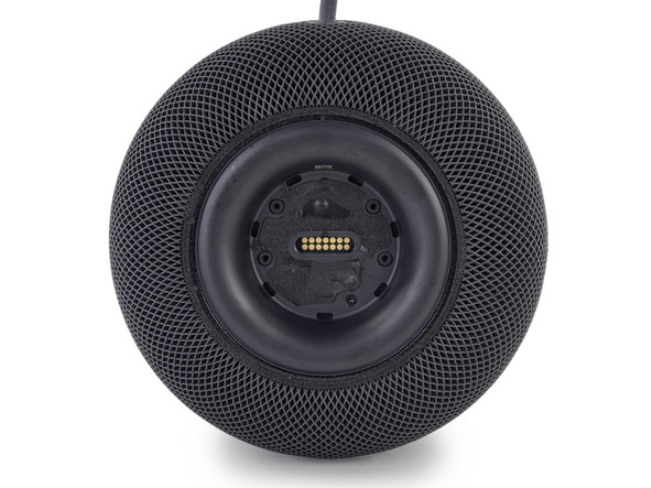

    HomePod's hidden 14-pin port

    Digging further, the team found the HomePod has an Apple A8 chip, as advertised, likely paired with 1GB of RAM layered underneath. There's also a 16GB flash storage chip from Toshiba, although users can't store songs on the speaker directly, as music must be streamed from Apple Music or an AirPlay source.

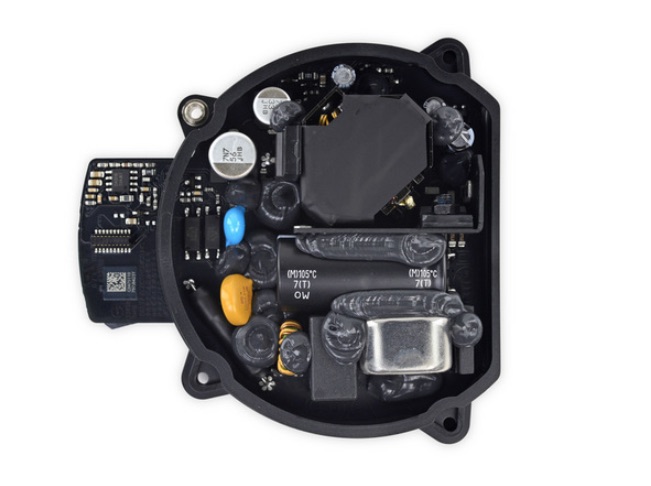

    HomePod also has a two-part power supply, composed of an inner block handling the AC/DC conversion, and an outer ring distributing power to all eight of the speakers. The seven tweeters each have a conductive screw post.

    [​IMG]

    In the end, the teardown concludes that the HomePod is very durable, but extremely difficult to open. This might explain why Apple is charging $279 to replace the HomePod entirely if it is damaged, unless only the power cable is damaged, in which case Apple charges a more reasonable $29 fee to have it repaired.

    [​IMG]

    There's also AppleCare+ for HomePod, which adds up to two incidents of accidental damage coverage, each subject to a service fee of $39 in the United States, plus the upfront cost of the plan. But even then, it still appears that Apple is simply replacing damaged HomePods outright beyond power cable repairs.

    Article Link: HomePod Teardown Reveals Hidden 14-Pin Connector, 16GB Storage, and Very Low Repairability
