How to remove broken off power plug from PowerBook G4 charge port?

Discussion in 'PowerPC Macs' started by dustinschings, Apr 18, 2018.

  1. dustinschings macrumors 6502

    dustinschings

    Joined:
    Sep 3, 2015
    #1
    I just scored a 12" 1.33GHz PowerBook G4, great shape, even better once I shine it up. Anyways, I had to buy it untested since the someone broke off a piece of the middle "stem" from the power plug. With the condition it is in, I am hopeful that that is only issue.

    Any advice on how to retrieve the stuck piece? Super glue on the tip of a toothpick? lol I know the DC-in board is replaceable on this model but have had no luck finding one for sale.

    Any suggestions?
    --- Post Merged, Apr 18, 2018 ---
    No clue how I didn't check PowerBook Medic. They got it for $2.50. SMH. Looks like I will be doing a complete tear down of this guy..

  2. AphoticD macrumors 68000

    AphoticD

    Joined:
    Feb 17, 2017
    Location:
    Australia
    #2

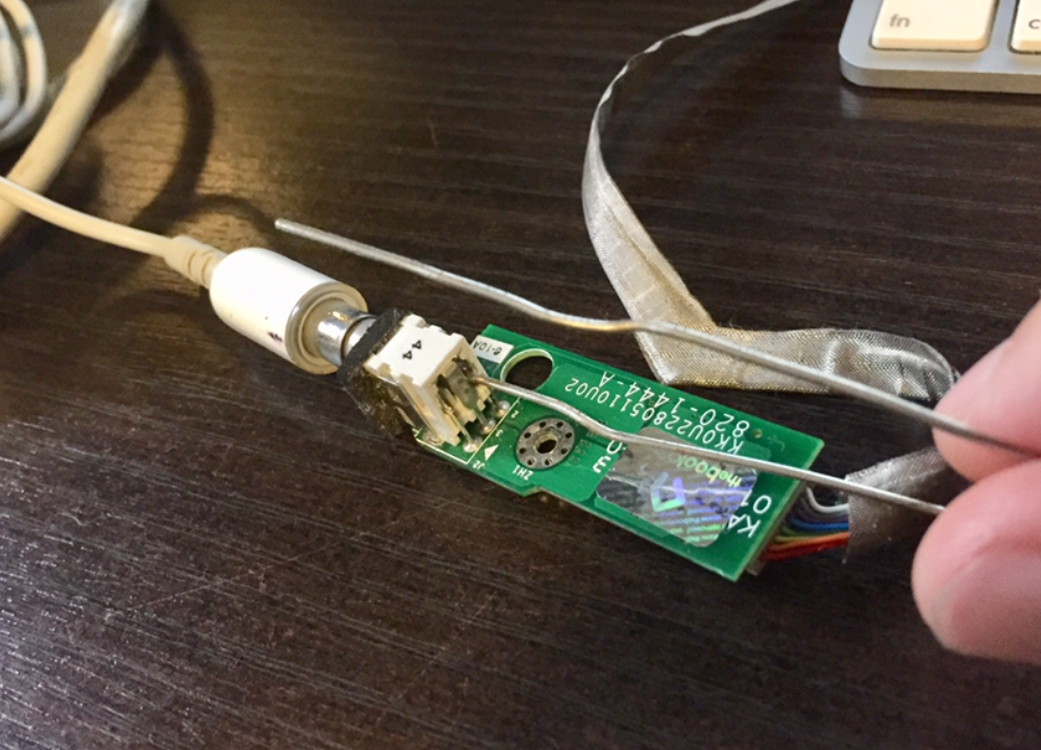

    If you dismantle the PowerBook, you might be able to get into the back of the power socket and push the pin through with a paperclip like so;


  3. micahgartman macrumors member

    micahgartman

    Joined:
    Feb 22, 2005
    Location:
    Houston, TX, USA
    #3
    The link in my sig will lead you to all the documentation you need to take apart your 12-inch PowerBook. It's VERY easy to do—it just requires organizing LOTS of screws. An old ice cube tray is the perfect ad hoc screw organizer.

    Take your time and you'll have lots of fun :)
    --- Post Merged, Apr 21, 2018 ---
    PS—And if you need any feet, PM your address to me. I have 1,000s of them!
