MP 1,1-5,1 How to tell which drive in which bay?

[tampano]

It seems to me a silly question but I can't find an answer even if I kind of remember there was a way...

The question is: is there any software way to identify which drive is installed in which bay?

Maybe it's very obvious but I don't see it.

Thanks.

P



[chrfr]

It seems to me a silly question but I can't find an answer even if I kind of remember there was a way...

The question is: is there any software way to identify which drive is installed in which bay?

Maybe it's very obvious but I don't see it.

Thanks.

P

You can see this info in Disk Utility.



[tampano]

Answer to myself and to who might be interested:

System Information - SATA/SATA Express: the list will show top to bottom, first the optical bays, then the disk ones
[automerge]1586350205[/automerge]

You can see this info in Disk Utility.

I don't think so
[automerge]1586350294[/automerge]

You can see this info in Disk Utility.

Oh I found it...it's a bit hidden but yes, you have to click the info button after selecting the device. Sorry 🙂



[Macschrauber]

also System Information / Sata

"
Intel ICH10 AHCI:


Vendor: Intel
Product: ICH10 AHCI
Link Speed: 3 Gigabit
Negotiated Link Speed: 3 Gigabit
Physical Interconnect: SATA
Description: AHCI Version 1.20 Supported

ST31000528AS:

Capacity: 1 TB (1.000.204.886.016 bytes)
Model: ST31000528AS
Revision: AP2E
Serial Number:
Native Command Queuing: Yes
Queue Depth: 32
Removable Media: No
Detachable Drive: No
BSD Name: disk1
Rotational Rate: 7200
Medium Type: Rotational
Bay Name: Bay 1

"



[ashleykaryl]

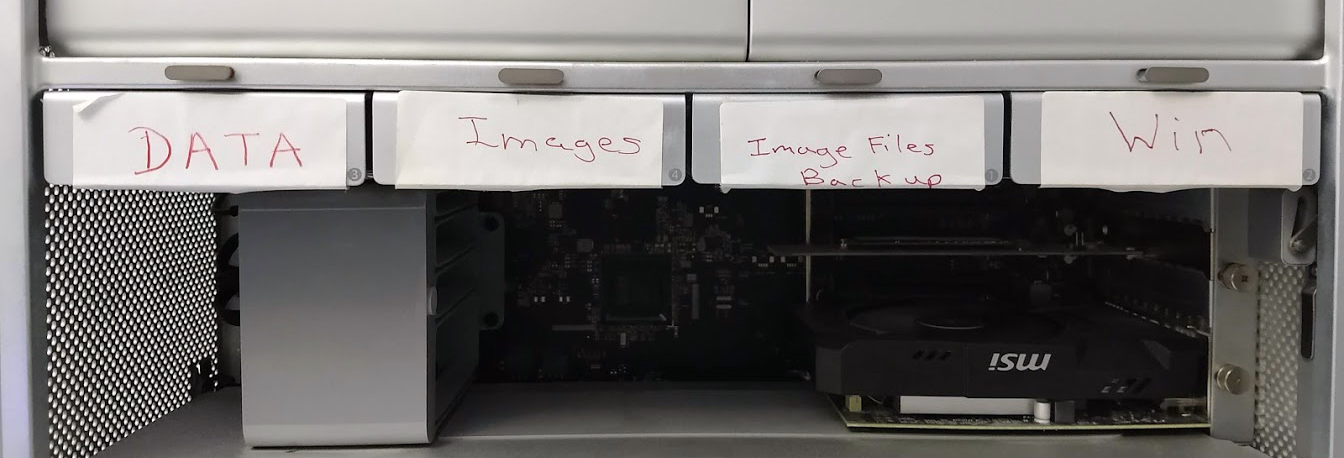

Without resorting to software I have a fairly reliable low tech solution.
