As discussed in another thread (What chargers work with iBook G3 clamshell?) I have now confirmed it is possible to use a simple headphone jack adapter to step-up the size of the center-pin on the G3 / G4 Power Supply for the more common White iBook G3 / G4 and PowerBook G4 series.

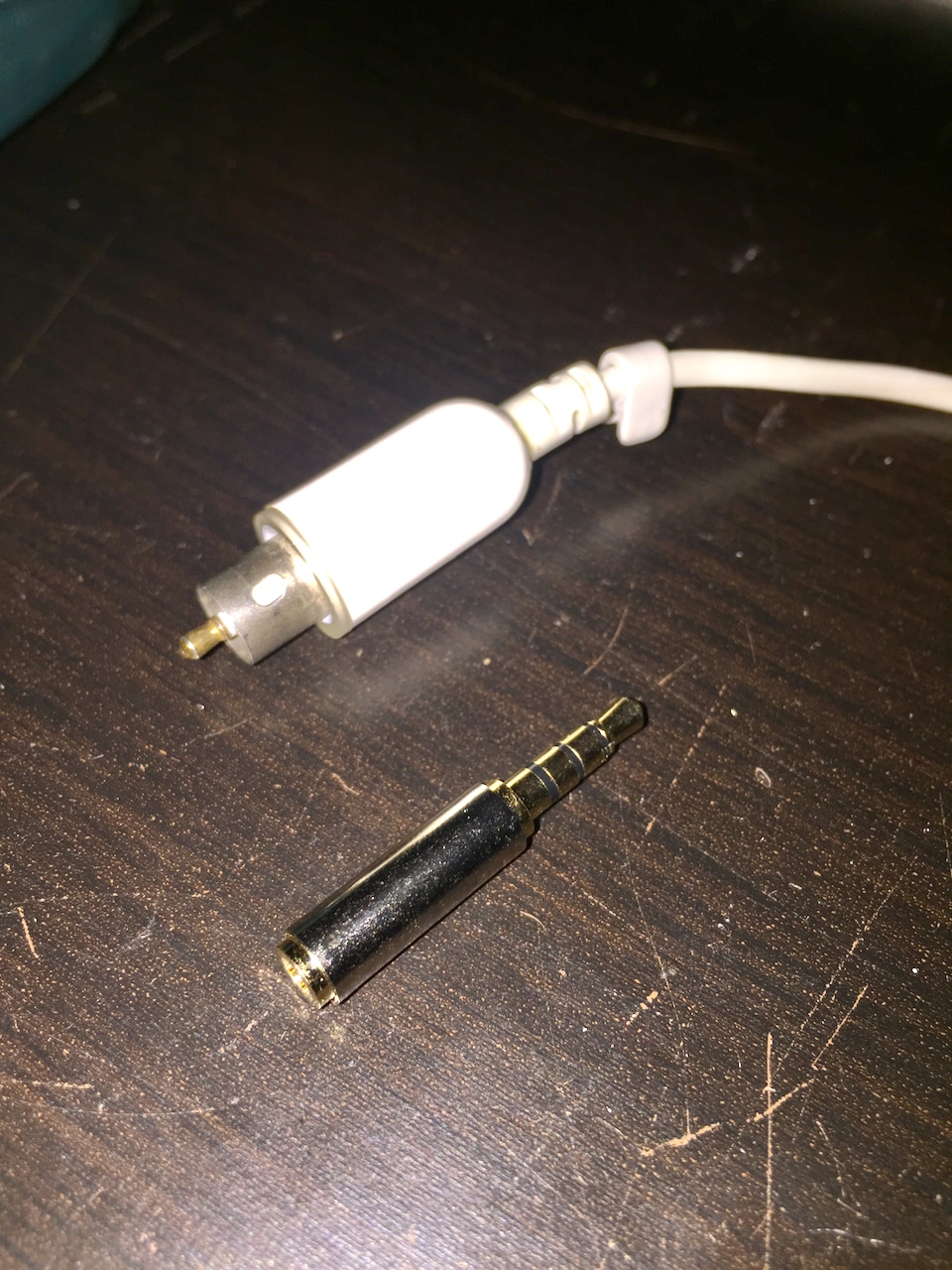

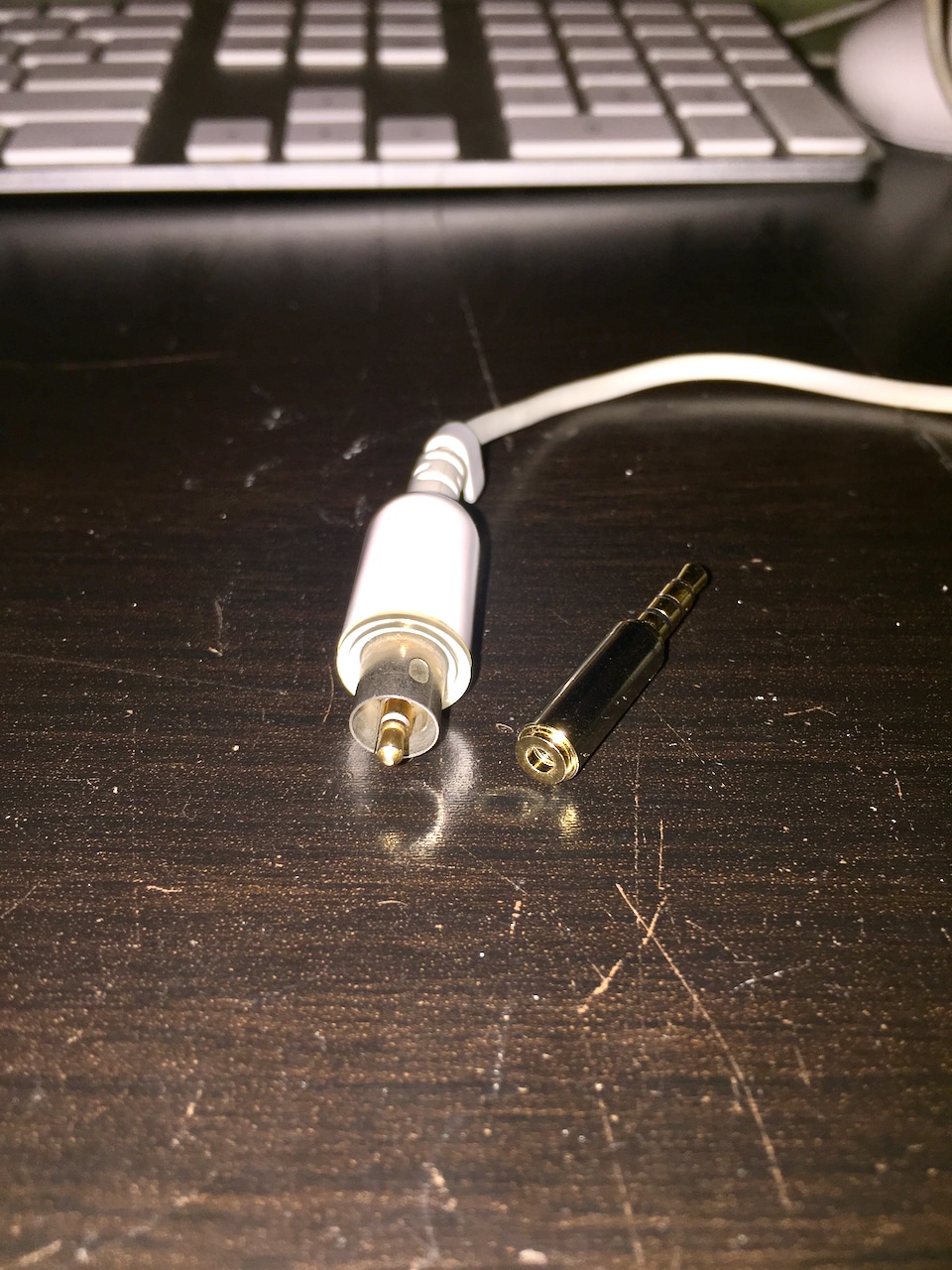

I found a "2.5mm female to 3.5mm male headphone adapter" on ebay for less than AU$3 shipped to my door. The one I got looks like this.
Pay special attention when searching to ensure the female jack is the smaller 2.5mm style, as there are many different adapter configurations available. You'll want something with a narrow girth around the female end so that it can slip under the outer ring of the G3/G4 Power Supply connection.

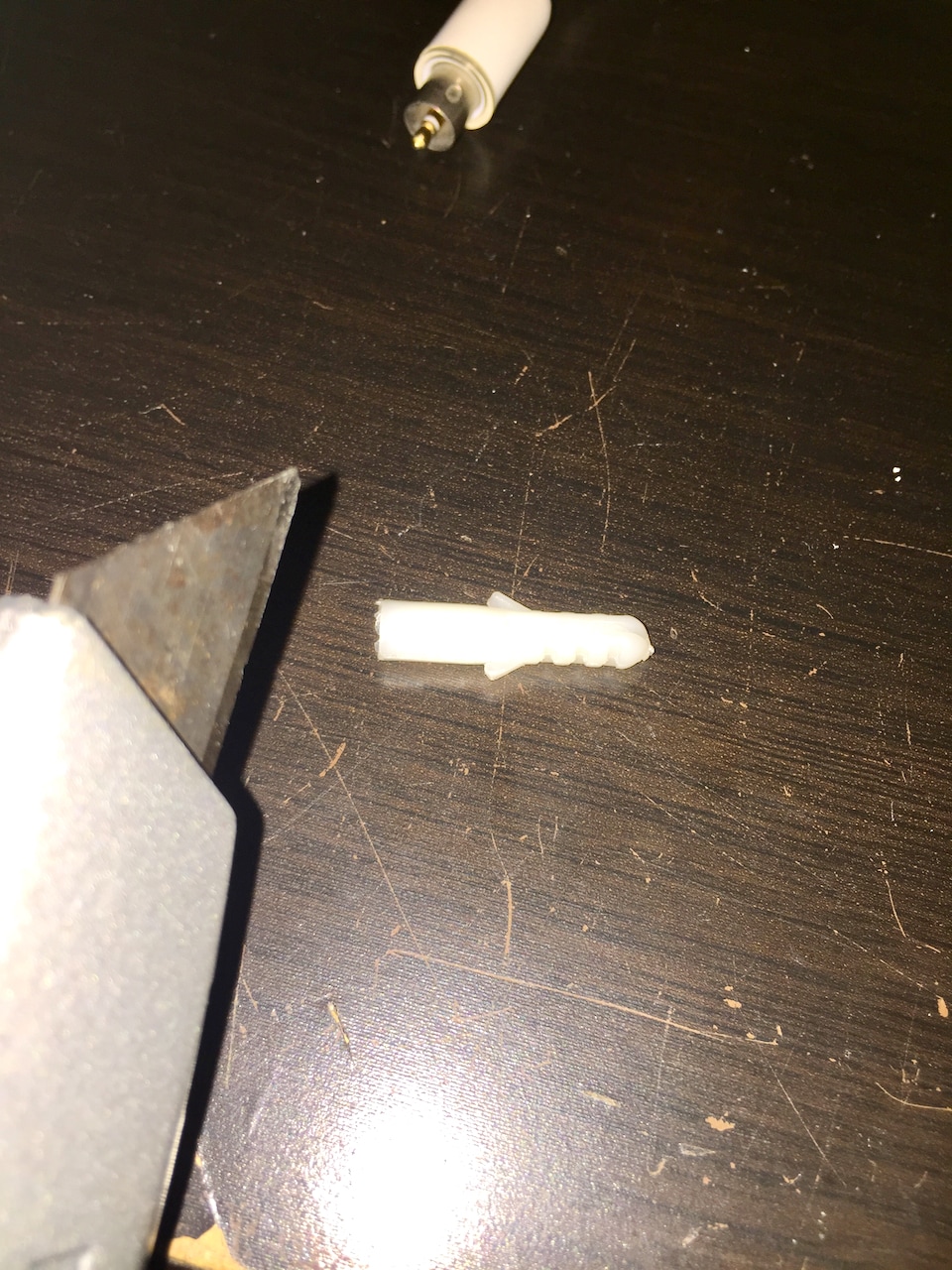

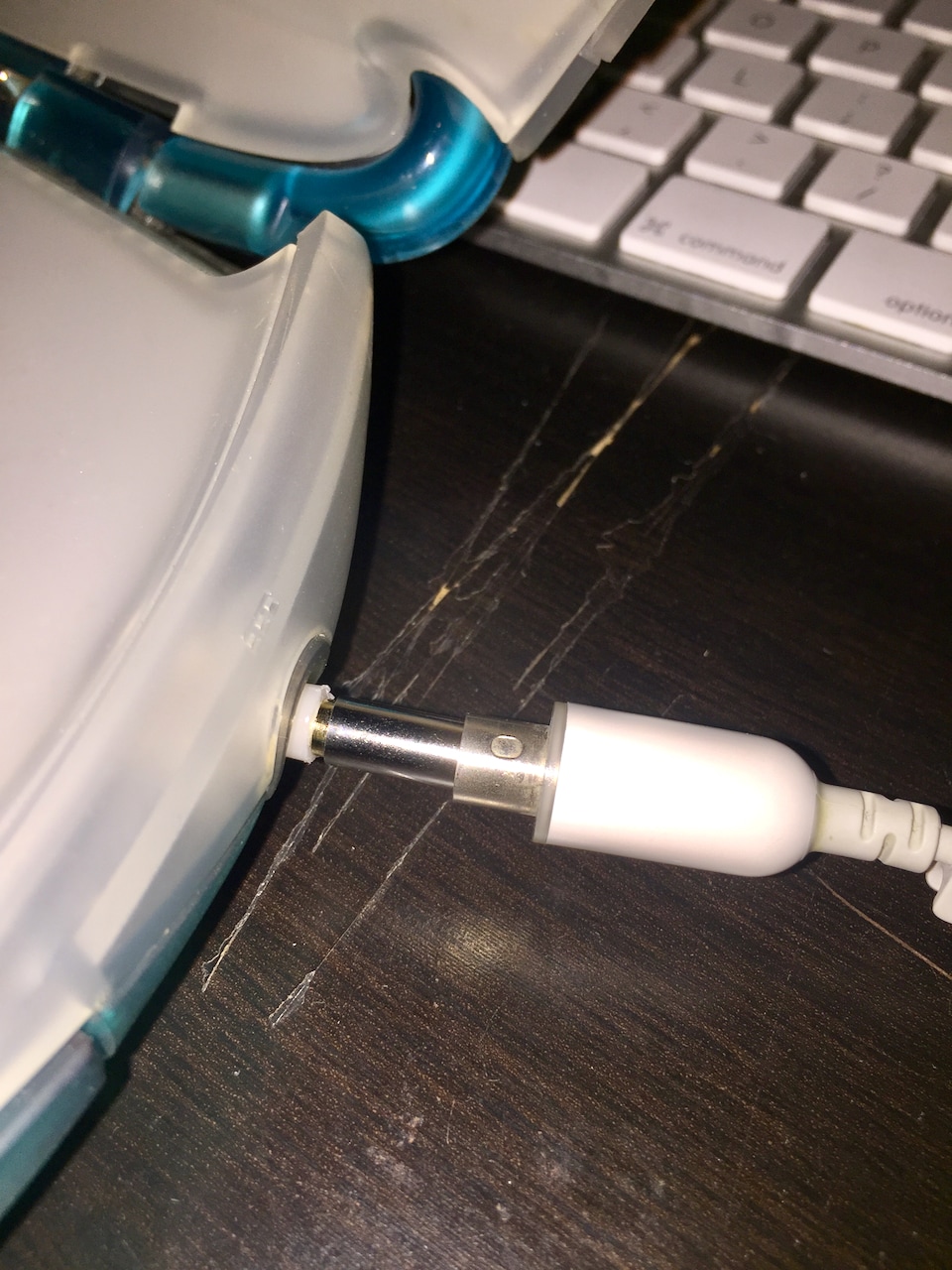

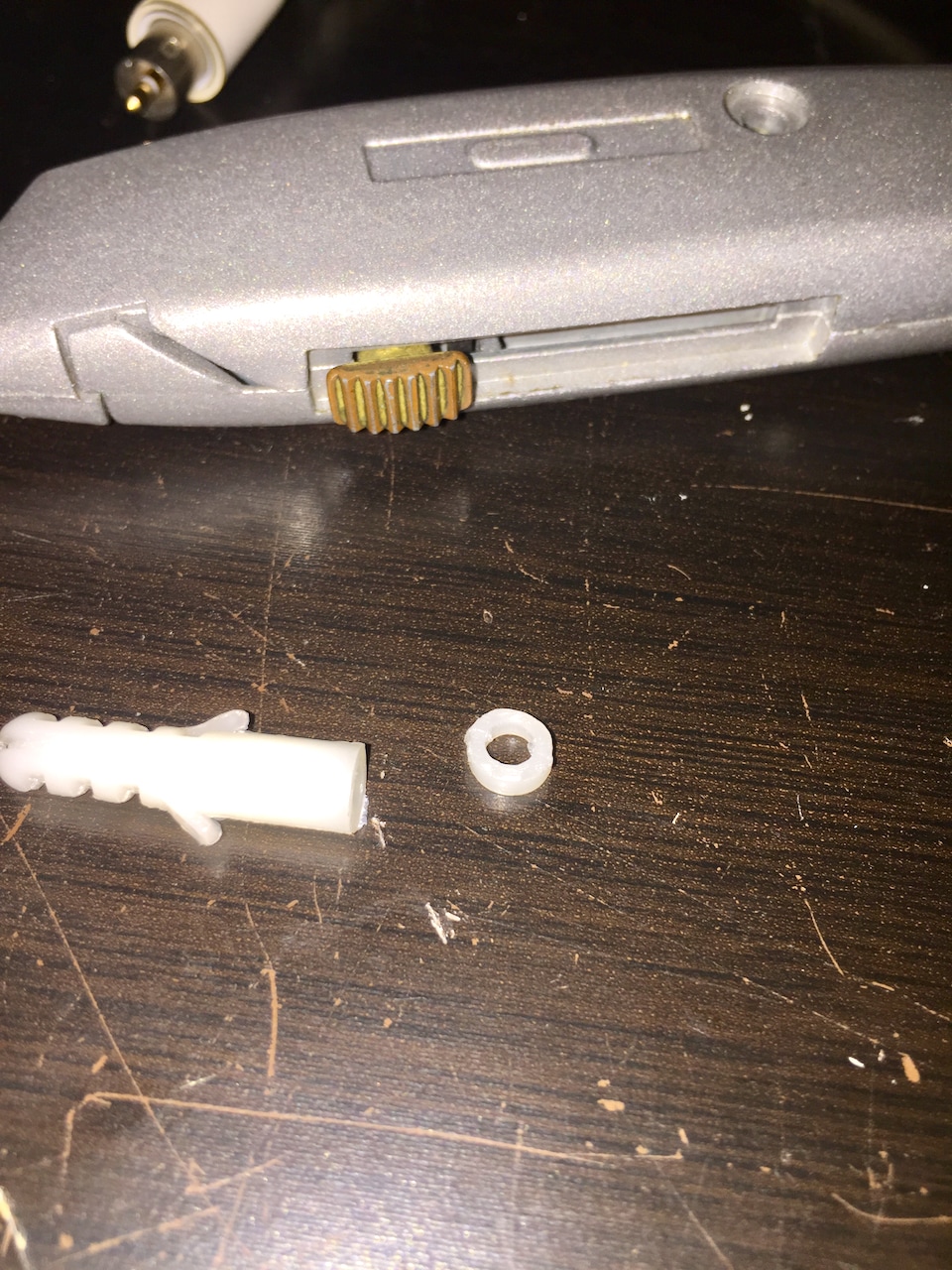

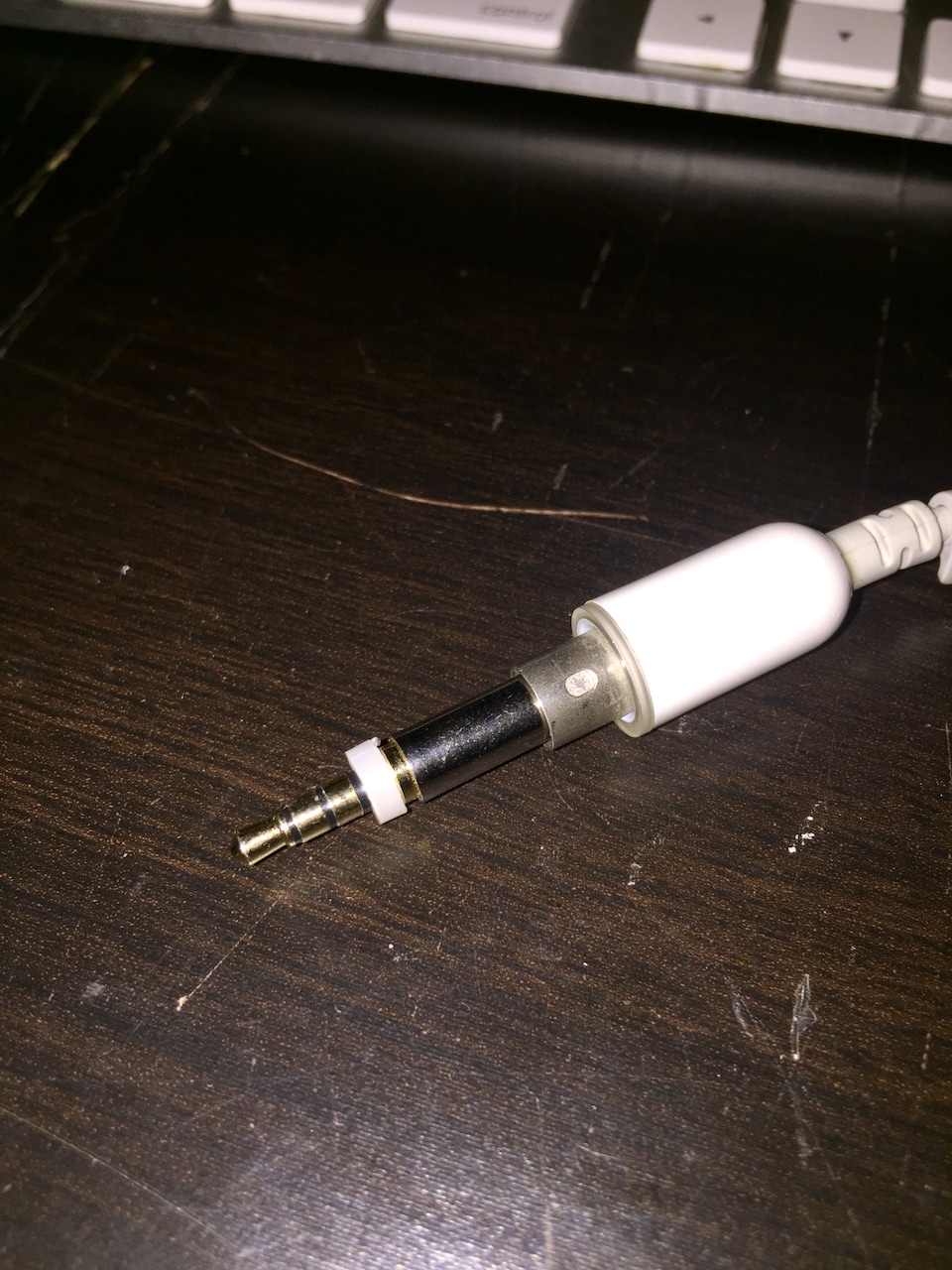

Initially, I found the adapted 3.5mm connector would push a little too far into the Clamshell iBook power socket, causing a disconnect. So I fashioned a small spacer ring out of a white plastic expanding wall plug to act as a bumber to prevent the connector from pushing in too far and disconnecting.

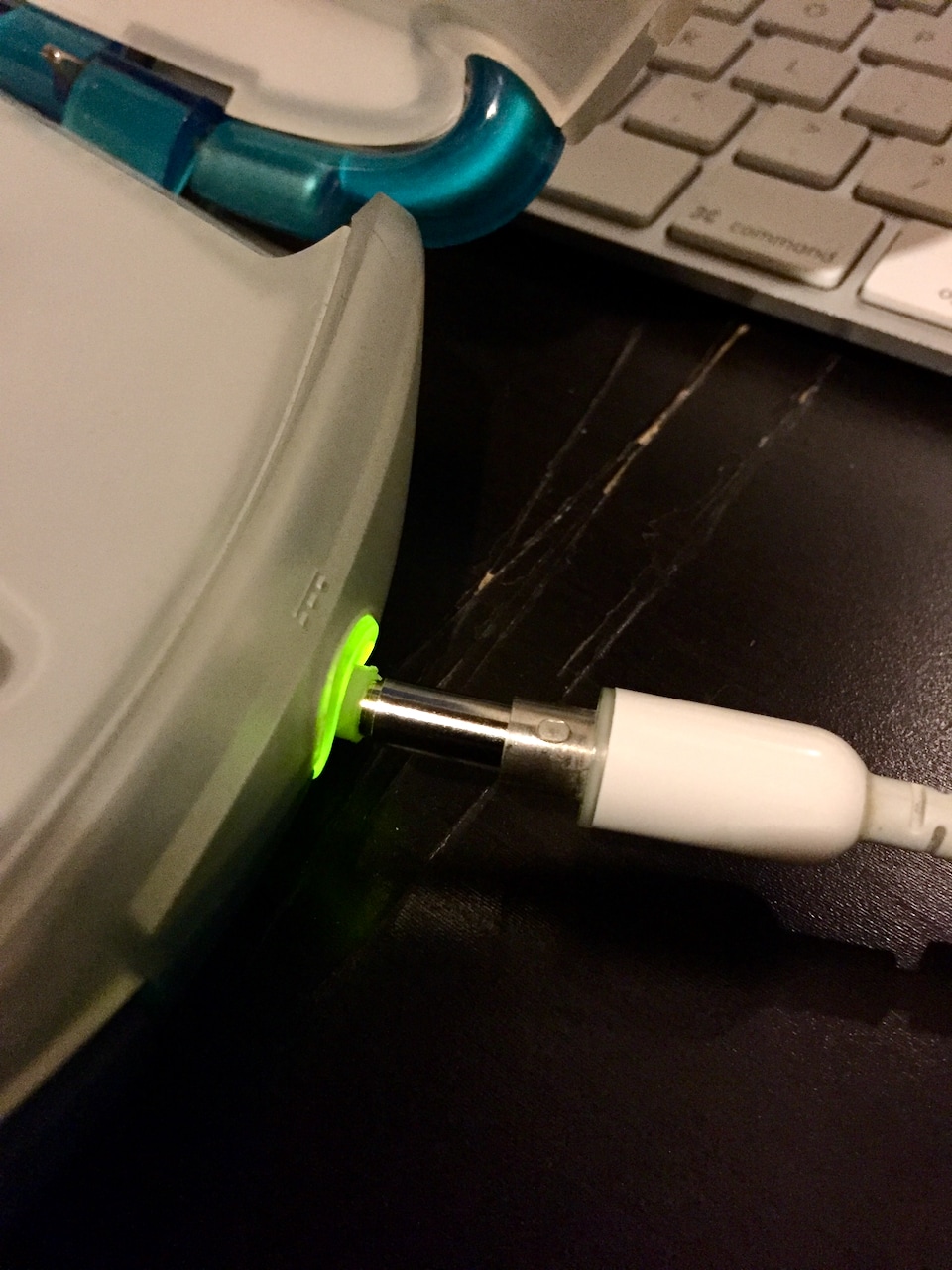

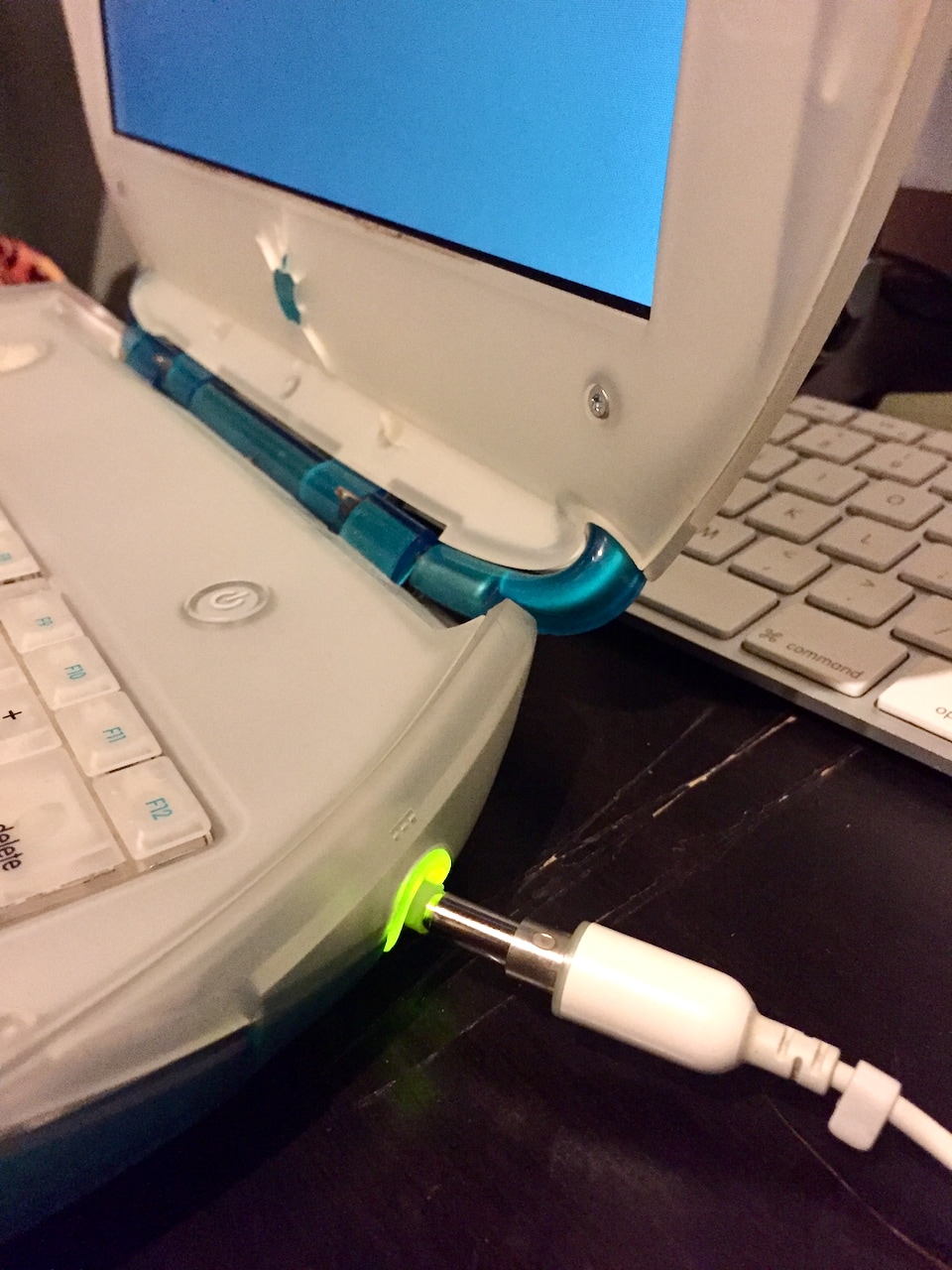

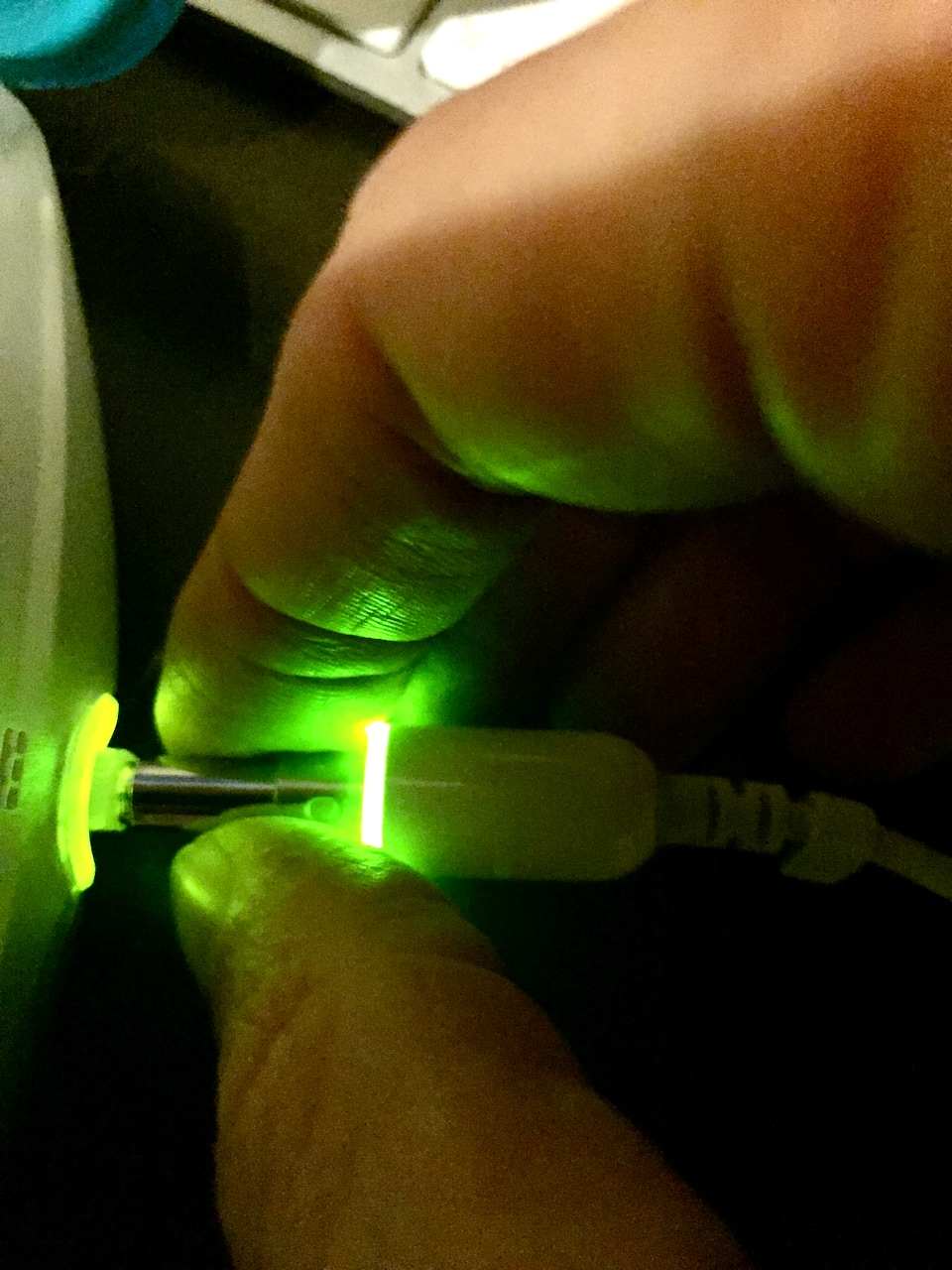

I've tested on my Clamshell iBook G3 and PowerBook G3 Pismo so far, and will pull out my PDQs, Lombard and PowerBook 1400 to test this mod on those next.
All in all, this is a very cheap, easy, method to using the more commonly available (smaller diameter) adapters on the older (larger diameter) PowerBooks and iBooks.

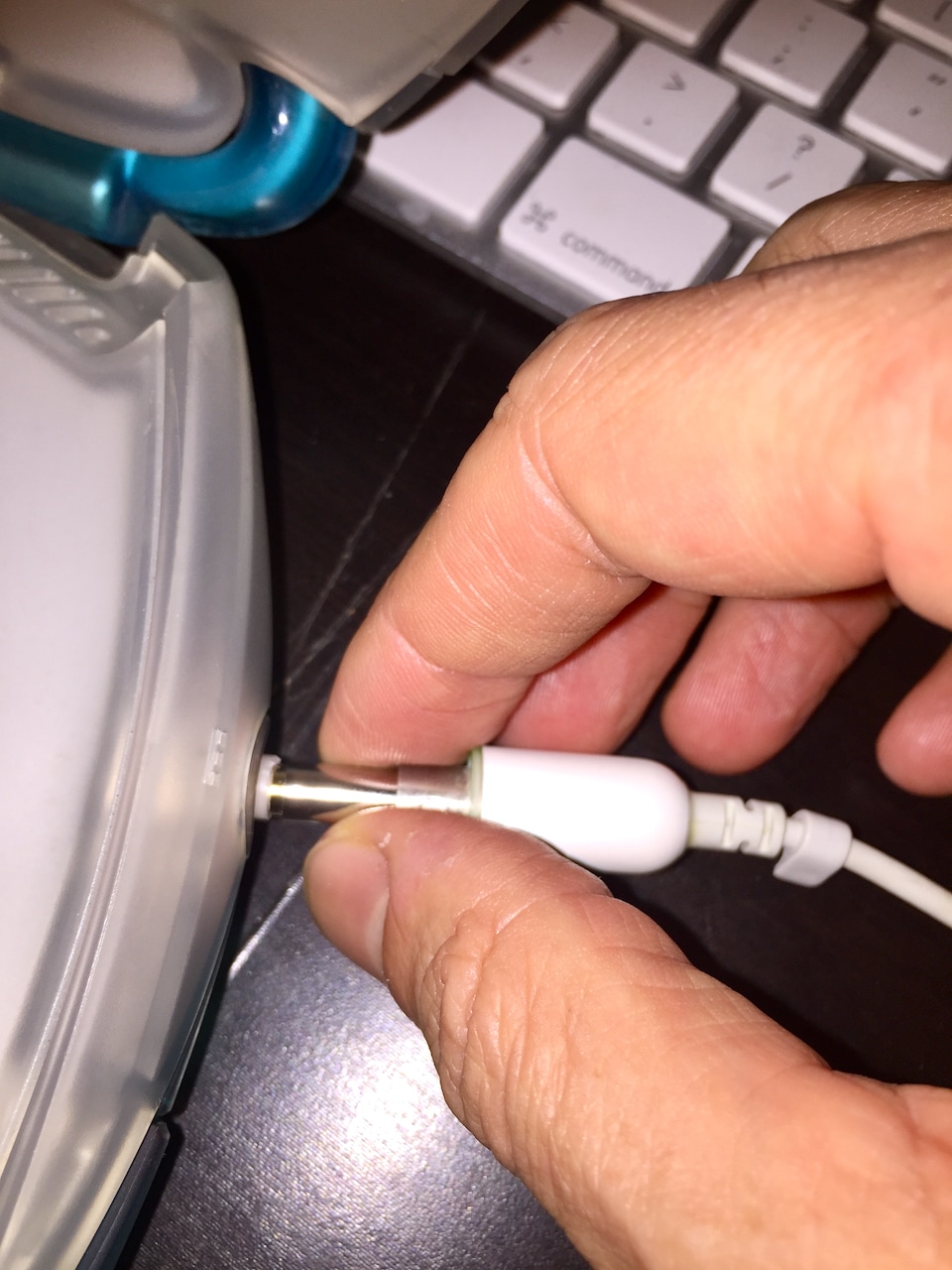

In terms of safety, I can confirm there are no sparks/shorts and it is safe to hold - I am testing here with a 65w adapter suited to the PowerBook G4 15" (Aluminum). As the outer ring is no longer involved in the connection, I would assume there is no earthing, but this doesn't appear to cause any issues. I have been using a hacked adapter which looks a little like this (no outer ring), but it is soldered together, for several years with no negative impact on my iBooks or PowerBooks.
I hope this helps anyone who wants to power an older portable Mac, but only has access to the smaller style connector and doesn't want to do an irreversible mod to their Power Supply.
