i think there a problem with my mac 7+ kernal panics! WHY !?

Discussion in 'MacBook Pro' started by johngovez, Aug 9, 2011.

  1. johngovez macrumors newbie

    Aug 9, 2011
    i had 6 kernel panics before i did a clean instal of sn LP and then boom! all of a sudden after 3hrs anothre kernal panic why?! so many? i am thinking of making a apple appointment?!
    here the information

    Interval Since Last Panic Report: 4564 sec
    Panics Since Last Report: 1
    Anonymous UUID: 75699ACE-994B-46EF-B282-CBB8A78B4B5B

    Tue Aug 9 21:48:20 2011
    panic(cpu 1 caller 0x560ba8): "IOGMD: not wired for the IODMACommand"@/SourceCache/xnu/xnu-1504.15.3/iokit/Kernel/IOMemoryDescriptor.cpp:1339
    Backtrace (CPU 1), Frame : Return Address (4 potential args on stack)
    0x5879b8c8 : 0x21b837 (0x5dd7fc 0x5879b8fc 0x223ce1 0x0)
    0x5879b918 : 0x560ba8 (0x5e6ee8 0x848314c 0x5879b998 0x13c9f4f)
    0x5879b998 : 0x558844 (0x1228d700 0x3 0x8556800 0x80)
    0x5879ba88 : 0x5590fe (0x8554900 0x2a 0x559840 0x2a)
    0x5879bae8 : 0x559806 (0x8554900 0x2a 0x5879bb28 0x8554900)
    0x5879bb28 : 0x559cfa (0x8554900 0x0 0x0 0x0)
    0x5879bb78 : 0x1387960 (0x8554900 0x1228d700 0x1 0x139c699)
    0x5879bbd8 : 0x138cd08 (0x8549800 0x1228d700 0x3 0x889080c)
    0x5879bc18 : 0x150e0f9 (0x8890800 0x1228d700 0x7530 0x7530)
    0x5879bc78 : 0x150e909 (0x8876c00 0x8876ce4 0x4 0x138ed94)
    0x5879bcc8 : 0x1385fc0 (0x8876c00 0x8876ce4 0x0 0x0)
    0x5879bd78 : 0x1527f12 (0x8549800 0x8556900 0x0 0x0)
    0x5879bdf8 : 0x1528d29 (0x8549800 0x854e4b8 0x0 0x0)
    0x5879be78 : 0x15294c0 (0x8549800 0x0 0x0 0x226790)
    0x5879bea8 : 0x15228e3 (0x8549800 0x0 0x5879bed8 0x1522198)
    0x5879bed8 : 0x553ec7 (0x8549800 0x0 0x1 0x53638b)
    0x5879bf28 : 0x552ea6 (0x8540600 0x1 0x1 0xffffffff)
    0x5879bf88 : 0x552eea (0x84a2180 0x8e7a7a8 0xffe00673 0xffffffff)
    0x5879bfc8 : 0x2a179c (0x84a2180 0x0 0x10 0x8b96524)
    Kernel Extensions in backtrace (with dependencies):
    dependency: com.apple.iokit.IOUSBFamily(4.2.4)@0x137e000
    dependency: com.apple.iokit.IOStorageFamily(1.6.3)@0x11df000
    dependency: com.apple.iokit.IOSCSIArchitectureModelFamily(2.6.8)@0x14d8000
    dependency: com.apple.iokit.IOUSBFamily(4.2.4)@0x137e000
    dependency: com.apple.iokit.IOPCIFamily(2.6.5)@0x928000
    dependency: com.apple.iokit.IOPCIFamily(2.6.5)@0x928000

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:

    Kernel version:
    Darwin Kernel Version 10.8.0: Tue Jun 7 16:33:36 PDT 2011; root:xnu-1504.15.3~1/RELEASE_I386
    System model name: MacBookPro5,4 (Mac-F22587A1)

    System uptime in nanoseconds: 1126718372451
    unloaded kexts:
    com.apple.driver.AirPortBrcm43xx 423.91.27 (addr 0xeeb000, size 0x1900544) - last unloaded 141743362444
    loaded kexts:
    com.paragon-software.filesystems.ntfs 82 - last loaded 27960753975
    com.apple.driver.AppleHWSensor 1.9.3d0
    com.apple.filesystems.autofs 2.1.0
    com.apple.driver.AGPM 100.12.31
    com.apple.driver.AppleMikeyHIDDriver 1.2.0
    com.apple.driver.AppleHDA 2.0.5f14
    com.apple.driver.AppleUpstreamUserClient 3.5.7
    com.apple.driver.AppleMCCSControl 1.0.20
    com.apple.driver.AppleMikeyDriver 2.0.5f14
    com.apple.driver.AudioAUUC 1.57
    com.apple.kext.AppleSMCLMU 1.5.2d10
    com.apple.driver.SMCMotionSensor 3.0.1d2
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.driver.AudioIPCDriver 1.1.6
    com.apple.driver.AppleIntelPenrynProfile 17
    com.apple.driver.ACPI_SMC_PlatformPlugin 4.7.0a1
    com.apple.driver.AppleLPC 1.5.1
    com.apple.driver.AppleBacklight 170.0.46
    com.apple.GeForce 6.3.6
    com.apple.driver.AppleUSBTCButtons 201.6
    com.apple.driver.AppleUSBTCKeyboard 201.6
    com.apple.driver.AppleIRController 303.8
    com.apple.driver.AppleUSBCardReader 2.6.1
    com.apple.iokit.SCSITaskUserClient 2.6.8
    com.apple.BootCache 31.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.iokit.IOAHCIBlockStorage 1.6.4
    com.apple.driver.AppleFWOHCI 4.7.3
    com.apple.driver.AirPortBrcm43224 428.42.4
    com.apple.driver.AppleAHCIPort 2.1.7
    com.apple.nvenet 2.0.17
    com.apple.driver.AppleSmartBatteryManager 160.0.0
    com.apple.driver.AppleUSBHub 4.2.4
    com.apple.driver.AppleUSBEHCI 4.2.4
    com.apple.driver.AppleUSBOHCI 4.2.0
    com.apple.driver.AppleEFINVRAM 1.4.0
    com.apple.driver.AppleRTC 1.3.1
    com.apple.driver.AppleHPET 1.5
    com.apple.driver.AppleACPIButtons 1.3.6
    com.apple.driver.AppleSMBIOS 1.7
    com.apple.driver.AppleACPIEC 1.3.6
    com.apple.driver.AppleAPIC 1.4
    com.apple.driver.AppleIntelCPUPowerManagementClient 142.6.0
    com.apple.security.sandbox 1
    com.apple.security.quarantine 0
    com.apple.nke.applicationfirewall 2.1.12
    com.apple.driver.AppleIntelCPUPowerManagement 142.6.0
    com.apple.driver.DspFuncLib 2.0.5f14
    com.apple.driver.AppleProfileReadCounterAction 17
    com.apple.iokit.IOFireWireIP 2.0.3
    com.apple.driver.AppleProfileTimestampAction 10
    com.apple.driver.AppleProfileThreadInfoAction 14
    com.apple.driver.AppleProfileRegisterStateAction 10
    com.apple.driver.AppleProfileKEventAction 10
    com.apple.driver.AppleProfileCallstackAction 20
    com.apple.driver.AppleSMBusController 1.0.10d0
    com.apple.nvidia.nv50hal 6.3.6
    com.apple.iokit.IOSurface 74.2
    com.apple.iokit.IOBluetoothSerialManager 2.4.5f3
    com.apple.iokit.IOSerialFamily 10.0.3
    com.apple.iokit.IOAudioFamily 1.8.3fc2
    com.apple.kext.OSvKernDSPLib 1.3
    com.apple.driver.AppleHDAController 2.0.5f14
    com.apple.iokit.IOHDAFamily 2.0.5f14
    com.apple.iokit.AppleProfileFamily 41
    com.apple.driver.AppleSMC 3.1.0d5
    com.apple.driver.IOPlatformPluginFamily 4.7.0a1
    com.apple.driver.AppleSMBusPCI 1.0.10d0
    com.apple.driver.AppleBacklightExpert 1.0.1
    com.apple.NVDAResman 6.3.6
    com.apple.iokit.IONDRVSupport 2.2
    com.apple.iokit.IOGraphicsFamily 2.2
    com.apple.driver.AppleUSBMultitouch 207.7
    com.apple.driver.BroadcomUSBBluetoothHCIController 2.4.5f3
    com.apple.driver.AppleUSBBluetoothHCIController 2.4.5f3
    com.apple.iokit.IOBluetoothFamily 2.4.5f3
    com.apple.iokit.IOUSBHIDDriver 4.2.0
    com.apple.iokit.IOSCSIBlockCommandsDevice 2.6.8
    com.apple.iokit.IOUSBMassStorageClass 2.6.7
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 2.6.8
    com.apple.iokit.IOBDStorageFamily 1.6
    com.apple.iokit.IODVDStorageFamily 1.6
    com.apple.iokit.IOCDStorageFamily 1.6.1
    com.apple.driver.AppleUSBMergeNub 4.2.4
    com.apple.driver.AppleUSBComposite 3.9.0
    com.apple.driver.XsanFilter 402.1
    com.apple.iokit.IOAHCISerialATAPI 1.2.6
    com.apple.iokit.IOSCSIArchitectureModelFamily 2.6.8
    com.apple.iokit.IOFireWireFamily 4.2.6
    com.apple.iokit.IO80211Family 320.1
    com.apple.iokit.IOAHCIFamily 2.0.6
    com.apple.iokit.IONetworkingFamily 1.10
    com.apple.iokit.IOUSBUserClient 4.2.4
    com.apple.iokit.IOUSBFamily 4.2.4
    com.apple.driver.NVSMU 2.2.7
    com.apple.driver.AppleEFIRuntime 1.4.0
    com.apple.iokit.IOHIDFamily 1.6.6
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 6
    com.apple.driver.DiskImages 289.1
    com.apple.iokit.IOStorageFamily 1.6.3
    com.apple.driver.AppleACPIPlatform 1.3.6
    com.apple.iokit.IOPCIFamily 2.6.5
    com.apple.iokit.IOACPIFamily 1.3.0
    Model: MacBookPro5,4, BootROM MBP53.00AC.B03, 2 processors, Intel Core 2 Duo, 2.53 GHz, 4 GB, SMC 1.49f2
    Graphics: NVIDIA GeForce 9400M, NVIDIA GeForce 9400M, PCI, 256 MB
    Memory Module: global_name
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8D), Broadcom BCM43xx 1.0 (
    Bluetooth: Version 2.4.5f3, 2 service, 12 devices, 1 incoming serial ports
    Network Service: AirPort, AirPort, en1
    Serial ATA Device: FUJITSU MJA2250BH FFS G1, 232.89 GB
    Serial ATA Device: MATSHITADVD-R UJ-868
    USB Device: USB2.0 Hub, 0x05e3 (Genesys Logic, Inc.), 0x0608, 0x24100000 / 3
    USB Device: Built-in iSight, 0x05ac (Apple Inc.), 0x8507, 0x24400000 / 2
    USB Device: USB to ATA/ATAPI Bridge, 0x152d (JMicron Technology Corp.), 0x2338, 0x26200000 / 3
    USB Device: Internal Memory Card Reader, 0x05ac (Apple Inc.), 0x8403, 0x26500000 / 2
    USB Device: Apple Internal Keyboard / Trackpad, 0x05ac (Apple Inc.), 0x0236, 0x04600000 / 3
    USB Device: IR Receiver, 0x05ac (Apple Inc.), 0x8242, 0x04500000 / 2
    USB Device: BRCM2046 Hub, 0x0a5c (Broadcom Corp.), 0x4500, 0x06100000 / 2
    USB Device: Bluetooth USB Host Controller, 0x05ac (Apple Inc.), 0x8213, 0x06110000 / 4

    and does anyone have any hints to the problem?! o and i i have it very ventilated i already took it apart and removed the dust and still consit but why? it well ventilated . there is nothing on stoping air flow and it on a flat surface.:mad:
  2. w00t951 macrumors 68000


    Jan 6, 2009
    Pittsburgh, PA
    Dude, the easiest thing to do with a kernel panic is to find someone with a Mac, and restart from that person's HDD via Target Disk Mode. I believe it's holding "T" at startup while your computers are connected via FW800, but you might want to Google that. Anyway, salvage any info you might need, and reinstall from scratch. You know, start the installer, go to Utilities -> Disk Utlity and wipe your disk before installing.
  3. tag, Aug 10, 2011
    Last edited: Aug 10, 2011

    tag macrumors 6502a


    Apr 29, 2005
    According to the backtrace in the log you posted, the kernel panic seems to be a USB I/O problem. What do you have currently hooked up via USB?
  4. johngovez thread starter macrumors newbie

    Aug 9, 2011
    i have a usb hub hooked up and a 500gb external hard drive but the drive is just in side of a enclosure so i dont think the drive would be it maybe the enclosure?
  5. johngovez thread starter macrumors newbie

    Aug 9, 2011
  6. Hansr macrumors 6502a

    Apr 1, 2007
    Not if you just did a clean install. Then it's hardware related, test the drive with another computer. Might be the power modulator for USB, those things a flimsy at best.
  7. johngovez thread starter macrumors newbie

    Aug 9, 2011
    yea i cant check i only this one mac and my other pc from 2003 is messed uo lol
    but its weird because till a few days ago it started acting up like this it gets me worried because it an expensive machine.
  8. johngovez thread starter macrumors newbie

    Aug 9, 2011
    could it be a bad usb cable from the external drive to mac?:confused:
  9. johngovez thread starter macrumors newbie

    Aug 9, 2011
    hey i think it is a I/O problem because once i plugged my external hard drive it just heated up really badly and then i unplugged it and5-10mins later cooled back down?! does anyone have an idea? should i i take it to apple store? and how much do you think they will charge me to just diagnose the problem? and how much to fix?!
  10. getz76 macrumors 6502a


    Jun 15, 2009
    Hell, AL
    Do you have kernel panics without any USB devices attached?

    Do some troubleshooting.
  11. maril1111 macrumors 68000


    Mar 14, 2010
    It really depends on where you live.But don't panic yet just follow through the below options

    Try this tip for a day, if you still get kernel panics than bring it to an apple store, also i would go through a procedure of safe mode:

    http://support.apple.com/kb/ht1455 And try plugging the usb device in.

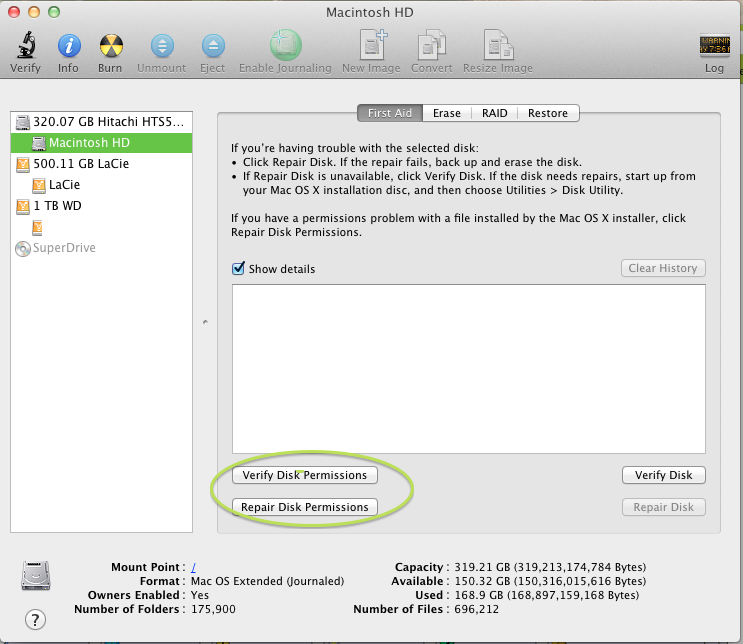

    Also you could repair permissions in disk utility. /Applications> Utilities> Disk Utility.(see screenshot)

    try these and than report back.

    Attached Files:

  12. johngovez thread starter macrumors newbie

    Aug 9, 2011
    @getz76 nope i dont get no kernal panic when nothing is plugged in.
    @maril i already did disk utility i did verfiy first and then repair.
    p.s i did apple hardware test regular and extended and it no problems found.
    ima try techtool and im (going to try safe mode <---- maril) ill report back what happens ok
  13. johngovez thread starter macrumors newbie

    Aug 9, 2011
    oo i also forgot to mention that my external is ntfs i am using paragon ntfs for mac?
  14. johngovez thread starter macrumors newbie

    Aug 9, 2011
    havent had a kernal panic all day i think im good now thanks everyone and ill post back if i get one :D
  15. gorskiegangsta macrumors 65816


    Mar 13, 2011
    Brooklyn, NY
    THAT's the easiest thing to do that you can think of? Really??
  16. johngovez thread starter macrumors newbie

    Aug 9, 2011
  17. johngovez thread starter macrumors newbie

    Aug 9, 2011
    i found the problem it was my external drive cuasing the problems
    the power unit from the back is getting faulty so im guessing it made the usb pull power n it was to much it was 3.5in ide hard drive <---(old school ) :cool:
    i have had my iphone plugged in for over 1hr n no kernel panic i had one recently with my external same code i i checked it out i will post if it happens with iphone.
    does anyone think or agree with me?:apple:
