Ibook Clamshell No Charging Light or Power

Ih8reno

Ih8reno

macrumors 65816
Original poster
Aug 10, 2012
1,383
207

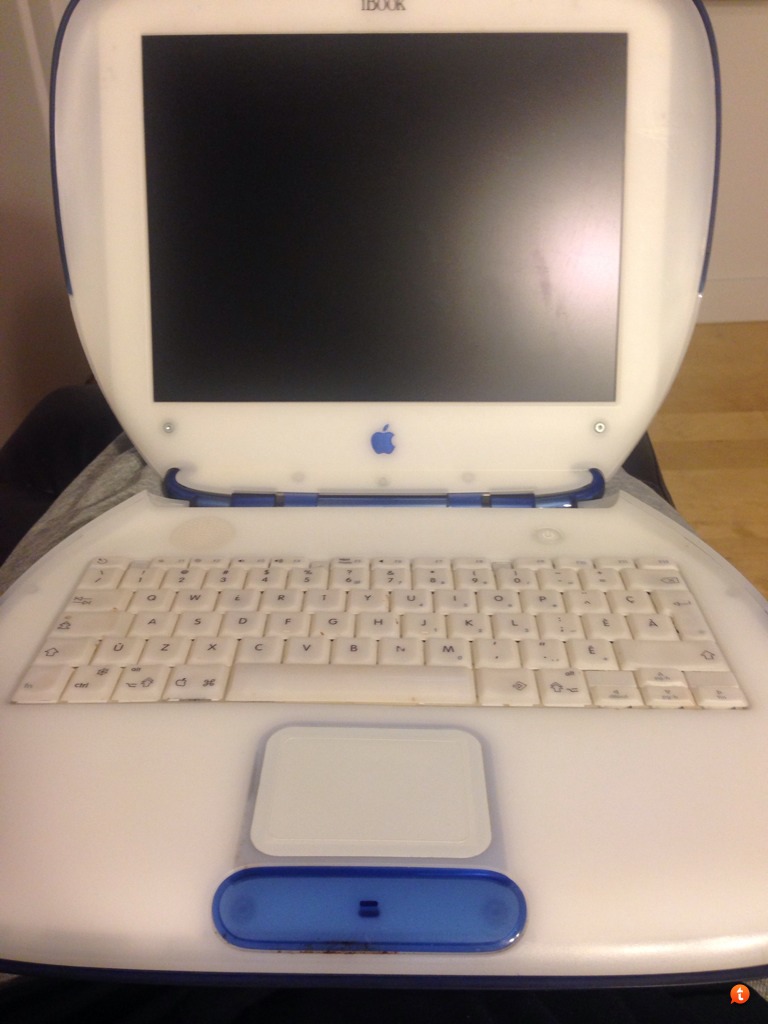

I just picked up a blue clamshell for $20. When I tried it out at the buyers it was finicky but turned on and worked just fine. Bring it home and I can't get it to power on. Battery is long dead but I have the correct power adapter from my other clamshell. No charging light comes on and it won't boot. I've tried pressing the reset, also the Pmu and still nothing. Am I now the proud owner of a cool paperweight?

Ih8reno said:
I just picked up a blue clamshell for $20. When I tried it out at the buyers it was finicky but turned on and worked just fine. Bring it home and I can't get it to power on. Battery is long dead but I have the correct power adapter from my other clamshell. No charging light comes on and it won't boot. I've tried pressing the reset, also the Pmu and still nothing. Am I now the proud owner of a cool paperweight?
Click to expand...


Try removing the battery and holding the power button for 30 seconds with the battery removed. Also try a new PRAM Battery.

Nothing doing. I know the power adapter works as it boots my graphite ibook.

It's possible that the DC board is bad, either from a damaged connector or a faulty component. I had this with a Dual-USB iBook G3 a while back, just swapped it out with a new one and it was fine.

Intell said:
Mostly correct. The 12" Powerbook has a capacitor like the iBooks.
Click to expand...

Learn something new everyday. I mainly only do repairs on Intel(l) Macs so that is where most of my experience comes from. Sorry for the confusion I may of caused to the viewers. Now back to your regularly scheduled programming.

I would definitely try a new DC-in board. That has fixed several iBook G4s for me. Pull out the battery and plug it in, and hold down the power button, and if you can hear any noise, maybe a small buzzing, then it is the DC-in board.

Altemose said:
Learn something new everyday. I mainly only do repairs on Intel(l) Macs so that is where most of my experience comes from. Sorry for the confusion I may of caused to the viewers. Now back to your regularly scheduled programming.
Click to expand...

Don't feel too bad. Many people on here miss that tidbit of information.

Nope no noise, I did notice last night where it plugs in got a bit warm.

Ih8reno said:
Nope no noise, I did notice last night where it plugs in got a bit warm.
Click to expand...

I would replace the DC-in board. Symptoms are: You hear it buzzing or a cap buzzing, it gets hot (I burned myself on a DC-in board on my first iBook once :D), If you twist around several times and it changes colors briefly, extremely hot adapter after a while, etc. Also, one easy way to check is digging into the iBook and checking the jack into which the DC-in board plugs in, and seeing if a multimeter detects voltage. If not, it is indeed your DC-in jack.

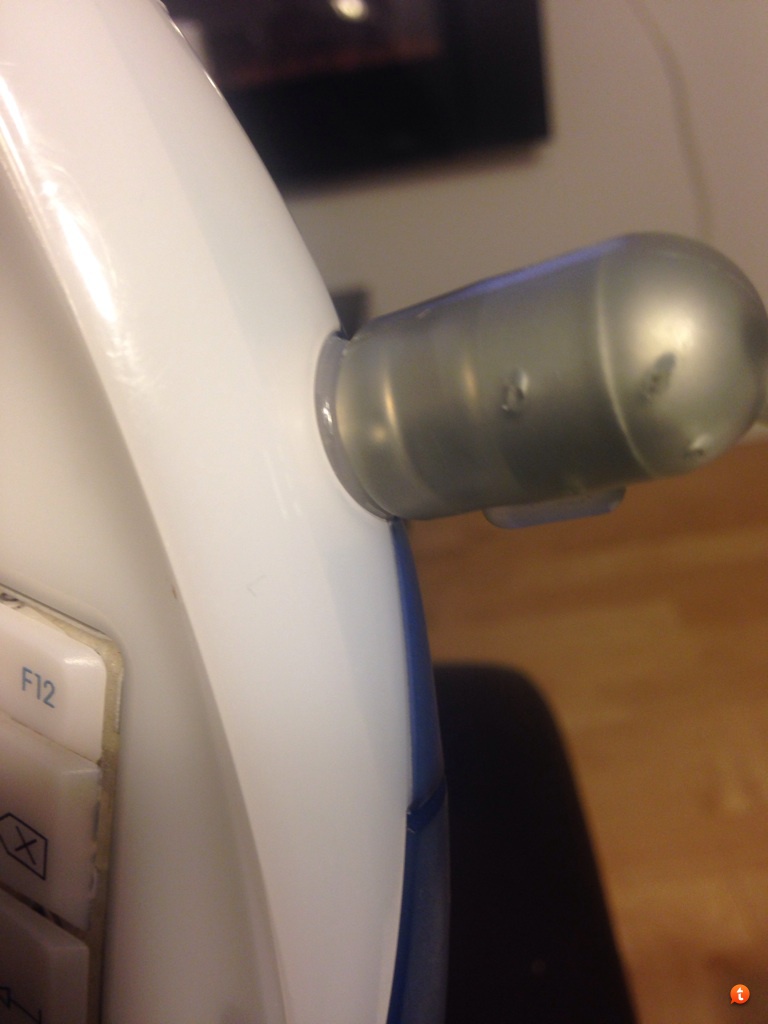

Picture demonstration:

Unfortunately I don't think I have the skills to do this. Guess it'll have to be a conversation piece.

Ih8reno said:
Unfortunately I don't think I have the skills to do this. Guess it'll have to be a conversation piece.
Click to expand...

It's not impossible to do :)
You can find extremely detailed free instructions on www.ifixit.com.
If you don't want to do it, I wonder if there's anybody in your area that would do it: it's not super expensive part on eBay, and shouldn't be that much for someone to do it.
