Identify this RAM

Discussion in 'Community Discussion' started by Shadow, Jun 25, 2007.

  1. Shadow macrumors 68000

    Shadow

    Joined:
    Feb 17, 2006
    Location:
    Keele, United Kingdom
    #1

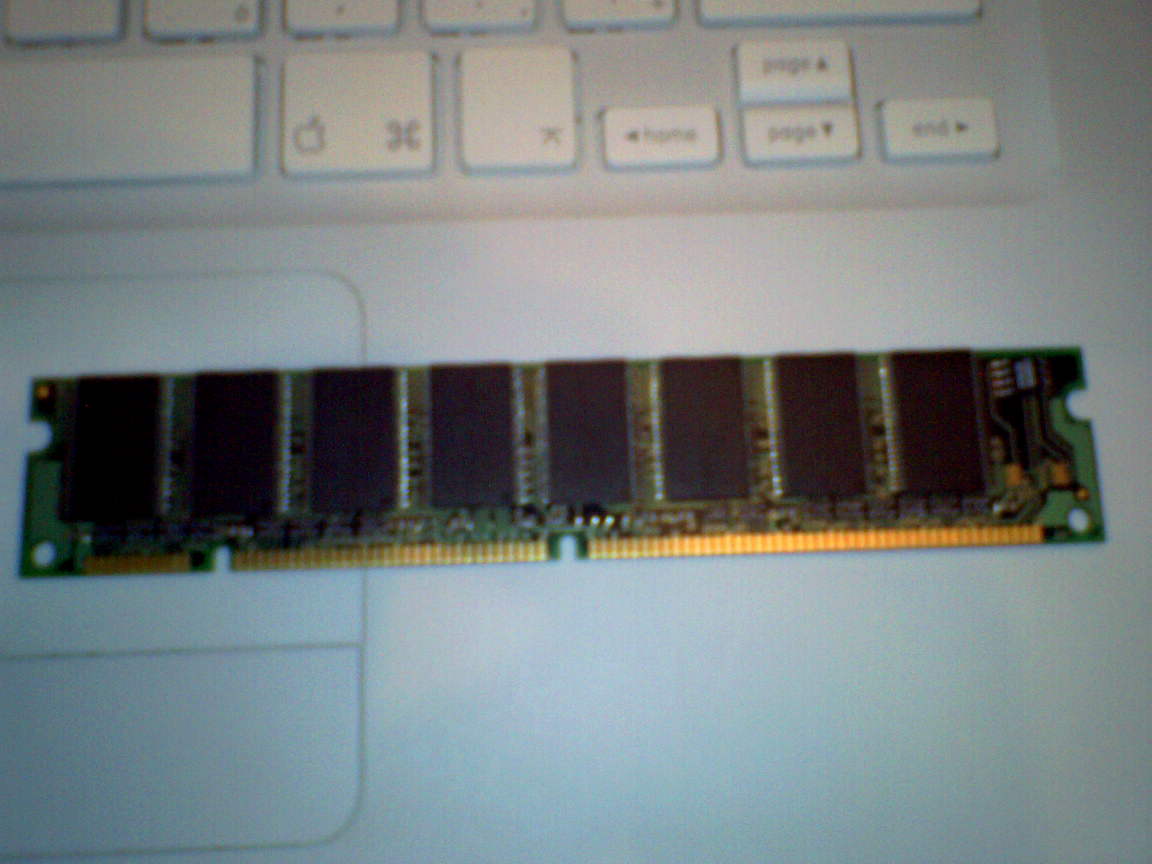

    One of the RAM sticks in my old PC (AMD K6 233MHz) has just died, and I want to replace it. However, I dont know what speed it is. I know that it's 168-pin SO-DIMM SDRAM, but I have no idea what speed. I've looked in the BIOS, Memtest and in DSL (Damn Small Linux) but no luck. I've included a picture, just incase (excuse the low quality, taken on my phone :p). This stick is 32MB.


    Attached Files:

  2. N10248 macrumors 6502a

    N10248

    Joined:
    Jun 11, 2004
    Location:
    Essex, U.K.
    #2
    its too long for a SO-DIMM, its most likely a pc-100 or pc-133 168-pin SDRAM module.

  3. Shadow thread starter macrumors 68000

    Shadow

    Joined:
    Feb 17, 2006
    Location:
    Keele, United Kingdom
    #3
    How do I check to find out the actual speed? I can't install XP (takes a week to install, then stalls at the login screen).

  4. Carrot007 macrumors regular

    Carrot007

    Joined:
    Sep 18, 2006
    Location:
    Yorkshire
    #4
    More likely to be PC-66 for a 233mhz cpu. Should not be hard to find someone giving them away! FWIW pc-100 or pc-133 should work too though it's best not to mix speeds as I recall issues back in the day.

  5. sgarringer macrumors regular

    Joined:
    Jul 15, 2004
    Location:
    Cedar Rapids, IA
    #5
    32MB came in PC/66 and PC/100 so its one of those two speeds of 168-pin SDRAM. I think a K6 will handle PC/100 without any issues so just replace it with something like a 32MB or a 64MB if you can find it.
