Identifying Components on 4,1 Motherboard

Discussion in 'Mac Pro' started by MacDann, Nov 2, 2018.

  1. MacDann macrumors 6502a

    MacDann

    Joined:
    Mar 27, 2007
    Location:
    Can see the end of the Earth from here
    #1
    I was working on a friend's cMP 4,1 single processor machine recently when I noticed something about the motherboard.

    Along side the CPU socket are a number of small, square devices arranged in a straight line. There appears to be some sort of relationship with the heat sink for these, as there looked to be a piece of foam tape or other material along the heat sink that comes into contact with these devices when the heat sink is in place.

    I noted these as there appeared to be what looked like evidence of liquid or something on the motherboard in this area as well. I didn't attempt to clean it off, but I had some concerns about what it was and how it might relate to these devices, thinking they might be capacitors and they were leaking.

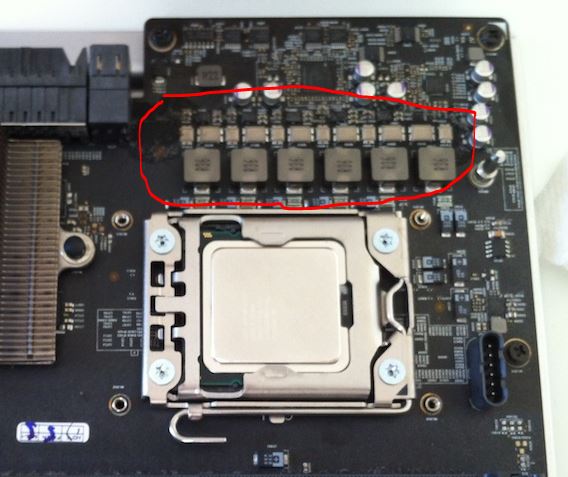

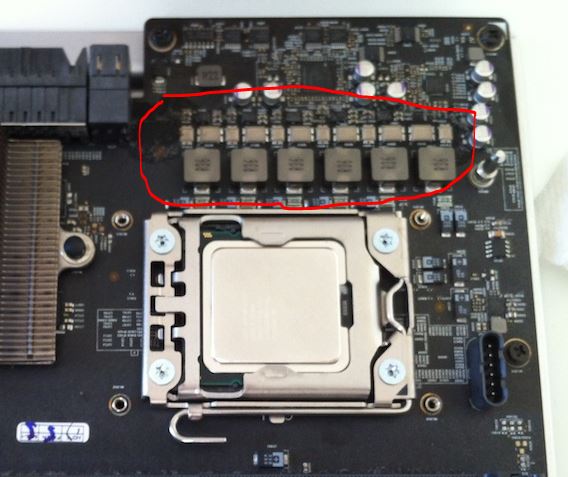

    I've attached a picture to identify what I'm talking about. What are these, and is their proximity/relationship to the heat sink critical?

    MacDann mp41mb.JPG

  2. Milesc2 macrumors newbie

    Joined:
    May 22, 2018
    #2
    I think this is rather normal, I have seen it on most of CMP's I have opened up.
    Not sure if it's solder flux or some type of thermal compound residue, not leaky caps though.
    But just ignore it and everything should be fine. You will do more harm than good trying to scrub it off.

  3. tsialex macrumors 601

    tsialex

    Joined:
    Jun 13, 2016
    Location:
    Brazil
    #3
    These are the power circuits for the 6 power lines of the processor. It's thermal pad oily decay. You can clean with IPA.

  4. MacDann thread starter macrumors 6502a

    MacDann

    Joined:
    Mar 27, 2007
    Location:
    Can see the end of the Earth from here
    #4
    Thanks, everyone! Is it important to replace the thermal pad on the heat sink for these devices? I would think that it has aged somewhat and may not be making good contact as it was when new. If they don't have good contact can they overheat and fail?

    MacDann

  5. tsialex macrumors 601

    tsialex

    Joined:
    Jun 13, 2016
    Location:
    Brazil
    #5
    Yes you need to replace it, it's crucial to cool the power circuit. Someone posted a replacement here sometime ago.

  6. MacDann thread starter macrumors 6502a

    MacDann

    Joined:
    Mar 27, 2007
    Location:
    Can see the end of the Earth from here
    #6
    Thanks! I'll do some searching and see if I can come up with it.

  7. tsialex macrumors 601

    tsialex

    Joined:
    Jun 13, 2016
    Location:
    Brazil
    #7
    If I remember correctly, was in the @handheldgames thread about replacing a 2009 backplane/tray combo for a 2010 one.
    --- Post Merged, Nov 2, 2018 ---
    Easy 4,1 dual CPU upgrade?

  8. MacDann thread starter macrumors 6502a

    MacDann

    Joined:
    Mar 27, 2007
    Location:
    Can see the end of the Earth from here
    #8
    I found another thread that pointed at eBay as a source - there's all kinds of the stuff there. It seems that the material on the 4,1 heatsink is pretty thick as I recall, maybe a couple of millimeters. Next time I have one apart I'll look more closely and see so I can get some and have it on hand for future work.

    Again, thank you!

    MacDann
