II+ Worth Saving?

MaxHeap

macrumors member
Original poster
Mar 28, 2012
52
0
Missouri

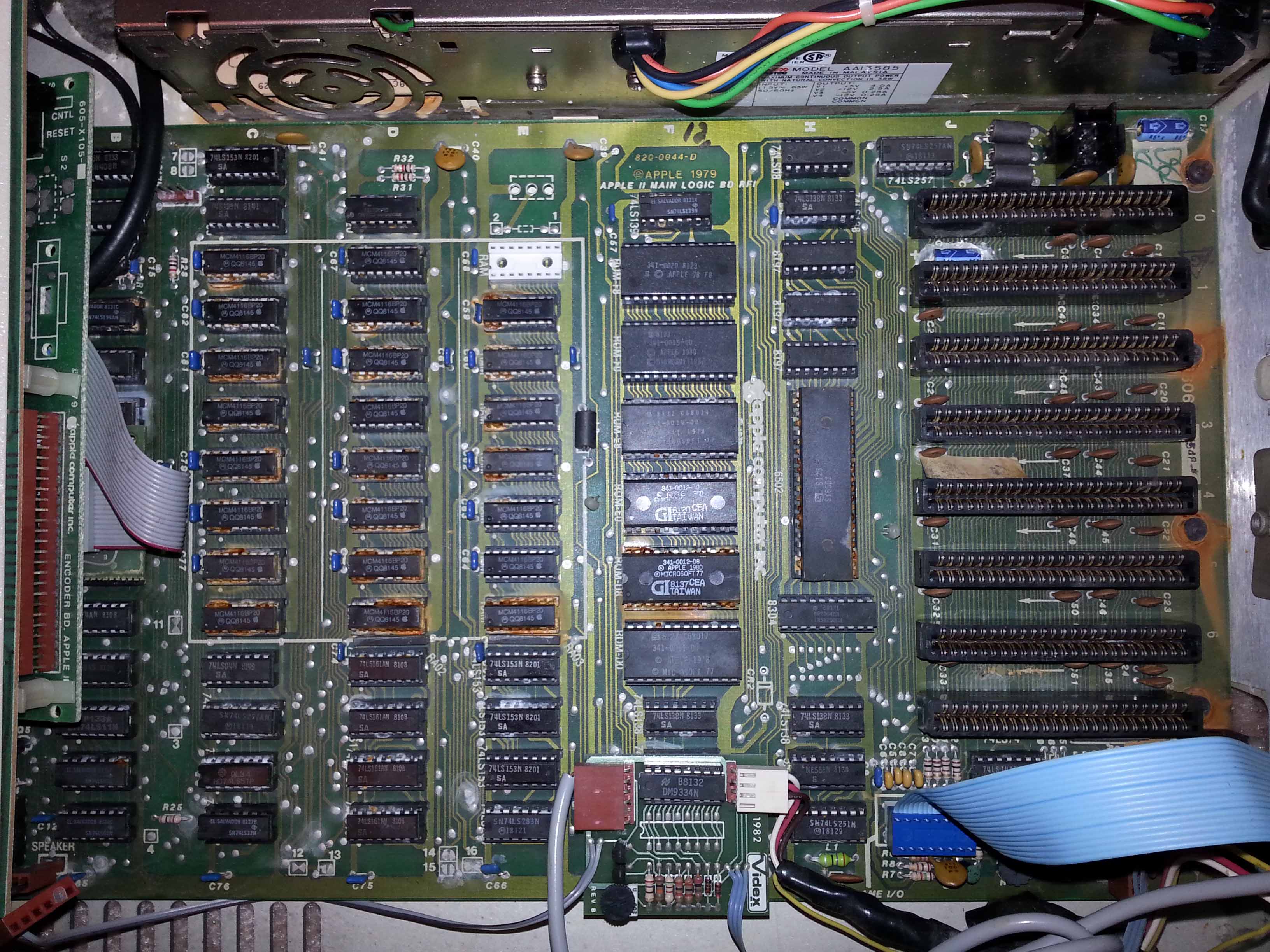

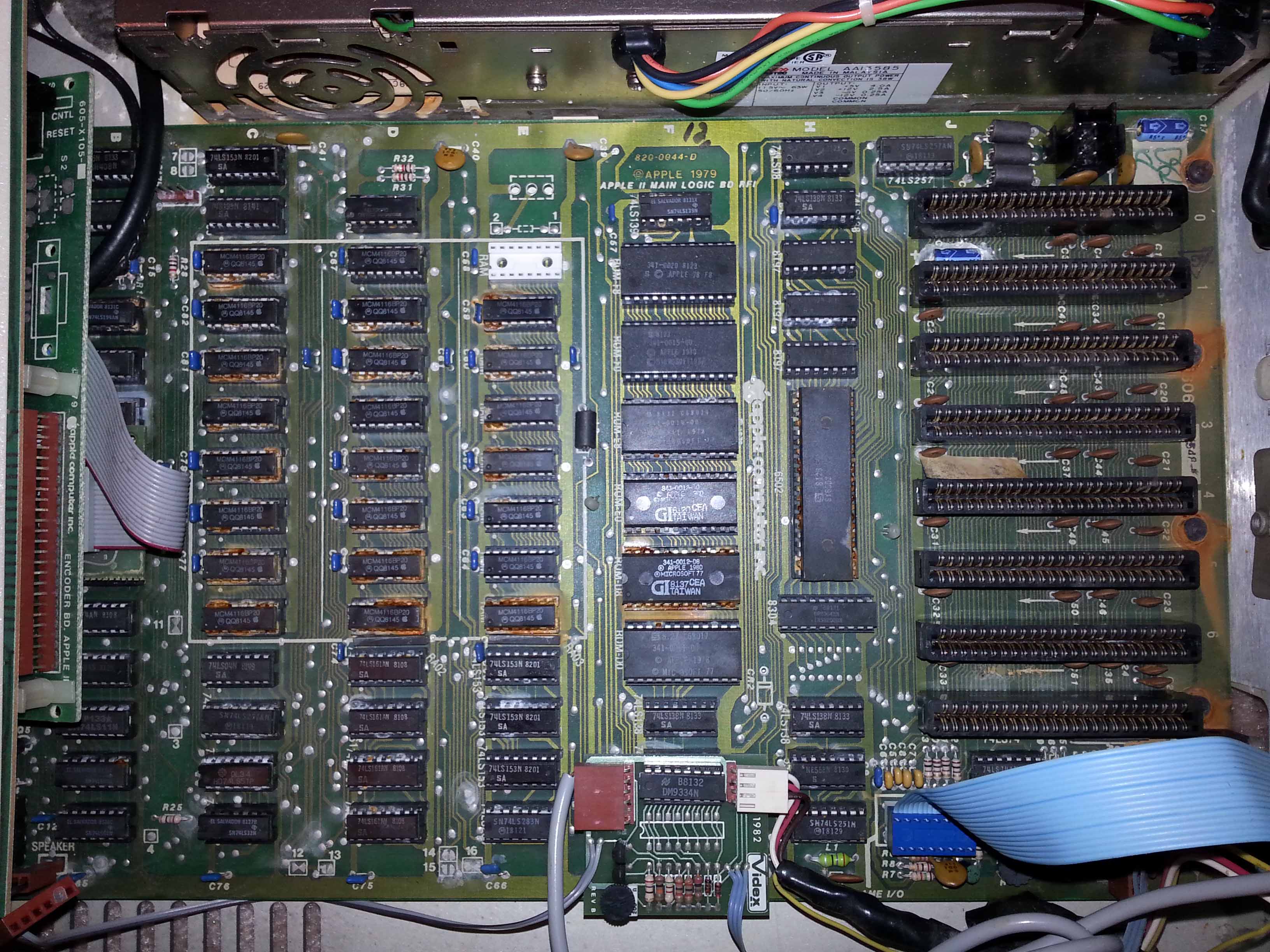

I've starting cleaning the rust from this, but wanted to see if it was a lost cause or if anyone else has run into something similar. It speaker just buzzes and there are some lines on the screen when I turned it on. The capacitors need to be changed also, but thats not a big deal.

Also, are there places for parts for II's that arent too crazy on price?


Attachments

MacTech68

macrumors 68020
Mar 16, 2008
2,221
167
Australia, Perth
Wow, that is in a pretty sad shape.

Things like this are fixable, but require soldering skills, possibly a number of parts (some rare) and plenty of patience.

If you like the joy from tedious fiddly work when it all goes well at the end, then go right ahead.

It's your call, but it would certainly be a labor of love.

Comment

MaxHeap

macrumors member
Original poster
Mar 28, 2012
52
0
Missouri
Wow, that is in a pretty sad shape.

Things like this are fixable, but require soldering skills, possibly a number of parts (some rare) and plenty of patience.

If you like the joy from tedious fiddly work when it all goes well at the end, then go right ahead.

It's your call, but it would certainly be a labor of love.

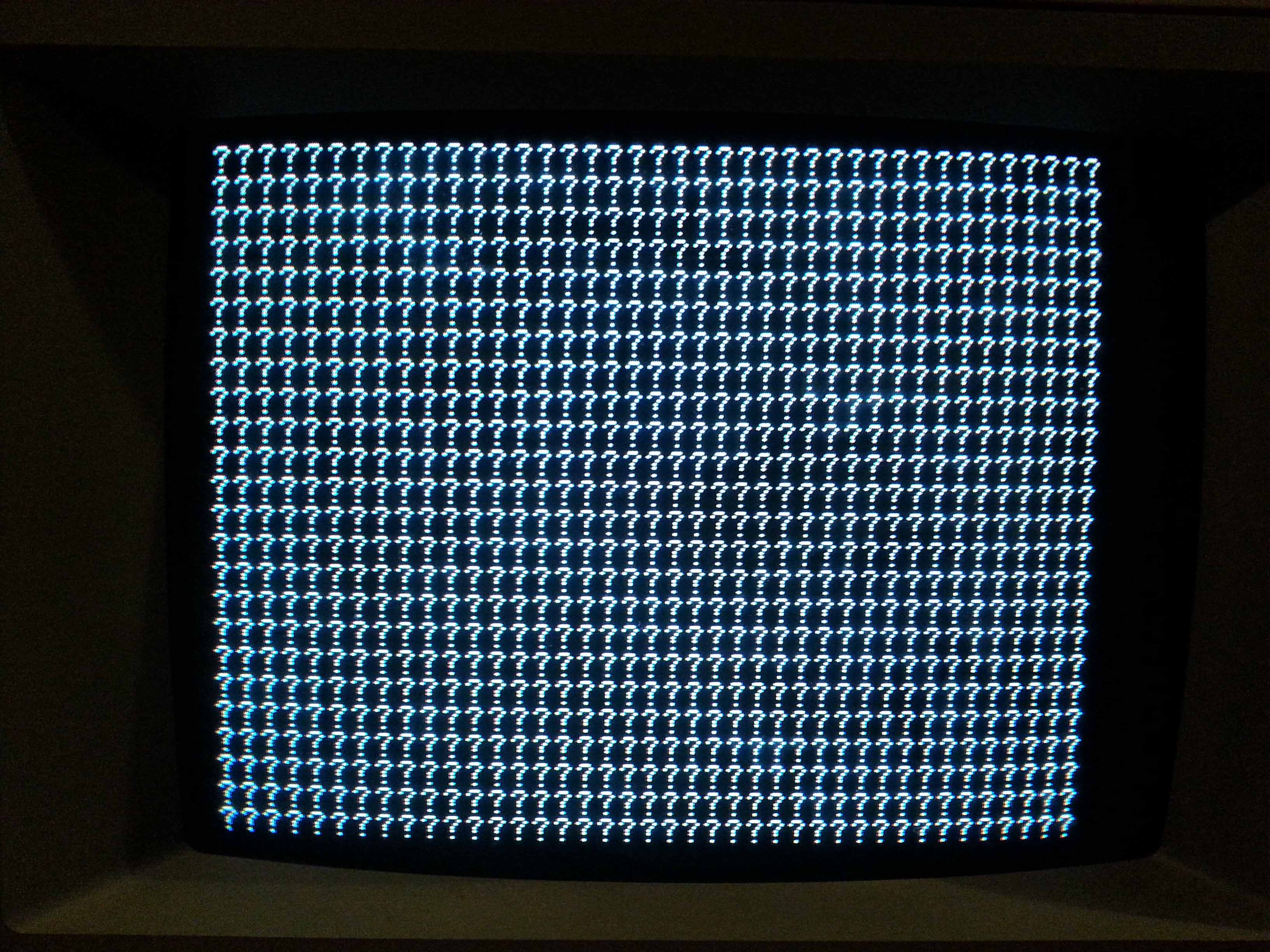

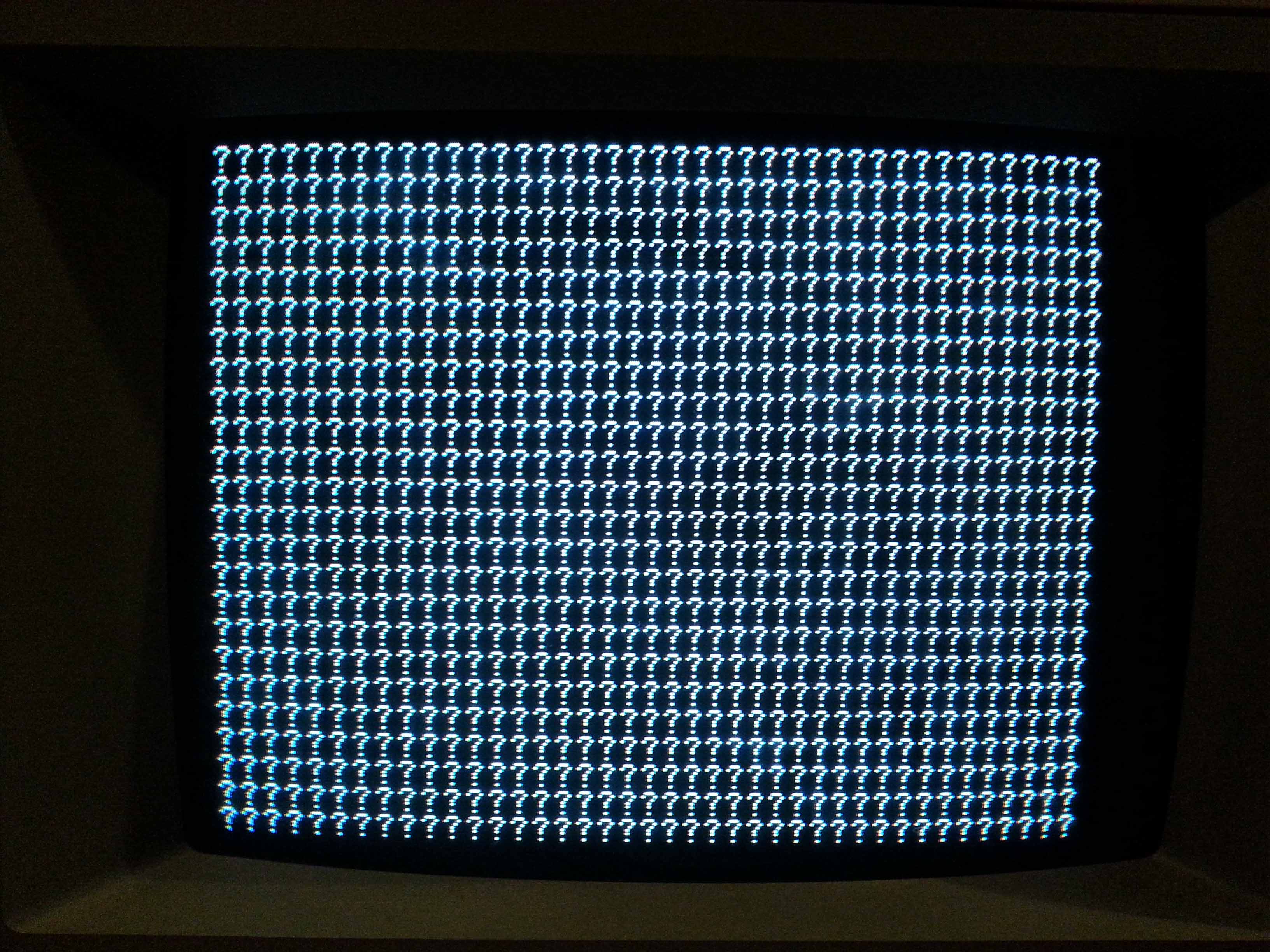

So I started cleaning this one up. I could only save one bank of ram chips, but when I start it up with one bank (the one closest to the keyboard), I get no beep and a screen full of question marks. Do I need all sockets filled with ram or is this a sign of something else being wrong?


Attachments

Comment

tevion5

macrumors 68000
Jul 12, 2011
1,787
1,122
Ireland
So I started cleaning this one up. I could only save one bank of ram chips, but when I start it up with one bank (the one closest to the keyboard), I get no beep and a screen full of question marks. Do I need all sockets filled with ram or is this a sign of something else being wrong?
That looks like the tile board of some sadistic game show.

Comment

MacTech68

macrumors 68020
Mar 16, 2008
2,221
167
Australia, Perth
The only reference I can find for all '??????' on the screen is to check the 74LS153 at location E11.

There's actually three of these. E11, E12 and E13. You could try swapping them to see if the fault changes, or pay special attention to those ICs & sockets.

As for needing to be full populated with RAM, I can't recall and am unable to find a reference for that. :(

Comment

MaxHeap

macrumors member
Original poster
Mar 28, 2012
52
0
Missouri
The only reference I can find for all '??????' on the screen is to check the 74LS153 at location E11.

There's actually three of these. E11, E12 and E13. You could try swapping them to see if the fault changes, or pay special attention to those ICs & sockets.

As for needing to be full populated with RAM, I can't recall and am unable to find a reference for that. :(
One was kinda dirty. I cleaned it up (cleaned all 3) and it didn't change anything. Didn't swap them around, as I was thinking it was memory related. Wonder if I should just swap around the memory chips? I really want to save this thing. :)

Comment

tdiaz

macrumors 6502
Feb 7, 2006
450
24
Swap RAM around 4 at a time, concentrate on the 1st row only.

Of course, you are banking on the RAM being the only problem at that point. The best way would be if you had some way of independently verifying the DRAM functionality, so that placing known 'good' RAM in that should either make it work, or allow you to move on to other problems.

Comment

MaxHeap

macrumors member
Original poster
Mar 28, 2012
52
0
Missouri
Swap RAM around 4 at a time, concentrate on the 1st row only.

Of course, you are banking on the RAM being the only problem at that point. The best way would be if you had some way of independently verifying the DRAM functionality, so that placing known 'good' RAM in that should either make it work, or allow you to move on to other problems.
After playing around with RAM in different sockets, IT BOOTS!! I was able to get to the basic prompt and run a small program. I'm amazed I was able to salvage this thing. I'm going to order new RAM for the rest of the banks and cross my fingers that nothing else is wrong. Thanks everyone for the help!

Comment
