Illustrator CS6 how to question

Discussion in 'Design and Graphics' started by supersizejm, Feb 6, 2014.

  1. supersizejm macrumors newbie

    Joined:
    Dec 16, 2013
    #1

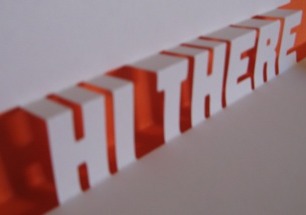

    Hello I just started playing with a die cutting machine and am trying to create pop up text or text that is cut along the edge of the page and I can't figure out how to create an open end in the text so it won't be cut. I have tried adding a white box over the ends that i don't want to cut but when I export the file to the cutting software (sure cuts alot) I get the outline of the box in the .svg file. Does anyone have any ideas how to make this work. I don't know if I've explained this well but I attached an example of what I'm hoping to do.

    Thanks
    Jason


    Attached Files:

  2. Jim Campbell macrumors 6502a

    Jim Campbell

    Joined:
    Dec 6, 2006
    Location:
    A World of my Own; UK
    #2
    Is this linked file what you're trying to do?

    https://db.tt/Ds15xv5G

    If it is, turn the text into outlines, give it a stroke and fill, draw a box over the top that contains that part of the text you want to keep, select the box and text and go Object -> Clipping Mask -> Make.

    Cheers

    Jim

  3. supersizejm thread starter macrumors newbie

    Joined:
    Dec 16, 2013
    #3
    Awesome that did it!! thank you so much I knew I was missing something simple.

    Thanks
    Jason

  4. supersizejm thread starter macrumors newbie

    Joined:
    Dec 16, 2013
    #4
    Ok maybe not. That did the trick visually but when I save the file as a .svg it keeps the masking box as part of the file and closes up the ends. Is there a way to remove a line segment from text without changing the shape. I've tried editing the mask but it still remains after I save it. I've also tried everything in the Pathfinder menu with no success.

    Thanks
    Jason

  5. Bertrude macrumors member

    Bertrude

    Joined:
    Aug 2, 2010
    Location:
    England
    #5
    Pardon me if I'm wrong, but if you're cutting the negative space out of the sheet of paper, you need closed paths of that negative space don't you?

    In which case, you could punch (minus front in Pathfinder) the text out of a shape, then punch that out of the sheet to create that negative space you need.

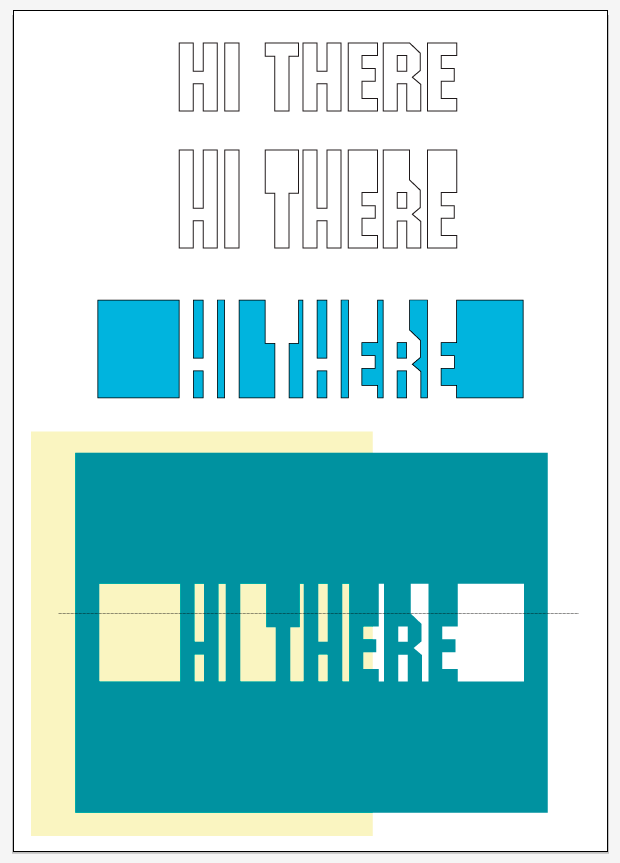

    I've attached a screen grab to hopefully demonstrate what I mean.


    Attached Files:

  6. supersizejm thread starter macrumors newbie

    Joined:
    Dec 16, 2013
    #6
    Thanks, I guess I wasn't looking at it right. I come from a printing background and have been approaching it from that end I need to learn to think cutting not printing and focus on the negative spaces.

    Thanks for all the help
    Jason
