iMac 2009 shows terrible graphic glitches!

Discussion in 'iMac' started by garirry, Sep 3, 2014.

  1. garirry macrumors 68000

    garirry

    Joined:
    Apr 27, 2013
    Location:
    Canada is my city
    #1
    I was editing my video in Final Cut Pro X, then suddenly, a bunch of lines and blocks and shapes appeared on my screen (graphical glitches). This happened to me back in April this year, I turned the LCD smoothing off, and never had this problem again, until today. I first tried to just restart the computer and ignore the problem, but it came back. I highly suspect that this is still a problem in OS X Mavericks. Can anyone confirm this or tell me what is the problem? If it's a software issue, I will downgrade to Snow Leopard.

  2. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
  3. garirry thread starter macrumors 68000

    garirry

    Joined:
    Apr 27, 2013
    Location:
    Canada is my city
    #3
    ATI Radeon HD 4670

  4. SaSaSushi macrumors 68040

    SaSaSushi

    Joined:
    Aug 8, 2007
    Location:
    Takamatsu, Japan
    #4
    You could post a picture or a link to some video of it, but I'd much sooner suspect a failing GPU rather than software with graphical glitches like random lines, blocks and/or freezing.

  5. garirry thread starter macrumors 68000

    garirry

    Joined:
    Apr 27, 2013
    Location:
    Canada is my city
    #5

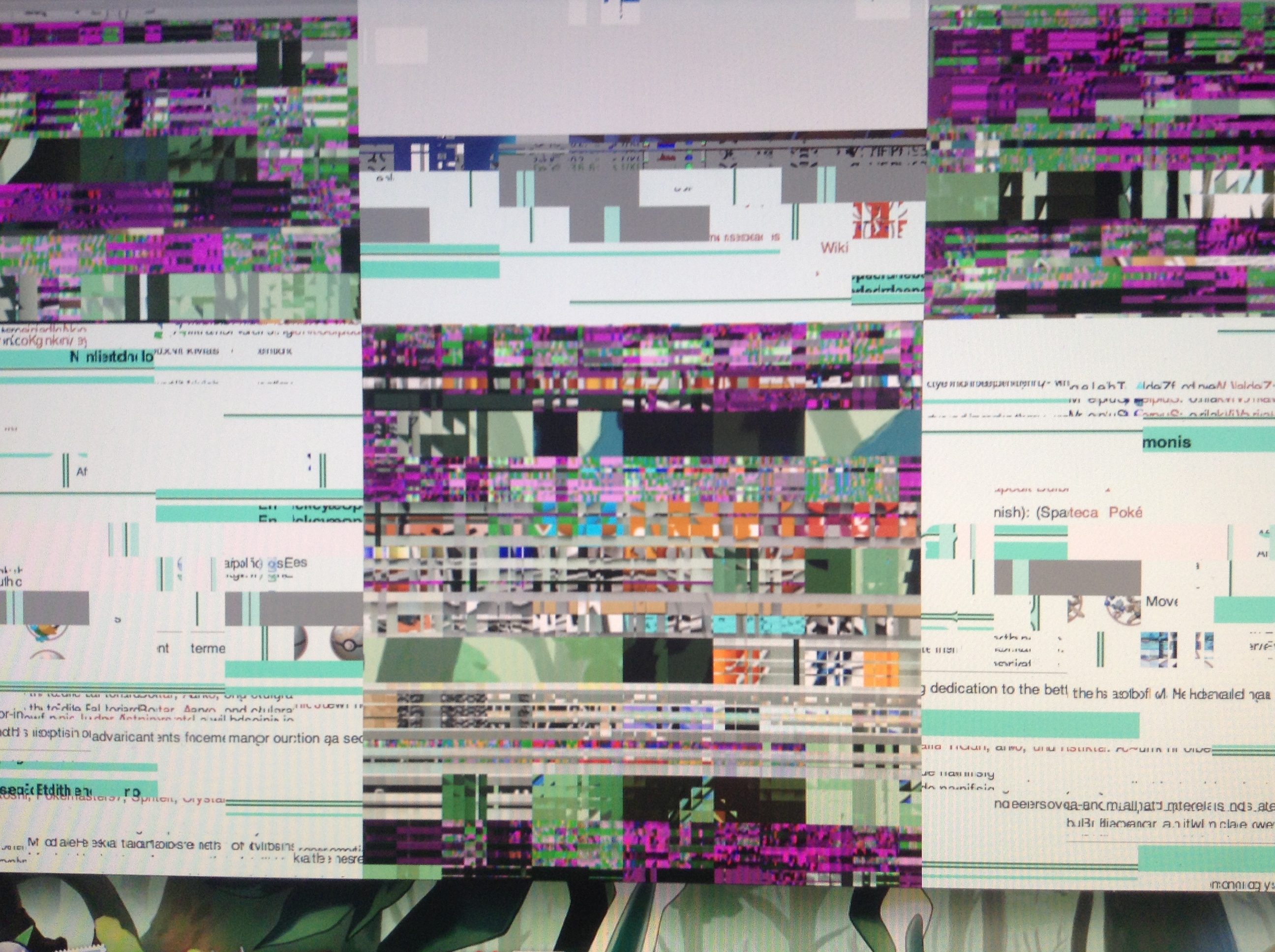

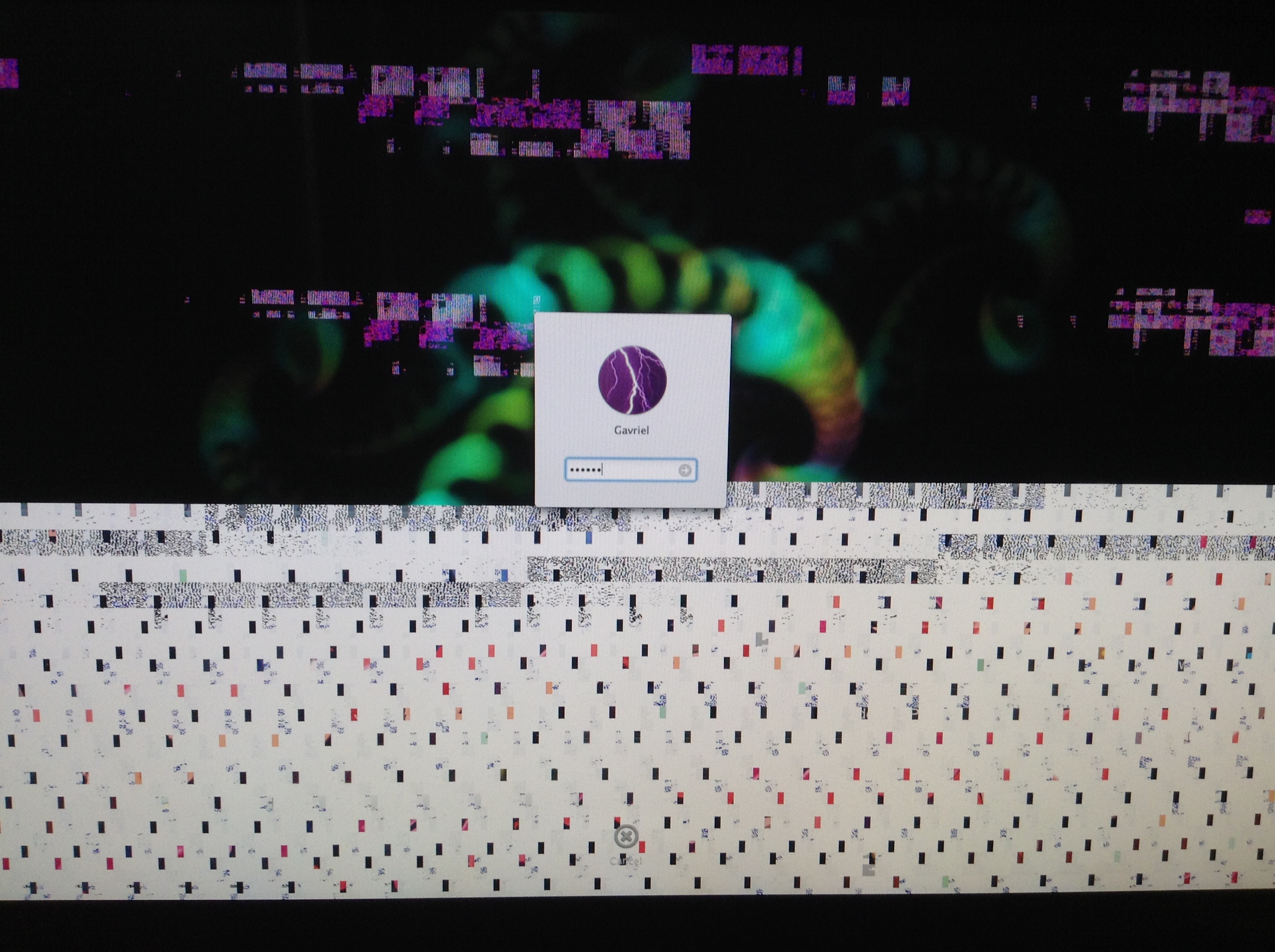

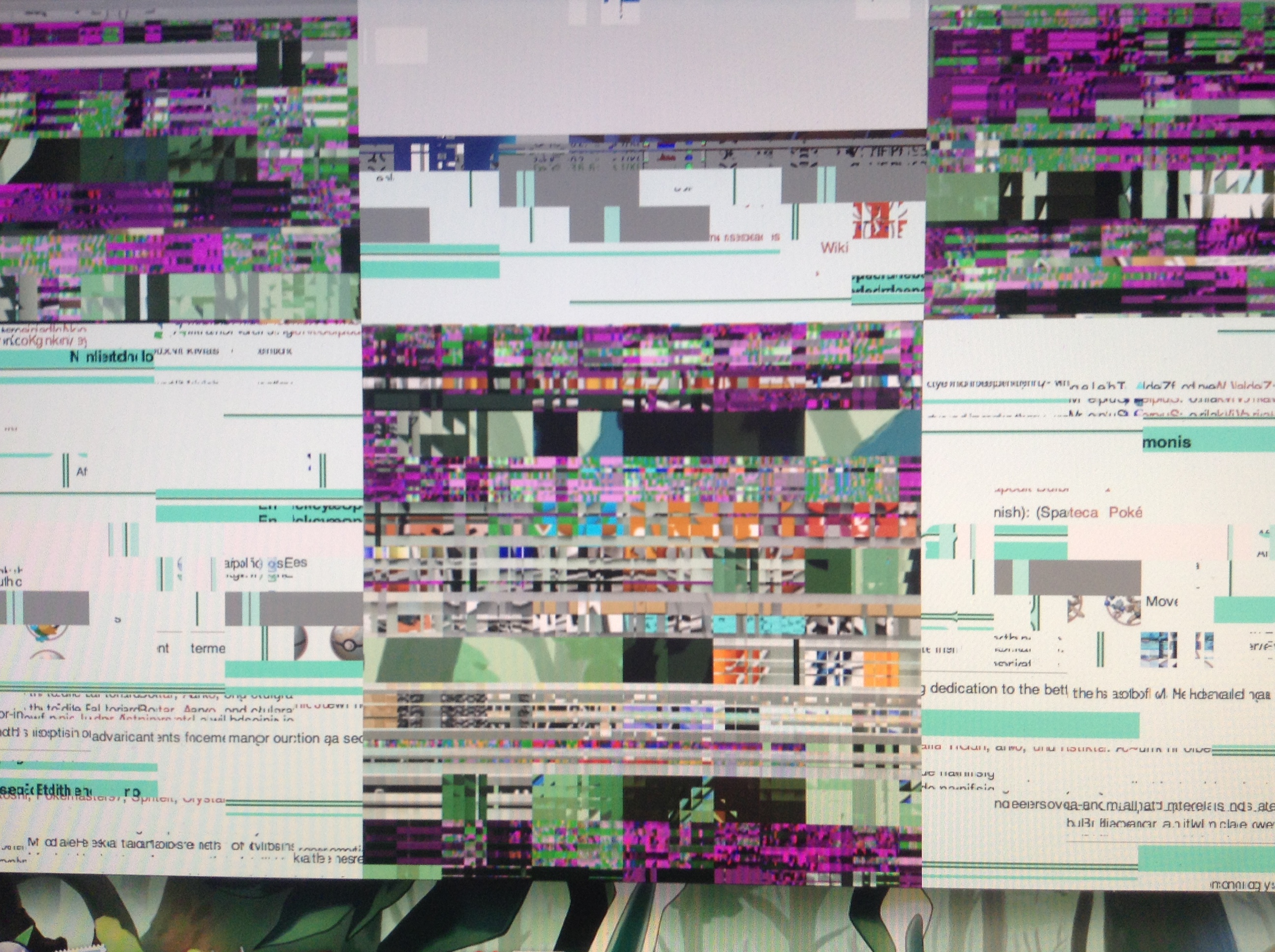

    Well, here is a picture of how it looked like when I had the issue in April, currently, it's still similar. Let's suppose that the issue is the graphic card. What can I do in this case? Can I replace the graphic card or is it soldered/fused to the logic board? I mean, I don't have much money to spend on repairing the computer.


    Attached Files:

  6. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #6
    That does look a lot like a failing GPU. They can be replaced without replacing the whole logicboard in that model iMac. But they can be costly to replace.

  7. garirry thread starter macrumors 68000

    garirry

    Joined:
    Apr 27, 2013
    Location:
    Canada is my city
    #7
    Does it just require soldering or does it need more complicated processes? Also, where can I buy that graphic chip, and which ones work with my iMac model?

  8. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #8
    The hardest part is opening and removing the logicboard. The GPU is on a video card and the whole card is replaced. You must use one from another iMac of the same or very similar model.

  9. SaSaSushi macrumors 68040

    SaSaSushi

    Joined:
    Aug 8, 2007
    Location:
    Takamatsu, Japan
    #9
    Yeah, that most definitely looks like a GPU on its death bed.

    As Intell mentioned, replacement of the GPU itself is possible if you can find the part. Here is a guide from iFixit.

    Some have also reported success by doing a reflow, basically putting the GPU in an oven at 200° for about 8 minutes to re-solder all the points on the board.

    It's certainly worth a try before investing in a replacement part.

  10. garirry thread starter macrumors 68000

    garirry

    Joined:
    Apr 27, 2013
    Location:
    Canada is my city
    #10
    Just a quick note, I have a 21.5" model, I'm not sure if the graphic card replacement is only for the 27" model. And it's expensive. I'm gonna try to cook the graphic card, see if it works.

  11. SaSaSushi macrumors 68040

    SaSaSushi

    Joined:
    Aug 8, 2007
    Location:
    Takamatsu, Japan
    #11
    iFixit doesn't seem to have a guide for GPU replacement on the 21.5" but here is one for replacing the logic board on the 21.5 that should be enough to help you get the GPU out for a reflow.

  12. garirry thread starter macrumors 68000

    garirry

    Joined:
    Apr 27, 2013
    Location:
    Canada is my city
    #12
    So, quick update everyone.

    I have used that computer for two days straight, however without using Final Cut Pro. I suppose that the graphic card isn't fully destroyed, it's just that it's incapable to use its maximum power. When you overclock a graphic card, you may see certain graphical glitches, which mean that the graphic card isn't capable of handling the power you're asking for.

    Just wondering: Will underclocking my graphic card help reduce the amount of graphical corruption?

    Also, what exactly causes graphic card death? Is it just depending on the model, how I use it, how often, how much?

  13. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #13
    Typically once a video card is damaged like that, it cannot be repaired or fixed.

  14. garirry thread starter macrumors 68000

    garirry

    Joined:
    Apr 27, 2013
    Location:
    Canada is my city
    #14
    I get it, but is it possible to prevent the graphic card from experiencing the issues by underclocking?

    And a repeat of my other question: What usually causes the graphic cards to become corrupted?

  15. jji7skyline macrumors 6502

    jji7skyline

    Joined:
    Aug 10, 2011
    #15
    Sure it might, but afaik there is no way to underclock the GPU on the OSX side.

  16. Nyy8 macrumors 6502a

    Nyy8

    Joined:
    Jun 12, 2011
    Location:
    New England
    #16
    In theory it sounds like a good idea.

    Don't stress the GPU and it won't show sighs like that.

    There is no way to underclock the GPU in OS X. However you can take some load off your graphic card by not doing anything graphic intense. (No Games, No Video editing, light flash work). It will die completely eventually.

  17. garirry thread starter macrumors 68000

    garirry

    Joined:
    Apr 27, 2013
    Location:
    Canada is my city
    #17
    The graphic card can't be under/overclocked because it's on OS X or is it because the graphic card itself is made to be incompatible? Can I just install Windows on Boot Camp and underclock the card?

  18. jji7skyline macrumors 6502

    jji7skyline

    Joined:
    Aug 10, 2011
    #18
    You can usually change the video card clocks on a Windows Bootcamp (I've overclocked my card that way). A utility like Sapphire Trixx or MSI Overdrive will do it.

  19. h9826790, Sep 6, 2014
    Last edited: Sep 6, 2014

    h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #19
    To underclock the graphic card in OSX is much more complicated than under Windows.

    1st of all, the card's ROM must be unlocked. Otherwise, it's impossible to underclock that card in OSX.

    Then, you have to find out all the underclock setting (voltage, clock speed, etc) in Windows.

    Dump the ROM image, edit it, and then flash the new ROM image back to your card.

    This is not an easy task. It may brick your card. You may lost the EFI part (no boot screen until OSX loaded). It may even damage your motherboard (e.g. A wrong power setting cause it to draw too much power and burn the motherboard).

    Therefore, it's not recommended unless you really know what you are doing and fully prepared for it.

    Even though it can increase the stability. That problem may come back in few months and you have to further lower the clock speed or increase the voltage.

    Anyway, your screen captures make me suggest that both the GPU and the VRAM has protential problem. Replace the whole graphic card may be the only solution.
