iMac 2013 (and later) with NVME SSD?

Discussion in 'iMac' started by mbosse, Jul 18, 2018.

  1. mbosse macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #1
  2. ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #2
    I will be attempting this on a 2015 imac 27” later in the week. I am just waiting for m2 to Apple 16+12 pin adapter

    Note: pre-2015 iMac have pcie 2.0x2 where as the late 2015 iMac have pcie 3.0x4

  3. mbosse thread starter macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #3
    GREAT - please let me know how it worked out. The different PCIe types just have an impact on the maximum speed, right?

  4. ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #4

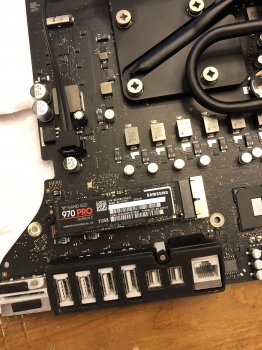

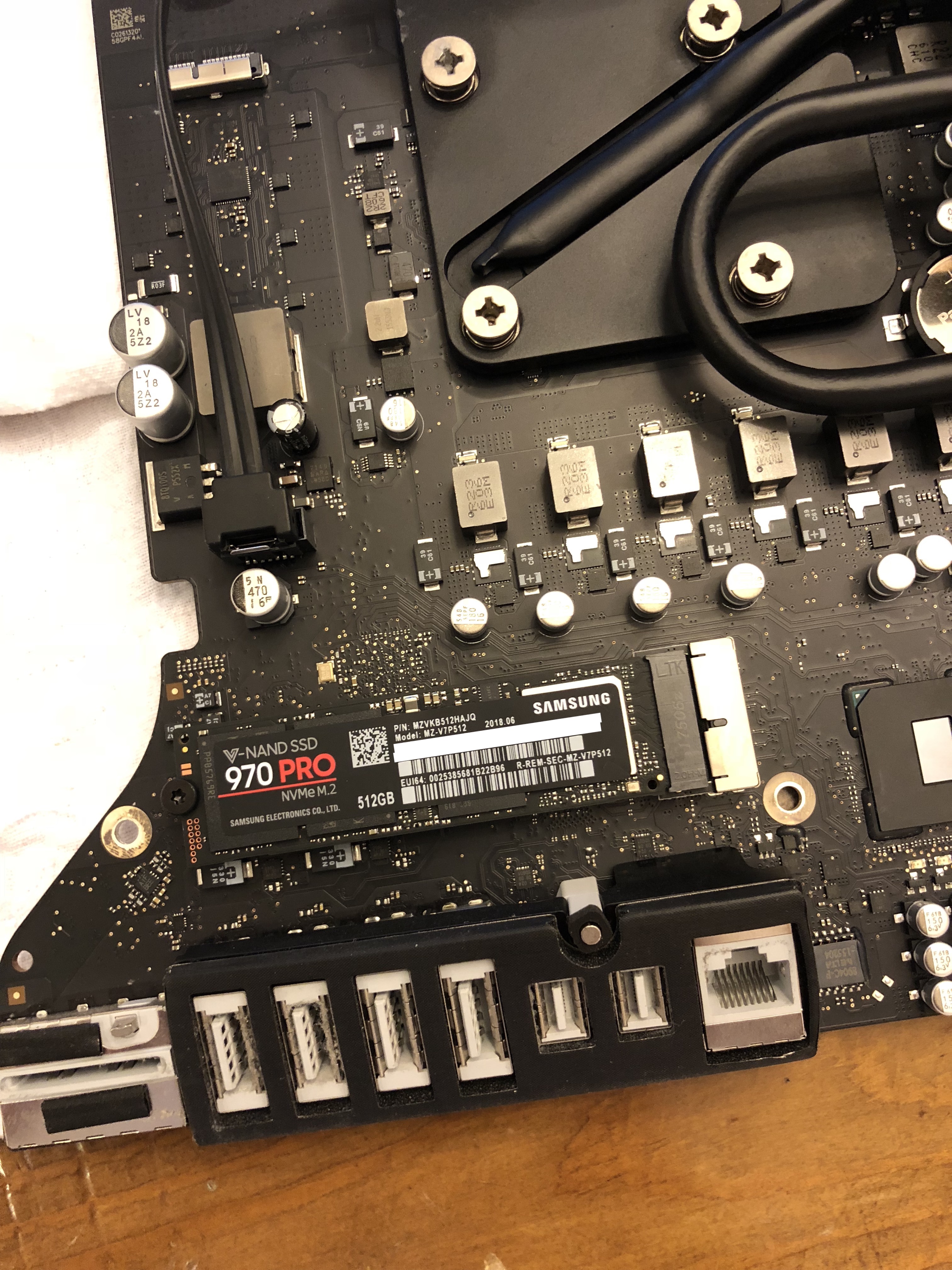

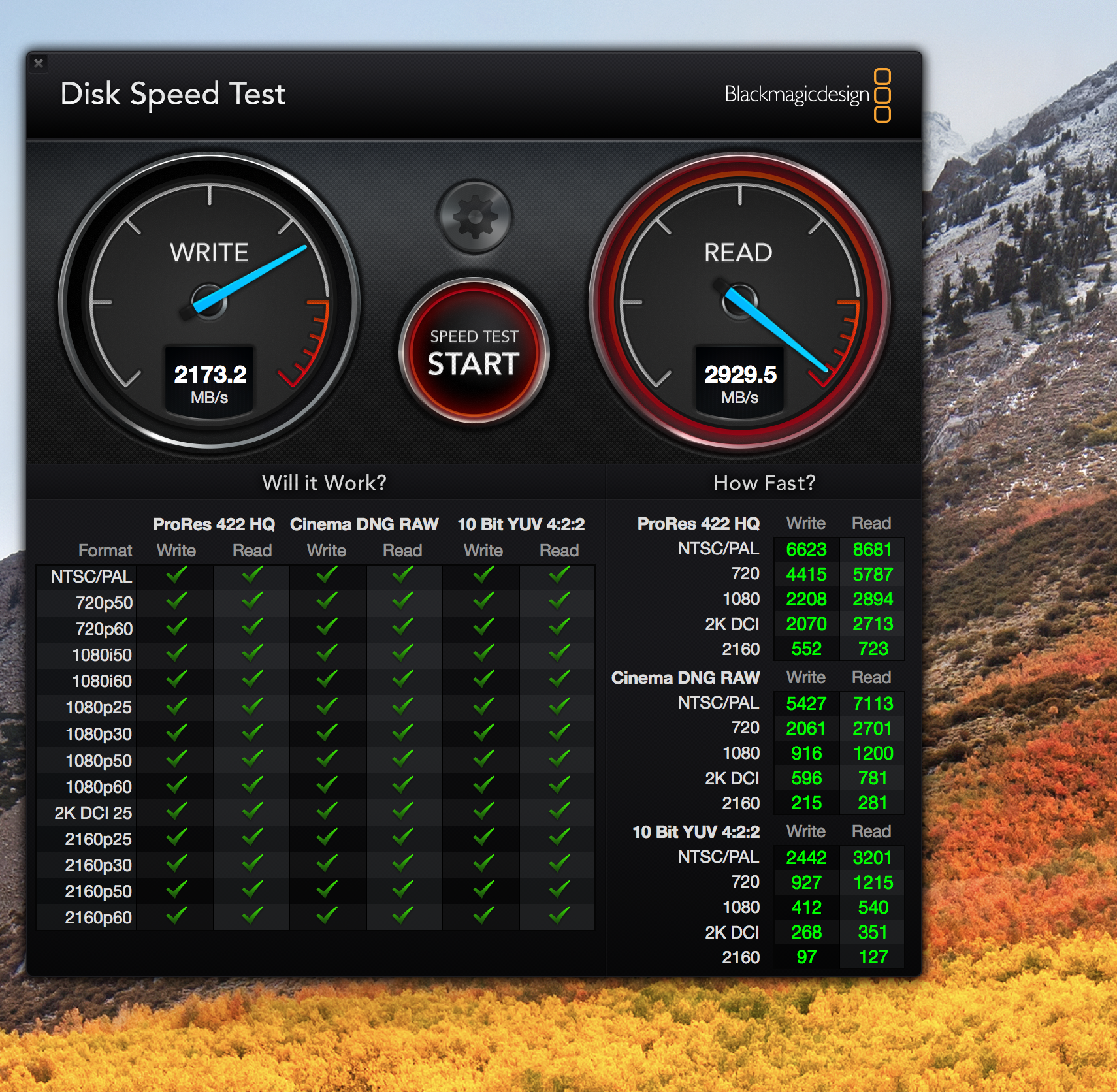

    just completed the install. it works great! here are some pics.


    Attached Files:

  5. mbosse, Jul 26, 2018
    Last edited: Jul 26, 2018

    mbosse thread starter macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #5
    WOW - which adapter do you use? Do you use the 970 Pro as boot drive? Any issues with fan control, powering up, or sleep and wake from there? Does TRIM work? Cheers, Magnus

  6. Sackofnickels Suspended

    Sackofnickels

    Joined:
    Jul 13, 2018
    #6
    Have not tried it on an iMac, but it seems to come down to finding the right combination. Some adapters and SSD's work better than others. Put a EVO 960 pro into a 2014 Mini. Works great, but it took two different adapters before I found one that worked. The same combo did not work well in a 2014 MBA. Would not wake from sleep properly and battery life suffered.

  7. mbosse thread starter macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #7
    Thanks for sharing your experience, which one worked?

  8. Sackofnickels Suspended

    Sackofnickels

    Joined:
    Jul 13, 2018
    #8
  9. ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #9
    so, the drive is very fast and the install wasn't as difficult as I had expected. NOTE: you do not need to take out the entire right speaker. Just loosen it to unplug the cables.

    I do have a problem with sleep. This is the first adapter (sintech ST-NGFF2013) that I purchased and I'm still trying to sort things out.

  10. mbosse thread starter macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #10
    Thanks again. Please keep us posted. I have a 2 TB Samsung reserved for me already...
    --- Post Merged, Jul 26, 2018 ---
    Did you get the ST-NGFF2013-C or the ST-NGFF2013?

  11. ssdaytona, Jul 26, 2018
    Last edited: Jul 26, 2018

    ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #11
    i purchased the standard ST-NGFF2013. if I can just disable sleep then I would be very happy.

    [UPDATE]

    I just tried the ST-NGFF2013-C adapter and I still have sleep issues. I suspect it's the 970 Pro ssd. that's too bad. Now, I just need to figure out how to disable sleep completely.

  12. ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #12
    well, I just used the following command and it disables deepsleep and just suspends to disk. I suspect the ssd is unable to wake from deepsleep. all is well.

    sudo pmset -a hibernatemode 25 standby 0 autopoweroff 0


    anyone need a sintech adaptor? I have an extra one

  13. mbosse thread starter macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #13
    Thanks for this. Did you measure the heat the Samsung produces? Can you enable TRIM? Thanks, Magnus

  14. ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #14
    TRIM is automatically enabled. No temp measurements

  15. Earl Urley macrumors 6502

    Joined:
    Nov 10, 2014
    #15
    With 2012-2013 iMacs it's probably less practical as those use SATA-based SSDs.

    I believe the 21.5-inch 2015s got the short end of the stick as they only have PCIe 2.0 x2 connectors.

    Haven't had a chance to look but I bet the 2015 27-inch iMac BootROM doesn't include the NVMe DXE driver you need to stabilize sleep / hibernate functions.

  16. mbosse thread starter macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #16
    2013 used PCIe already.

  17. ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #17
    hibernation where it writes to disk and powers everything off (hibernatemode 25) works just fine. normal sleep where everything enters a low power state (standard for desktops) does not work. You may be right about the bootrom. How do we find out?

    I'm quite happy with it. I just disabled std sleep and everything works great. Restart, shutdown, cold reboot, all work great. It's one of the faster SSDs. I wonder if it's an issue with Samsung nvme drives.



  18. mbosse thread starter macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #18
    You did not use any Kapton tape, correct? You simply installed the SSD in the adapter, and then it worked? Still happy with it?

    Today I got my Samsung 970 Evo, the adapter is still in the mail...

    Cheers,
    Magnus

  19. ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #19
    No tape. I just used it bare. Works well and fast. No kernel panics during normal use. I just don’t have any sleep capability.

  20. mbosse thread starter macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #20

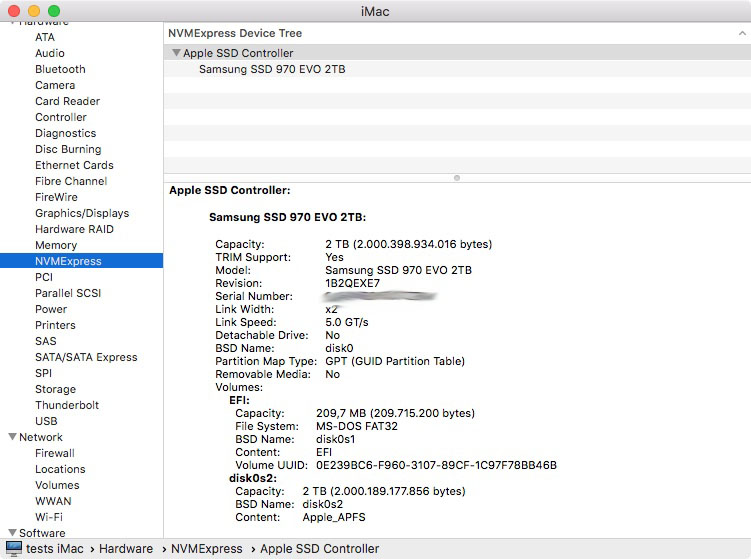

    Ok, I converted my Late 2013 27" iMac now with a 2 TB Samsung 970 Evo using the Sintech ST-NGFF2013-C adapter. As you said, it is straight forward and without any hassles (except that you have to open the iMac). TRIM is automatically enabled:

    Untitled 2.jpg

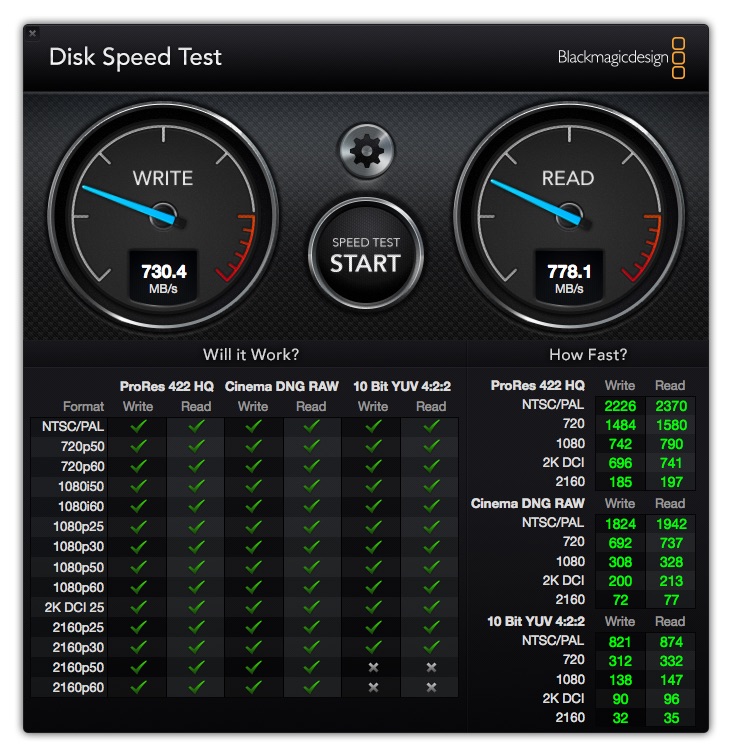

    I am getting speed rates of slightly below 780 MB/s (both read and write), which is way under the Samsung's nominal performance:


    The above speed test was performed directly after installation, so it might be the drive's thermal throttling in action. The iMac however feels blistering fast and the installation was extremely quick as well. What speeds could I expect with the Late 2013 iMac (PCIe 2.0x2)?

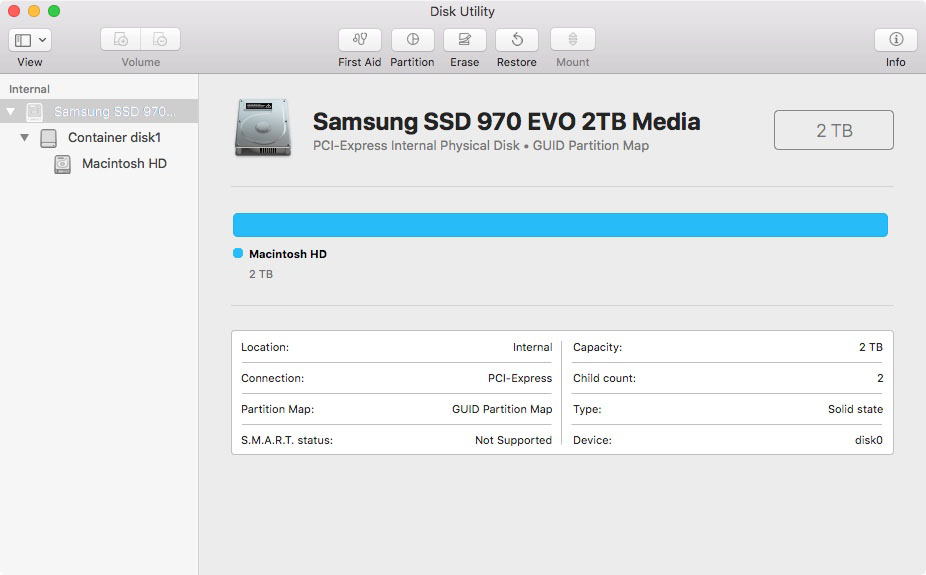

    Furthermore, SMART data readings is not supported:


    As it stands I am not sure whether I keep the setup or whether I switch and install a standard SATA SSD. I am travelling right now so further testings will have to wait.

    Thanks,
    Magnus

  21. ssdaytona, Aug 18, 2018
    Last edited: Aug 18, 2018

    ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #21
    I think that's as fast as you'll get with the 2013 iMac


    PCIE link speeds...

    "A single PCIe 1.0 (or 1.1) lane can carry up to 2.5 Gigatransfers per second (GT/s) in each direction simultaneously. For PCIe 2.0, that increases to 5GT/s, and a single PCIe 3.0 lane can carry 8GT/s."

  22. mbosse thread starter macrumors 6502

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #22
    Is it normal that SMART data are not supported? Magnus

  23. ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
    #23
    same with mine. SMART status is not supported

  24. macguru8 macrumors newbie

    macguru8

    Joined:
    Feb 9, 2013
    #24
    Hello ssdaytona. I have a iMac (Retina 5K, 27-inch, Late 2015), I would like to install the Samsung M.2 in your test. Which adapter do you recommend, the standard ST-NGFF2013 OR THE ST-NGFF2013-C? Thanks in advance.

  25. ssdaytona macrumors regular

    Joined:
    Apr 20, 2011
