iMac 2017 with FusionDrive - Best external SSD solution?

Discussion in 'iMac' started by AmselDamsel, Jun 22, 2017.

  1. AmselDamsel macrumors newbie

    AmselDamsel

    Joined:
    Jun 22, 2017
    #1
    Hi there,

    I had to buy a retail version which means that I wasn't able to chose a SSD/CTO-Version and had to stick with the 2 TB Fusion Drive. My new iMac will be delivered in a few days and since I replaced my iMacs (Late 2009) Superdrive with an SSD I'm already questioning the speed of the new device :D

    Therefore, I thought it would be a good solution to install the OS (or/and Bootcamp) on an external SSD via Thunderbolt. The internal fusion drive would serve as data storage for photos, projects and videos.

    My questions are:

    Is there a different/faster option than a Sandisk Extreme 900 which is using USB 3.1 Gen 2?

    I'm wondering if something like a "SSD bay" exist which has the same speed/reliability - it would be nice if I can have multiple SSDs on one TB3-Port because I need the other port for my second monitor. I just found some RAID systems, but I guess that I have to pay for features I don't need. Would be nice to have one SSD for MacOS and one for bootcamp ;)

    I already found some 2.5" cases on Amazon Germany which are supporting USB 3.1 Gen 2. Are there any drawbacks when using such a case with a standard SSD in comparison to the extreme 900? It seems to be much cheaper, but the market here is already flooded with china stuff...

  2. EugW macrumors 68000

    EugW

    Joined:
    Jun 18, 2017
    #2
    I would leave the OS on the Fusion drive. That's what the built-in SSD is for after all.

    But personally, I went with a 1 TB SSD. If I want extra storage I can put that on an external drive.

  3. theitsage macrumors 6502a

    Joined:
    Aug 28, 2005
    #3

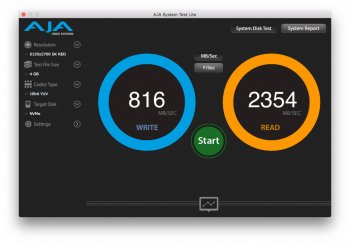

    If best solution means no constraint on pricing, you can go for Thunderbolt 3 NVMe flash storage. For example, pairing a Samsung 960 EVO with and AKiTiO Thunder3 will surpass 2,000 Mbps read speed. It's also bootable.

    The AKiTiO Thunder3 in particular has a second Thunderbolt 3 port for daisy chaining. Its DisplayPort is also useful for Display passthrough.
