Imac 21.5" Mid 2011 power supply schematic

Discussion in 'iMac' started by Bruno09, Jul 28, 2017.

  1. Bruno09 macrumors 68020

    Joined:
    Aug 24, 2013
    Location:
    Far from here
    #1
    Hi all,

    I'm trying to fix an iMac 21.5" mid-20011 power supply unit.

    Therefore I am looking for a schematic, made some search on the Internet, to no avail.

    Could some one help please ?
    Thank you in advance.

    BTW, the AC input is shorted, I see a 0 Ohm resistance.
    It is supposed to be in the 1 MOhm range.

  2. FrancoisC macrumors 6502

    FrancoisC

    Joined:
    Jan 27, 2009
    Location:
    Montreal, Qc
    #2
    If the A/C in is shorted, there is a good chance that one of the diode in the diode bridge is blown. If it’s just that, you don’t need a schematic to fix it I think.

  3. Bruno09 thread starter macrumors 68020

    Joined:
    Aug 24, 2013
    Location:
    Far from here
    #3
    Hi,

    thank you for that.

    I have no idea how this unit works, and there are many diodes on this board.

    I will try to check them.

  4. FrancoisC macrumors 6502

    FrancoisC

    Joined:
    Jan 27, 2009
    Location:
    Montreal, Qc
    #4

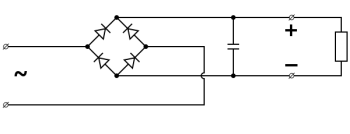

    Here is a picture of a “standard” diode bridge, the first stage in an a/c to d/c conversion. When you’re lucky, the physical layout ressemble this diagram (4 diodes in a squarish layout). I presume you know hot to test them?


    Attached Files:

  5. Bruno09, Jul 28, 2017
    Last edited: Jul 28, 2017

    Bruno09 thread starter macrumors 68020

    Joined:
    Aug 24, 2013
    Location:
    Far from here
    #5
    I have very basic knowledge about electronics.

    Yes I know what a diode bridge is and how it works.
    On this board, in the AC area, I can see 4 small identically sized diodes, not in a squarish layout though, marked D31, D32, ZD36, ZD39 (does "Z" stand for zener ?)
    When using my multimeter in diode mode, the 4 diodes give me a ~700 (0.7 V ?) value.

    Then I have 3 big diodes D1, D2, D3.
    They all give a zero reading on the multimeter.

    Then in another area (still in the AC zone) I have 2 other small diodes, D33 and D39, both give : 560.

  6. b06tmm macrumors regular

    b06tmm

    Joined:
    Jul 23, 2009
    Location:
    South Louisiana
    #6
    Bridge rectifiers are typically a single component these days. I would just get a new power supply they are available on eBay and Amazon.

    Power Supply, 205W 661-5299

  7. Bruno09 thread starter macrumors 68020

    Joined:
    Aug 24, 2013
    Location:
    Far from here
    #7
    Thank you.

    I have already replaced the power supply and the Mac runs fine.

    I am however trying to fix the old one.

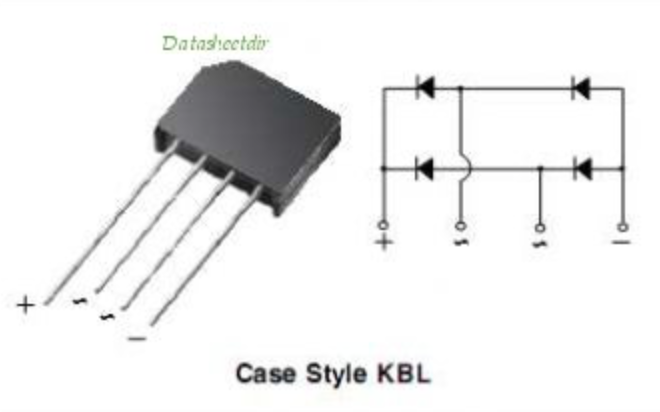

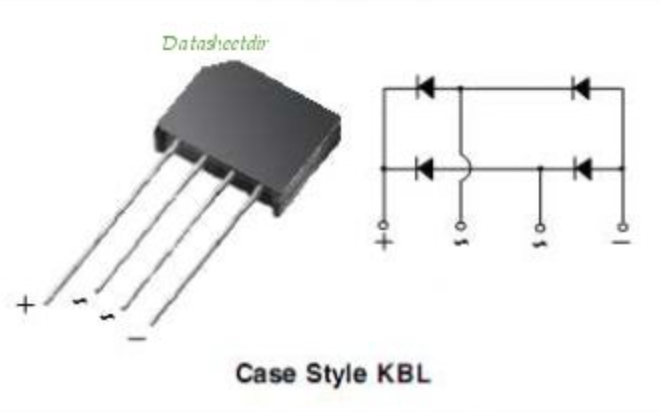

    I actually have located the rectifier which looks exactly like this :

    Capture d’écran 2017-07-29 à 16.35.07.png

    Wherever I check, all seems to be shorted, there is 0 Ohm everywhere (in the AC area, which is marked "Primary" on the board).

  8. MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #8
    IMHO, if the bridge is shorted, there's more damage there than meets the eye - I'd also find it odd that the bridge is shorted without the fuse being blown.

    If you've not repaired Switch Mode Power Supplies before, it's not something I'd be attempting without a lot of assistance. These beasts can give you a hefty jolt when working, and even when unplugged for quite a while with certain kinds of faults. :eek:

    In my (limited) experience of late model iMac Power Supplies specificlly, a bad, small, electrolytic capacitor in the pulse width modifier is often the culprit for a seemingly dead power supply.

    Any earlier symptoms (before complete failure) may help the diagnosis. Also, it seems there may be different manufacturers used so a pic may help.

    Just my 2c

  9. Bruno09 thread starter macrumors 68020

    Joined:
    Aug 24, 2013
    Location:
    Far from here
    #9
    Thank you for your help.

    The fuse (6.3A/250V) is blown.
    So I am checking the input resistance after the fuse.
    On the working power supply that resistance is about 1 MOhm (I no longer remember exactly, but it was in the 1 MOhm range).

    There is not visible physical damage anywhere, all looks good.
    I have unsoldered one pin of two big capacitors to check that they are fine, and they are.
    (yes I have discharged them before checking, just in case)

    I was planning to repair this power supply only if it is something obvious and easy to do.
    I am not skilled enough to investigate more, so I will simply give up.

    Thank for your help anyway !

  10. MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #10
    There are still people selling their faulty PSUs on eBay - so you may make some $$ there.

    Usually, I would expect the main switching transistor(s) to have shorted. That usually takes out the bridge, fuse, and possibly the pulse width modifier IC and some associated passive components. By the time you source them (for a single repair) it's often not economical.

    People who fix them usually bulk buy the parts for common faults and as a result can repair them relatively easily.

    I'm intrigued enough to know if the faulty one is an ACBel or Delta branded.

  11. Bruno09 thread starter macrumors 68020

    Joined:
    Aug 24, 2013
    Location:
