iMac 27" (Late 2012) display quality report with Spyder4Pro colorimeter

Discussion in 'iMac' started by wmy5, Oct 4, 2013.

  1. wmy5 macrumors regular

    Joined:
    Oct 27, 2012
    Location:
    upstate NY
    #1
    Hi,

    I just purchased a Spyder4Pro colorimeter. I ran several times of calibration and profiling. Here is my display quality report. I hope it is useful for anyone curious about iMac's display.

    1. Spyder MQA (monitor quality analysis)

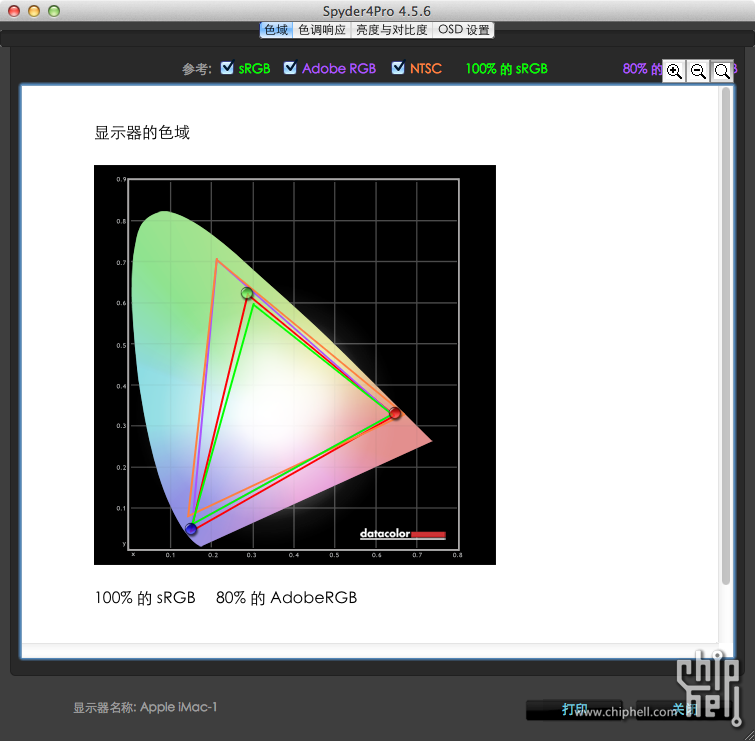

    Gamut

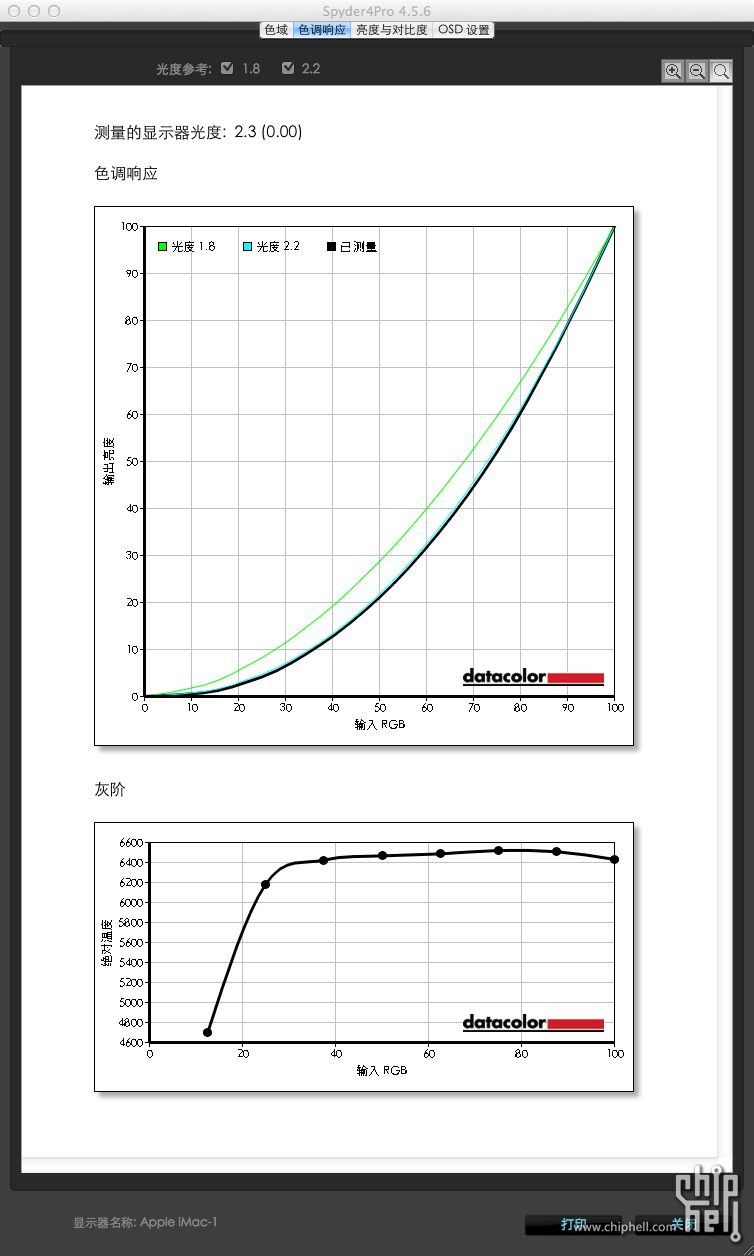

    Tone response & gray scale

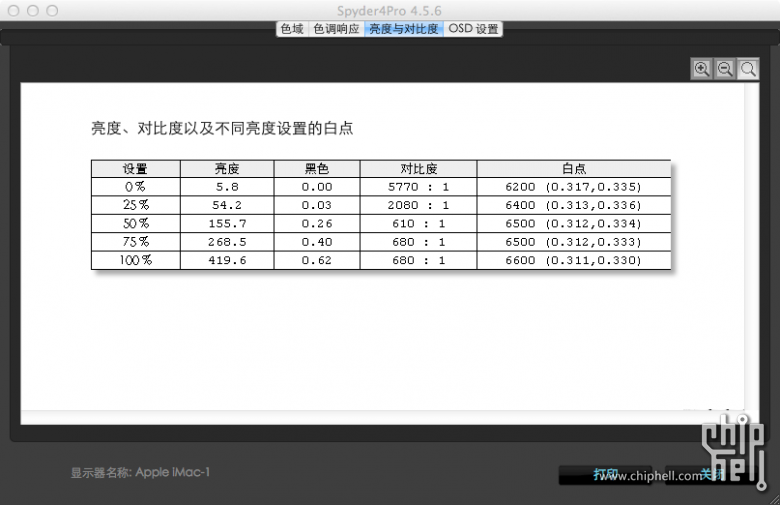

    Brightness & contrast


  2. wmy5 thread starter macrumors regular

    Joined:
    Oct 27, 2012
    Location:
    upstate NY
    #2
    2. Argll CMS + dispcalGUI

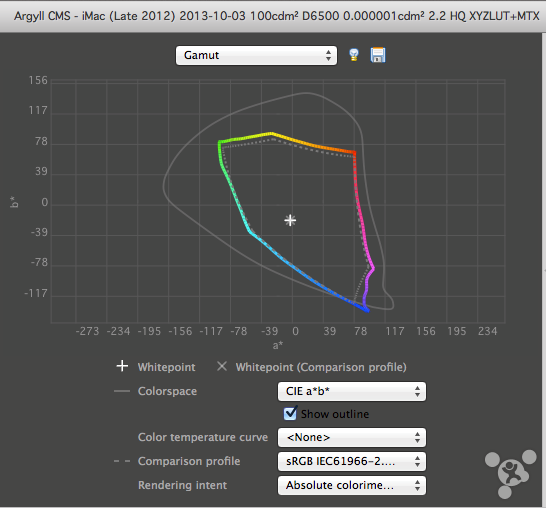

    Gamut

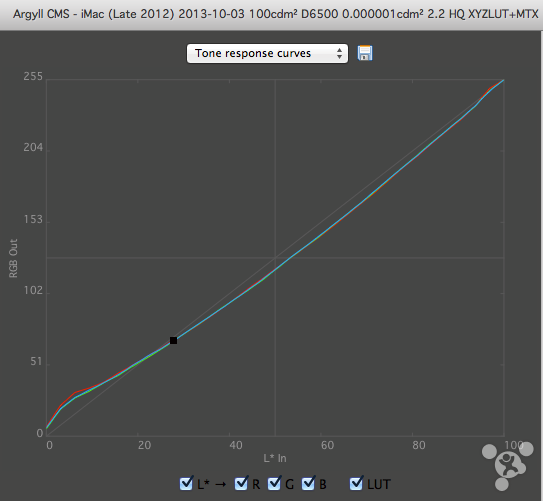

    Tone response

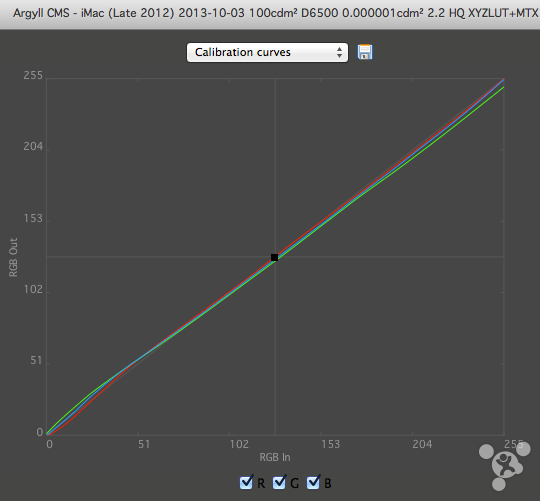

    Calibration curves

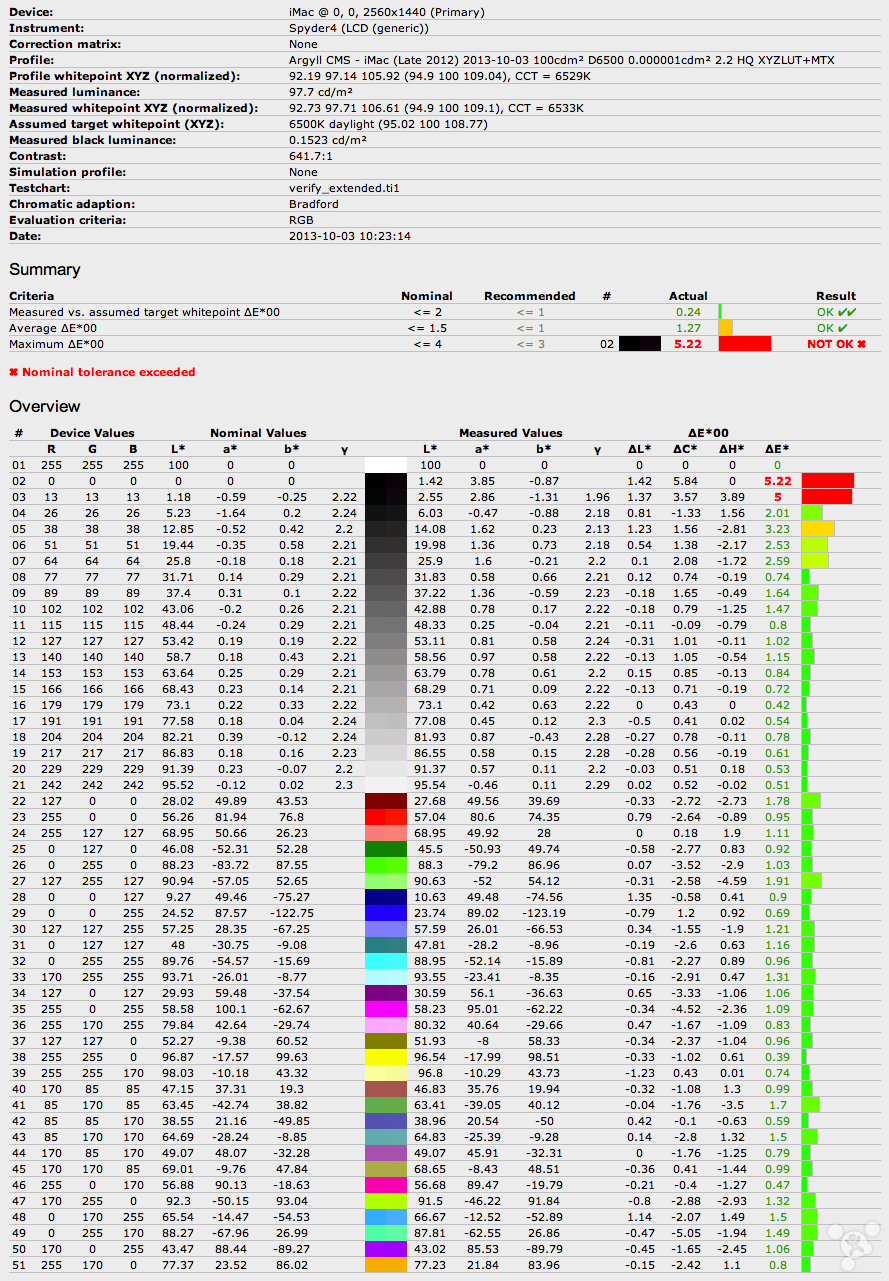

    DeltaE


  3. phrehdd macrumors 68040

    phrehdd

    Joined:
    Oct 25, 2008
    #3
    Thanks for sharing - do you have anything to compare it to - another monitor and do you find the results validates your use of an iMac for the level of use of the screen?

  4. wmy5 thread starter macrumors regular

    Joined:
    Oct 27, 2012
    Location:
    upstate NY
    #4
    I have 2 iMacs, both of which are 27". I think they have the same panel, and the results turned out to be quite similar with each other.

  5. tomnavratil macrumors 6502a

    tomnavratil

    Joined:
    Oct 2, 2013
    Location:
    Litovel, Czech Republic
    #5
    Thanks for sharing these! I'm sure they will be helpful to a few of us, cheers.

  6. bluescale macrumors member

    Joined:
    Sep 27, 2013
    #6
    I wish the i1display profiler had quality reports like that. I'll look at generating something similar with CalMan, but it's a bit of a pain since I have to use my laptop to do the sweeps, and manually move through the various slides (I downloaded the AVSHD mp4 files so I can quickly go from slide to slide, at least).

  7. wmy5 thread starter macrumors regular

    Joined:
    Oct 27, 2012
    Location:
    upstate NY
    #7
    You can try the dispcalGUI, a open source calibration & profiling tool that supports many colorimeters. It's really powerful.

  8. bluescale macrumors member

    Joined:
    Sep 27, 2013
    #8
    HOLY COW! How did I miss this wonderful tool? It does absolutely everything I want. Thank you!

  9. wmy5 thread starter macrumors regular

    Joined:
    Oct 27, 2012
    Location:
    upstate NY
    #9

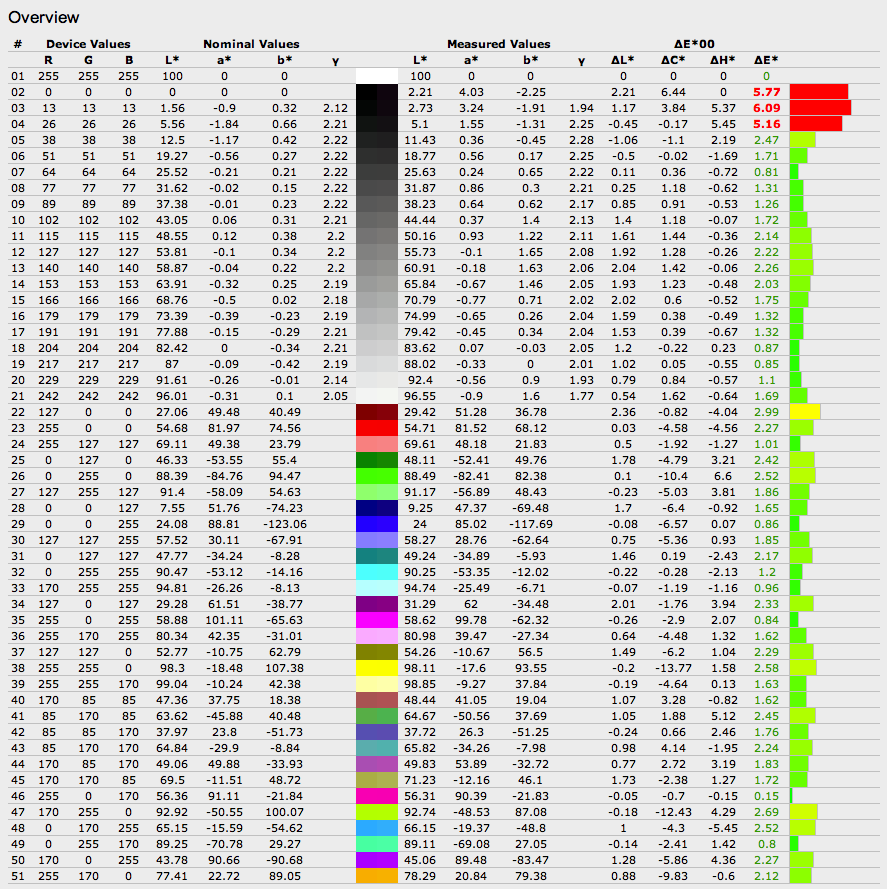

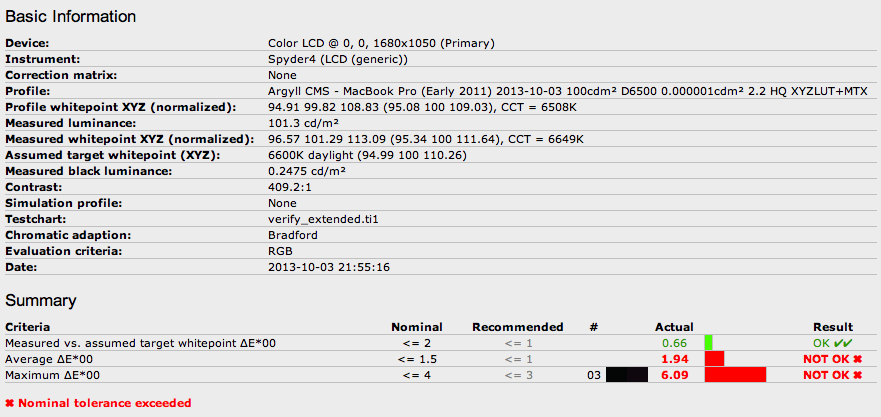

    MacBook Pro 15" (Early 2011 anti-glare 1680x1050) results:

    ???? 2013-10-09 ??5.35.44.png

    ???? 2013-10-09 ??5.35.37.png
