iMac A1418 continuous chime & no apple logo

Discussion in 'Mac Basics and Help' started by Catalinut, Dec 4, 2018.

  1. Catalinut macrumors newbie

    Joined:
    Dec 4, 2018
    Location:
    UK
    #1
    Hi all

    I'm new to this forum and I just want to see if anyone had this problem before and how did he fixed it?!

    So, I have an iMac A1418, opened it to upgrade SSD to 1TB and after putting everything back in place I get a lit up screen, no apple logo and continuous chime...

    I already tried the following:
    1. PRAM reset - still not working
    2. Battery change - still not working

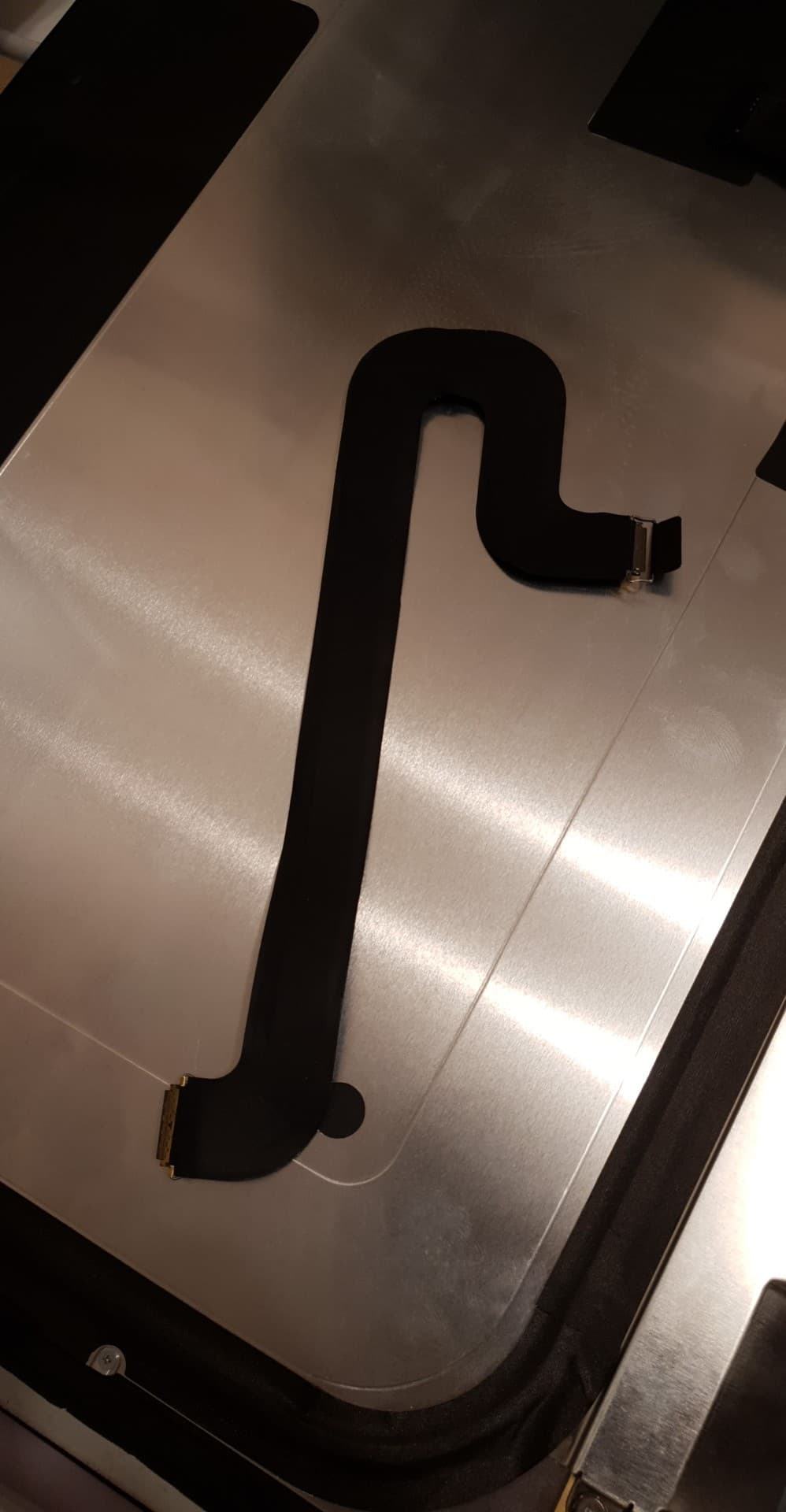

    3. Flex video cable change (because I noticed that when I unplug that and start the iMac, I get only one chime, but obviously no video) - still not working (picture attached with flex cable I changed)
    4. All 4 green LED's on the board are on so it's not a graphics problem, ram problem...

    I'm just about to throw it out the windows because it's driving me mad, so any suggestions are greatly appreciated!

    Many thanks!

    Catalin T.


    Attached Files:

  2. darkpaw macrumors 6502

    darkpaw

    Joined:
    Sep 13, 2007
    Location:
    London, England
    #2
    Have you tried starting up the iMac to Internet Recovery? I take it the SSD has no macOS on it? You'll need to get macOS on there before the machine will do much. Not sure why you get a continuous tone, but see if you can get Internet Recovery working first.

  3. Catalinut thread starter macrumors newbie

    Joined:
    Dec 4, 2018
    Location:
    UK
    #3
    Tried that and doesn't work...
    Tried all the commands with R and P+R and not working.
    Also on the new SSD I've installed OS High Sierra from another macBook air and tested it so the SSD is working but my system doesn't ;(

    P.S. my system isn't working even with the old SSD on it... ;(

  4. Catalinut thread starter macrumors newbie

    Joined:
    Dec 4, 2018
    Location:
    UK
    #5
    Hi Dave,

    None of these. It seems like it's stuck on the same chime like the first one when you power it up....

  5. darkpaw macrumors 6502

    darkpaw

    Joined:
    Sep 13, 2007
    Location:
    London, England
    #6
    Can you get a Genius appointment in an Apple Store? Or maybe locate an Apple Hardware Test disc and connect up an external DVD drive if your iMac lacks an optical drive?
