jkstacey

macrumors newbie
Feb 24, 2012
3
0
Hi

Can somebody give me some uninstall instructions?

Thanks..

Don't worry all sorted.

Last edited:
Comment

lukekjones

macrumors newbie
Jul 16, 2012
7
0
Worcester, UK
small tweak thats needed, the dvd fan is also used to control heat dissipation on the gpu heatsink...I have made the tweak and compiled, works fine. Will have to find a place to upload, but for now here is the change in

MFDaemon.m
Code:
add to - (void)timer:(NSTimer *)aTimer

//temp container for highest temp between dvd and gpu, they share same fan
    double DVDGPUTemp;

//add

 // ----- compute the highest gpu/dvd temp to control shared fan
    if (DVDtemp < GPUtemp) {
        DVDGPUTemp = GPUtemp;
    } else {
        DVDGPUTemp = DVDtemp;
    }
//right above the DVDtemp check/fan control

//change DVD temp to DVDGPUTemp in the segment
 // determine the desired/target RPM indicated by the preference settings
    if (DVDGPUTemp < lowerTempThreshold) {
        DVDfanTargetRPM = DVDfanBaseRPM;
    } else if (DVDGPUTemp > upperTempThreshold) {
        DVDfanTargetRPM = MFMaxDVDfanRPM;
    } else {
        DVDfanTargetRPM = DVDfanBaseRPM +
                          ((floor(DVDGPUTemp + 0.5) - lowerTempThreshold) /
                          (upperTempThreshold - lowerTempThreshold) *
                          (MFMaxDVDfanRPM - DVDfanBaseRPM));
    }
    if (MFDebugDVD) NSLog (@"DVDtemp = %f\n", DVDGPUTemp);
    if (MFDebugDVD) NSLog (@"rounded DVDtemp = %f\n", floor(DVDGPUTemp + 0.5));
    if (MFDebugDVD) NSLog (@"ideal DVDfanTargetRPM = %d\n", DVDfanTargetRPM);
    if (MFDebugDVD) NSLog (@"DVDfanRPM = %d\n", DVDGPUTemp);
this basically gets the highest temperature between the two and sets the fan according to that, vs the other way going strictly off the dvd fan (not a great idea)


Jim


PS ZedX, please contact me on what you did to convert to 64 bit, I have a macbook pro I would like to mod this program for 64 bit as well..

PSS and ideas or requests for mods on the program I can look into and see what I can do.

Jim

I would love to implement the change you have made here, could you explain how to do it.

Sorry for my ineptitude...

Comment

lukekjones

macrumors newbie
Jul 16, 2012
7
0
Worcester, UK
I would like to implement the changes made by james124816 and also reduce the base fan speeds back to Apples original settings, (CPU 940, HDD 1100 and ODD 1000) it's pretty cold here all year round and the 1200rpm noise of the CPU fan is just slightly too loud and unnecessary for my climate.

Having downloaded Xcode, I can see where james124816 adjustments need to go.

I can also see where the base fan speeds are set.

Unfortunately I don't know how to proceed, are there any programmers that could spend 10 minutes adjusting the code please or point me in the right direction.

Comment

meagain

macrumors 68030
Nov 18, 2006
2,568
26
Would it be correct that if there is no connection between the LCD temperature sensor and the logic board…. None of these fan controlling programs will work and the fans will continue to go nuts. Right?

Comment

HCBartek

macrumors newbie
Aug 17, 2012
1
0
Hey. Could You send me this compiled file with the aditional code from james124816. Please post how did You add this code.

----------

I have managed to do it now. The DVD fan is now controlled by whichever is the higher out of the DVD temp or GPU heatsink.
Hey. Could You send me this compiled file with the aditional code from james124816. Please post how did You add this code.

Comment

hjonck

macrumors newbie
Sep 9, 2012
1
0
SMART Sensors

How could one change iMac Fan Control to control the fans from SMART sensors rather than build in sensors. I just changed my iMac 2009's HDD and would like to use this tool to control the HDD fan temp but from SMART and not HDD temp sensor.

Comment

jethrotull

macrumors newbie
Sep 22, 2012
2
0
Can someone give me their opinion on this values?

Hi guys, thanks in advanced for the help...

Can you guys give me an opinion on this values.

I have a Late 2008 iMac 24"

I installed recently an SSD.

I'm using:

Low Temp Threshold : 30ºC
High Temp Threshold : 75ºC

CPU Fan Speed : 1400 RPM (normally stays on the 1900)
HD Fan Speed : 1500 RPM (normally stays on the 3100)
DVD Fan Speed : 1400 RPM (normally stays on the 2300)

I have on a normal use this temps:

CPU Heatsink : 40.6º C
Internal HD : 47.9º C
Internal DVD : 42.0º C
GPU Heatsink : 48.0º C

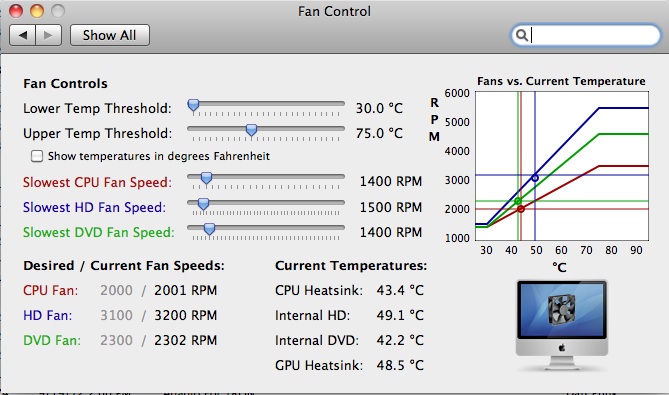

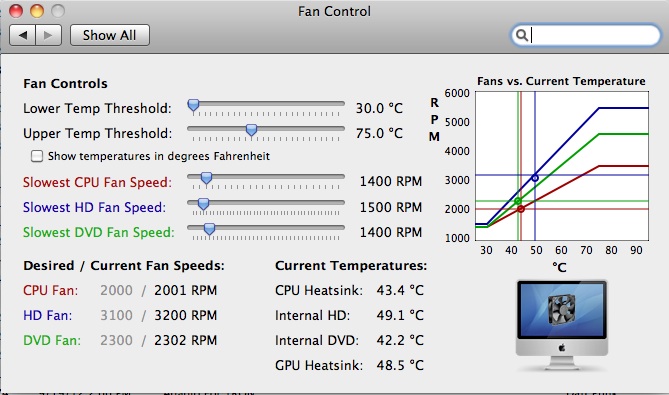

I attached the screenshot!

What is your opinion on this?

Thanks!!!


Attachments

  • gpu.jpg
    97.8 KB · Views: 101
Comment

powergainer

macrumors newbie
Feb 25, 2013
6
0
Is the function from the GPU implemented?

Hello there,
im new here and i use fan control because i play many games on my mac.
but everey time i play a game i start fancontrol and made the fans a little bit faster. But in the GPU Heatsink line there is all the time the temps higher.

here are my settings:
(imac 27" mid 2011)



And @james124816 is this tweak for the Gpu for my iMac too? when yes take it on my dropbox account XD, but for 64bit....

Comment

elektrosha

macrumors newbie
Jul 3, 2009
14
0
Not working in 10.10 Yosemite

Love this utility, was using it for a long time, but Latest Yosemite 10.10 OS killed it. Any possible way to get it working under Yosemite? Any help would be greatly appreciated. Thanks!

Comment

mayanlongcount

macrumors newbie
Feb 8, 2015
1
0

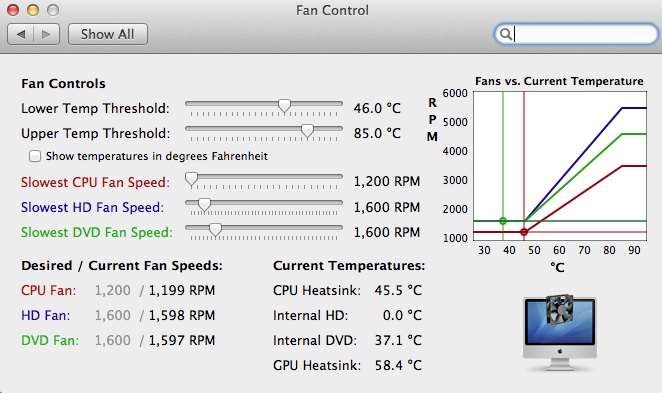

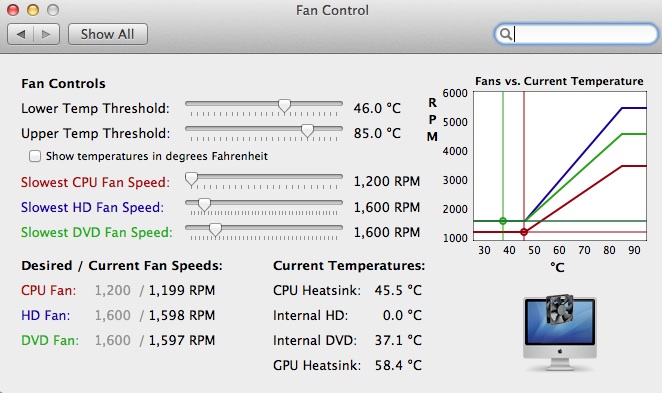

The best settings (at least for hot country) is:

Lower Temp Threshold: 46C
Upper Temp Threshold: 85C

Slowest CPU Fan Speed: 1200
Slowest HD Fan Speed: 1600
Slowest DVD Fan Speed: 1600

This will keep your iMac aways cool, even in 100% full load.
The HD + DVD (mostly) fans will keep your GPU cool too.

If you try please leave a comment. (Specially about the settings/results and if the HD temperature is working fine, and what is your model).

Soon as I get some free time I will change the Daemon to work on 64bit too.

thanks for posting this temperature and speed data. sincerely.

john hibbard february 2015

Comment

ZeD X

macrumors regular
Original poster
Apr 26, 2011
136
0
Love this utility, was using it for a long time, but Latest Yosemite 10.10 OS killed it. Any possible way to get it working under Yosemite? Any help would be greatly appreciated. Thanks!

It does works, but the daemon itself doesn't launch itself in the old way.

You can use automator to launch it.

I will take a look into fixing the daemon.

Let me know if you still needing this application, so I will post here.

Comment

cynics

macrumors G4
Jan 8, 2012
11,630
1,909
If anyone is looking for anything different I recommend TG Pro from the app store (its not free). However the dev keeps it updated and has been working flawlessly for me from Mountain Lion to Sierra.

Offers temp gauge in the top bar that you can set, mine is CPU / GPU / Fan RPM (2013 iMac so 1 fan).

Screen Shot 2017-01-10 at 6.28.34 PM.png

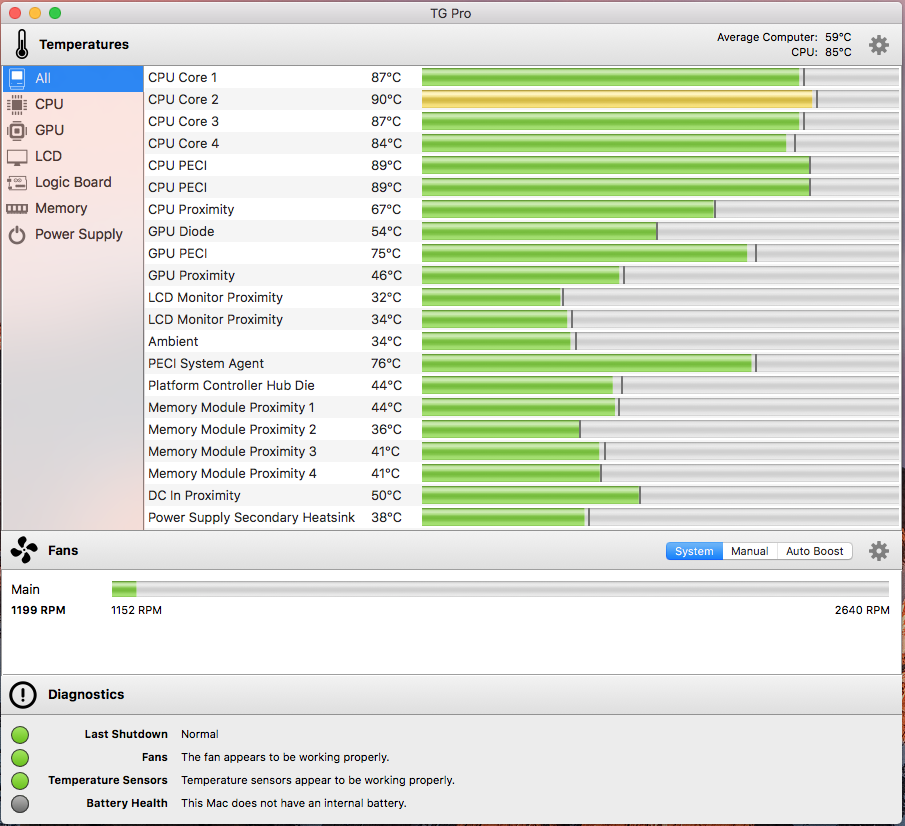

In the main menu you get a nice visual list of everything and its recorded max.

Screen Shot 2017-01-10 at 6.25.14 PM.png
click for full screen

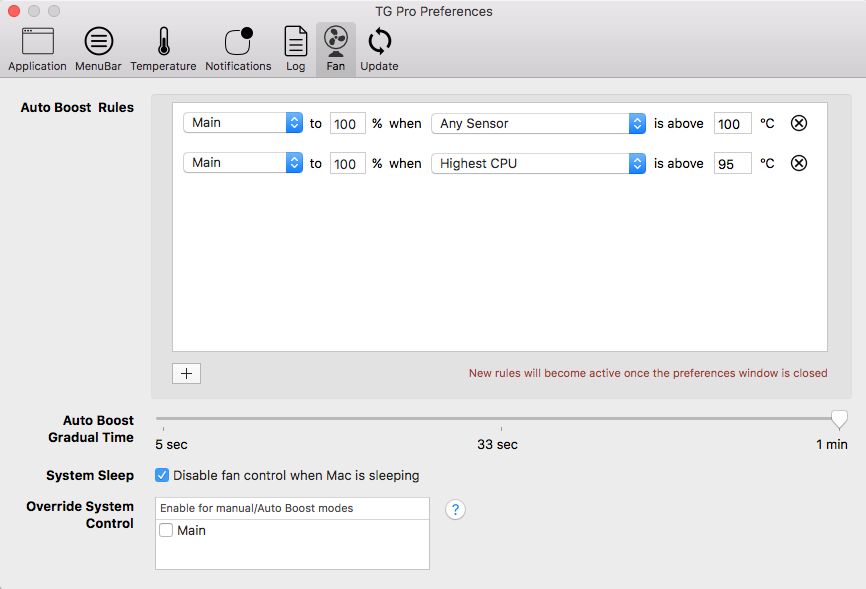

Offers an auto boost feature you can set for any and all sensors, the percentage you want the fan to run, and the temperature you want to keep the component. Also this doesn't override system requirements so for example if you have the fan set to 70% when the GPU is above 80c the OS can take it higher then that if it needs too. Its a good way to keep your components cooler without the Mac sounding like a hoover.

Screen Shot 2017-01-10 at 6.27.15 PM.png
click for full screen

All sort of options and features are available so you can get notifications, logs, etc etc.

BTW I'm currently encoding a video and I just use the system fan profile so the high CPU temp is normal. But just for kicks this is what it will do if I set it to auto boost, fan 100%, highest CPU 80c, over 33 seconds.

Over 33 seconds the fan ramps up to 100%.

Screen Shot 2017-01-10 at 6.37.14 PM.png
click for full screen

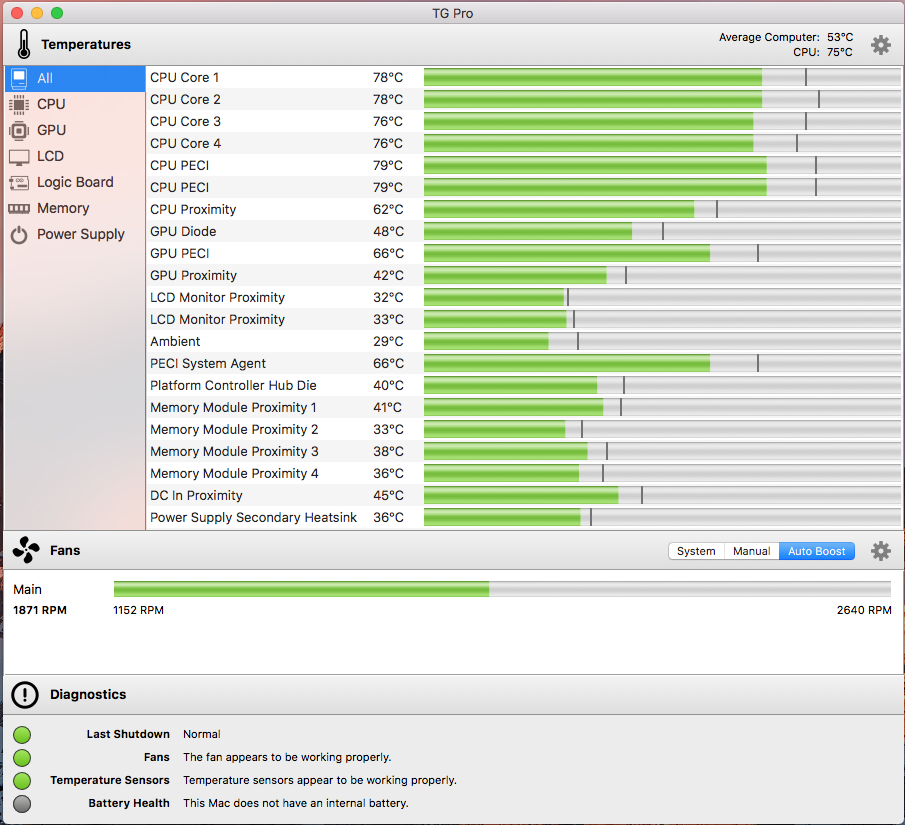

And once the highest core reaches 80c the fan drops back down.

Screen Shot 2017-01-10 at 6.38.09 PM.png
click for full screen

There is a lot of flexibility in this app. And although I sound like a cheap plug I can assure you I'm not affiliated with the dev or anything, just feel this is a good program worthy of me plugging.
