iMac G4 insides

Discussion in 'Mac Basics and Help' started by bluestar14, Jan 24, 2010.

  1. bluestar14 macrumors newbie

    bluestar14

    Joined:
    Jul 5, 2009
    #1
    i have an iMac G4, when i turn it on, display flickers..and power led is steady, i know where the power cable for display is(inside the iMac) but what is the cable for the data, the image the screen shows?:)

  2. BlueRevolution macrumors 603

    BlueRevolution

    Joined:
    Jul 26, 2004
    Location:
    Montreal, QC
    #2
    Also inside? I haven't poked around inside an iMac G4, but it's usually a flat ribbon-like cable.

  3. bluestar14 thread starter macrumors newbie

    bluestar14

    Joined:
    Jul 5, 2009
  4. BlueRevolution macrumors 603

    BlueRevolution

    Joined:
    Jul 26, 2004
    Location:
    Montreal, QC
  5. bluestar14 thread starter macrumors newbie

    bluestar14

    Joined:
    Jul 5, 2009
    #5
    could you find a pic of iMac G4(inside) on internet, circle the display cable, and show it to me?

  6. BlueRevolution macrumors 603

    BlueRevolution

    Joined:
    Jul 26, 2004
    Location:
    Montreal, QC
    #6

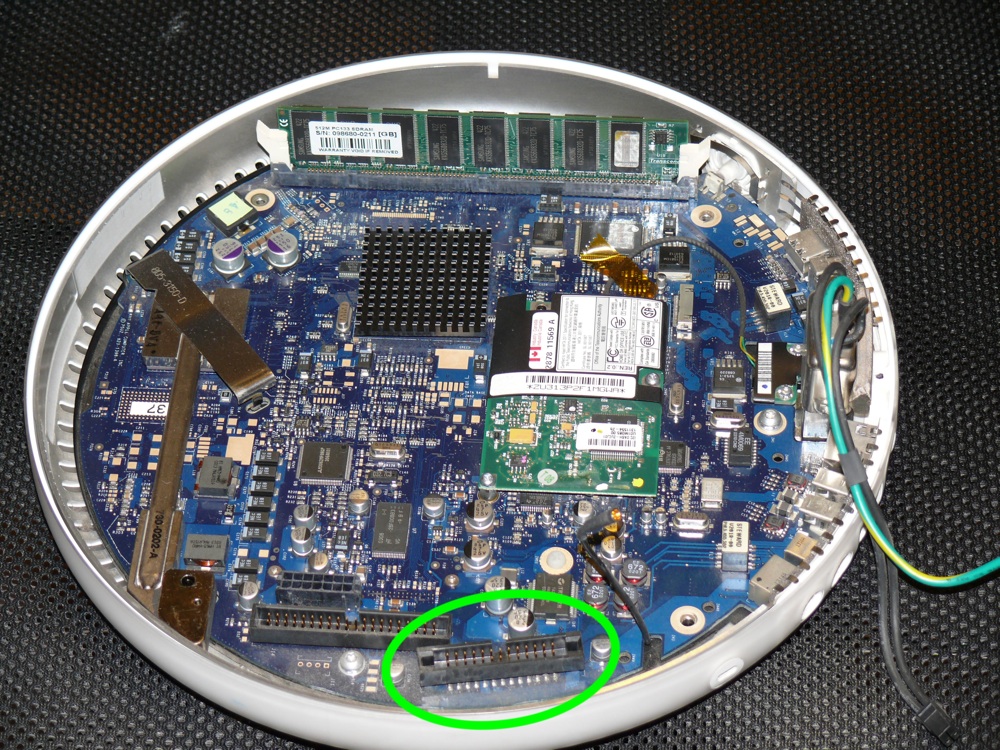

    I'm not positive, but looking at the pics I found online, if I had to take I guess I'd say it's the cable connected to this port:


    Attached Files:

    • iMac.jpg
      File size:
      421.6 KB
      Views:
      47
  7. bluestar14 thread starter macrumors newbie

    bluestar14

    Joined:
    Jul 5, 2009
    #7
    oh, i thought that was the speaker/fan power cable....maybe it isn't connected enough..

  8. BlueRevolution macrumors 603

    BlueRevolution

    Joined:
    Jul 26, 2004
    Location:
    Montreal, QC
    #8
    You could be right. I'm just going on the pictures I could find online.

  9. elppa macrumors 68040

    elppa

    Joined:
    Nov 26, 2003
    #9
    That's some funky engineering going on there.

    I can see it now — we are going to build an insanely cool new iMac, but we'll need a logic board that is a perfect circle.

    Engineers all role eyes.

    “Ok Steve — right on it…”

  10. Makosuke macrumors 603

    Joined:
    Aug 15, 2001
    Location:
    The Cool Part of CA, USA
    #10
    It's been a while since I was inside one of those, but I'm pretty sure the one BlueRevolution has circled is correct, though different models do have somewhat different internal connectors.

    There are essentially two ways to build a computer; you either have the engineers put together the components you want, then hand the box to a designer and say "make this look pretty", or you have the designer come up with a box and you hand that to the engineers and say "make the components fit."

    Not saying either way is inherently better than the other, but Dell (and 99% of other PC manufacturers) do the former with the average desktop, while Apple always does the latter.

    The former certainly gives you a cheaper computer, but most Apple fans will tell you which one is going to get remembered and proudly displayed years later.
