iMac G4 to M1 conversion progress
- Thread starter connor55
- Start date
- Sort by reaction score
Can’t wait to see this board! I was dreaming about something like that, but I don’t have the skills or tools…

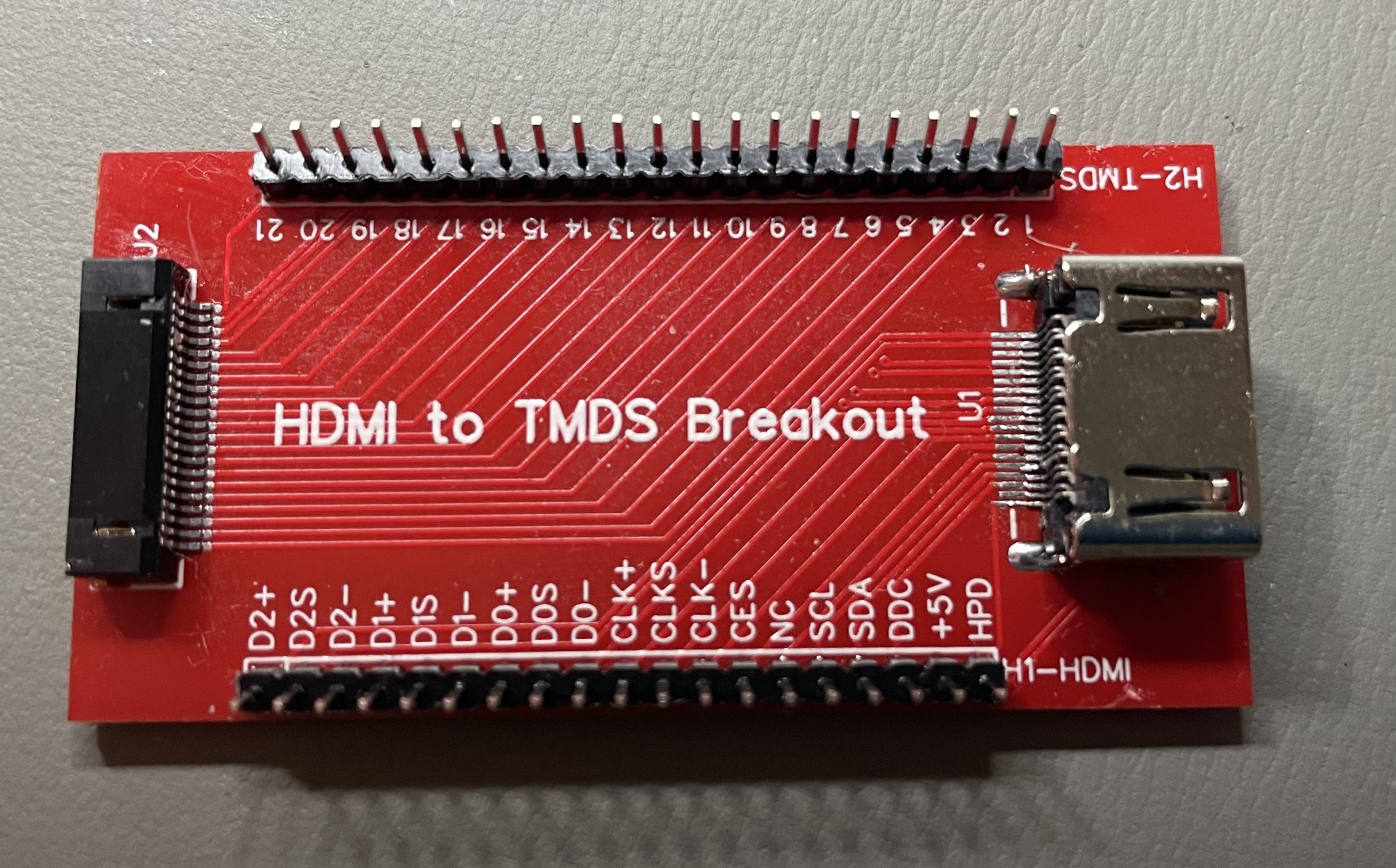

Its coming soon, probably mid april
Attachments

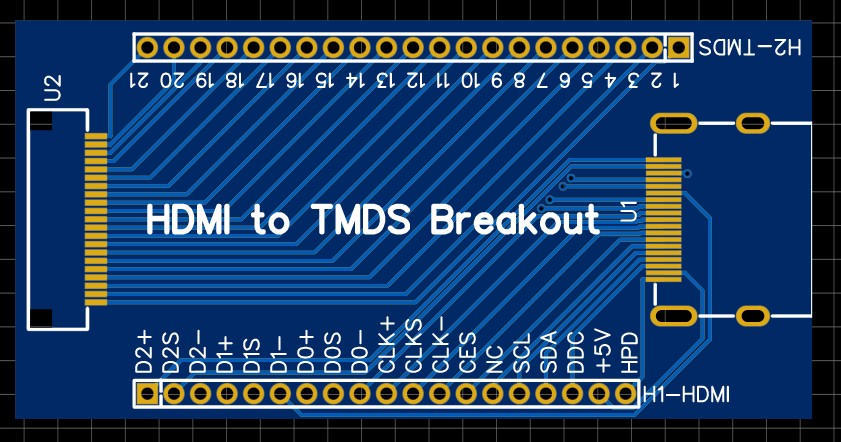

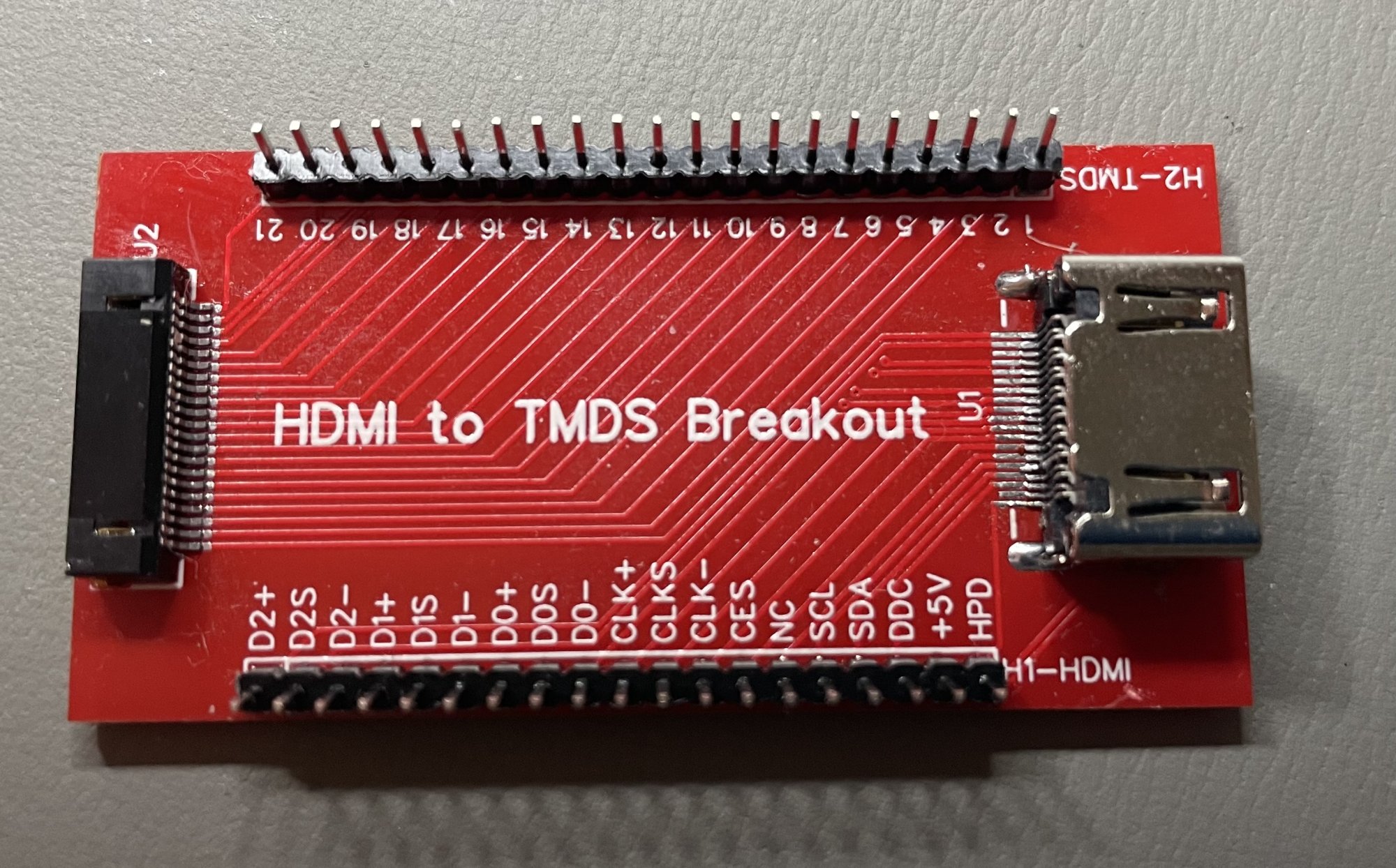

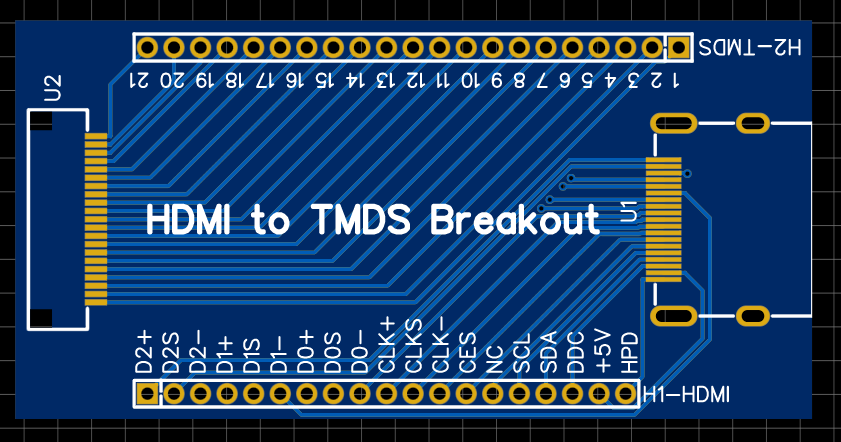

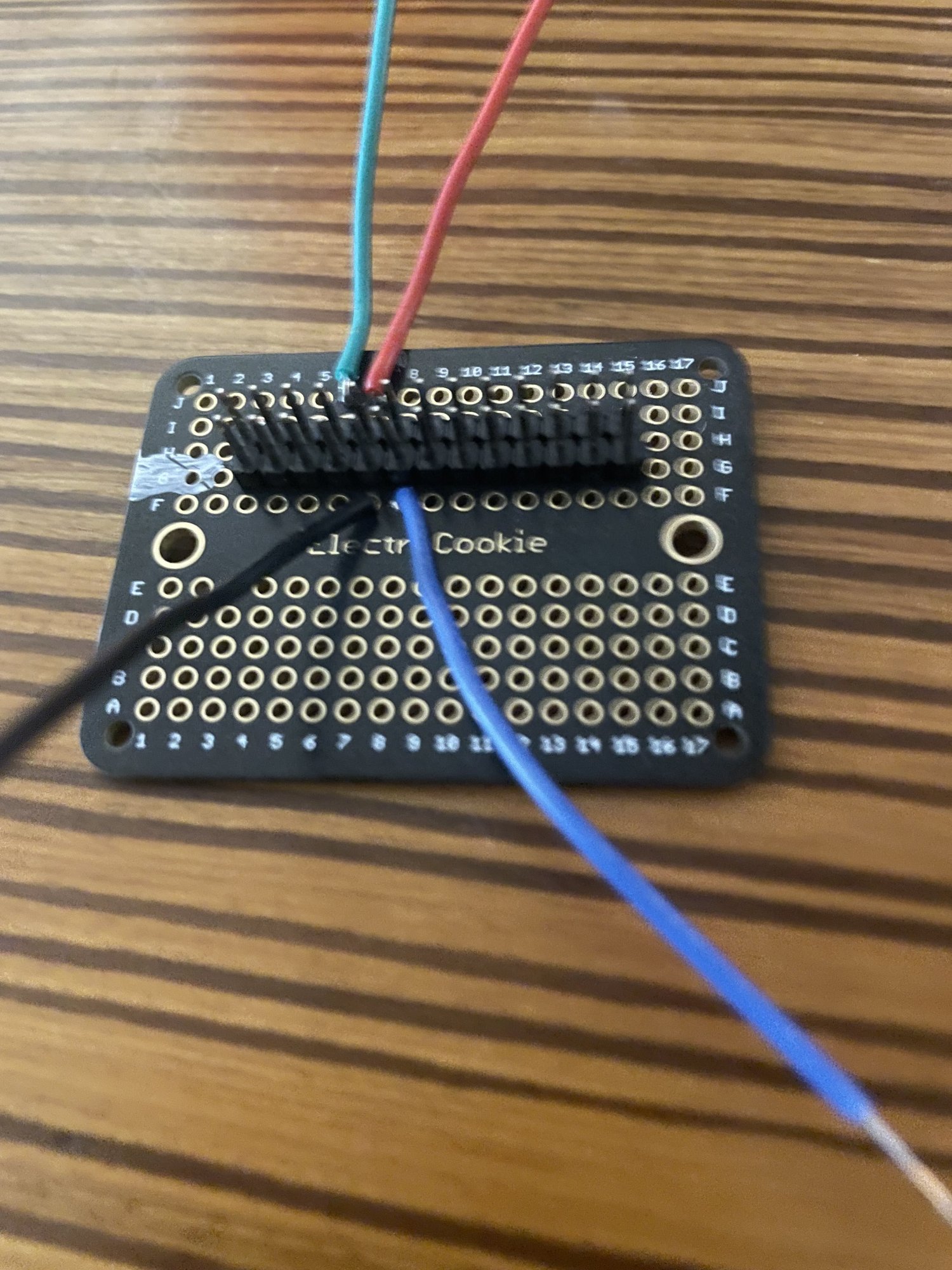

If you'd like to help in creating a final board that is an adapter vs a breakout (i.e. prerouted to work without jumpers) let me know if you have a pinout to try
Im realy waiting for this. I collecting parts to do the conversion on a 20" version. The next adapter that would be needed is for original speakers. My plan was cuting the amplifier from the G4 motherboard but it seams a bit harsh.
Was also looking at Juicy Crumb Systems adapter board that has everything, but its realy expensive and is aimed at converting the G4 to an external display.
Was also looking at Juicy Crumb Systems adapter board that has everything, but its realy expensive and is aimed at converting the G4 to an external display.
To use the original speakers, you can use an amplifier board based on a TA2024, that is the original chip embedded on the iMac main board.
I soldered cables on the iMac cut main board to use the original connector, and powered it with a dedicated power brick.
This is the board we should remake with right alignment on connectors and TMDS-HDMI converter and TA2024 amplifier. What is the model on the board connector of TMDS?
No
best option may be a iMac G4 using a DockLite from Juicy Crumb. Or they maybe working on a DockPro for G4Joe, This is an interesting project. I have successfully completed the re-wire of the display TMDS wiring on my iMac G4 and would not like to do that again. I want to retrofit another 17in and am curious about the inverter wiring. Is the inverter wiring out of scope in your project? Do you know the P/N of the mate-with connector for the black G4 inverter cable? Do you have plans for an actual adapter, en lieu of your breakout card? TIA
Nothing is out of the realm of possibilities.
Do you have a design in mind you could share?

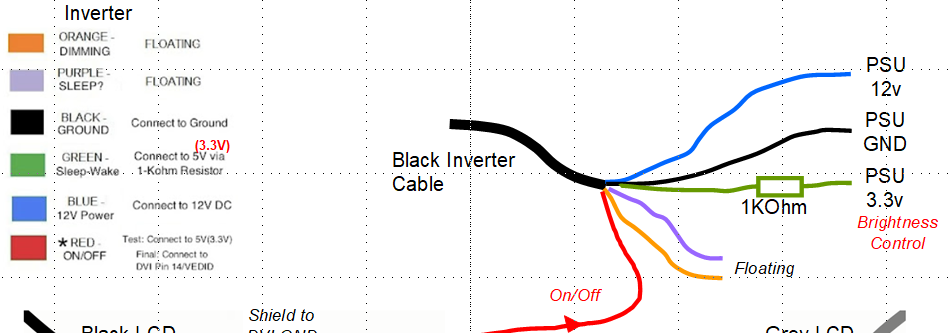

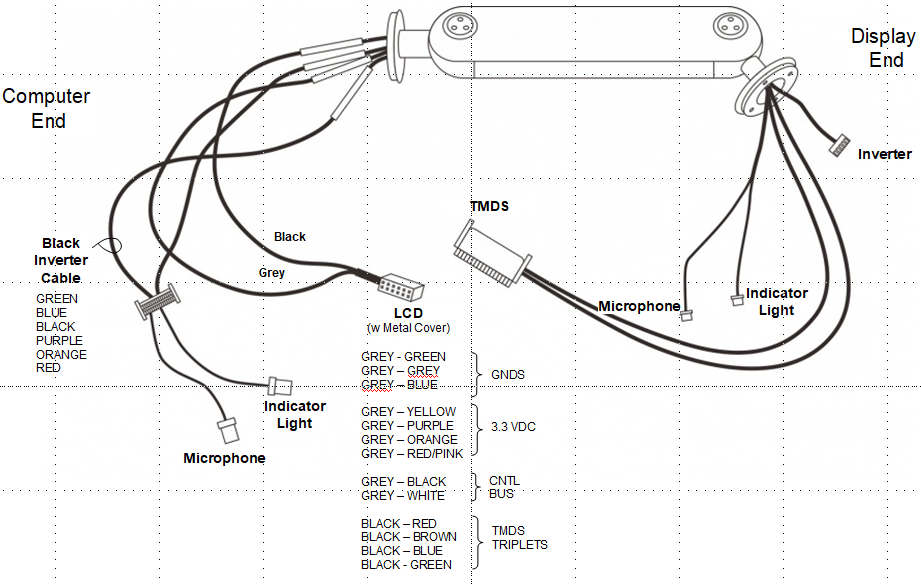

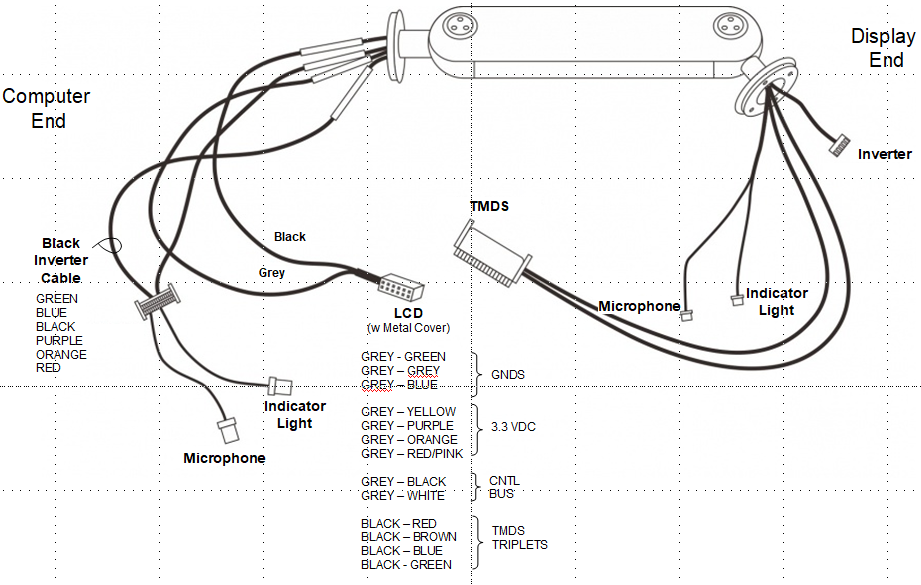

I did document my work when I performed the mod the first time and I could share it with you. I was thinking a breakout card like yours that also included a m/w connector that matched the inverter connector from the neck where the pins were broken out and easily accessible. The user would obviously be required to wire in inverter power, hot pin detect, VEDID and brightness control. These functions are obviously not detailed in this illustration.
Attachments

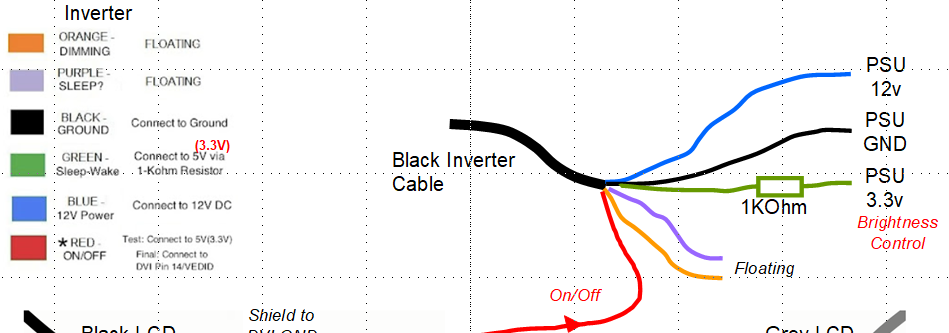

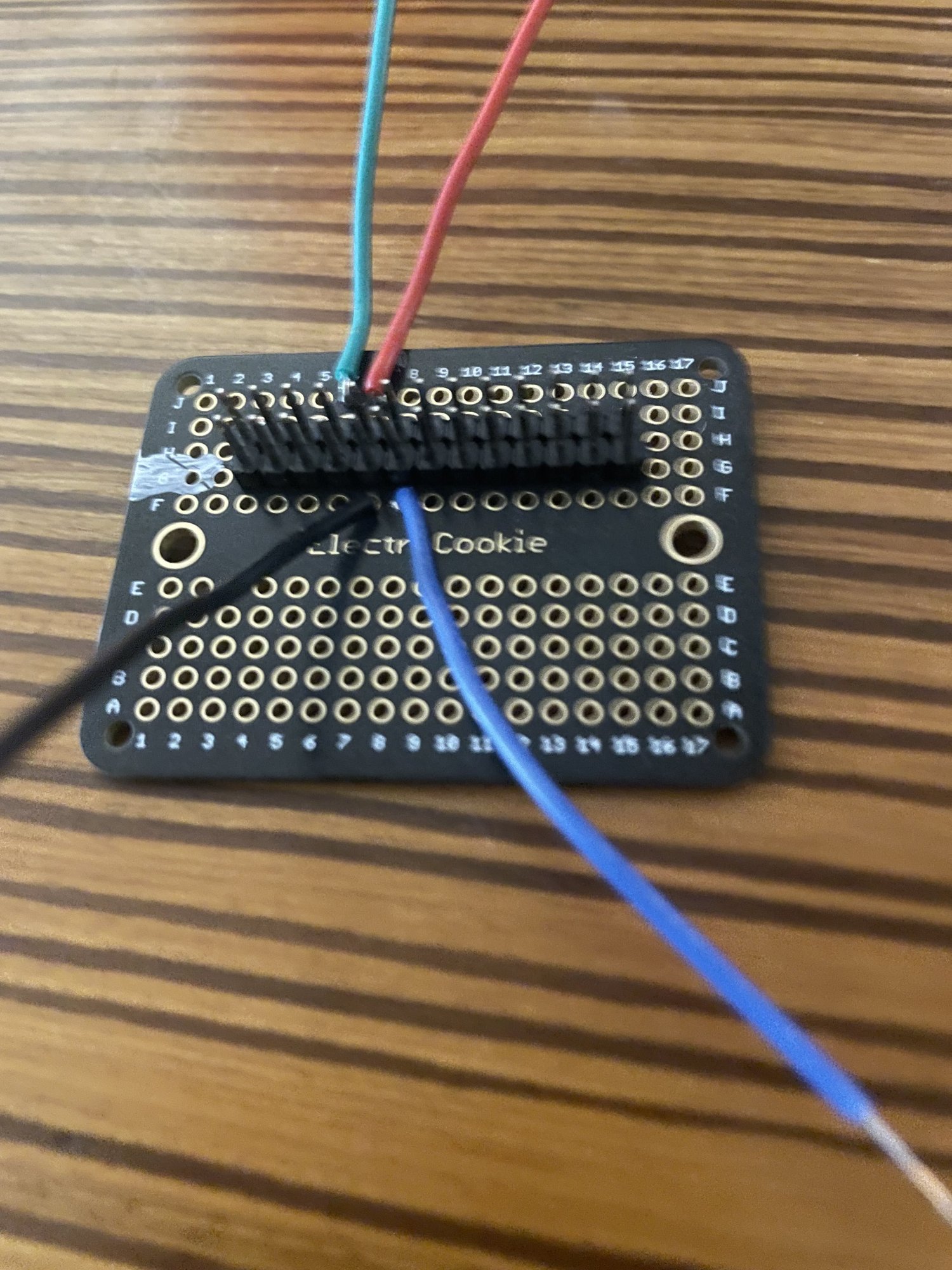

I left the purple and orange floating, like this, and ran hot pin detect thru 1Kohm resister to the red inverter wire. If the inverter connector is broken out, all that would be left is for the user to jumper in 12v power/gnd and a 3.3v dimmer/brightness control. What do you think? An all-in-one adapter card. The TMDS/HDMI signals don't necessarily need to be broken out, with the exception of HDMI pin 18 (VEDID) and the Hot Plug Detect/Gnd, but you already have them broken out.
Attachments
that M4 Mac Mini is tiny.. what are the odds of having that inside an iMac G4?
I've been thinking the same thing - if you took everything out of the inside of the G4, would the mini fit in without removing the case? But would that cause heating issues as there's then not enough air freely moving around the Mini?
Or, if you remove the case, would that then causing heating issues (as I presume it relies on air flow that is directed by the enclosure. Without the enclosure, is there a risk that not enough air is routed to where it is needed?
Or, if you remove the case, would that then causing heating issues (as I presume it relies on air flow that is directed by the enclosure. Without the enclosure, is there a risk that not enough air is routed to where it is needed?
There is enough space to put the Mini inside the iMac with its case. I only plan to remove the bottom case to be able to change the antennas and to rewire the power button. On my mod I keep the fan of the iMac g4 so I think it will be enough to avoid overheating.
Precisely !

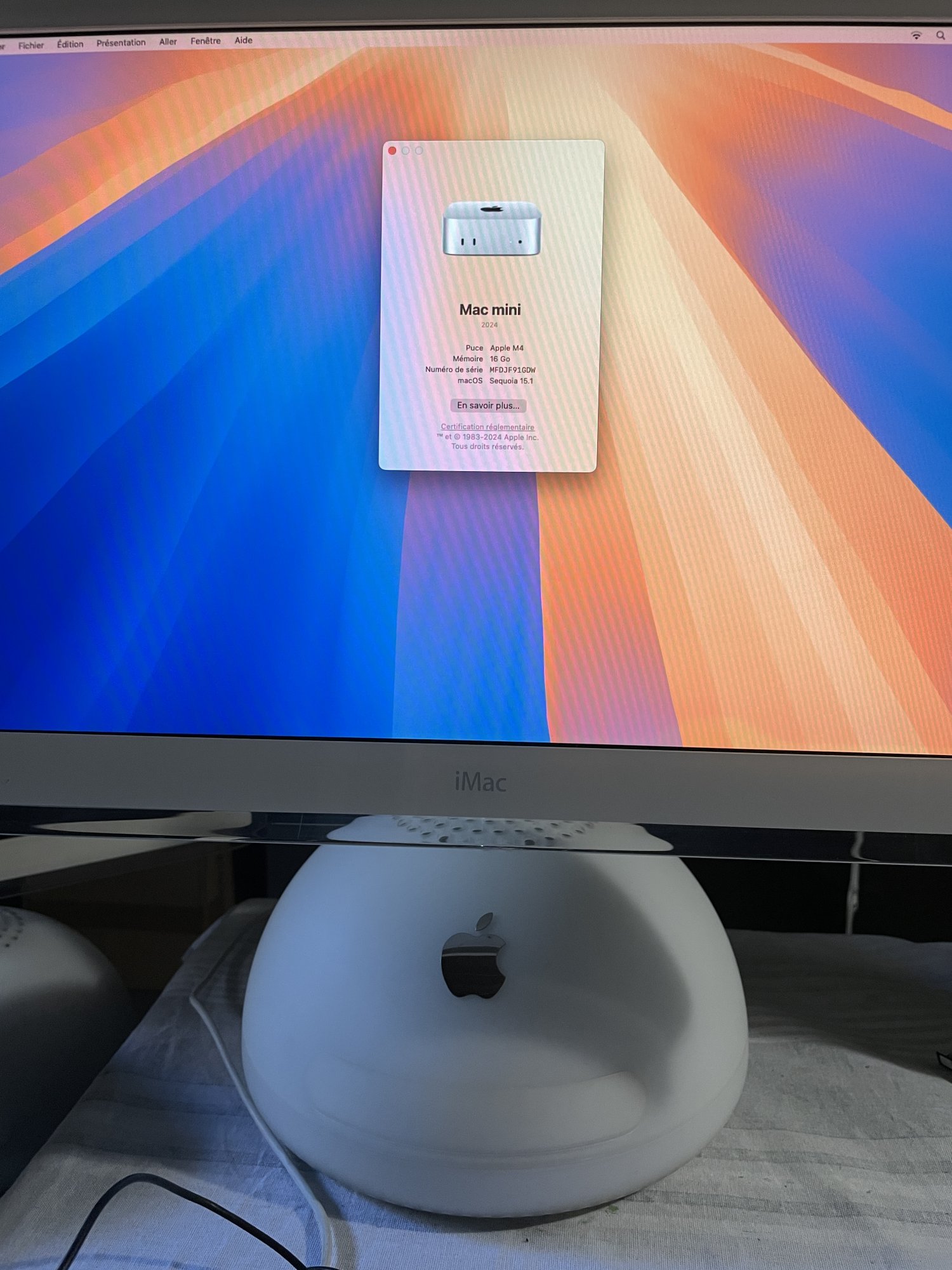

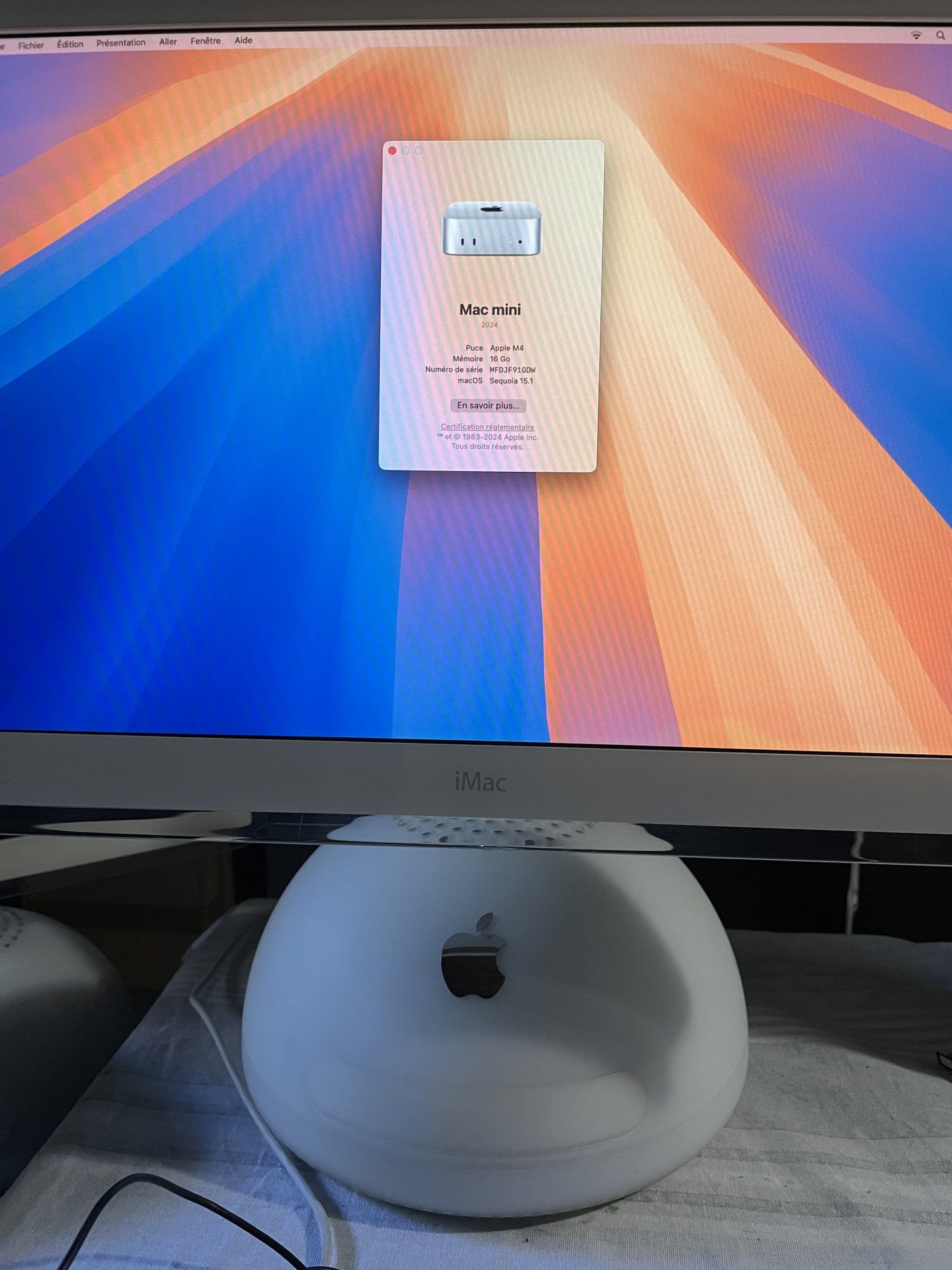

Here it is! A M4 20" iMac G4 !

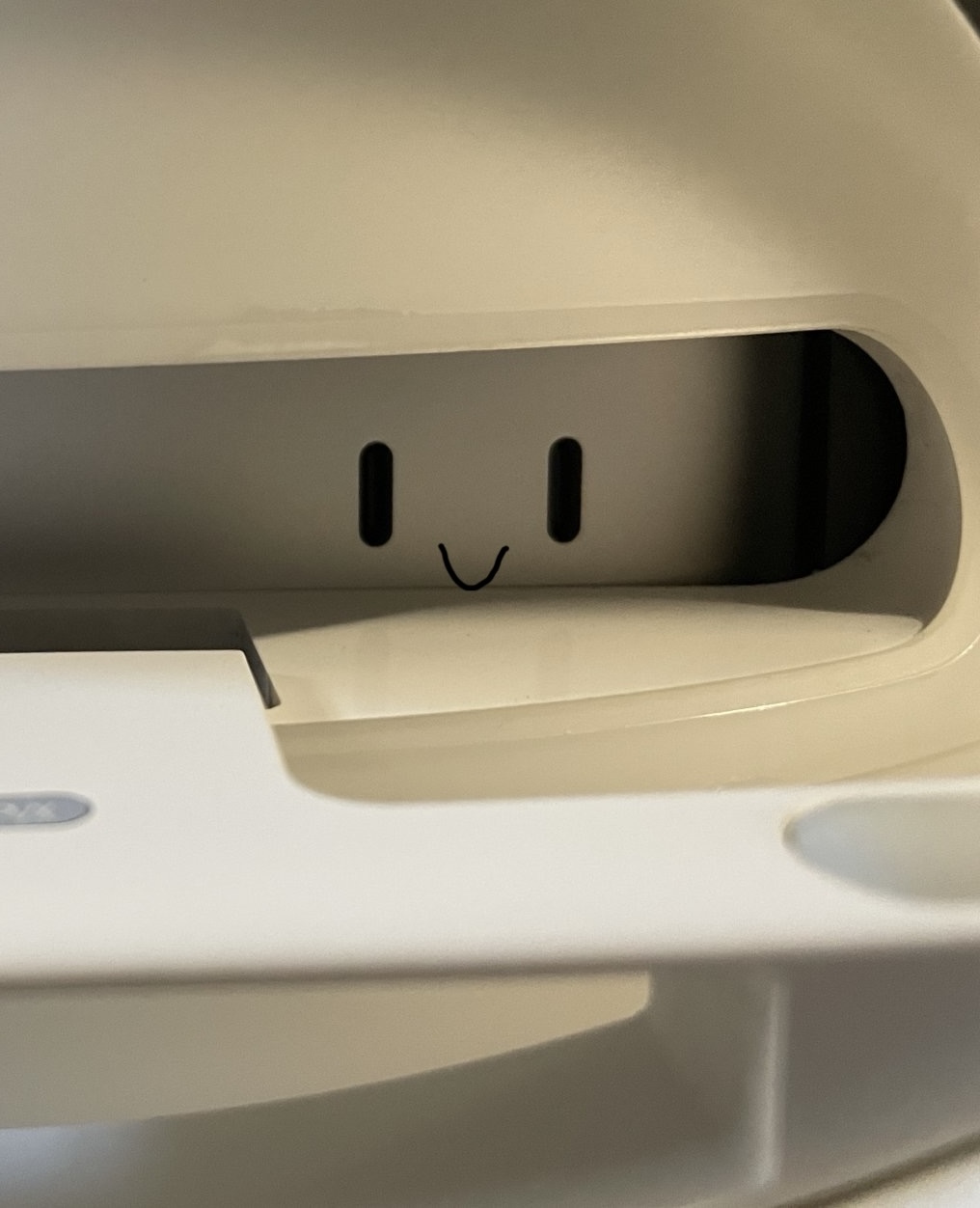

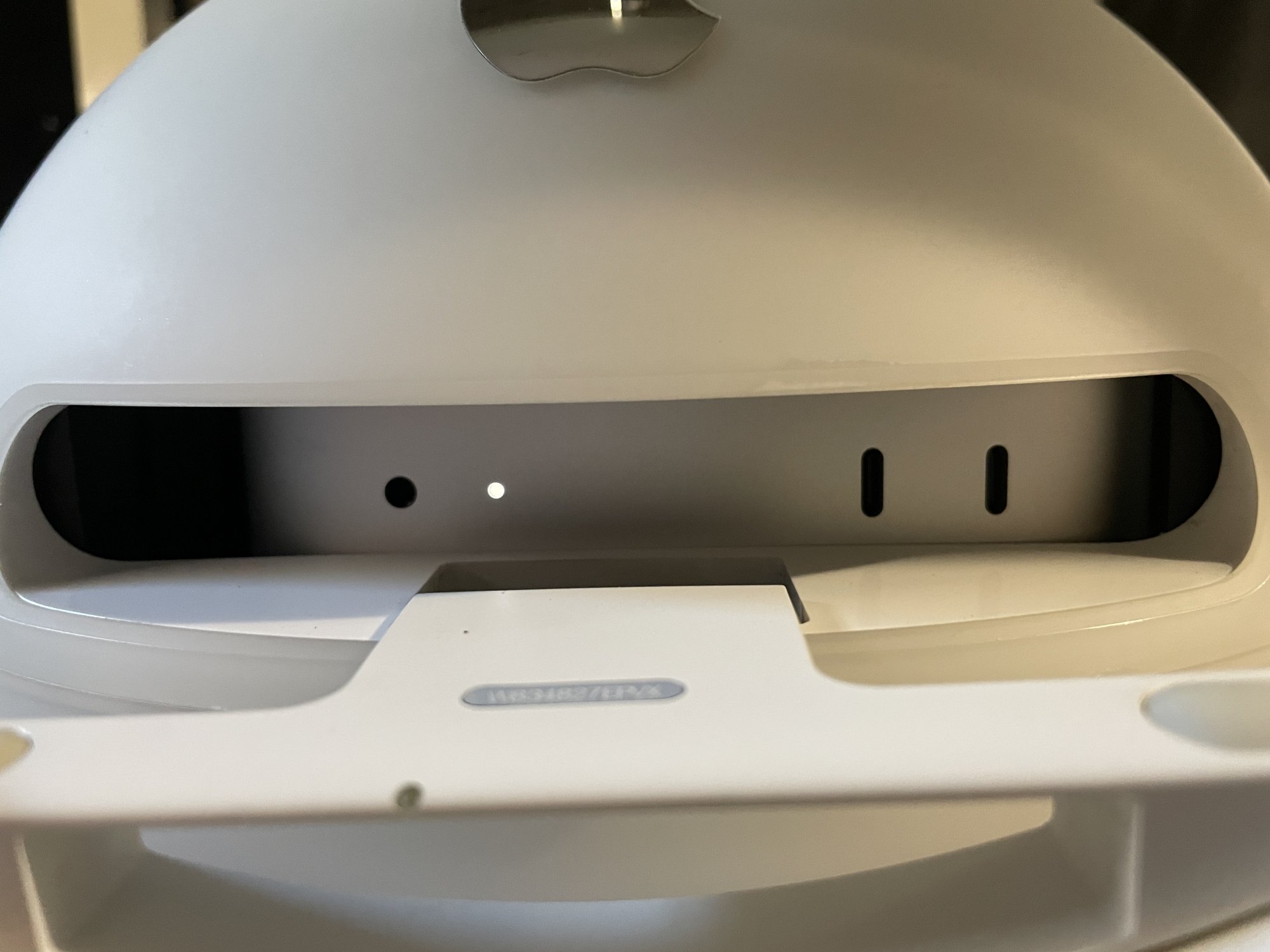

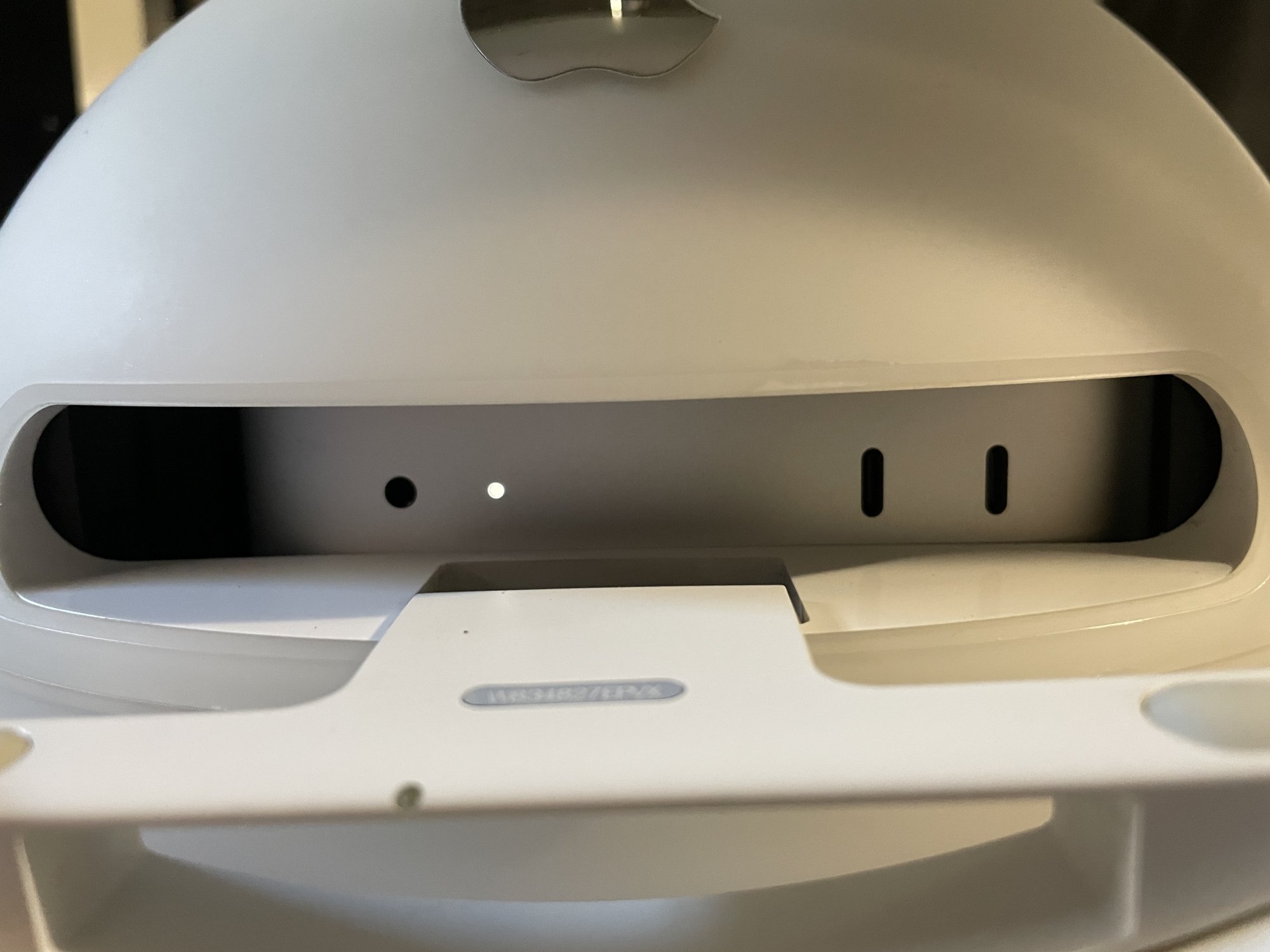

The Mini is integrated with its case, so the two usb c are accessible through the drive door!

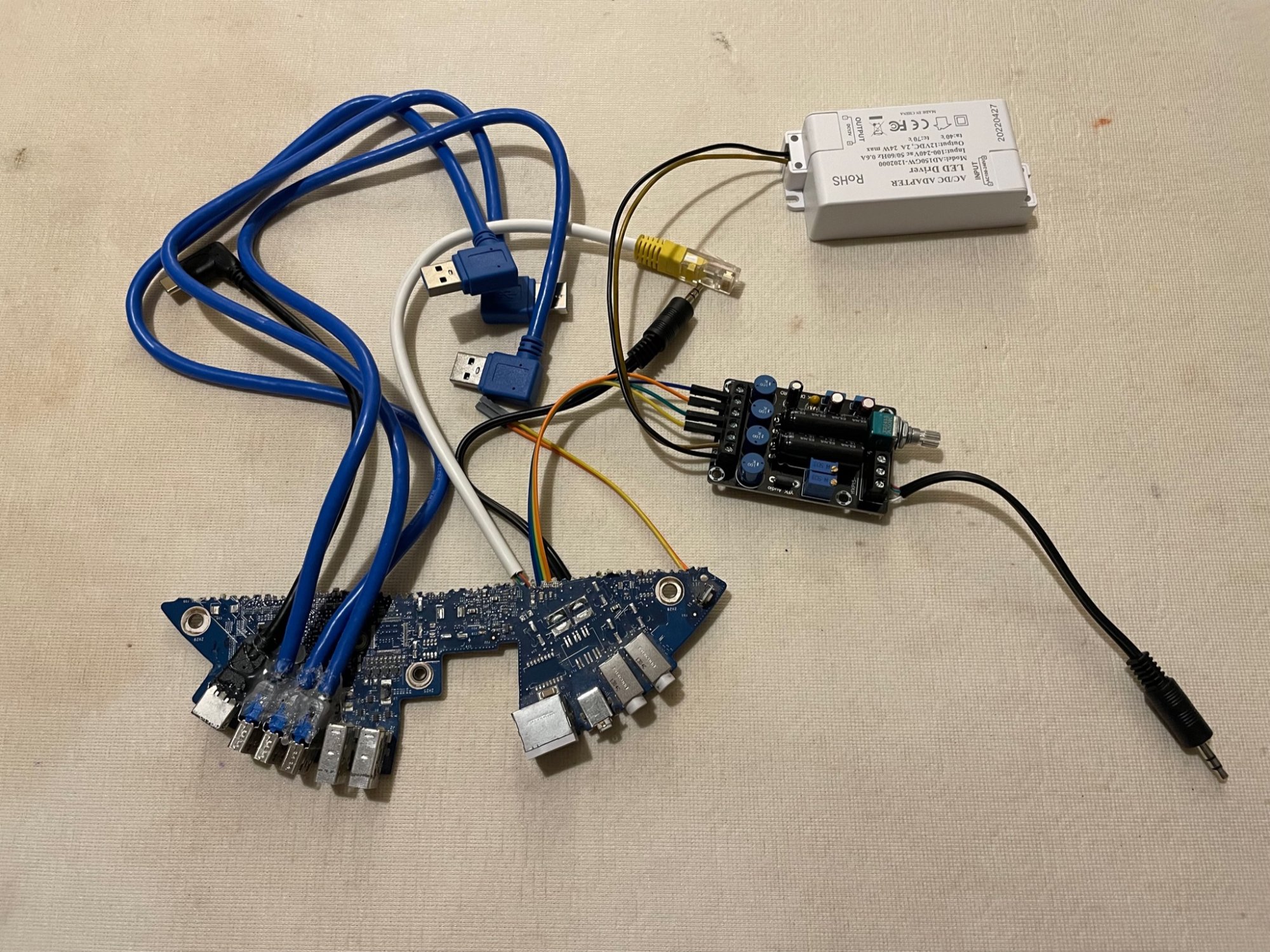

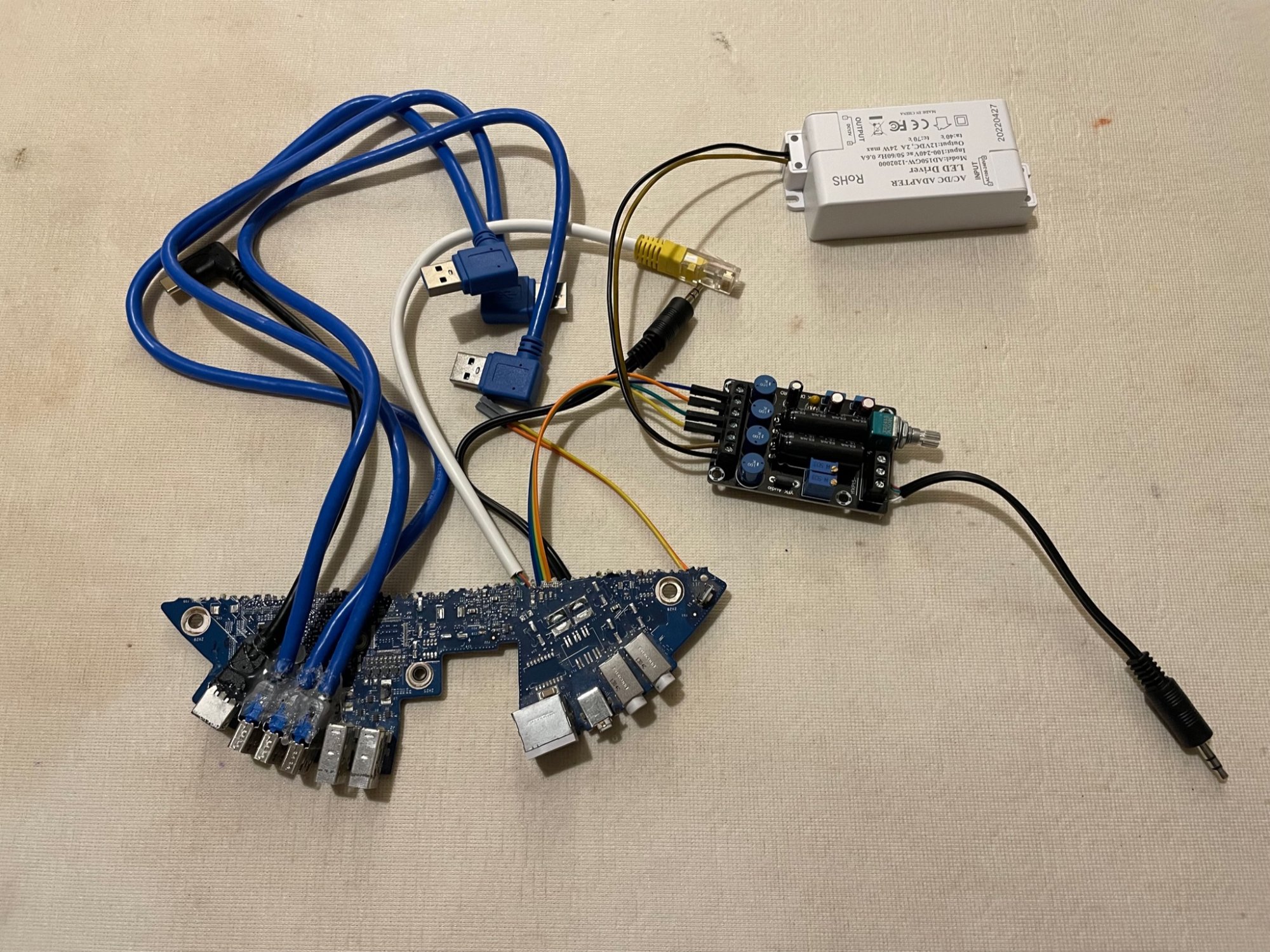

As usually in my mods, I have 3 usb 3 ports on the back, Ethernet, Apple pro speakers support with a dedicated powered amplifier, audio jack out and a thunderbolt 40Gbps port, and the mic under the display panel is working.
