iMP fan control utility

Discussion in 'iMac' started by mossback, Jan 21, 2018.

  1. mossback macrumors member

    mossback

    Joined:
    Nov 18, 2007
    Location:
    PNW
    #1
    My understanding is that, at this time, there is no fan control utility that works properly with the iMac Pro. Is that correct?

  2. nambuccaheadsau macrumors 65816

    nambuccaheadsau

    Joined:
    Oct 19, 2007
    Location:
    Nambucca Heads Australia
    #2
    Why would you want to override the iMac Pro's con trolling the fans as part of the system software?

    If you are experiencing problems take it straight back for exchange.

  3. mossback thread starter macrumors member

    mossback

    Joined:
    Nov 18, 2007
    Location:
    PNW
    #3
    No problems. Love the machine. But I do 8K and 4K video transcoding/editing and I'd rather keep the fans at higher RPM on a consistent basis. I don't care about the machine being as quiet as possible.

  4. bxs macrumors 6502a

    Joined:
    Oct 20, 2007
    Location:
    Seattle, WA
    #4
    By controlling the fan speeds one can increase the cooling affect to lower the Processor temperature and thus reducing the amount of frequency throttling. Apple has been conservative by running the fans slower for noise control at the expense of performance. That in itself isn't a bad goal/strategy but for a user that doesn't care much about noise they can get better performance by overriding the stock fan speed software.

  5. Samuelsan2001 macrumors 604

    Joined:
    Oct 24, 2013
    #5
    Which Would be relevant if all reports and reviews hadn’t mentioned specifically how brilliliantly the iMac Pro deals with heat, fans and noise with no interference.

  6. bxs, Jan 22, 2018
    Last edited: Jan 22, 2018

    bxs macrumors 6502a

    Joined:
    Oct 20, 2007
    Location:
    Seattle, WA
    #6
    Yes, not all reviewers are savvy or smart enough to realize that computer cooling is a design compromise. Do you design for optimum noise control or for optimum performance? Apple typically has always gone with the former. This allows, and does not disallow people who would like to optimize for performance to have a 3rd party after-market solution to override Apple's fan/cooling design by controlling the cooling themselves with a fan-control program.

    Some people want to get the last ounce of performance out of a computer.

    I think Apple's machine cooling design approach meets the expectations of the majority of iMP users.

    Yesterday we were using our iMP and running it flat out using all 10 physical and logical cores in the machine. There was no noise at all (nice) and the Processor frequency was holding pretty darn steady between 4.0 and 4.2 GHz. The temp was held below 90ºC and would fall off a bit and then climb back up some. Could we have done better getting better performance if we were to have run the fans faster and keeping the temp lower by say another 10 or 15ºC to avoid too much frequency throttling and have a higher GHz..... I dunno, but if there was a 3rd party program that controlled the fan speeds we could have experimented to find out.

  7. Samuelsan2001 macrumors 604

    Joined:
    Oct 24, 2013
    #7
    All ten cores were running at the stated boost frequency for running ten cores, what’s to test out? It’s doing a brilliant job exactly as advertised. I can’t see why you would muck around with it. If you want overclocking and customisable cooling buy a pc or wait for the upcoming Mac Pro, if you buy an all in one you deal with the limitations of a set power supply and cooling solution as with all all in ones.

  8. bxs macrumors 6502a

    Joined:
    Oct 20, 2007
    Location:
    Seattle, WA
    #8
    Yes, but the frequency drops off/lowers because heat builds up. Controlling the fans (i.e., running them at a higher RPM) to avoid this heat build up stops the frequency being throttled so frequently so it stays higher for longer periods rather than going up and down with the default built-in fan control software. Thus a slight improvement in performance can be achieved. Apple designs the fan speed controller for a 'general case' scenario. They can't design for a specific workload case such as I've just explained. So it's up to the user + 3rd party to step in to address the special cases where a little more performance can be squeaked out of the machine.

  9. Mac32, Jan 22, 2018
    Last edited: Jan 22, 2018

    Mac32 Suspended

    Joined:
    Nov 20, 2010
    #9
    Mac Fan Control is also a useful tool for Bootcamp, and very useful during gaming (makes overclocking the GPU possible while keeping temperatures in check). Apple changed their SMC specs for the first time in 10 years, so Mac Fan Control presently doesn't support iMac Pro. The software maker is trying to fix it, but is stumped atm. Here's the link, if anyone can help: https://github.com/crystalidea/macs-fan-control/issues/11

  10. CWallace macrumors 603

    CWallace

    Joined:
    Aug 17, 2007
    Location:
    Seattle, WA
    #10
    I would not be surprised if fan speed is now controlled by the T2 chip. If so perhaps that might explain why MFC cannot read / control it.

  11. bxs macrumors 6502a

    Joined:
    Oct 20, 2007
    Location:
    Seattle, WA
    #11
    Yep things are starting to 'fall out' with the introduction of the T2 security enclave. I just received a note from SoftRAID that explains why the new SoftRAID version 5.6.4's drivers cannot be successfully installed on some customer's iMP machines. The fix is to disable "Full Security" if it's enabled as a temporary work around.

  12. Mac32 Suspended

    Joined:
    Nov 20, 2010
  13. mossback thread starter macrumors member

    mossback

    Joined:
    Nov 18, 2007
    Location:
    PNW
  14. Macshroomer macrumors 65816

    Macshroomer

    Joined:
    Dec 6, 2009
  15. bplein macrumors 6502

    bplein

    Joined:
    Jul 21, 2007
    Location:
    Austin, TX USA
    #15

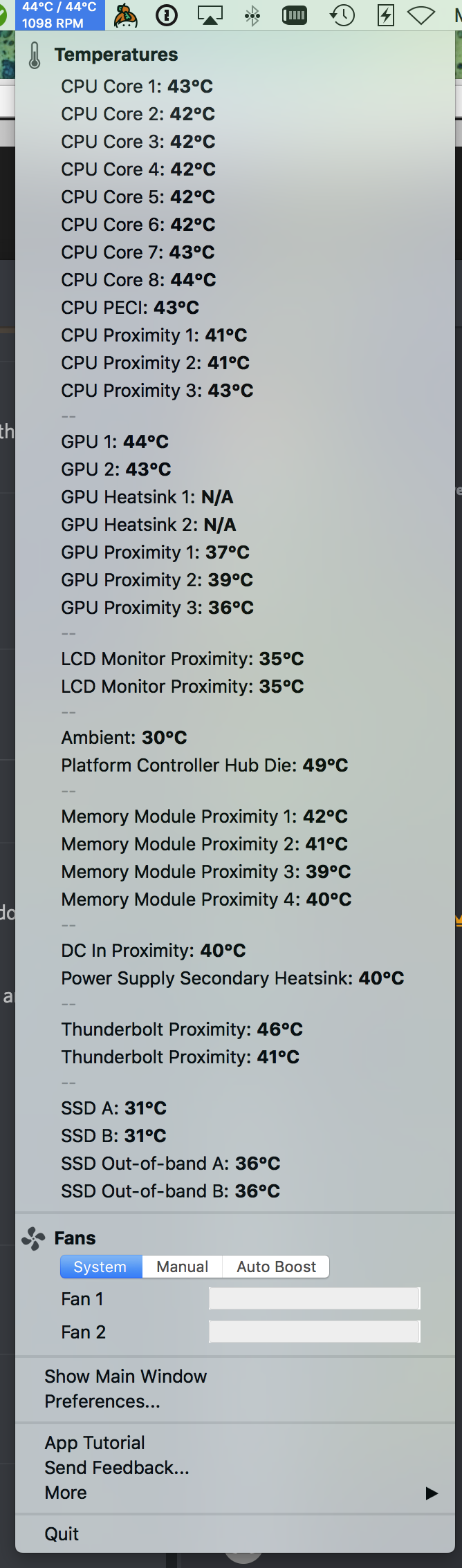

    TG Pro has been updated to work with the iMac Pro. I use it just out of curiosity about fan speeds and component temperatures, with standard system fan control (not using their custom controls) https://www.tunabellysoftware.com/tgpro/


    Attached Files:

  16. Mac32, Mar 12, 2018
    Last edited: Mar 12, 2018

    Mac32 Suspended

    Joined:
    Nov 20, 2010
    #16
    Didn't know about that one, thanks. However, we already have iStat Menus and Macs Fan Control for iMac Pro running OSX. What we need is something that works in Windows/Bootcamp. If anyone knows of something, please let us know.

  17. tbsoftware macrumors newbie

    tbsoftware

    Joined:
    Jan 15, 2015
    Location:
    Ottawa, Canada
    #17
    Thanks for letting everyone know about TG Pro and iMac Pro compatibility! We recently updated the app to be compatible with the new beast and we're able to show the temperature sensors, fan rpm and allow boosting of the fan speeds as well. If anyone is interested in trying it out, there's a free trial at the link.

  18. Bigdog9586 macrumors 6502

    Joined:
    Apr 15, 2015
    #18
    I see there is a free version and a paid version. Which are you guys using?

  19. bplein macrumors 6502

    bplein

    Joined:
    Jul 21, 2007
    Location:
    Austin, TX USA
    #19
    Paid version
