ios7 tableView cell background color issue

Discussion in 'iOS Programming' started by larswik, Oct 1, 2013.

  1. larswik macrumors 68000

    Joined:
    Sep 8, 2006
    #1

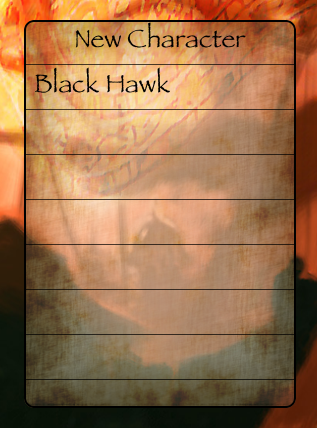

    This problem is only in ios7. I have 2 photos included that show my problem. It looks as it should in IOS 6 but I have white backgrounds in IOS 7.

    I attempted to add some code that checked the system version and add a UIColor clearColor if the version was 7.0 but the cells are still white.

    Code:
    - (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath {
        static NSString *CellIdentifier = @"Cell";

        UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:CellIdentifier];
        if (cell == nil) {
            cell = [[UITableViewCell alloc] initWithStyle:UITableViewCellStyleDefault reuseIdentifier:CellIdentifier];
        }

        cell.textLabel.font = [UIFont fontWithName:@"Papyrus" size:26];
        cell.textLabel.textColor = [UIColor blackColor];

        if (tableView == characterListTableView) {

            if (indexPath.row == 0) {
                cell.textLabel.textAlignment = UITextAlignmentCenter;
            }

            cell.textLabel.text = [characterArray objectAtIndex:indexPath.row];

            [COLOR="Red"]if (deviceVersion == 7.0) {
                cell.textLabel.backgroundColor = [UIColor clearColor];
            }[/COLOR]
        }

        else if (tableView == foundTV){
            cell.textLabel.textAlignment = UITextAlignmentCenter;
            cell.textLabel.text = [foundFiles objectAtIndex:indexPath.row];
        }

        return cell;
    }

    Nothing seems to be depreciated that I can see that would cause this problem.
    Just in case the issue with the creation of the tableView it's self that is causing the problem the code is below.

    Code:
    characterListTableView = [[UITableView alloc] initWithFrame:CGRectMake(675, 165, 272, 388) style:UITableViewStylePlain];
        characterListTableView.dataSource = self;
        characterListTableView.delegate = self;
        characterListTableView.backgroundColor = [UIColor clearColor];
        characterListTableView.separatorColor = [UIColor colorWithRed:0.0 green:0.0 blue:0.0 alpha:0.7];
        characterListTableView.opaque = NO;
        characterListTableView.backgroundView = nil;
        [characterListTableView.layer setBorderColor: [[UIColor blackColor] CGColor]];//set black boarder around notefield
        [characterListTableView.layer setBorderWidth: 2.0];//set black boarder thikness

        CALayer * btv = [characterListTableView layer]; // rounds the edges of the noteField
        [btv setMasksToBounds:YES];
        [btv setCornerRadius:10.0];

        [self.view addSubview:characterListTableView];

        UIImage *imagePaper = [UIImage imageNamed:@"scroll_paper.png"];
        [tableViewWhiteWash setImage:imagePaper];
        tableViewWhiteWash.alpha = 0.5;

        //[tableViewWhiteWash setBackgroundColor:[UIColor colorWithRed:1.0 green:1.0 blue:1.0 alpha:0.5]];
        CALayer * bvbg = [tableViewWhiteWash layer]; // rounds the edges of the noteField
        [bvbg setMasksToBounds:YES];
        [bvbg setCornerRadius:10.0];

        [tableViewImportWhiteWash setImage:imagePaper];
        tableViewImportWhiteWash.alpha = 0.0;
        CALayer * bvim = [tableViewImportWhiteWash layer]; // rounds the edges of the noteField
        [bvim setMasksToBounds:YES];
        [bvim setCornerRadius:10.0];


    Thanks.


    Attached Files:

  2. xStep, Oct 1, 2013
    Last edited: Oct 1, 2013

    xStep macrumors 68000

    Joined:
    Jan 28, 2003
    Location:
    Less lost in L.A.
    #2
    Looks to me like you need to set up the cell with clear color. Such as this;

    Code:
    if (cell == nil) {
        cell = [[UITableViewCell alloc] initWithStyle:UITableViewCellStyleDefault reuseIdentifier:CellIdentifier];

        [COLOR="Blue"]// Since these never change, place these two lines in the cell initialization.[/COLOR]
        cell.textLabel.font = [UIFont fontWithName:@"Papyrus" size:26];
        cell.textLabel.textColor = [UIColor blackColor];

        [COLOR="Red"]cell.contentView.backgroundColor = [UIColor clearColor];[/COLOR]
    }
    I also noticed that the separator lines under iOS 7 are not left justified. I don't see an obvious reason.

  3. PhoneyDeveloper macrumors 68030

    PhoneyDeveloper

    Joined:
    Sep 2, 2008
    #3
    @OP, you may need to set the background colors in the willDisplayCell: delegate callback.

    @xStep, the obvious reason is that Apple wants it that way. This is one of the iOS 7 appearance changes for UITableView. It is controllable with a separatorInset property.

  4. larswik, Oct 2, 2013
    Last edited: Oct 2, 2013

    larswik thread starter macrumors 68000

    Joined:
    Sep 8, 2006
    #4
    EDIT: I discovered the problem in another search. I don't need to access the cell.textLabel.backgroundColor or the cell.contentView.backgroundColor. I just needed to say

    Code:
     cell.backgroundColor = [UIColor clearColor];

    I don't know why I can just address the cell and not the contentView or textLabel attribute?

    -------
    I have never used that delegate method before. I set break points and it seems that I sets the cell up first and returns in and then this method is called. So the indexPath is passed to it and it uses a pointer to the cell.

    It would seem the only thing I would need to do is to change the color of the background to clear but it is not work, the results are the same with a white background instead of clear. I'm guessing, because i'm not 100% sure, that if I add a background color someplace like where the cell is created it would be changed by this method?

    I am a little fuzzy as to the difference between the cell.contentView.backgroundColor and the cell.textLable.backgroundColor. I can google that and find out.

    The code seems to be simple but I must be over looking something else

    Code:
    -(void)tableView:(UITableView *)tableView willDisplayCell:(UITableViewCell *)cell forRowAtIndexPath:(NSIndexPath *)indexPath{

        cell.contentView.backgroundColor = [UIColor clearColor];

    }

    I also tried the cell.textLabel.backgroundColor and none worked. The method is being called and I tested it with an NSLog to verify that.

  5. xStep, Oct 2, 2013
    Last edited: Oct 2, 2013

    xStep macrumors 68000

    Joined:
    Jan 28, 2003
    Location:
    Less lost in L.A.
    #5
    EDIT: You are right. If you use the SDK 7 then you get the indent. JUST WOW!

    EDIT2: WOW, what a CF!

  6. xStep macrumors 68000

    Joined:
    Jan 28, 2003
    Location:
    Less lost in L.A.
    #6
    Watch out with that one. If the target is 6.x, you'll alter the label background color. If the target is 7.0 you'll alter the expected rectangle. In both cases I was altering the value within tableView:willDisplayCell:forRowAtIndexPath: method. I'm using the GM of Xcode 5. I'll upgrade Thursday if I have time and test again.

    I've also found that I can't alter the text label background color inside the tableView:cellForRowAtIndexPath: method, but can in the tableView:willDisplayCell:forRowAtIndexPath: method.

    To fix the separator lines add the following to characterListTableView setup.
    Code:
            [characterListTableView setSeparatorInset: UIEdgeInsetsMake(0, 0, 0, 0)];
    This all seems very messy. :mad: Flipping back and forth between SDKs is unusual, but now I know a few more things to watch out for. :D

    I didn't understand your question.

  7. larswik thread starter macrumors 68000

    Joined:
    Sep 8, 2006
    #7
    Thanks Guys!

    I started to implement an IOS system version check
    Code:
    //Header
    float deviceVersion;


    //Imp
    UIDevice *deviceData = [UIDevice currentDevice]; // Get device info
    if (deviceData)
        deviceVersion = [[deviceData systemVersion]floatValue];
    else
        deviceVersion = 1.0;

    xStep- Thanks for the code snipit because that is what I was looking for as well to adjust that problem. When I popped that code in it crashed my 6.0 simulator. So I placed it in an if statement

    Code:
    if (deviceVersion >= 7.0) {
            [characterListTableView setSeparatorInset: UIEdgeInsetsMake(0, 0, 0, 0)];
    }



  8. PhoneyDeveloper macrumors 68030

    PhoneyDeveloper

    Joined:
    Sep 2, 2008
    #8
    Do that like this


    Code:
    BOOL CurrentOSVersionIsGreaterOrEqualTo(NSString* inOSVersion)
    {
    	NSString *osVersion = [[UIDevice currentDevice] systemVersion];

    	return ([osVersion compare:inOSVersion options:NSNumericSearch] >= NSOrderedSame);
    }

    if (CurrentOSVersionIsGreaterOrEqualTo(@"7.0")) {
    // iOS 7
    }

    Although for what you're looking at it might be better to check if setSeparatorInset: exists and call it then.

  9. larswik thread starter macrumors 68000

    Joined:
    Sep 8, 2006
    #9
    PhoneyDeveloper - I have to ask. Why is that a better way to check the current version then what I did? In my init method I get the ios version number and if it is 7.0 and assign that to a float as a global variable that all methods can see.

    Your version creates a function to test and then returns a BOOL. They both seem to server the same purpose. But with mine it only checks 1 time and stores the value.

    Is my version not safe?

  10. PhoneyDeveloper macrumors 68030

    PhoneyDeveloper

    Joined:
    Sep 2, 2008
    #10
    @"7.0.2" is not a float. It's not a good idea to convert a system version to a float. It's a string in a numerical format. The NSString numerical comparison method will compare system versions, as strings, correctly.

    Honestly, I have no idea what [@"7.0.2" floatValue] is. Do you?

    In my code I set several BOOLs one time when the app launches using the method I showed and then read them throughout the app as the code needs to know the system version. But that's just an optimization.

    BOOL isv5OrGreater;
    BOOL isv6OrGreater;
    BOOL isv7OrGreater;

  11. dejo Moderator

    dejo

    Staff Member

    Joined:
    Sep 2, 2004
    Location:
    The Centennial State
    #11
    Just curious, PhoneyDeveloper: do you set up these BOOLs in your appDelegate or elsewhere? Are they instance variables? And then how do you read them? I'm always interested to see how others implement a concept such as this? (In other words, willing to share a bit more code?)

  12. larswik thread starter macrumors 68000

    Joined:
    Sep 8, 2006
    #12
    OK, thanks. I see what you are talking about now.
