iphone 3g resistors spec help!

Discussion in 'iPhone Tips, Help and Troubleshooting' started by kolia26, Dec 23, 2010.

  1. kolia26 macrumors newbie

    Joined:
    Dec 23, 2010
    #1

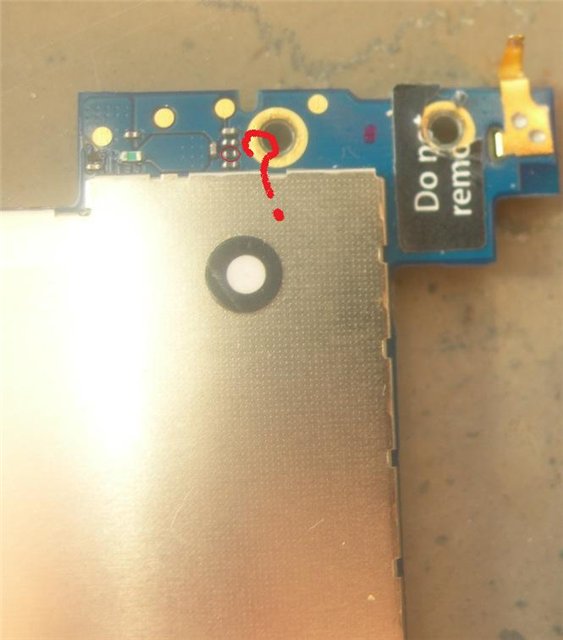

    Hello! Please help me! I need know the specs of the resistor in circled in the images. Thanks!
    [​IMG]
    [​IMG]

  2. proxy97 macrumors newbie

    Joined:
    Apr 22, 2014
    #2

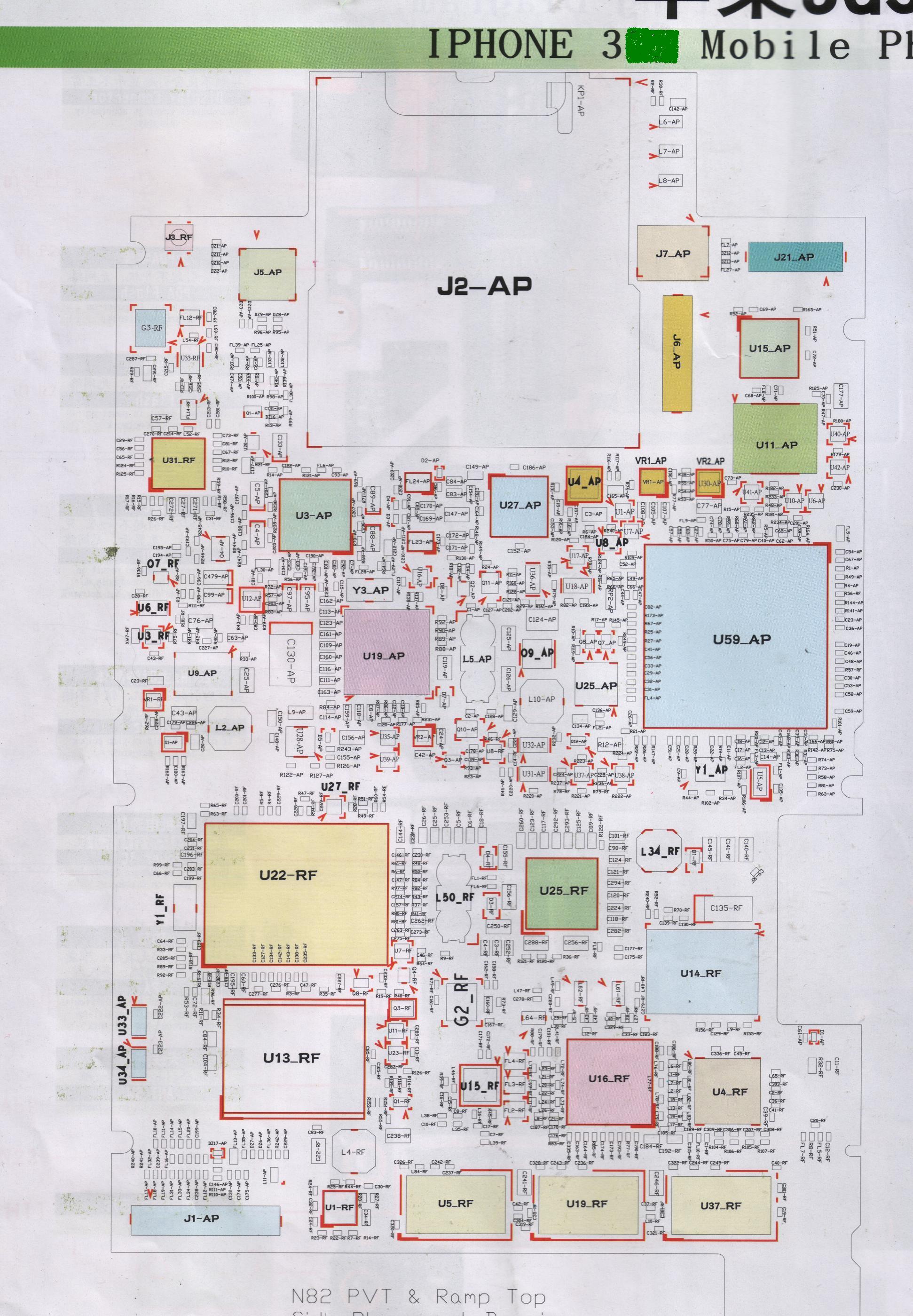

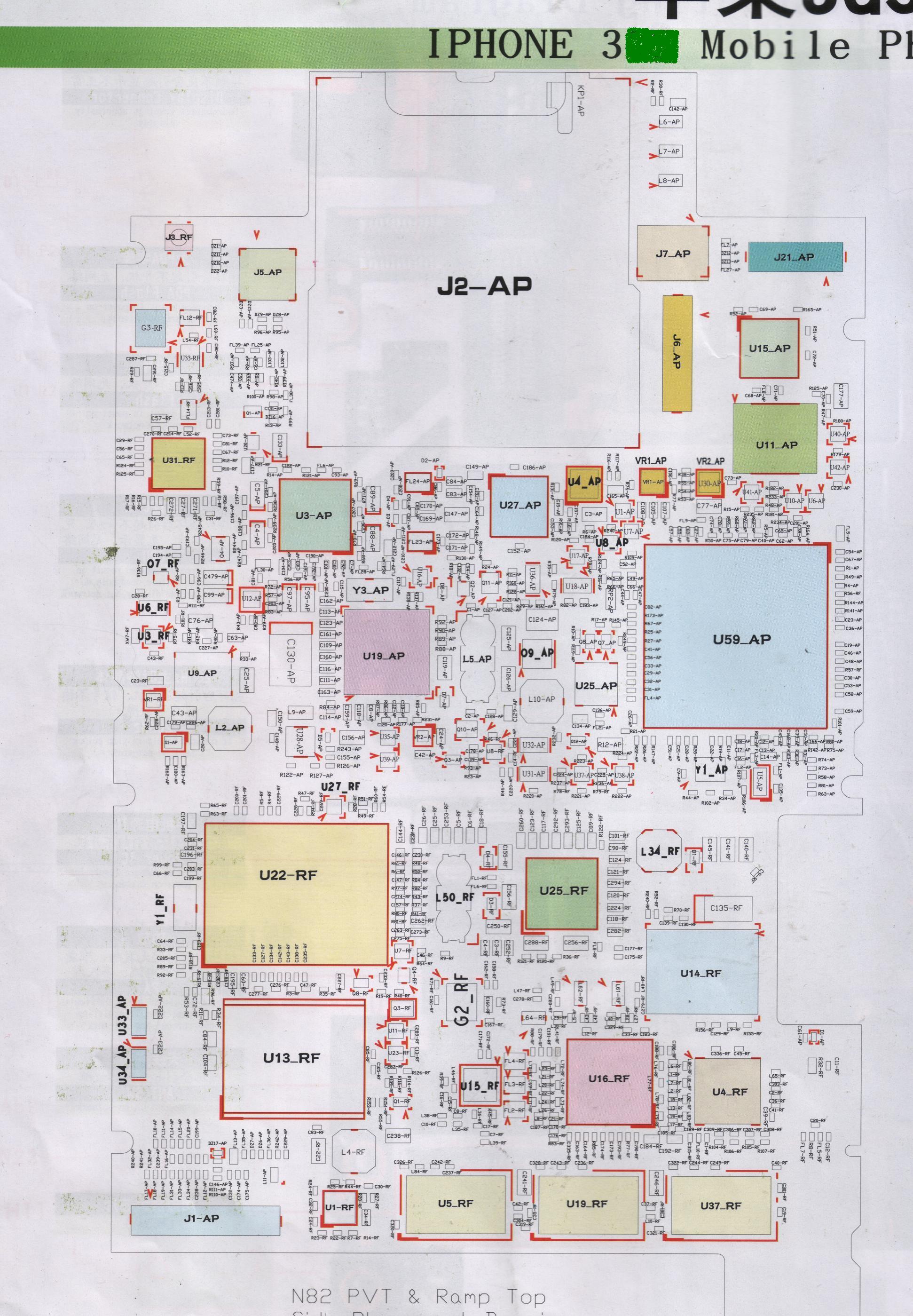

    Iphone 3G schematic

    Bitte sehr :cool:

    Proxy


    Attached Files:

  3. Charadis macrumors 6502a

    Joined:
    Jul 3, 2010
    #3
    OP, I can't really tell much from your picture. Do you have a clearer image? I'll try to Google a close up of the logic board, but you need a chip-resistor; do you see any printing or numbers on it? You can calculate what you need at this site if you can find any inscription on it.

  4. proxy97 macrumors newbie

    Joined:
    Apr 22, 2014
    #4
    Iphone 3g resistors

    Look down to .
    schematic.pdf

    1. R8_RF 100 K 1% 1/20W MF 201
    2.DZ12_AP 100PF 0201 6,8V


    LG Proxy:D

  5. Charadis macrumors 6502a

    Joined:
    Jul 3, 2010
    #5
    Amazing, how did you find this, Proxy?? I didn't notice the schematics you attached at the bottom, too, just the diagram. Thanks for that, and for doing the hard part! Can't imagine how long the BOM must look like on the 4 and 5. :)

    OP, per Proxy's info, the part in 1.) is a 100KOhm 1/20w (0.05watt) resistor with 1% tolerance in a 0201 package (0603 metric). It looks like it is in a metal film (MF) composition, based on the info. This part is found in Proxy's attached schematic diagram at the bottom right between SMDs FL7-RF and FL5-RF.
    I believe the second part, 2.), found in the upper right of the schematic diagram, between SMDs J7-AP and J21-AP, in the little SMD array running vertical, appears to be specs for a varistor rated at 100pF (picoFarads) at 6.8volts in a 0201 package (0603 metric).
    Here is a link on DigiKey for finding resistors with the desired ratings:
    DigiKey resistors

    You might also try Mouser or Arrow, or Future Electronics. Sent from my MacBook Pro.

  6. proxy97 macrumors newbie

    Joined:
    Apr 22, 2014
    #6
    Iphone 3g resistors

    :D
    Thx for full info about parts :)

    i repair iphones but i´m not a technician :)
    i read schematic and search in a google :)

    and my english is very basic:eek:

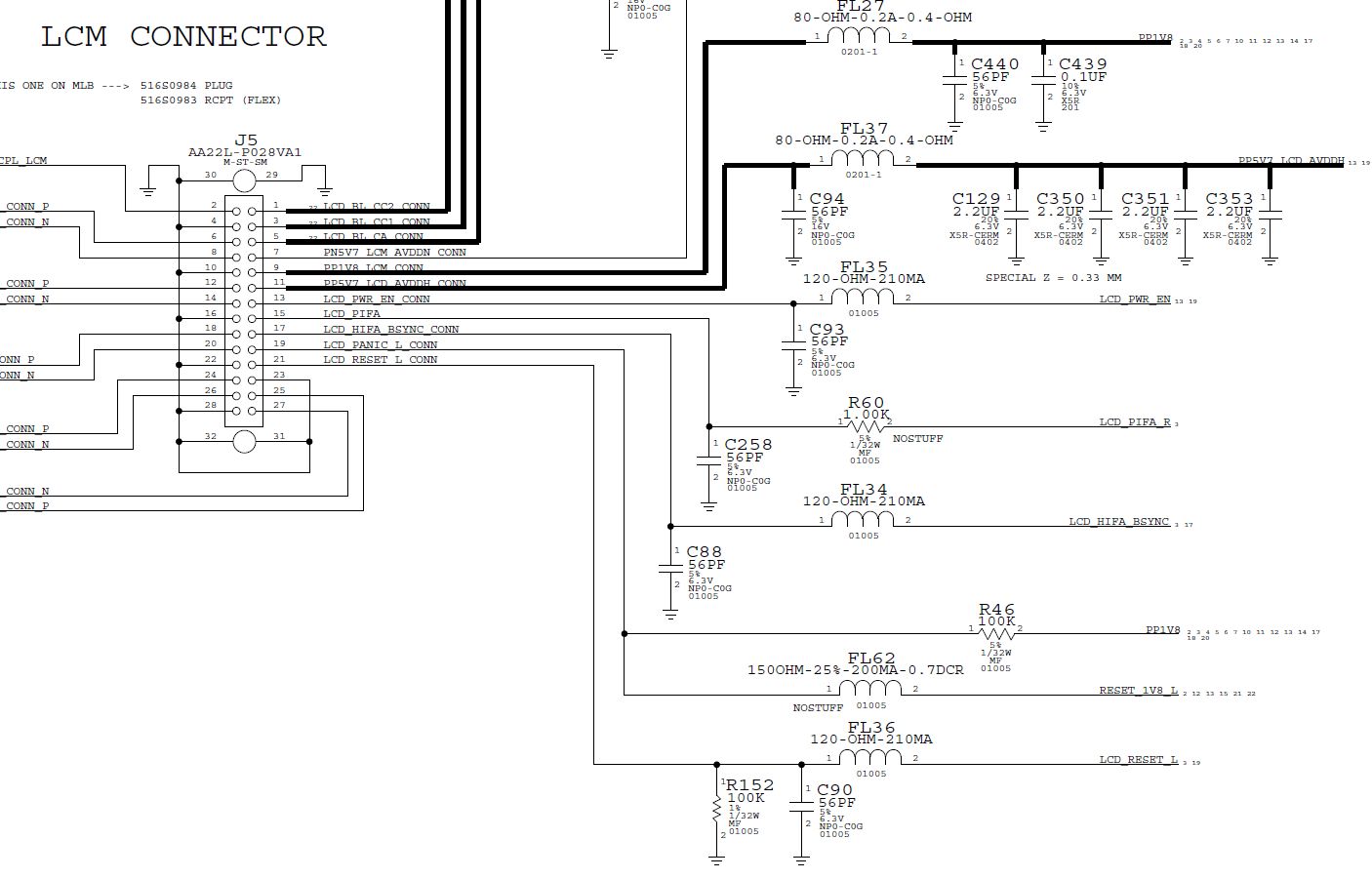

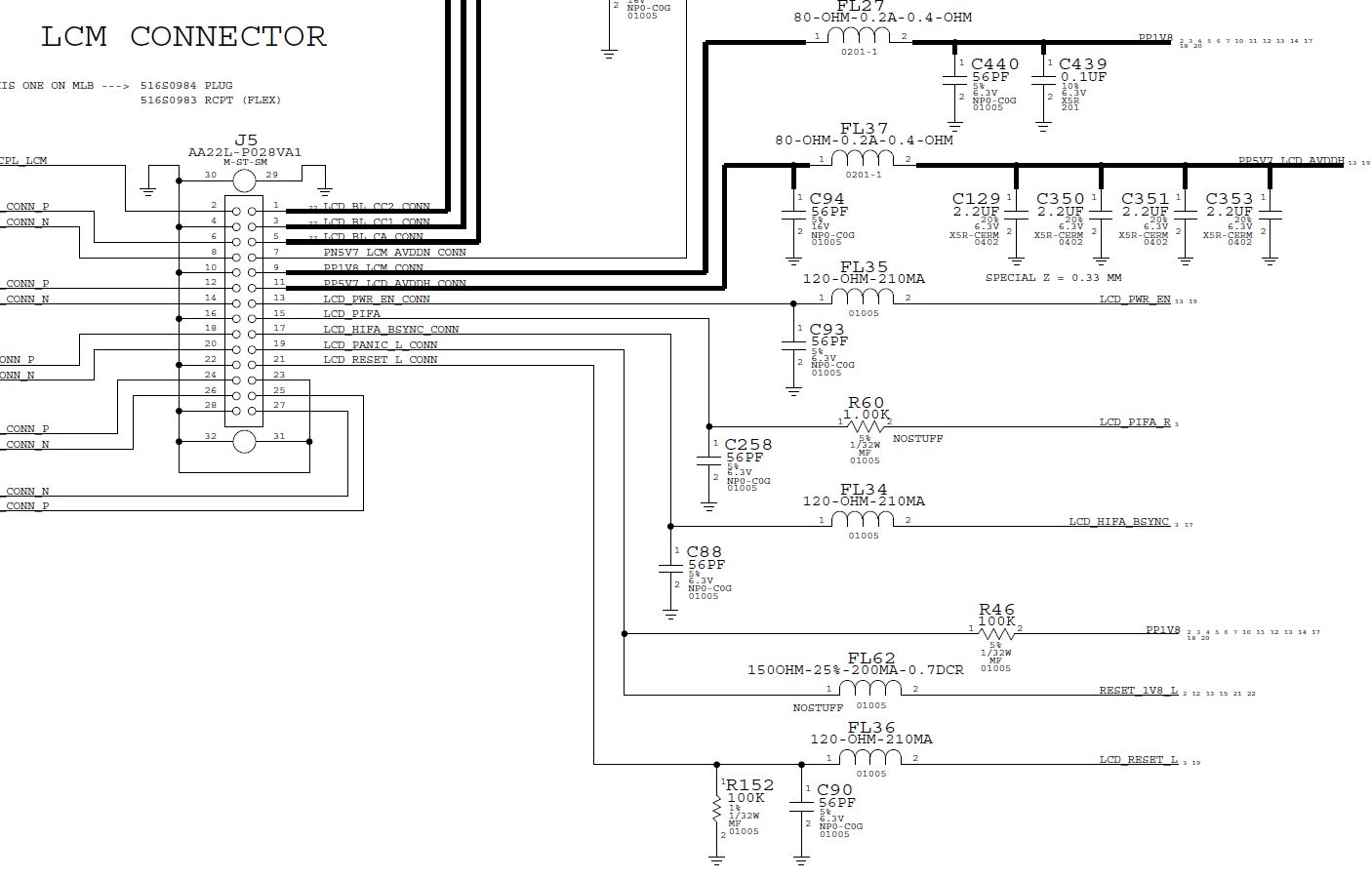

    I need any parts for iphone 5 : can you write info about this for me?

    1. (C93)- 56PF 5% 6.3V NP0-C0G 01005
    2. (C88)- = 1
    3. (C258)-= 1
    4. (FL34)- 120-OHM-210MA 01005
    5. (FL35)- = 4
    6. (FL62)-150OHM-25%-200MA-0.7DCR NOSTUFF 01005
    7. (R46)- 100K 5% 1/32W MF 01005
    8. (R60)- 1.00K 5% NOSTUFF 1/32W MF 01005
    9. (R152) - 100K 1% MF 1/32W 01005
    10 (J5) - AA22L-P028VA1 M-ST-SM

    LG Proxy:rolleyes:
