iPhone 3G vs. iPod earbud contacts

Discussion in 'iPhone Tips, Help and Troubleshooting' started by PNutts, Aug 17, 2008.

  1. PNutts macrumors 601

    PNutts

    Joined:
    Jul 24, 2008
    Location:
    Pacific Northwest, US
    #1
    I noticed my iPod earbuds have three conacts and the iPhone earbuds have four contacts. I've been using the iPod earbuds for both and they work, but I'm curious about the extra contact on the iPhone. Any thoughts? Thx.

  2. doobi18 macrumors 6502

    Joined:
    Dec 31, 2006
    Location:
    Sydney, Australia
  3. Warbrain macrumors 603

    Warbrain

    Joined:
    Jun 28, 2004
    Location:
    Chicago, IL
    #3
    And it's actually 3 contacts for the iPhone, 2 for the iPod...

  4. doobi18 macrumors 6502

    Joined:
    Dec 31, 2006
    Location:
    Sydney, Australia
    #4
    my iPhone ones have 4 actually (the contacts are the number of metal bits - not the separating plastc bands)

  5. PNutts thread starter macrumors 601

    PNutts

    Joined:
    Jul 24, 2008
    Location:
    Pacific Northwest, US
    #5
    :eek: I was looking through the forum (since my search didn't pull up anything) and saw that the iPhone earbuds have a microphone. I didn't unwrap them because I was using the iPod earbuds. Duh!

    Thanks everyone for the replies.

  6. Warbrain macrumors 603

    Warbrain

    Joined:
    Jun 28, 2004
    Location:
    Chicago, IL
    #6
    No ****. And a large part of the jack is not wired for usage. Why the hell do you think there's such a large space when only two connectors for a regular headphone plug? Because there's TWO channels - left and right. Could there be four on the iPhone headphones? Yes, but I doubt it.

    Edit: In fact, I'm sure they don't. It has to have a ground. Look here:

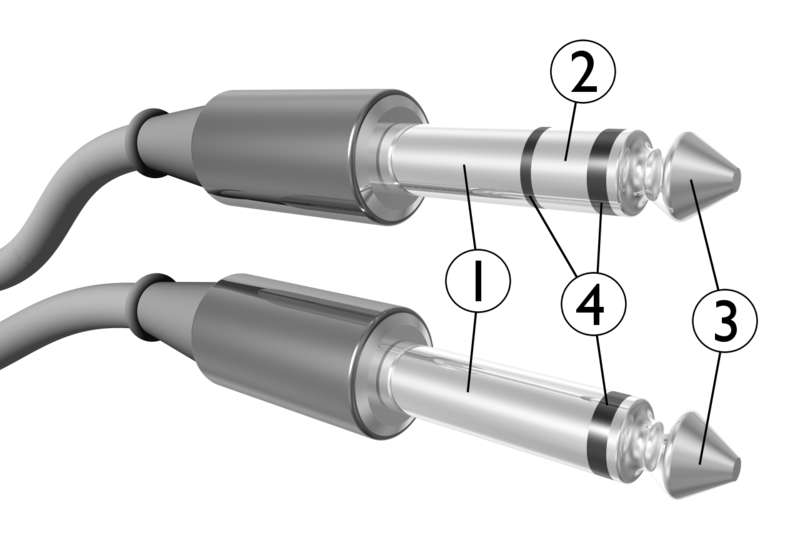

    [​IMG]
    1: ground.
    2: right channel
    3: left channel
    4: insulating rings.

    Odds are the iPhone goes like so:
    tip: left channel
    next section: right channel
    next section: microphone/button
    last section: ground

  7. StoneColdSober macrumors 6502

    Joined:
    Jul 19, 2008
    #7
    I have looked at my iPod earbuds and they definitely have 3 metal sections with 2 separators. I don't have my iPhone earbuds with me but I would assume it would have a 4th metal section. I'll have to pull them out of my box at home and see.

  8. Warbrain macrumors 603

    Warbrain

    Joined:
    Jun 28, 2004
    Location:
    Chicago, IL
    #8
    Which the one is the ground. No signal passes through it.

  9. doobi18 macrumors 6502

    Joined:
    Dec 31, 2006
    Location:
    Sydney, Australia
    #9
    Here's an idea; before you get all angry and make your own assumptions, go and look a a blidy pair

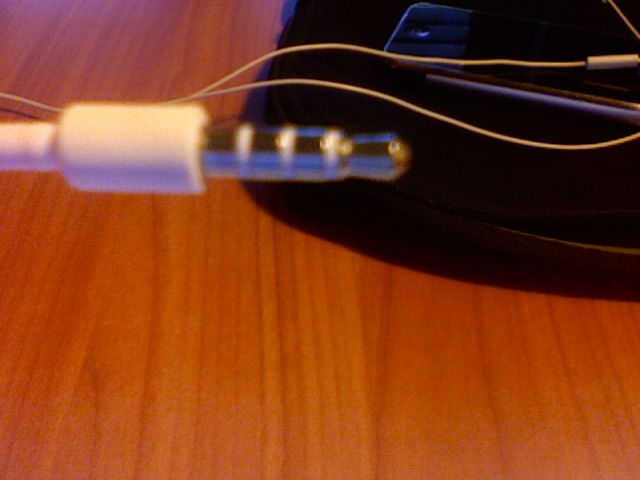

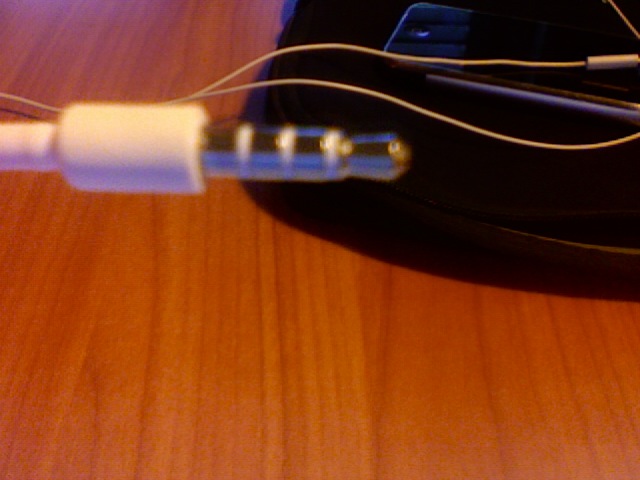

    Here's a pic:
