iPhone 3GS has MOTORIZED lense!

Discussion in 'iPhone' started by glossywhite, Jul 7, 2009.

  1. glossywhite macrumors 65816

    glossywhite

    Joined:
    Feb 28, 2008
    #1
    Hi all. I don't know if anyone else has examined the autofocus lense of the 3GS, but I have just done so... and the lense is indeed motorized!. If you set the camera to focus on your fingertip and then hold the camera corner of the 3GS at a slight angle to a light source, so that the hole in the casing for the camera, casts a slight shadow on the lense mount, and then move your finger back and forth, you will SEE the lense mount MOVING inside the 3GS!.

    I was not THAT surprised, but it sure is nice to know Apple have done this properly with a voice coil & magnet mechanism (probably?) and not used some pixel-shuffling, grain inducing digital quasi-autofocus trickery.

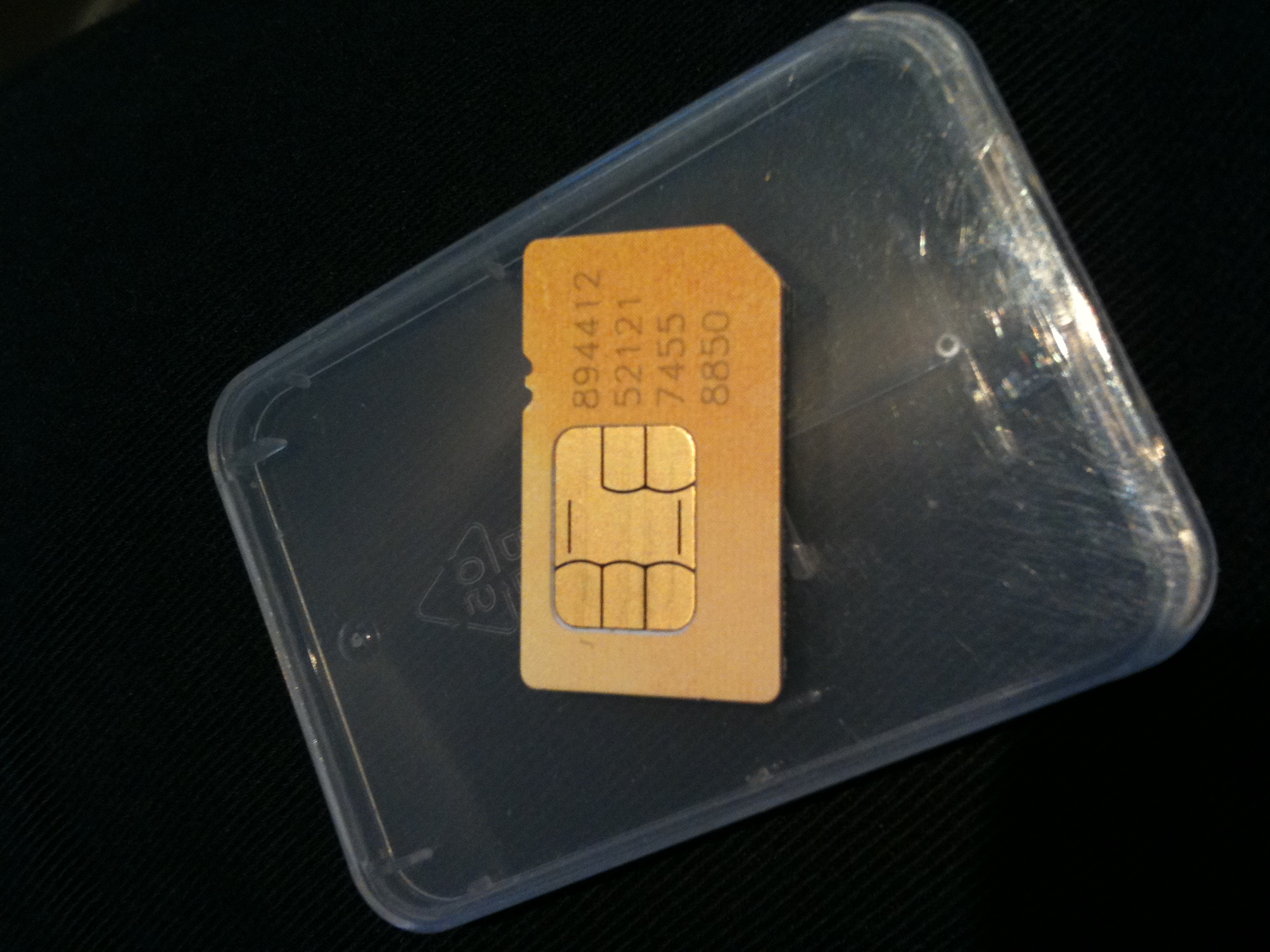

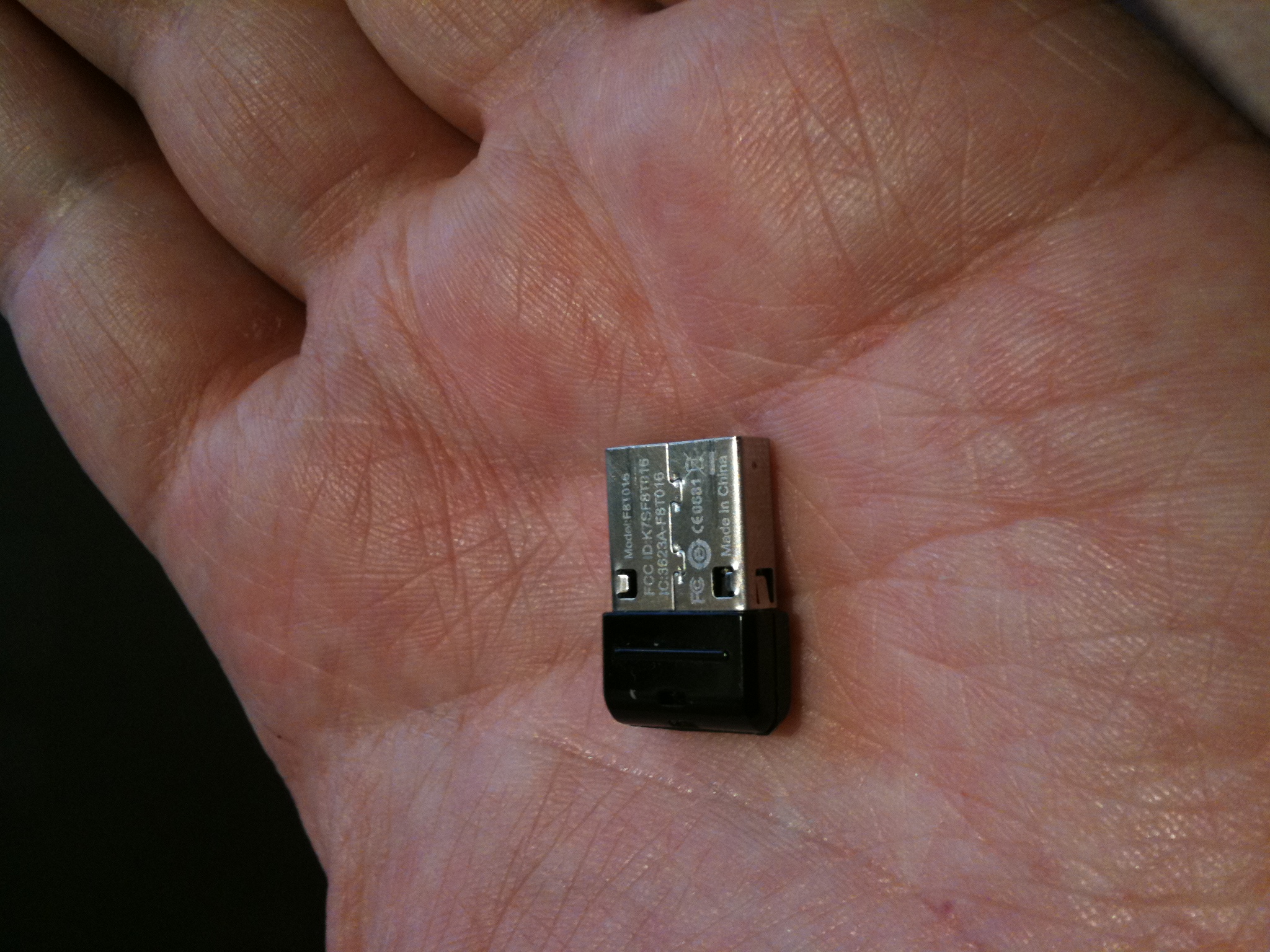

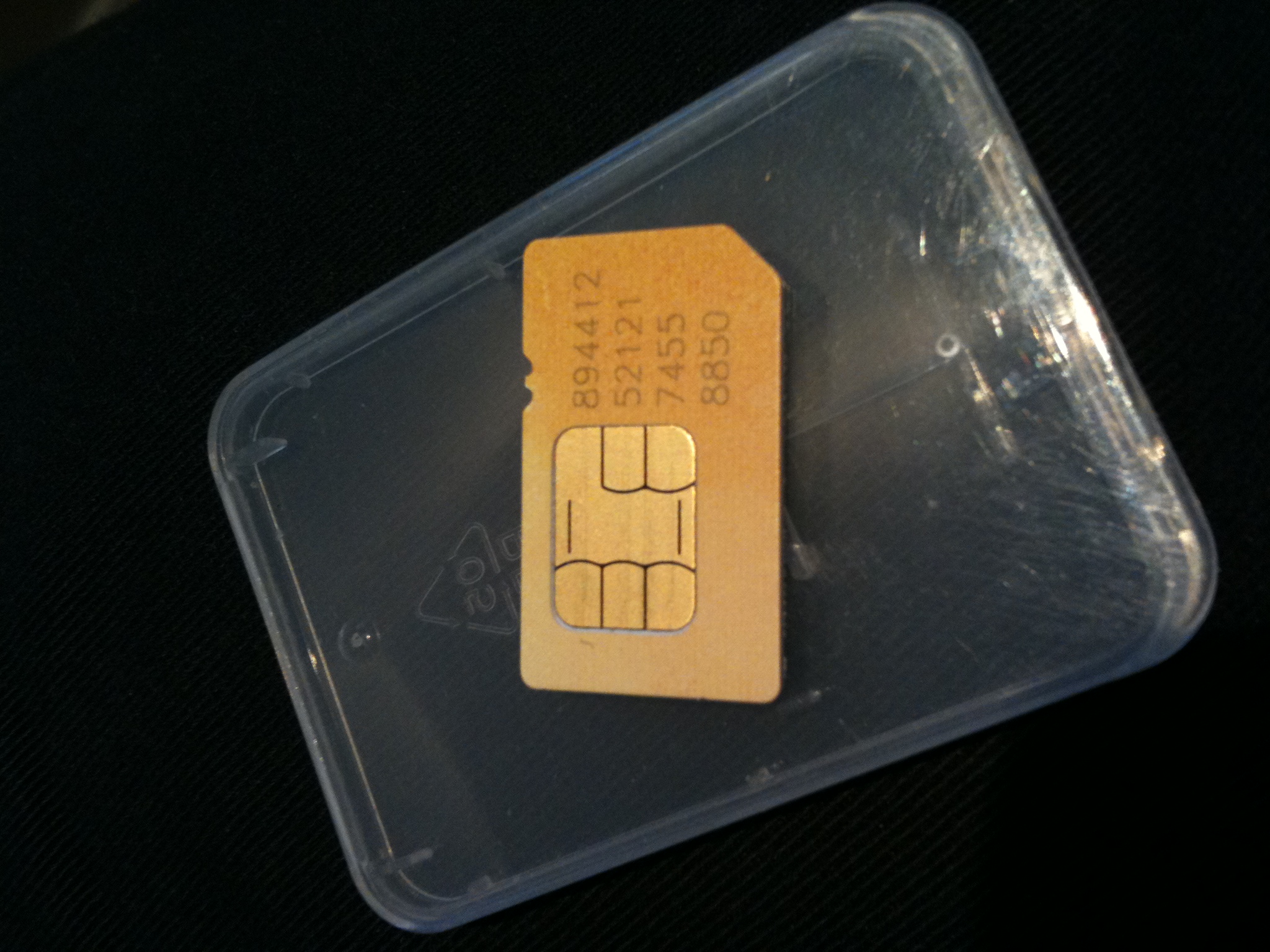

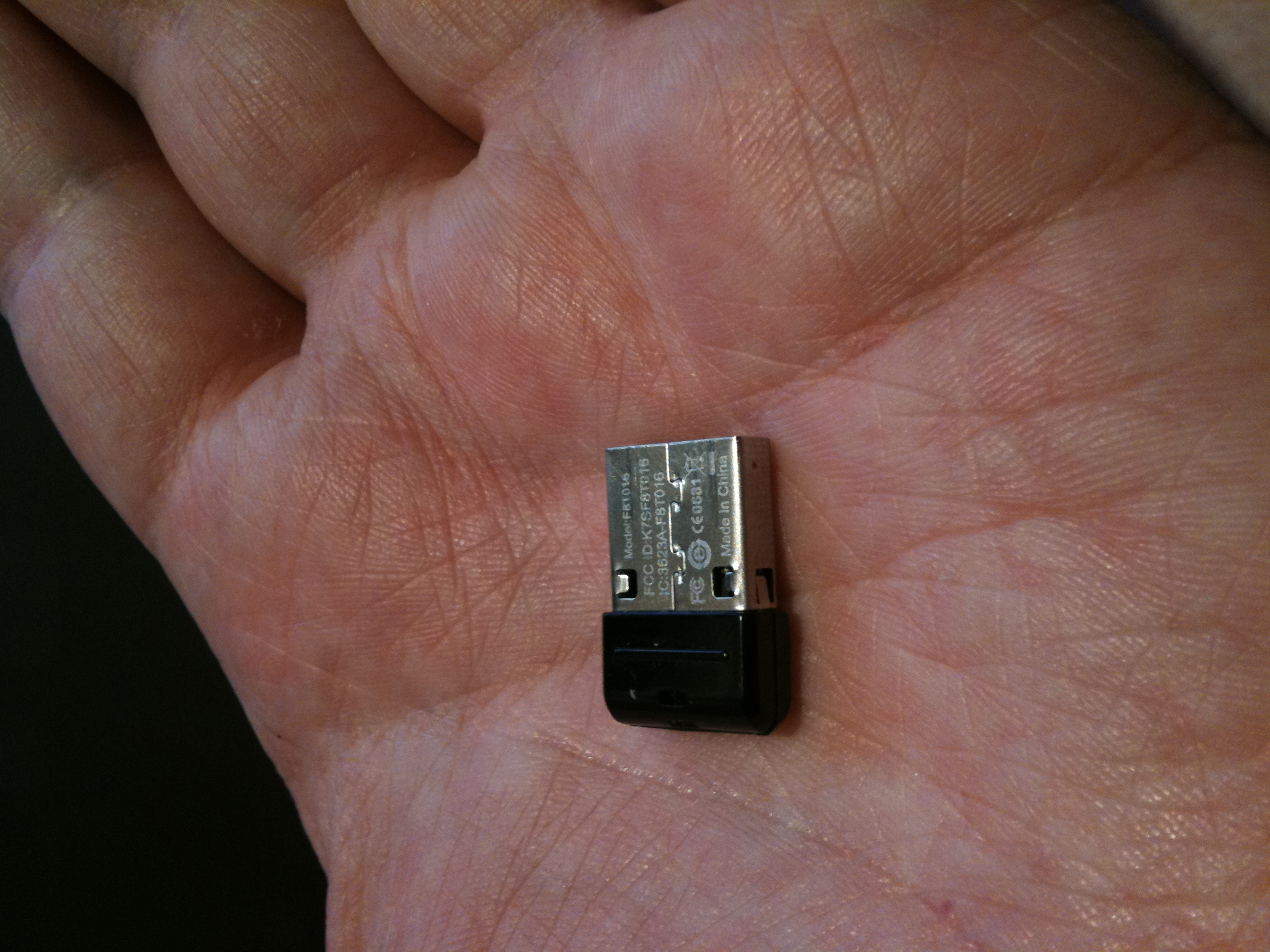

    Just hadn't seen many people mention this as yet; I'm going to TRY and make a video of it, using... yep, the 3GS (in a mirror!). In the meantime, peruse my rather rushed efforts at macro photos:


    Attached Files:

  2. ViPa macrumors 6502a

    Joined:
    Dec 4, 2007
    #2
    obviously you were if you made a thread about it

  3. JayLenochiniMac macrumors G5

    Joined:
    Nov 7, 2007
    Location:
    New Sanfrakota
    #3
    Now is the el cheapo $10 lens for the rumored next-gen Touch going to be motorized (have autofocus)?

  4. GfPQqmcRKUvP macrumors 68040

    GfPQqmcRKUvP

    Joined:
    Sep 29, 2005
    Location:
    Terminus
    #4
    Isn't the $10 one the one on the iPhone?

  5. glossywhite thread starter macrumors 65816

    glossywhite

    Joined:
    Feb 28, 2008
    #5
    Yes, a little... your point?

  6. cellocello macrumors 68000

    cellocello

    Joined:
    Jul 31, 2008
    Location:
    Toronto, ON
    #6
    yeah, that's cool.

    It does make me a little jealous of the 3Gs :eek: hahah

  7. maflynn Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #7
    Not to sound flippant but how else would an autofocus lens work. There there has to be a motor to change the distance between lens and the sensor

  8. taran420 macrumors 6502a

    Joined:
    Jun 8, 2008
    Location:
    Toronto, Canada
    #8
    woah woah, slow down cowboy, one step at a time

  9. cellocello macrumors 68000

    cellocello

    Joined:
    Jul 31, 2008
    Location:
    Toronto, ON
    #9
    Hmm ... I would assume it's gonna be the 3G camera, but Apple could prove that wrong and 'splurge' on it.

  10. JayLenochiniMac macrumors G5

    Joined:
    Nov 7, 2007
    Location:
    New Sanfrakota
    #10
    Is it? They always cripple certain features to drive the more expensive product's sale.

  11. TMar macrumors 68000

    TMar

    Joined:
    Jul 20, 2008
    Location:
    Ky
    #11
    Liquid focus lenses?

  12. glossywhite thread starter macrumors 65816

    glossywhite

    Joined:
    Feb 28, 2008
    #12
  13. gloss macrumors 601

    gloss

    Joined:
    May 9, 2006
    Location:
    around/about
    #13
    The parts being stockpiled are the same ones in the 3GS.

  14. raxxal macrumors member

    Joined:
    Aug 7, 2008
    Location:
    Los Angeles, CA. USA
    #14

    Wholly Cow! The Iphone is possess. I just did a quick check, and yes, you can see the lens moving.

  15. richard371 macrumors 68000

    Joined:
    Feb 1, 2008
    #15
    Yup and thats why the 3GS rattles around the camera when you set it down.

    When there is no voltage applied to the magnetic coil containing the lens it moves freely. The curve 8900 has the same lens and it rattles too. Its harmless but people complain about it.

  16. Que macrumors 6502

    Joined:
    Apr 5, 2009
    Location:
    UK
  17. fishmoose macrumors 68000

    Joined:
    Jul 1, 2008
    Location:
    Sweden
    #18
    Lens in French.

  18. frikfrak macrumors regular

    Joined:
    Sep 17, 2007
    #19
    Not only did we get a mechanical auto focus, it comes with a FREE rattle! I've yet to see one that doesn't. I've tested 17 for the infamous rattle: 13 at Apple, 2 at ATT store, mine and a friend's - all have the cheapo sounding noise when you set the phone down on its back, or tap on the back around the camera.

  19. glossywhite thread starter macrumors 65816

    glossywhite

    Joined:
    Feb 28, 2008
    #20
    That's the lense element moving - it's sprung - what did you expect, and how on earth does that make it 'cheapo'?!. Don't tap TOO hard.

  20. Merkie macrumors 68020

    Joined:
    Oct 23, 2008
    #21
    What's so weird about this fact? Every autofocus camera has a motorized lens, they've been in phones for years. Nothing special here. :confused:

  21. meagain macrumors 68030

    Joined:
    Nov 18, 2006
    #22
    I wish they'd make a bit of a zoom. Every pic I take looks so much farther away then it is.

  22. glossywhite thread starter macrumors 65816

    glossywhite

    Joined:
    Feb 28, 2008
    #23
    When did I say it was weird?. No, NOT all autofocus camera phones have motorized lenses; I used to repair and unlock mobiles and the only one I have seen to date (I'm probably out of date here) was the K750i by SE.

    Many cameras synthesize functions digitally, so this is why I made a point of informing people. Sorry, is that an issue for you?. Not everyone is all-knowing with hi-tech, and yes, it DID surprise me in a pleasant way.

  23. cellocello macrumors 68000

    cellocello

    Joined:
    Jul 31, 2008
    Location:
    Toronto, ON
    #24
    Man, I remember when I used to think those Sony phones were the bee's knees.
