iPhone 4 Dock to Lightning Conversion

Discussion in 'iPhone Accessories' started by ipedro, Oct 5, 2012.

  1. ipedro macrumors 68040

    ipedro

    Joined:
    Nov 30, 2004
    Location:
    Toronto, ON
    #1
    I'm starting on a project to convert my iPhone 4 dock into a Lightning dock.

    In principal, there's no reason why this shouldn't work. I looked up iFixit's teardown and found that:

    - It seems pretty straightforward to disassemble
    - The 30 Pin dock connector opening will be more than wide enough to allow a Lightning connector to pass through

    I may have to strip the Lightning connector but once the housing is off, it'll fit inside the dock and a glue gun will be all that's needed to keep it in place.

    Of course the function of the dock will be merely for charging with the original cable protruding out the back instead of the 30 pin Dock connector. The audio jack will not work.

    I'll post pictures when I'm done.

  2. gsugolfer macrumors 6502a

    gsugolfer

    Joined:
    Jul 11, 2010
    Location:
    Georgia, USA
  3. akonikui macrumors regular

    Joined:
    Jun 30, 2007
    #3
    Very interested! I'd love to see how this turns out, as this is exactly the kind of dock I'd want.

  4. ipedro thread starter macrumors 68040

    ipedro

    Joined:
    Nov 30, 2004
    Location:
    Toronto, ON
    #4
  5. Senseotech macrumors 6502a

    Senseotech

    Joined:
    Nov 23, 2009
    Location:
    Wilkesboro, NC
    #6
    The wording is a little funky, but its obvious that the dock mentions are about the 4S and lower. Anyway, back on topic, I'm subscribed since this sounds quite interesting. Good luck and be sure to document so the rest of us can get our hands dirty and try if it works!

  6. ipedro thread starter macrumors 68040

    ipedro

    Joined:
    Nov 30, 2004
    Location:
    Toronto, ON
    #7
    An update: I took apart the Lightning connector and found that the iPhone4 dock is too low profile to fit the connector in there without re-soldering the connections. I don't have the equipment to do that -- the connections are tiny. An L shaped plug would work or you have to re-solder the existing cable into a 90' L shape.

    This may require more skill than simply discarding the insides of the iPhone4 dock, threading the Lightning cable through and holding it in place with a glue gun.

  7. wpalomine macrumors member

    Joined:
    Oct 22, 2010
    #8
    I too tried converting an iPhone and iPad docks, but could not fit the iphone5 dock connector. I ended up creating a Lego dock with back support.

    For anyone creating a DIY dock, don't forget to compensate for a case. Raise the connector by the thickness of your case. This way the dock will work for both naked and cased iphone5.

  8. bbydon macrumors 6502a

    Joined:
    May 18, 2005
    Location:
    ATL
    #9
    Mind posting a picture of the lego dock? Sounds Fun!

  9. wpalomine macrumors member

    Joined:
    Oct 22, 2010
    #10

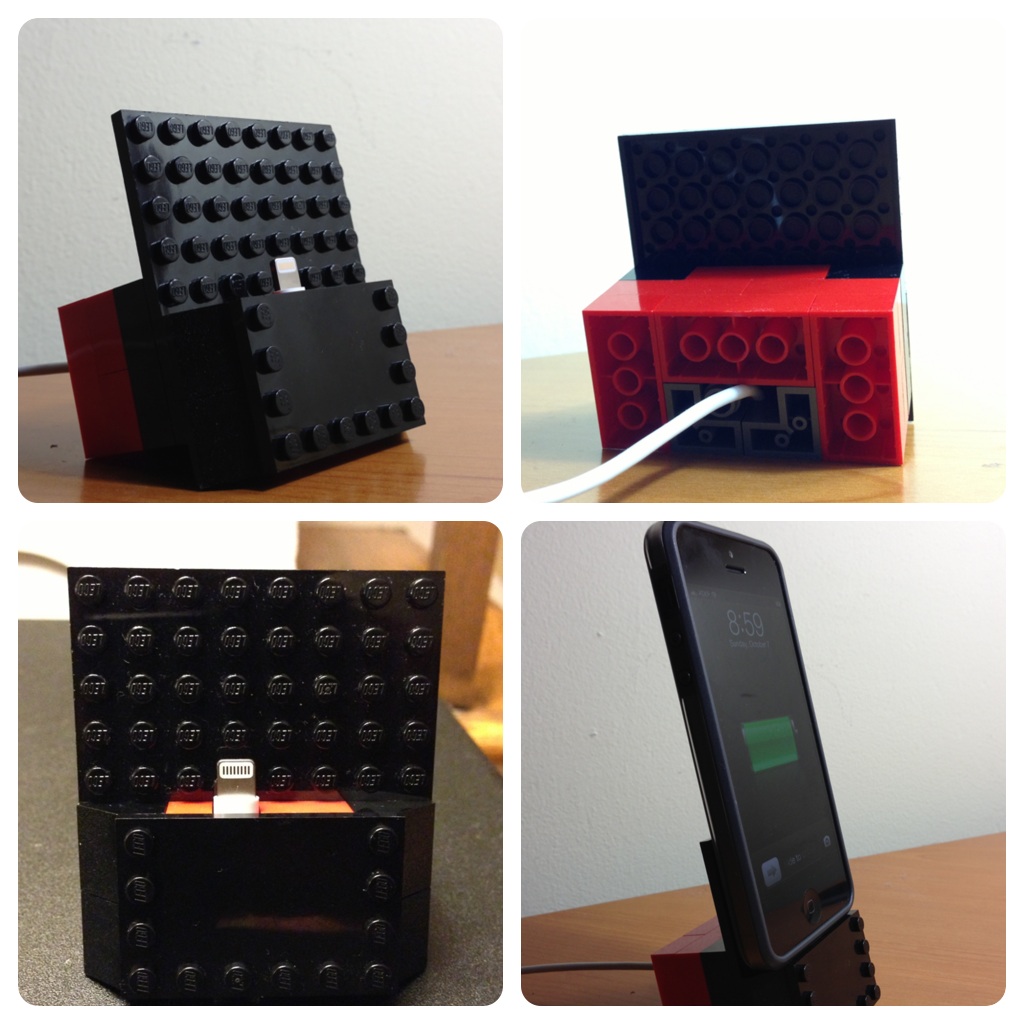

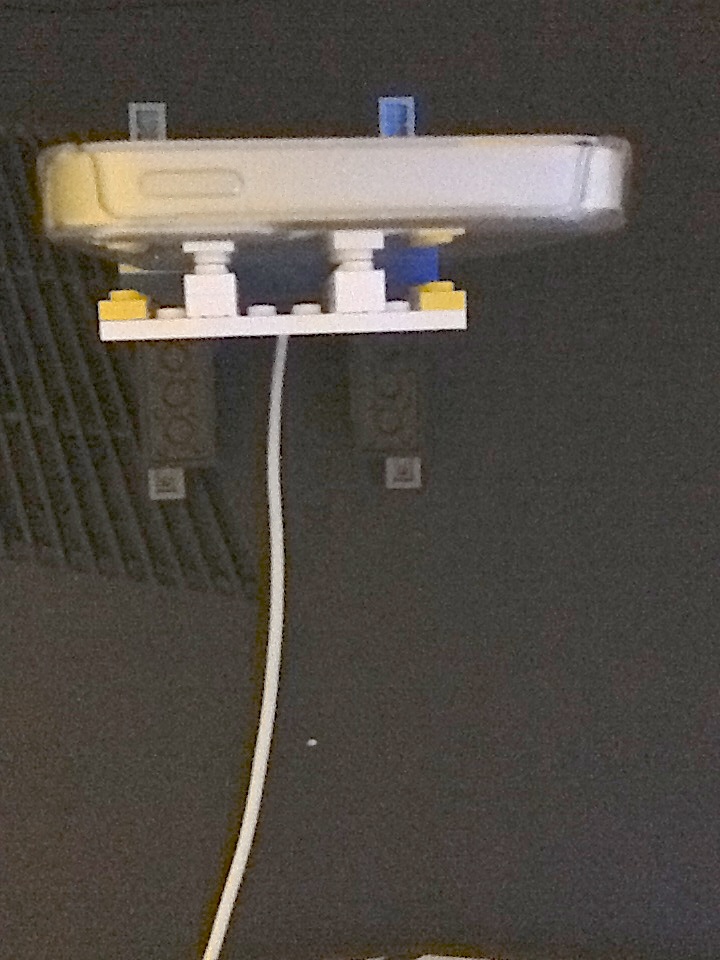

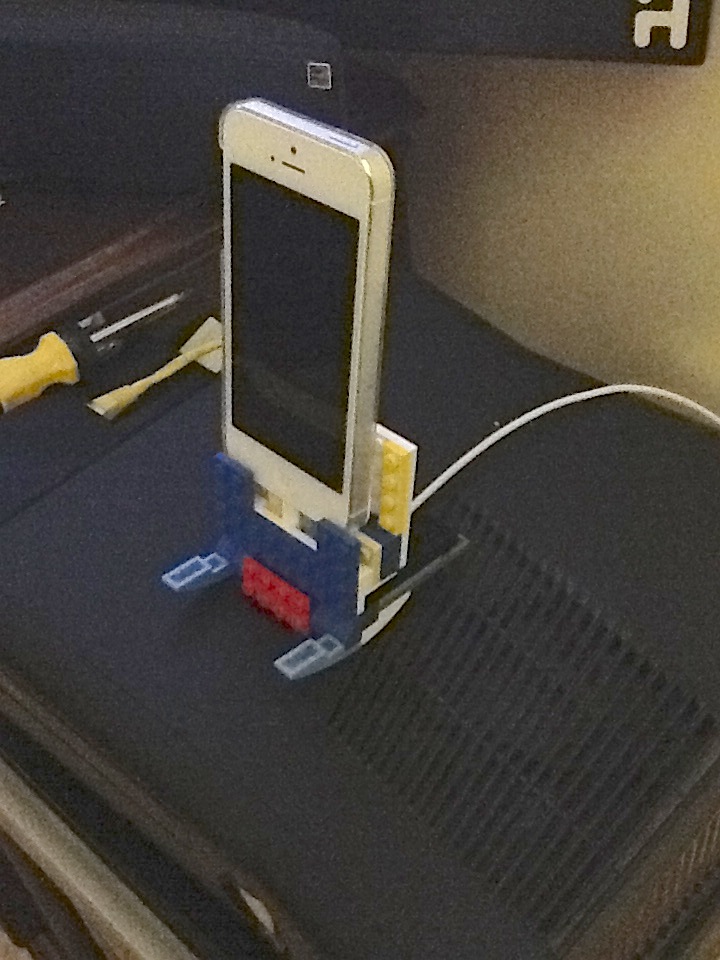

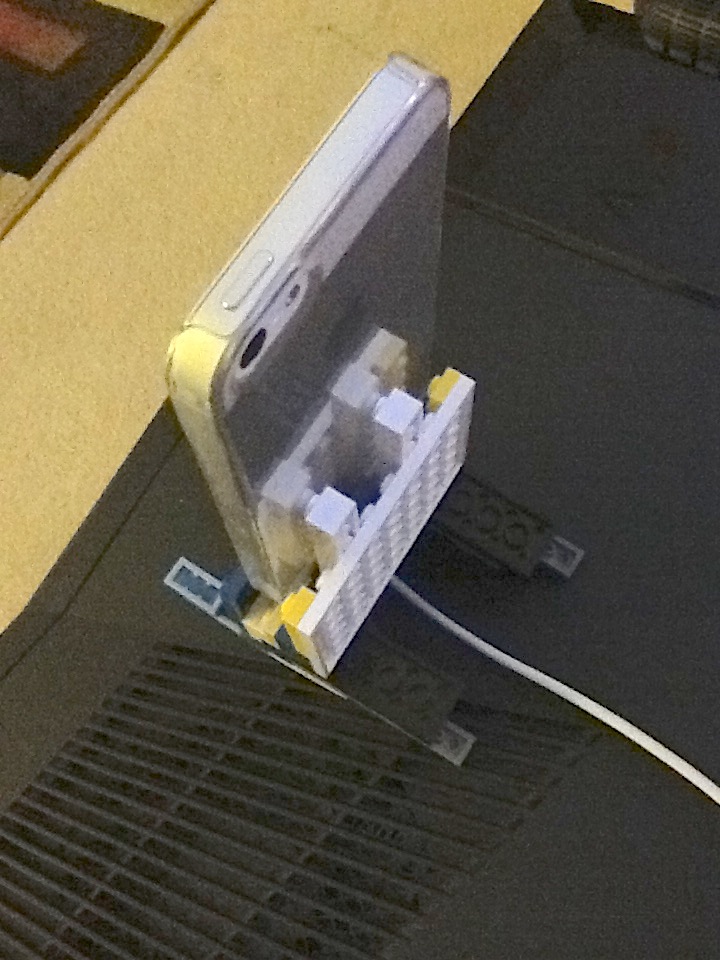

    Pic of DIY dock, after failed apple dock conventions.


    Attached Files:

  10. Senseotech macrumors 6502a

    Senseotech

    Joined:
    Nov 23, 2009
    Location:
    Wilkesboro, NC
    #11
    You sir(ma'am?), you win the internet. Now pardon me while I run out to find my old box of legos.

  11. bbydon macrumors 6502a

    Joined:
    May 18, 2005
    Location:
    ATL
    #12
    Very Awesome! Nice job!

  12. iboost4u macrumors newbie

    iboost4u

    Joined:
    Jan 8, 2012
    Location:
    HONOLULU HI
    #14
    Lego dock

    do you have a break down of this Lego dock in pieces want to build it.

  13. mysterydate macrumors 6502

    mysterydate

    Joined:
    Feb 24, 2010
    Location:
    Waseca, MN
    #15
    Love the Lego dock! Reminds me of the 20th Anniversary Mac.

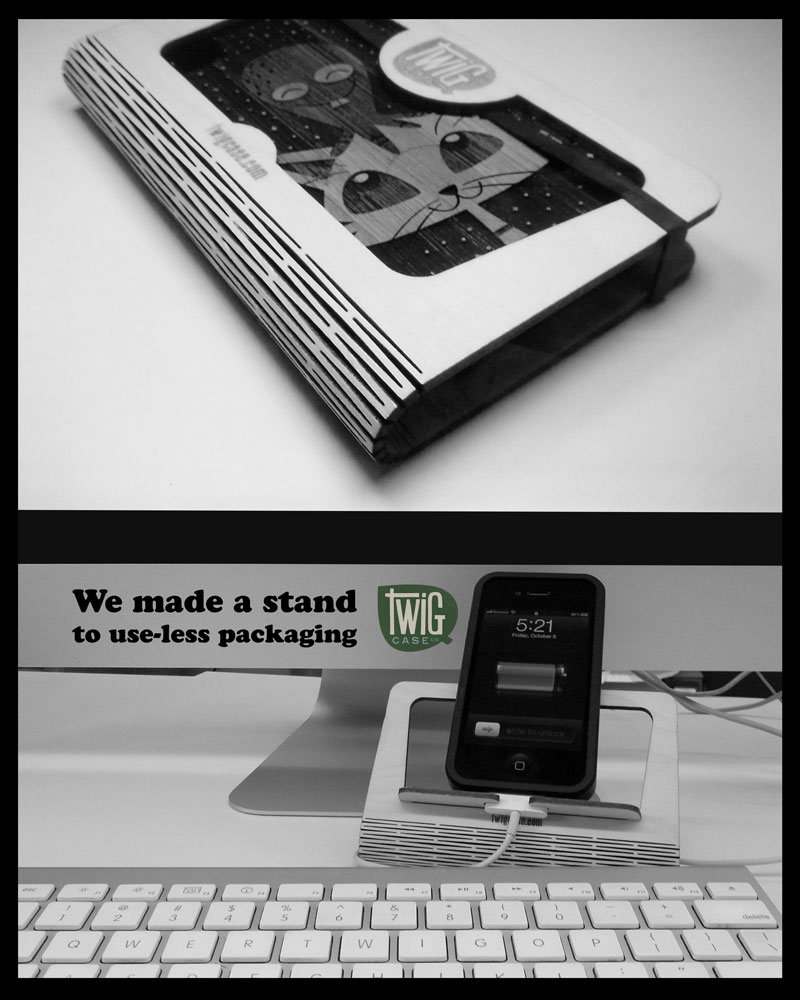

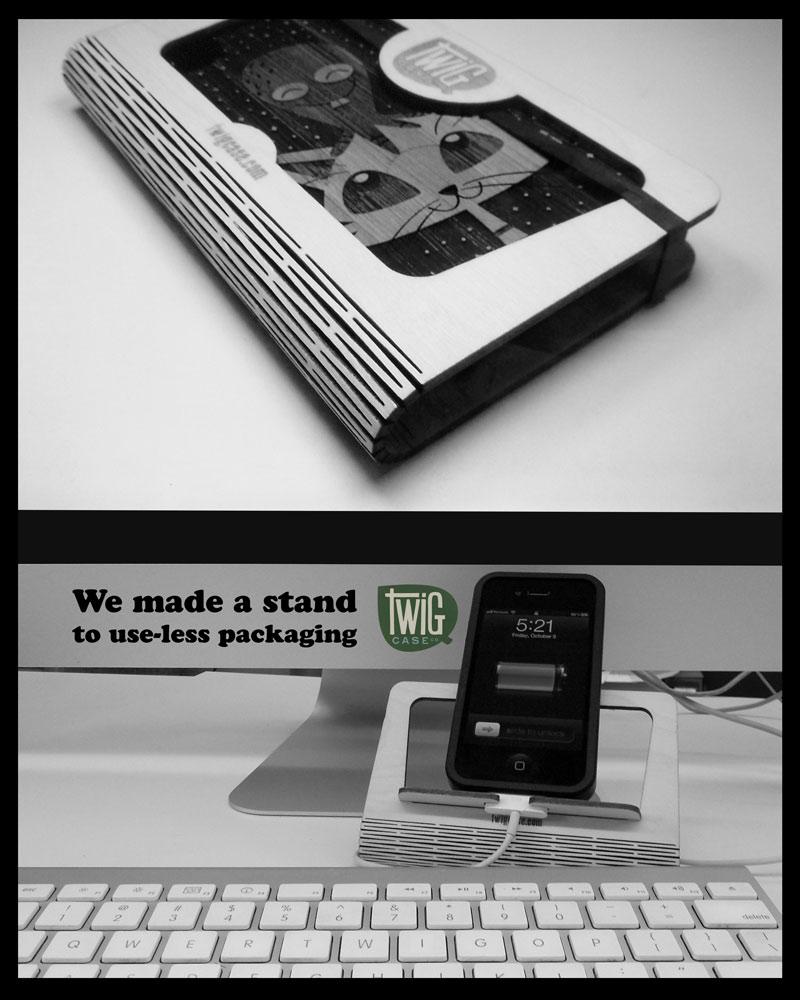

    Our case's new package is a charging stand/dock, and comes with every case, because it's the package. (iP5 too) I lurv it. :)


    Attached Files:

  14. jk4lebron23 macrumors 65816

    jk4lebron23

    Joined:
    Apr 6, 2010
    Location:
    Nashville,TN
    #16
    how? what lego set?.....you are freaking awesome btw :D

  15. jk4lebron23, Oct 9, 2012
    Last edited: Oct 9, 2012

    jk4lebron23 macrumors 65816

    jk4lebron23

    Joined:
    Apr 6, 2010
    Location:
    Nashville,TN
    #17

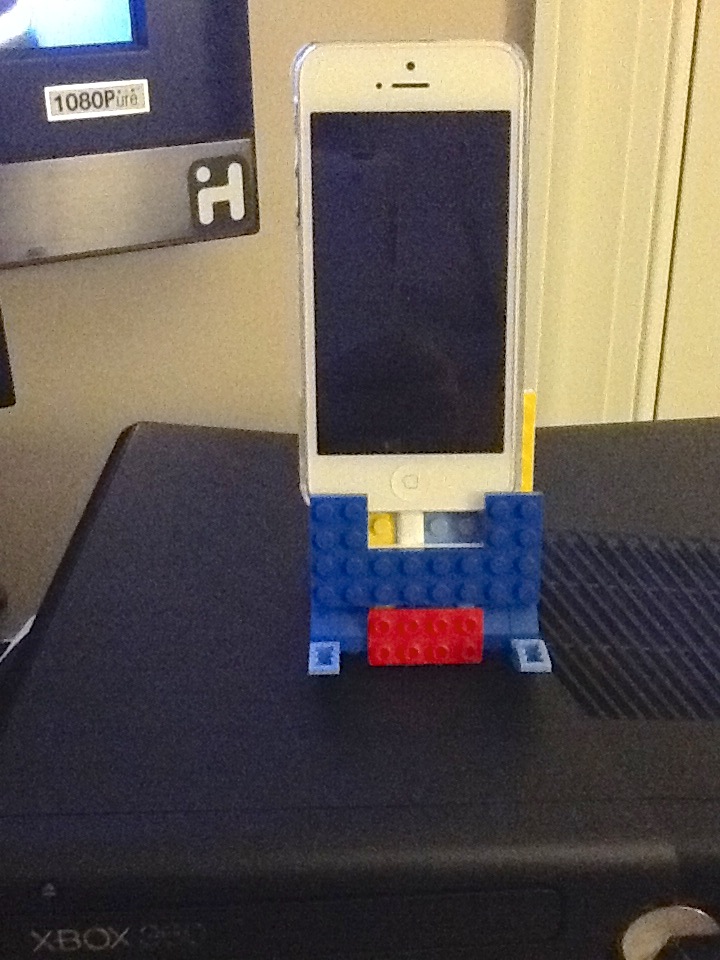

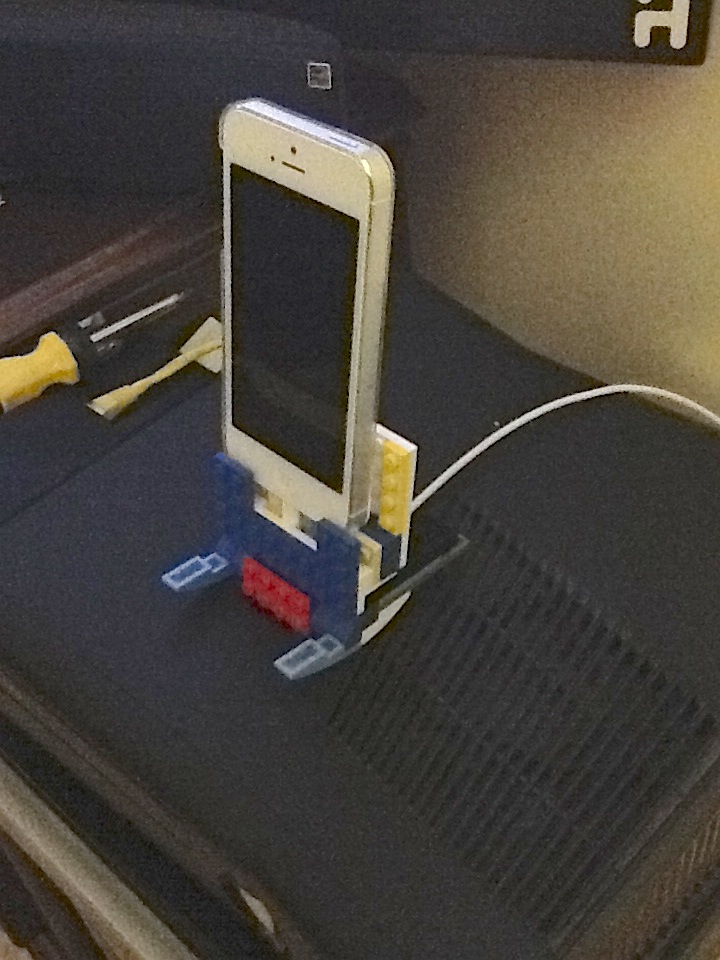

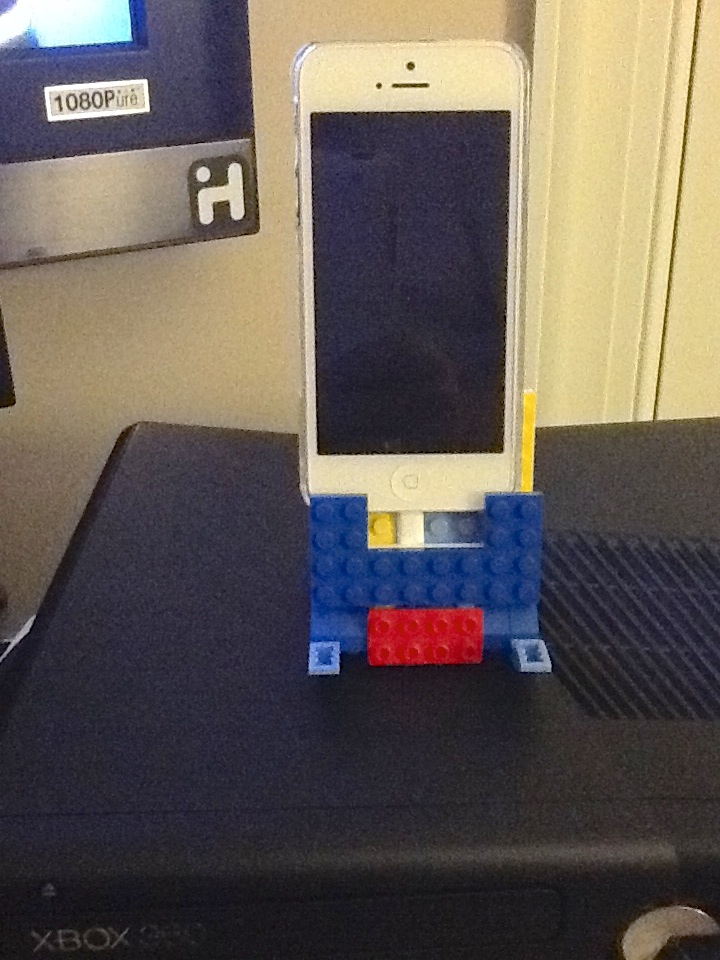

    tried the lego thing, not as nice as the other guys but it serves the purpose :eek:


    Attached Files:

  16. ToddJ macrumors 6502

    Joined:
    May 23, 2008
    #18
    have you tried again since then? i was looking to convert my iPad 30 pin dock to a lightning one (where i just thread the lightning cable through.)

  17. ipedro thread starter macrumors 68040

    ipedro

    Joined:
    Nov 30, 2004
    Location:
    Toronto, ON
    #19
    Talk about blast from the past! Docks have since become widely available so I just purchase one with a new iPhone.

    I'm a fan of the Twelve South HiRise Lightning Dock. I use one for my iPhone 6 Plus and iPad Air.
