iPhone 4 logic board snapped

Discussion in 'iPhone Tips, Help and Troubleshooting' started by paulinechiv, Nov 10, 2012.

  1. paulinechiv macrumors newbie

    Joined:
    Nov 10, 2012
    #1
    While repairing my daughters iphone 4 I found that a small part of the
    logic / motherboard had snapped off.
    This is the part at the top, of the board probably about 1mm square, that
    connects the wifi antenna to the board,
    My question is, is there any suitable glue (obviously not super glue, to brittle when hot and doesn't conduct if needed) that could be used, as this has now caused the phone to only pick up wifi if stood within about 1 - 2 feet from the router.

    Apart from this, the phone is perfect so would be a shame to lose it over what is
    really a small issue

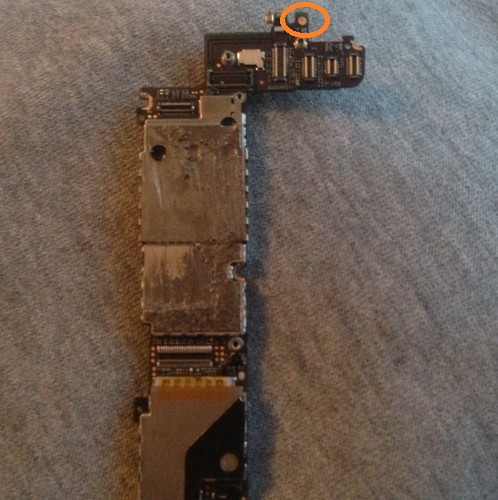

    I have attatched a pic, the snapped piece is the one that has been circled in red.

    MAny thanks.


    Attached Files:

  2. dalethomas81 macrumors newbie

    Joined:
    Nov 11, 2012
    #2
    Radio shack sells conductive pens that you could use to "draw" the traces back on with after you've glued it....

  3. paulinechiv thread starter macrumors newbie

    Joined:
    Nov 10, 2012
    #3
    Hi, thank you for your reply
    I Was wondering if there would be any tracks inside the board, as once I have glued it I can simply solder a small part where the part is damaged but I cant see any tracks going to or from this part.
    many thanks.

  4. dalethomas81 macrumors newbie

    Joined:
    Nov 11, 2012
    #4
    I'm sorry but I can't help you there! I'm not familiar with that particular board. Best of luck, and please keep us posted...I find this interesting!
