iPhone 5/6/6 Plus actual screen size

Discussion in 'iPhone' started by chraos, Sep 15, 2014.

  1. chraos, Sep 15, 2014
    Last edited: Sep 15, 2014

    chraos macrumors member

    Joined:
    Sep 13, 2012
    Location:
    Southeast
    #1
    Did some calculations and found something kind of interesting. The current iPhone 5/5S screen size is noted as 4 inches...more precise measurements are 100mm for 5/5S, the 6 is 120mm, and the 6 Plus is 140mm. When you actually convert it to inches you get this:


    25.4mm = 1 inch

    iPhone 5/5S: 100mm/25.4mm = 3.937 inches

    iPhone 6: 120mm/25.4mm = 4.724 inches

    iPhone 6 Plus: 140mm/25.4mm = 5.511 inches


    Looking at these numbers, the difference between a 5/5S and 6 is closer to 0.8 inches than 0.7. (4.724 - 3.937 = 0.787 inches) and then the difference between a 6 and 6 Plus is (5.511 - 4.724 = 0.787 inches). Yea this all seems insignificant, etc, etc. But it is interesting to note that the 5/5S was still barely shy of 4 inches where as the 6 and 6 Plus are a solid 4.7 and 5.5. Cue the "who cares" comments....just thought some people might find this interesting.


    EDIT**


    iPhone 5/5S: 326ppi with 1136x640 resolution with that we get the following:

    P. Theorem a^2 + b^2 = c^2

    ((1136/326)^2) + ((640/326)^2) = 15.996

    sqrt(15.996) = 3.9994 inches


    iPhone 6: 326ppi with 1334x750 resolution:

    ((1334/326)**2) + ((750/326)**2) = 22.037

    sqrt(22.037) = 4.694 inches


    iPhone 6 Plus: 401ppi with 1920x1080 res.:

    ((1920/401)**2) + ((1080/401)**2) = 30.178

    sqrt(30.178) = 5.493 inches


    These are your actual display sizes.

  2. jk4lebron23 macrumors 65816

    jk4lebron23

    Joined:
    Apr 6, 2010
    Location:
    Nashville,TN
    #2
    Interesting to know the 5 isn't actually a 4" screen

  3. dryice589 macrumors member

    Joined:
    Dec 10, 2012
  4. chraos thread starter macrumors member

    Joined:
    Sep 13, 2012
    Location:
    Southeast
    #4
    Glad to see some people find this interesting. I sure did. I may be one of the rare exceptions that is having second thoughts about the 6 Plus and it being too big. I have been walking around with a cardboard mock-up and while I have gotten somewhat used to the larger size, I just know the second I put any kind of case on it, its going to start crossing the "too big" line for me....Also want to point out that I mocked up an iPhone 5 on cardboard just to get an idea of how a mock up feels in comparison with the real thing..for me the mock-up feels smaller (could be the weight) so I'm considering the possibility that in the hand the 6 Plus will feel even bigger.

  5. brianld macrumors member

    brianld

    Joined:
    Jul 8, 2008
    Location:
    Seattle
    #5
    Not sure

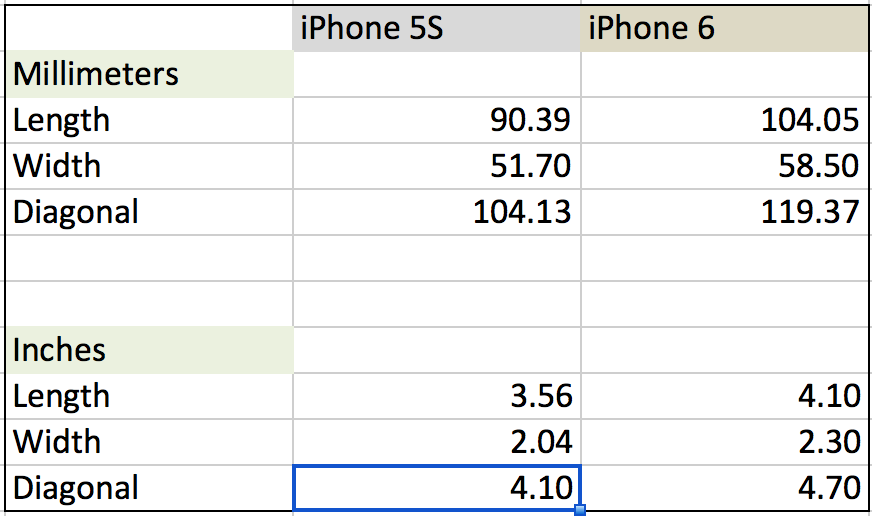

    Not to contradict you, but in looking at the Apple Case Design Guidelines, it looks like the actual difference in size is closer to 0.6 inches. See attached image for calculations based on Apple's case guidelines.


    Attached Files:

  6. marvz, Sep 15, 2014
    Last edited: Sep 15, 2014

    marvz macrumors 6502a

    marvz

    Joined:
    Aug 27, 2012
    Location:
    Berlin
    #6
    You know, he is talking about display size and not the actual size of the phone.

    Edit: Never mind, you are right. You took the right dimensions. So the difference is indeed 0.6''.

  7. anthonymoody macrumors 68020

    Joined:
    Aug 8, 2002
  8. chraos thread starter macrumors member

    Joined:
    Sep 13, 2012
    Location:
    Southeast
    #8
    Well damn, I guess I should have used correct sources...my bad.

  9. chraos thread starter macrumors member

    Joined:
    Sep 13, 2012
    Location:
    Southeast
    #9
    Okay well looks like Apple themselves are wrong. The surefire way to arrive is by using pixel density.

    iPhone 5/5S: 326ppi with 1136x640 resolution with that we get the following:

    P. Theorem a^2 + b^2 = c^2

    ((1136/326)^2) + ((640/326)^2) = 15.996

    sqrt(15.996) = 3.9994 inches


    iPhone 6: 326ppi with 1334x750 resolution:

    ((1334/326)**2) + ((750/326)**2) = 22.037

    sqrt(22.037) = 4.694 inches


    iPhone 6 Plus: 401ppi with 1920x1080 res.:

    ((1920/401)**2) + ((1080/401)**2) = 30.178

    sqrt(30.178) = 5.493 inches


    These are your actual display sizes.

  10. Stetrain macrumors 68040

    Joined:
    Feb 6, 2009
    #10
    Just like a 4" screen isn't necessarily 4.00", how do you know that both screens are exactly 326.00 dpi?

  11. eoblaed macrumors 68000

    eoblaed

    Joined:
    Apr 21, 2010
    #11
    You're assuming more significant figures than you actually have. Those ppi numbers are almost certainly rounded from some other figure. For example, the 4.7 inch phone... you can get a range of 4.688 to 4.702 inches depending if you use 326.4 or 325.5 ppi.

  12. chraos, Sep 15, 2014
    Last edited: Sep 15, 2014

    chraos thread starter macrumors member

    Joined:
    Sep 13, 2012
    Location:
    Southeast
    #12
    fair point...but do pixel fractions even exist? for instance, the i5/5S has exactly 640 pixels across so therefore the width of the screen is 1.96 inches based on the number of pixels. I always assumed the measurements were taken based on pixel count.

    **nevermind I see what you are trying to say. If they measured one inch and didn't reach a round number of pixels they would round up or down. Got it
