iPhone 6S+ 64GB TLC NAND and NVMe PCIe controller

Discussion in 'iPhone' started by neurostar, Sep 27, 2015.

Most Liked Posts
  1. neurostar, Sep 27, 2015

    neurostar macrumors newbie

    Joined:
    Jun 24, 2010
    #1
    I was just curious whether apple use TLC or MLC for iPhone 6S.
    Based on 16GB NAND part number from ifixit and chip works, they were all MLC from Toshiba or Hynix.

    I compiled https://github.com/matthiasgasser/IOKitBrowser in Xcode and ran it on my iPhone 6S+ 64GB.

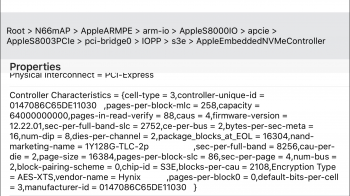

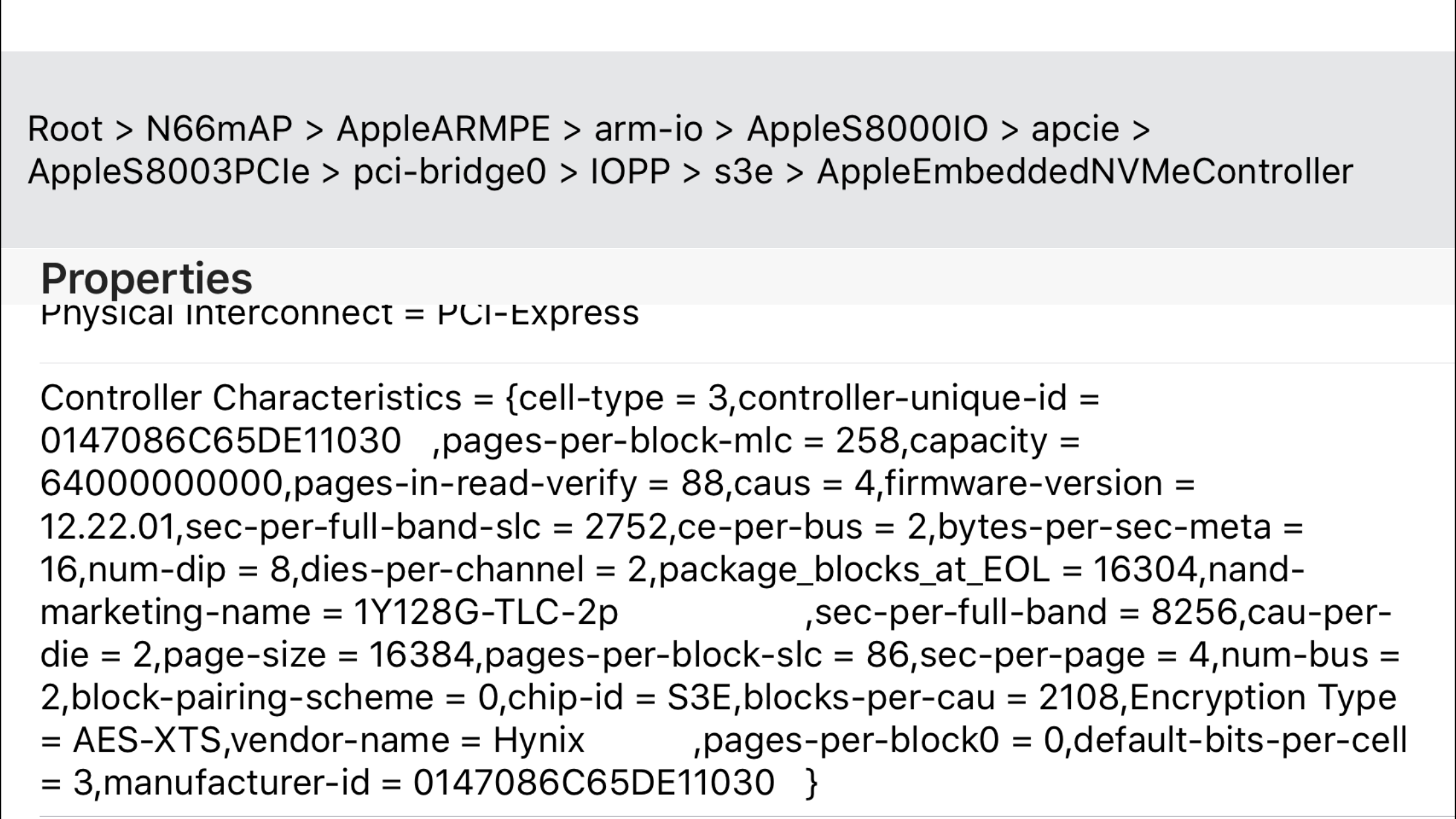

    Based on output my 64GB NAND is TLC.

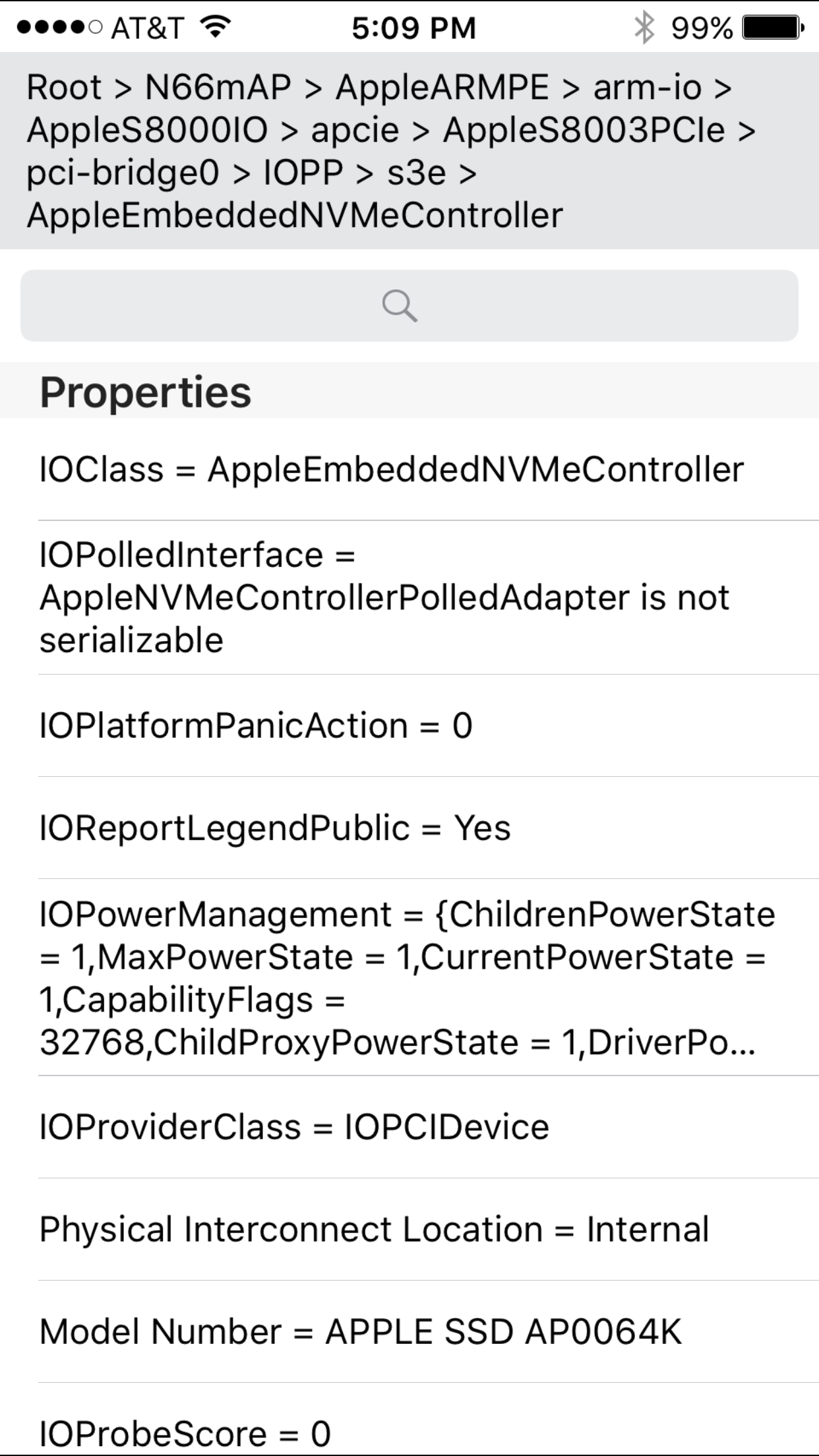

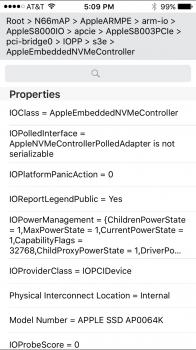

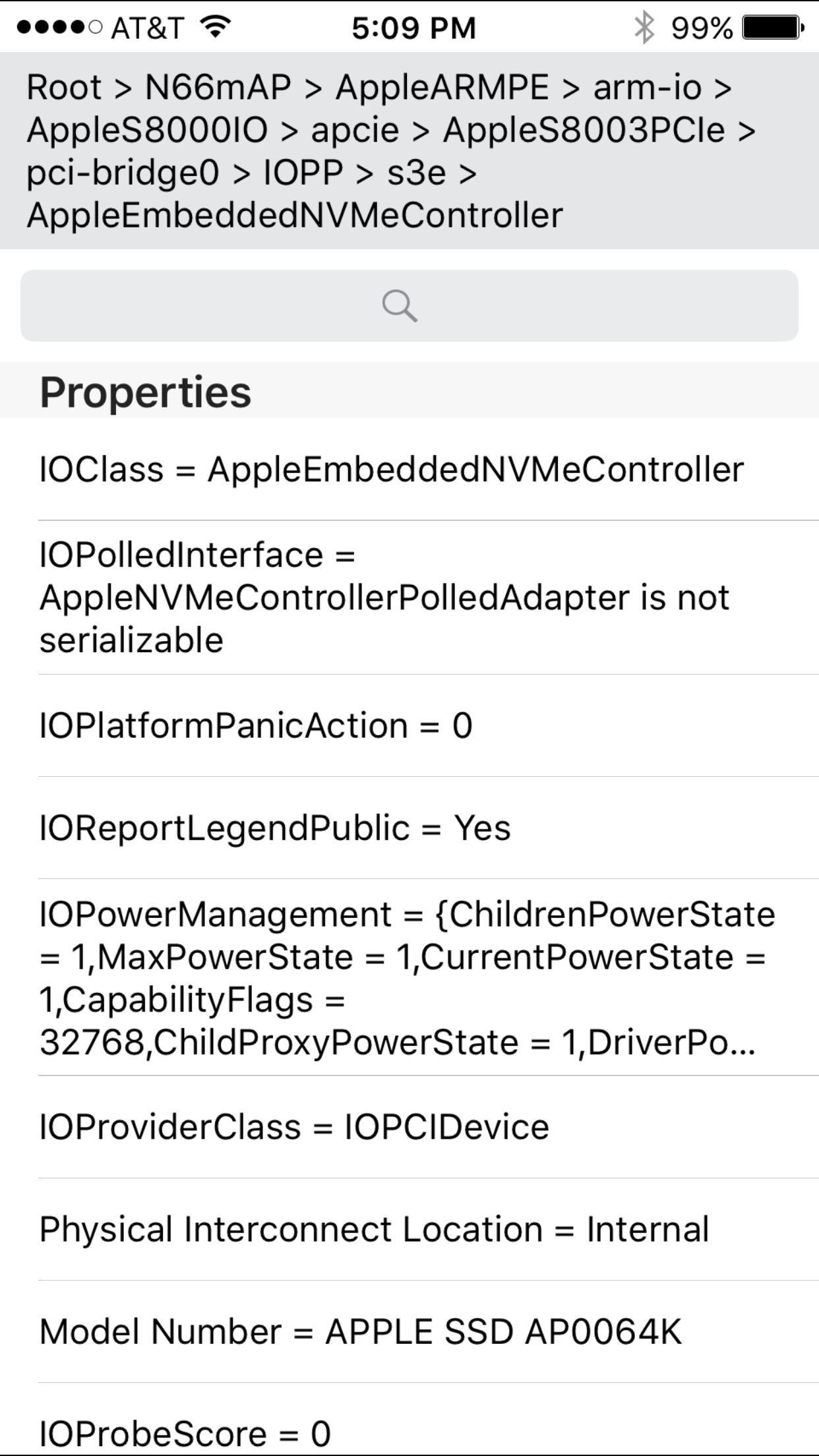

    Interestingly it seems that apple developed embed NVMe SSD controller and put it into A9 SOC.

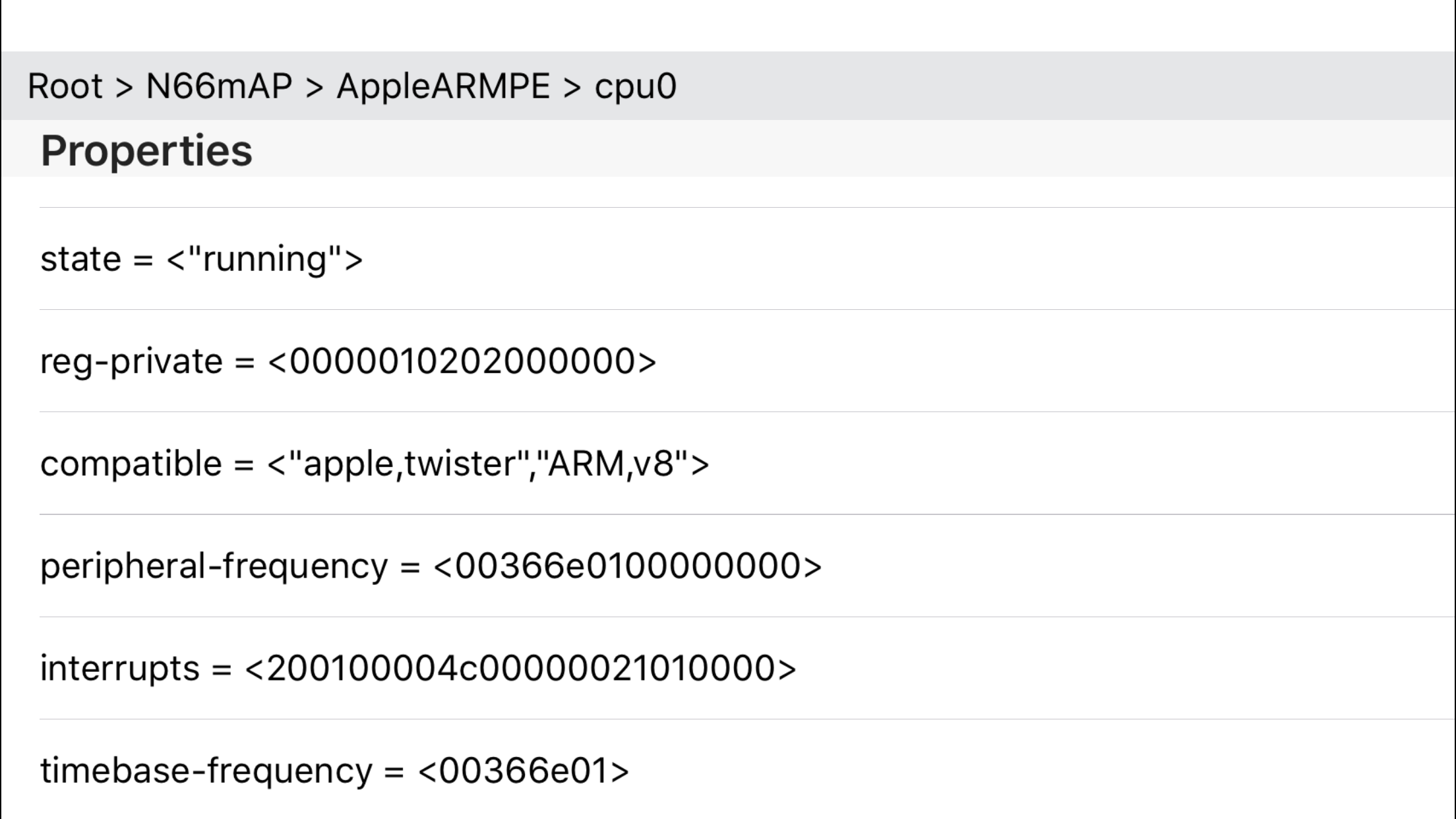

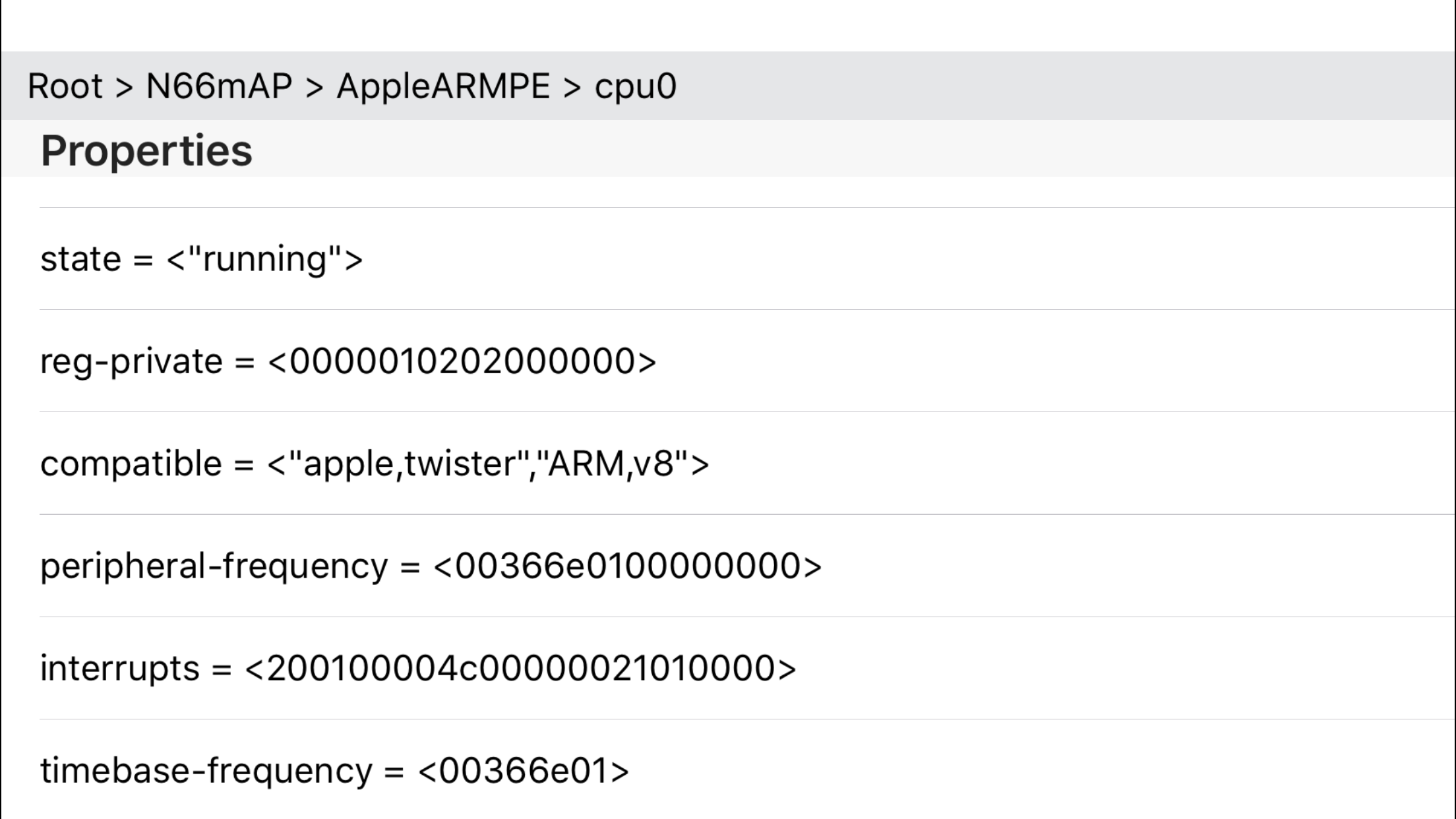

    Lastly, it seems that the code name of A9 is "twister".


    share
    + Quote Reply
  2. 938092, Sep 27, 2015

    938092 Suspended

    Joined:
    Dec 11, 2014
    #2
    Excellent work. Now hopefully this year the flash isn't faulty

    share
    + Quote Reply
    Avieshek likes this.
  3. TheSSDReview, Oct 4, 2015

    TheSSDReview macrumors newbie

    Joined:
    Oct 27, 2013
    #3
    share
    + Quote Reply
  4. Avieshek, Oct 19, 2016

    Avieshek Suspended

    Avieshek

    Joined:
    Dec 7, 2013
    Location:
    India
    #4
    Does UFS based flash storage has better potential?

    share
    + Quote Reply
