IPHONE into car deck (not using existing deck)

Discussion in 'iPhone Tips, Help and Troubleshooting' started by Koobs123, Jul 29, 2008.

  1. Koobs123 macrumors member

    Joined:
    Jul 29, 2008
    #1
    Okay I have a really ****ty deck right now (it actually scratches new CDs)
    And Ive seen others with pioneer decks have the module to hook up their IPOD/IPHONE to their deck and other cars like BMWs have built in jacks for it.

    what I want is to have my IPHONE as my deck. No other deck to run off or anything.

    How can I accomplish this?

    through an amp? Basically I need an Audio out to Iphone (with charging capabilities being a must)

    I guess im asking for a USB port goind directly to an amp (which all my speakers are hooked up to)

  2. Dimwhit macrumors 68000

    Dimwhit

    Joined:
    Apr 10, 2007
    #2
    You might be able to find an amp that the phone can plug straight into. That would be your only option that I can think of. But I doubt very much it will charge. You'll have to use the headphone jack to feed the amp, then charge with your cigarette lighter.

  3. Koobs123 thread starter macrumors member

    Joined:
    Jul 29, 2008
    #3
    I wont be able to get a usb comming from the amp?

  4. Koobs123 thread starter macrumors member

    Joined:
    Jul 29, 2008
  5. viggen61 macrumors 6502

    Joined:
    Jul 24, 2002
    Location:
    New Jersey
    #5
    Must be related to my PowerBook DVD drive...

    Let me see if I have this correct: You want ONLY the iPhone, no car head unit, no radio, no CD player, no cassette player, etc.

    Right?

    I think you mean audio out FROM the iPhone/iPod... There are several companies that make devices that charge the iPhone/iPod (make sure it's updated for the iPhone 3G if you have one), and provide a line output. Look for Griffin or Belkin or Kensington accessories on the online Apple Store.

    It'll plug into your cigarette lighter/power port in the car, and either provide a male 1/8" stereo plug with line out, or a female 1/8" stereo jack with line out. You then plug that into your head unit or into an amp (I suppose).

    Doubtful. USB is digital data, and almost any amplifier will need an anlog signal.

    You could bodge something together that would work for you, of that I have no doubt. But without a head unit, you have no volume control, unless you use the headphone plug on the iPhone/iPod. But with that it is possible to either overdrive (clipping, distortion in the sound) or underdrive (it never gets loud enough for you) the amplifier.

    The best method would be to get a new head unit that has an accessory line in, or USB connection.

    In one of my cars I have an Alpine CDA-9856 with the Full Speed iPod interface. It plays and controls my iPhone 3G just fine, but it doesn't charge it.

    :apple::apple:

  6. Dimwhit macrumors 68000

    Dimwhit

    Joined:
    Apr 10, 2007
    #6
    You might find a head unit that doesn't have a CD/Tape/etc. Then plug in to that. But I think viggen has the right of it in his post.

  7. viggen61 macrumors 6502

    Joined:
    Jul 24, 2002
    Location:
    New Jersey
    #7
    Alpine makes a car deck with no radio or CD/Cassette. It's meant only to connect to an iPod... yet it costs almost double what some of their iPod decks cost! :eek:

    :apple::apple:

  8. honeytoast macrumors regular

    Joined:
    Sep 15, 2004
    Location:
    bay area, CA
    #8
    Doubtful you will find a deck that supports usb charging (as the new iPhone 3G requires). I have an Eclipse deck with the iPod kit and it worked great with the original iPhone but now it doesn't charge the new one. I ended up buying a Kensington LiquidAUX car kit.

    without Holster
    http://www.amazon.com/Kensington-Li...1?ie=UTF8&s=electronics&qid=1217356893&sr=8-1

    with Holster
    http://www.amazon.com/Kensington-Li...2?ie=UTF8&s=electronics&qid=1217357185&sr=8-2

    Either of these will work with any deck that has an auxiliary input. I use the one with the holster and it works great. It charges the phone and comes with a remote that attaches to your steering wheel for easy pause/play, shuffle and skipping tracks. Also I can easily see my screen when somebody calls or I am using Google Maps. No more reaching for my phone while I'm trying to drive.

  9. viggen61 macrumors 6502

    Joined:
    Jul 24, 2002
    Location:
    New Jersey
    #9
    Actually, a lot of newer head units only have a USB interface. That makes them compatible with almost anything...

    :apple::apple:

  10. Koobs123 thread starter macrumors member

    Joined:
    Jul 29, 2008
    #10

    So basic overview...

    I need a 3g compatible car dock (that charges... wire that up to power or use the 12v outlet)

    Use a headphone jack from the iphone to a line out (not sure what that really is) for the amp.

    also the issue with the volume... can i hook up a volume knob?


    thanks for the help guys... really appreciatted.

    pic of my car for views.
    [​IMG]

  11. Koobs123 thread starter macrumors member

    Joined:
    Jul 29, 2008
    #11

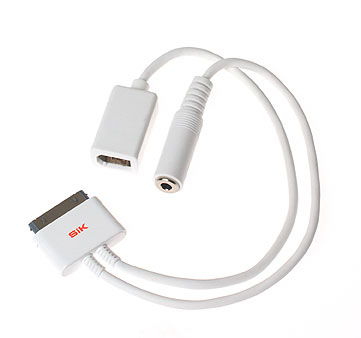

    and what about something like this?

    but instead of firewire have something else for charging purposes, and use that female jack for audio in....?

    [​IMG]

  12. viggen61 macrumors 6502

    Joined:
    Jul 24, 2002
    Location:
    New Jersey
    #12

    Plug: male part
    Jack: female part
    (I didn't name them...)

    It makes a difference, as to what connection cable you need to go between your components.



    Not really. The iPod/iPhone can only supply so much signal out. Your amplifier needs a certain level of signal, which your iPhone may not be able to provide.

    "Line out" refers to a more-or-less industry standard for the voltages and signal levels. The level is not adjustable. This is compared with "speaker out" which has a variable level (the signal you send to a speaker). A "speaker out" is not standard, as driving that huge subwoofer takes a lot more power than driving a pair of earbuds.

    You **might** get away with just using the earbud jack on the phone, and the volume on the phone to drive the amp. But, if my experience with a Buick Rendezvous is any indication, you'll have to turn the phone volume waaaaaaaay up to get anything useful out of the amp. And run the risk of overdriving your ears the next time you hook in the earbuds.



    If you can spend $150, you should be able to score a head unit with Aux in (probably not iPod specific, but good enough), and a device that will charge it and provide the line-out signal for the aux-in. Just watch for sales at Best Buy or Crutchfield.

    Or, just get a cigarette lighter/charge with an FM modulator. No, it's not the best, but it works, and since you have limited funds, might be the way to go.

    :apple::apple:


  13. viggen61 macrumors 6502

    Joined:
    Jul 24, 2002
    Location:
    New Jersey
    #13
    Yes, but, as you said, it needs to charge on the USB pins of the Dock connector. And they make them with a cigarette lighter plug already on them. Again, though, you have to know it will work with the 3G.

    (The signal goes OUT from the phone, then IN to the amp.)

    :apple::apple:

  14. viggen61 macrumors 6502

    Joined:
    Jul 24, 2002
    Location:
    New Jersey
    #14
    Do these work with the iPhone 3G? I know the Amazon site says so, but the Kensington site doesn't say anything about it. Good to know about, if it does support it.

    :apple::apple:

  15. Koobs123 thread starter macrumors member

    Joined:
    Jul 29, 2008
    #15
    here i go

    This is what i need. Id chop off the lighter plug and wire it directly to a 12v source.

    run line out (males) to a male mic connector (which will connect to the SIK cable female mic port)

    done?? what you guys think?

    [​IMG]

  16. viggen61 macrumors 6502

    Joined:
    Jul 24, 2002
    Location:
    New Jersey
    #16
    It will not work if the cable has a FireWire connector on it.

    FireWire not only charges at a different voltage (12v), it uses different pins on the Dock connector than the USB connection does.

    :apple::apple:

  17. Koobs123 thread starter macrumors member

    Joined:
    Jul 29, 2008
    #17
    it says its for every ipod/iphone (including 3g) so i dono what u mean by it uses different pins

  18. christf10 macrumors member

    christf10

    Joined:
    Oct 16, 2007
    Location:
    Rockland County, NY
    #18
    It will prob cost less and be less of a headache for you to just get a new headunit with an AUX out or a direct iPod connection.

  19. Koobs123 thread starter macrumors member

    Joined:
    Jul 29, 2008
    #19
    how?

    the cable is 30 bucks... a new headunit isnt.

  20. viggen61 macrumors 6502

    Joined:
    Jul 24, 2002
    Location:
    New Jersey
    #20
    **sigh**

    There are 30 pins on the dock connector at the bottom of your iPod or iPhone. Wikipedia has an entry for it: Dock Connector. The FireWire connection - which is what the device you show in the photo has - uses pins 19 & 20 for the +12volts, and 29 & 30 for the ground side. Plus others for the actual signal.

    The USB connection uses pin 23 for the 5 volt power, and pin 16 for the power ground.

    If you are connecting to the FireWire pins, they are not the same pins on the dock connector as the USB connection uses.

    The iPhone will only charge if power is applied to pins 23 & 16 at 5 volts, which is done when it is docked using USB.

    Where did you get the photo of that device? I would like to look them up and
    see their website.

    Someone else posted in this thread about a Kensington device which looks promising. The eBay ad stated that it works with the iPhone 3G, but the manufacturer's website made no such mention. Who are you going to believe?

    Also, be careful that advertisers are not talking about the iPOD 3rd Generation, sometimes referred to as the iPod 3G (the first one with the Dock connector).

    :apple::apple:

  21. viggen61 macrumors 6502

    Joined:
    Jul 24, 2002
    Location:
    New Jersey
    #21
    Found the company's website:

    SiK

    All of their products claim FireWire charging, which is NOT compatible with the iPhone.

    Hopefully they'll update/upgrade, as this seems to be a good product.

    MacSales doesn't even show that device on the iPhone page (unless you get a different iPhone page than I do...).

    :apple::apple:
